雪山村住宅 / 大料建筑

多功能复合与空间弹性设计：该项目最精髓之处在于其对未来不确定性的前瞻性应对。建筑被巧妙地设计成一个可灵活转换的“组合大柜”，无缝集成了居住、办公、展示乃至潜在的商业租赁等多种功能需求。通过反转传统的“房包院”格局，集中体量并以退台式设计创造私密露台，确保了居住的舒适性与私密性。同时，通过设置独立出入口和灵活的大空间布局，实现了办公功能与居住功能的有效区隔与切换，体现了极高的空间适应性和设计前瞻性。

城乡结合部的低成本可持续策略：设计在经济性和环境友好性上取得了卓越平衡。项目通过被动式节能设计，如优化体型系数、强化保温隔热、利用穿堂风等，实现了低能耗目标。更重要的是，它深度融合了房主在雨水收集与再利用方面的专业经验，将庭院景观和屋顶绿化整合为雨水管理系统，实现了从收集到再利用的全流程管理。这种将专业技术融入低成本、实用建造中的方式，为乡村建设提供了经济可行且环境友好的范例。

社区驱动的未来发展蓝图：该项目超越了单纯的私人住宅范畴，成为一个可复制的“自主开发住宅样本”和“批判性提案”。它旨在为城市边缘的乡村地区（如雪山村）注入新的活力，吸引工作自由化的人群，并逐步构建一个有机生长的社区聚落。通过将部分空间（如首层卧室转为社区图书室）向邻里开放，并规划配套的交通和商业设施（如通勤班车、市集），建筑师正积极探索一种超越个体住宅的新型城乡结合部生活范式和系统化开发模式。

The project is located in Xueshan Village, Changping District, Beijing, situated at the junction of the city and the village, about a 30-minute drive from the Second Ring Road in the city, making it quite accessible within the vast expanse of "Greater Beijing". The homeowner, an alumnus of mine, had an idle piece of suburban Beijing homestead for many years, and in 2022, he conceived the idea of utilizing it, though the specific use was uncertain. I recall that during our first discussion, he mentioned three possibilities: (1) as a second residence for his own use, which his parents might occasionally inhabit; (2) as his company office three years later; or (3) if undecided, to rent it out. Therefore, our design began by separately sorting out the spatial coordination required for these three different functional demands.

项目位于北京昌平区雪山村，地处城市与村庄交接之处，驾车至城市二环仅需约 30 分钟，在八街九陌的“大北京”里已属近便。房主是我的校友，家中这块京郊宅基地闲置多年，2022 年他萌生了将其利用起来的想法，而如何使用并不确定。记得在我们第一次沟通时，他说有三种可能性，分别是：（1）作为自住的第二居所，父母有可能偶尔会住；（2）三年后作为他的公司办公室；（3）没考虑好时则出租。因此，我们的设计便开始于分别梳理这三种不同的功能需求与空间的配合关系。

As the design progressed, we realized it was increasingly resembling a "composite cabinet," bearing a construction experiment jointly completed by us and the homeowner concerning the compatibility of urban and rural life, work and living.

随着设计的进行，我们发现它越来越像一个“组合大柜”，承载着我们和房主共同完成的一次关于城市与乡村、工作与生活是否可以兼容的建设实验。

Experiment One: Composite Function
How to integrate three seemingly unrelated functions into the same space, allowing the owner to transition seamlessly between living, working, exhibiting, and commercial use, while maintaining self-consistency, was the first experiment we conducted here, relating to architecture.

实验一：复合功能

如何将看起来各不相关的三种功能复合进同一空间，让主人回转于居住、办公、展示与商业等使用状态之间，并达到自洽，是我们在这里展开的第一个实验，与建筑学有关。

1. Residential Needs

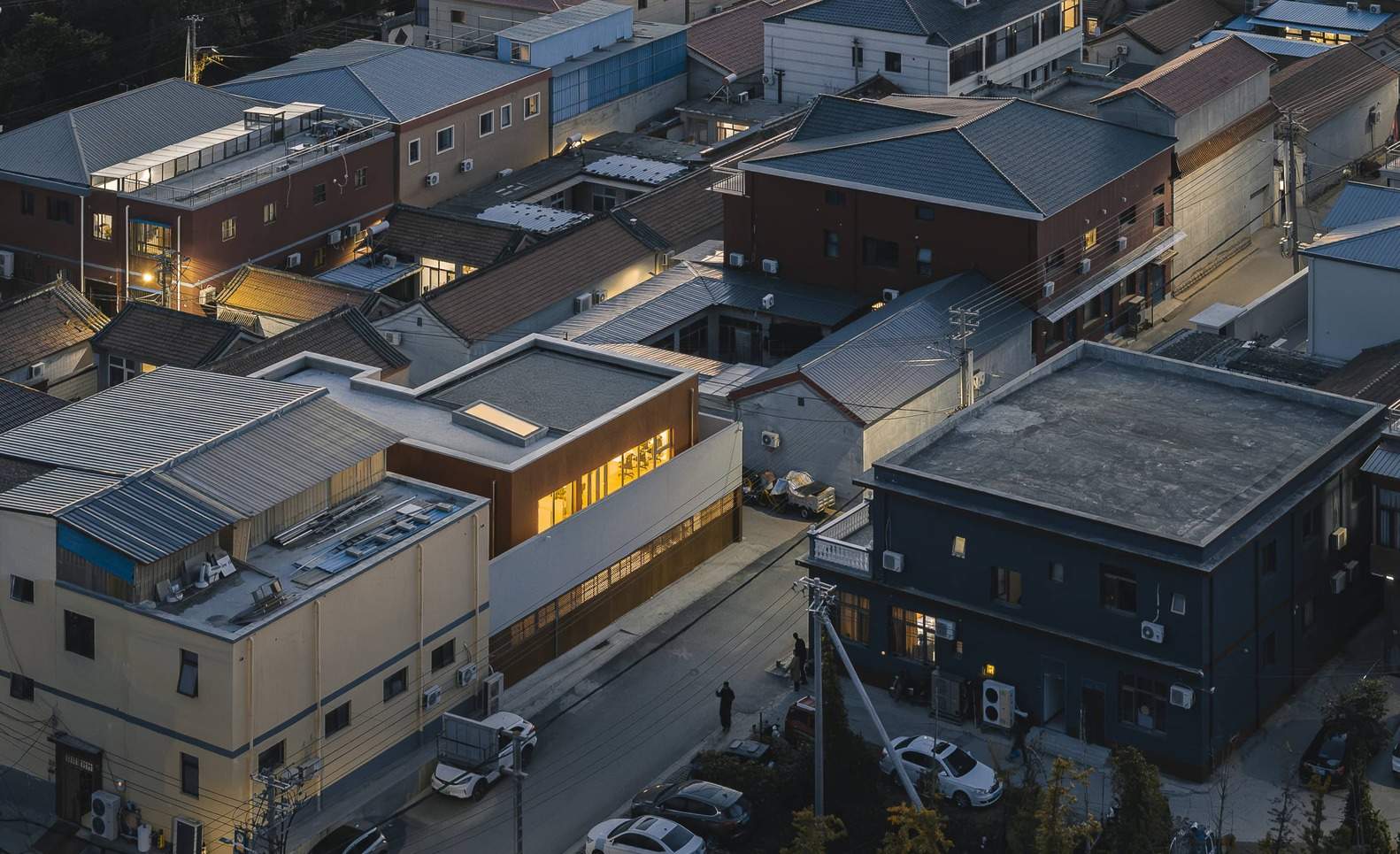

The project is located in the northeast corner of the village, sharing the same plot with several other residences, adjacent to the urban road on the east side of the village. The site boundary is square; the north and west sides face the internal village roads, while the east and south sides are close to neighboring courtyard walls. The homeowner’s spatial needs are similar to a traditional three-bedroom, two-living-room layout, with the difference being the desire for every room to have direct access to the courtyard for tending plants, while maintaining privacy separated from adjacent courtyards.

1.居住需求

项目位于村庄东北角，与另外几户住宅共处于同一地块，地块毗邻村庄东侧的城市道路。场地基地边界方正，北侧和西侧面向村庄内部道路，场地的东与南则紧挨邻居院墙。房主的空间需求类似传统的三室两厅，不同的是希望每一个房间都能直接进出院落，方便照料花草，但又保持与邻近院落相隔的私密性。

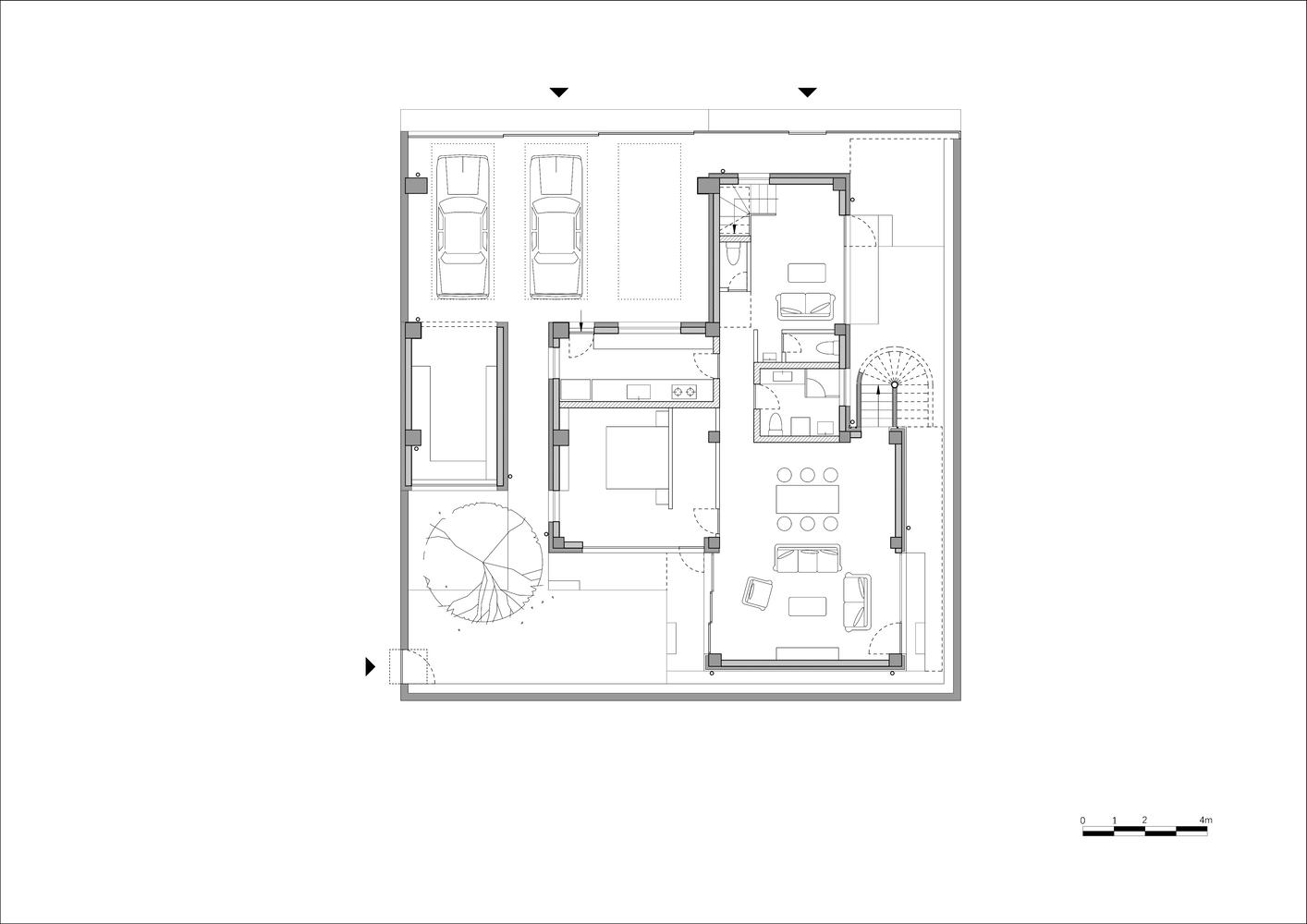

Plan View

Firstly, we reversed the conventional spatial relationship of "house enclosing the courtyard" in rural residences, concentrating the building volume to allow courtyards of different scales to surround the architecture, which also endowed the adjacent interior spaces with more ambiguous and versatile possibilities. Simultaneously, to ensure residential privacy, we designed the building form with setbacks, providing terrace space for the second-floor bedrooms, and raised the surrounding walls to 1.6 meters to avoid mutual visual interference with neighbors. The pedestrian entrance for the living function is set on the west side of the site, adjacent to the village road, and near the main gate of the relative’s house on the south side, facilitating visits.

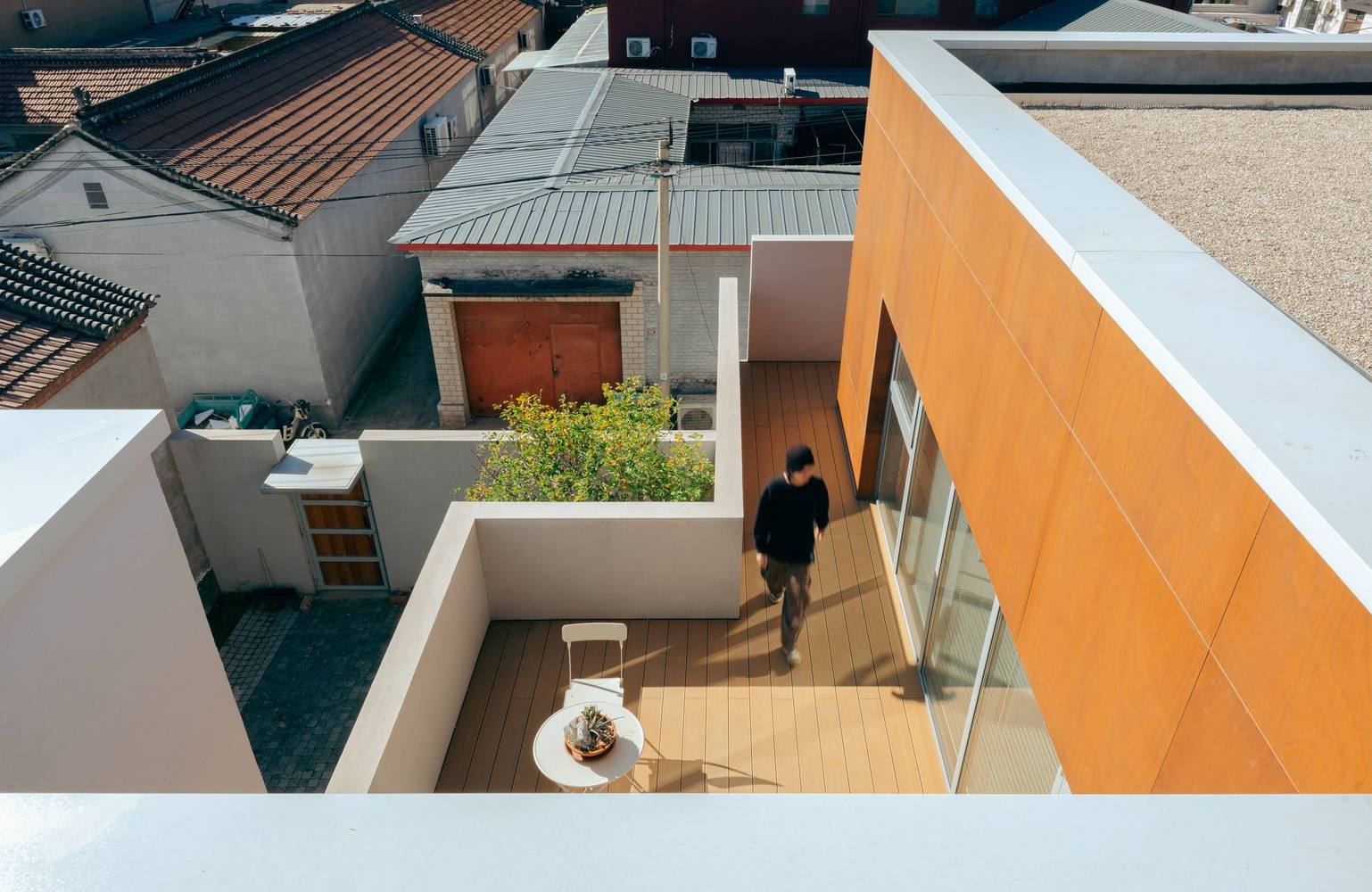

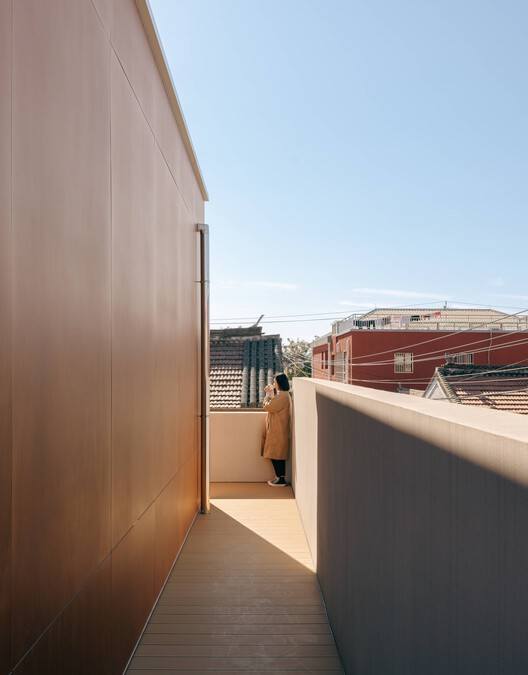

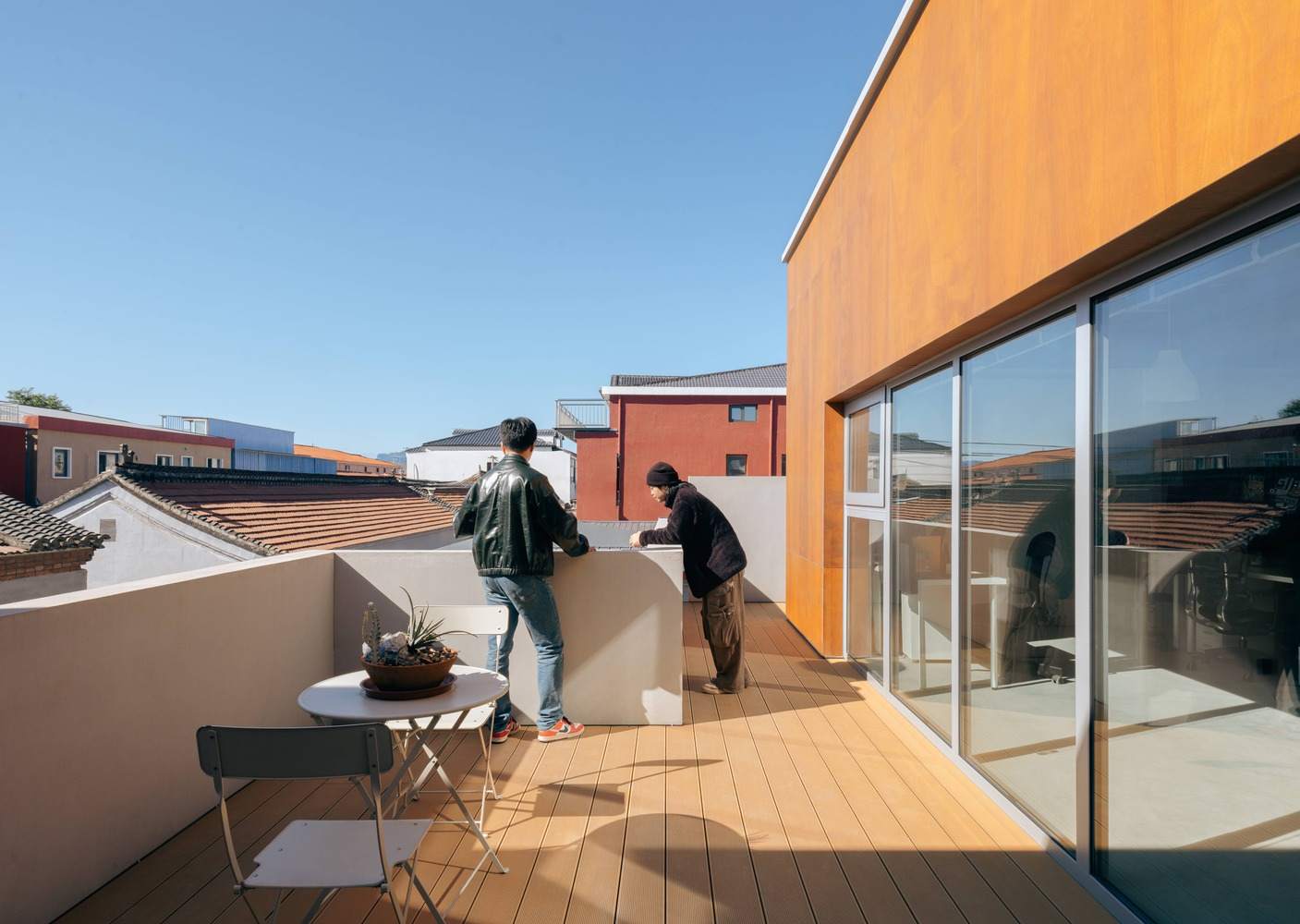

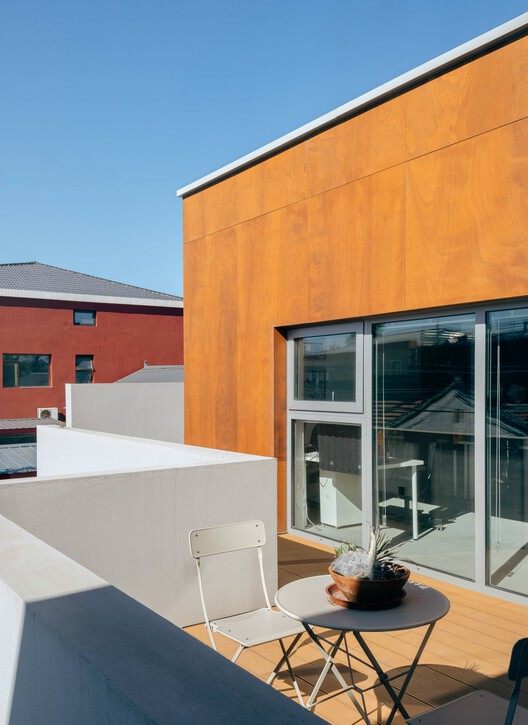

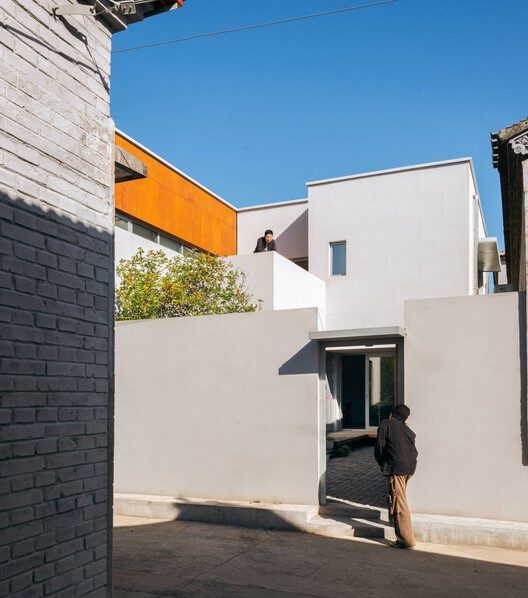

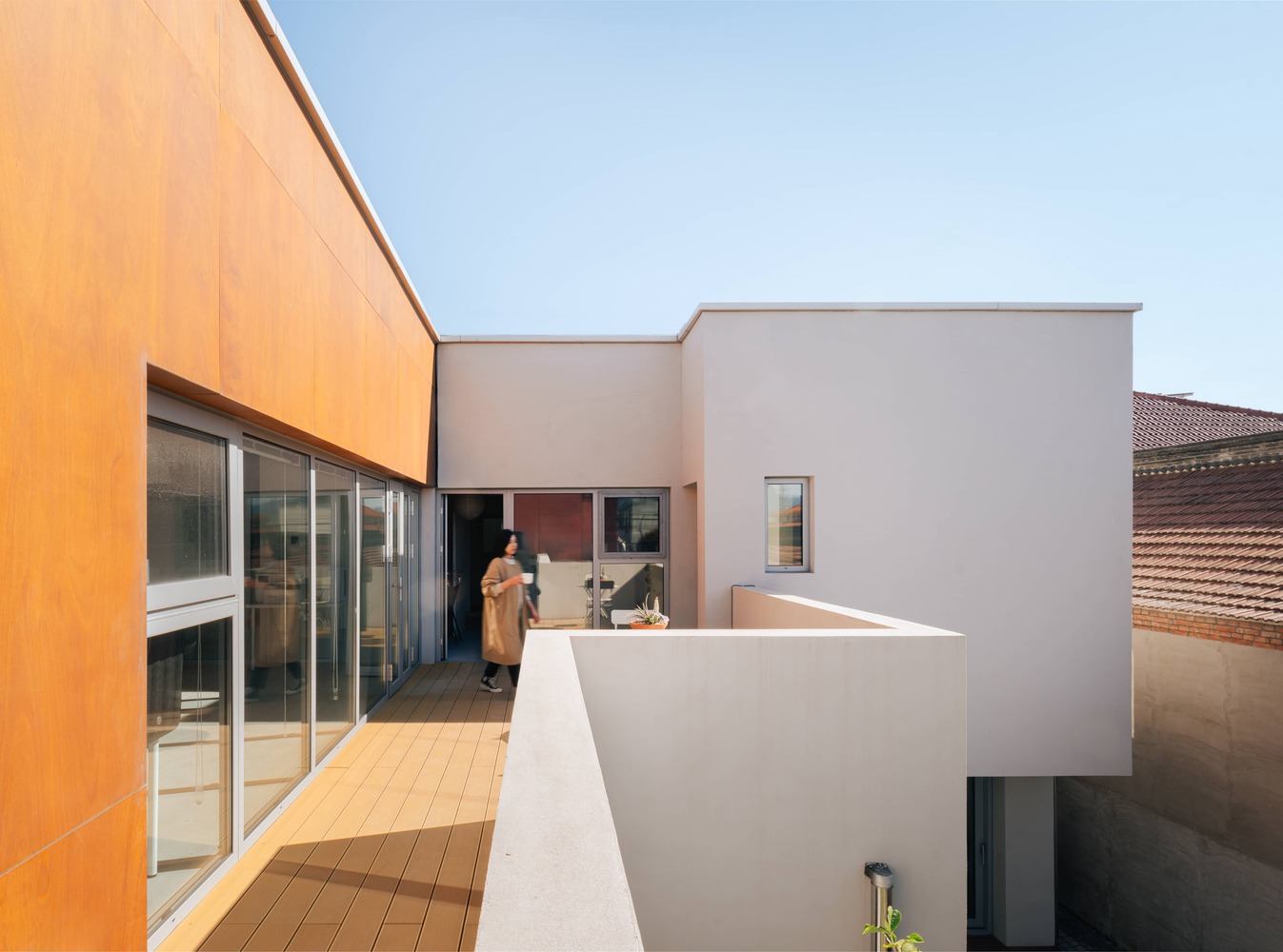

首先，我们将乡村住宅“房包院”的常规空间关系进行反转，集中建筑体量，令不同尺度的院落环绕于建筑四周，也为相邻的室内空间赋予更为模糊多变的可能性。与此同时，为了保证居住私密性，我们把建筑形体做成退台，为二层的卧室提供了露台空间，并将围墙提高到 1.6 米，避免与邻居视线互相干扰。居住功能的人行出入口被设定于场地西侧，紧邻村内道路，与南侧亲戚家大门临近，方便串门。

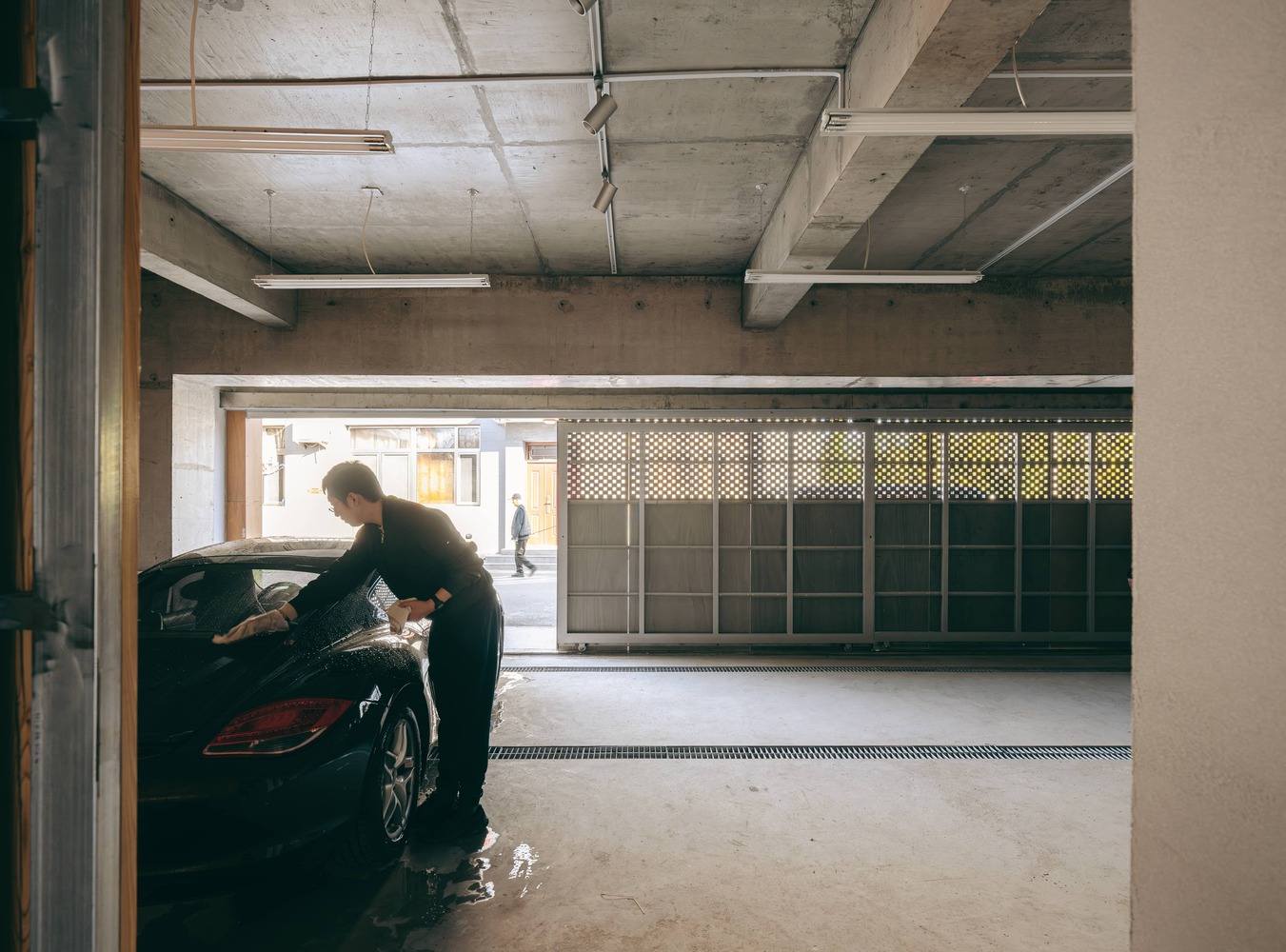

In addition to daily work, the homeowner is passionate about vehicle mechanics and requires a garage with at least three parking spaces, a requirement that almost determined that the side facing the main road must be dedicated to the garage function. Thus, the three-car garage opens to the northern village road via a sliding door, which can open entirely, serving both for external access for spaces like offices and breaking the enclosed convention of the rural streetscape with an open posture.

在日常工作之外，房主热衷于车辆机械，需要至少三个车位的车库，这一需求也几乎确定了临主路的一侧必须留给车库功能。于是，三车位车库以平移门的形式面向北侧村路展开，大门可整面打开，既可满足办公等对外空间的出入功能，又以开放的姿态打破乡村街面的封闭惯常。

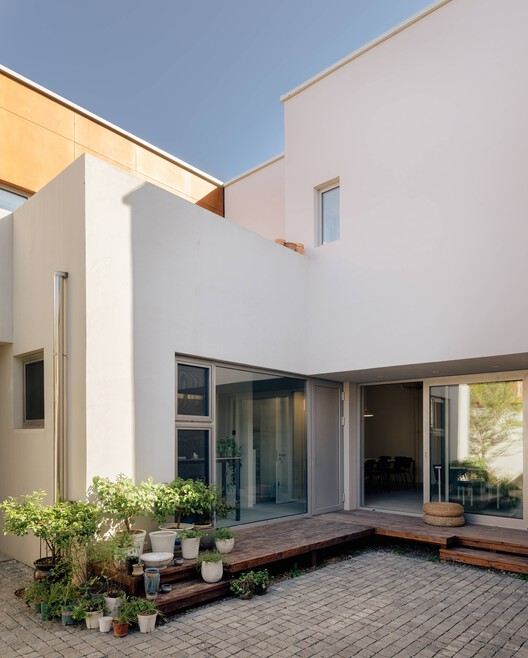

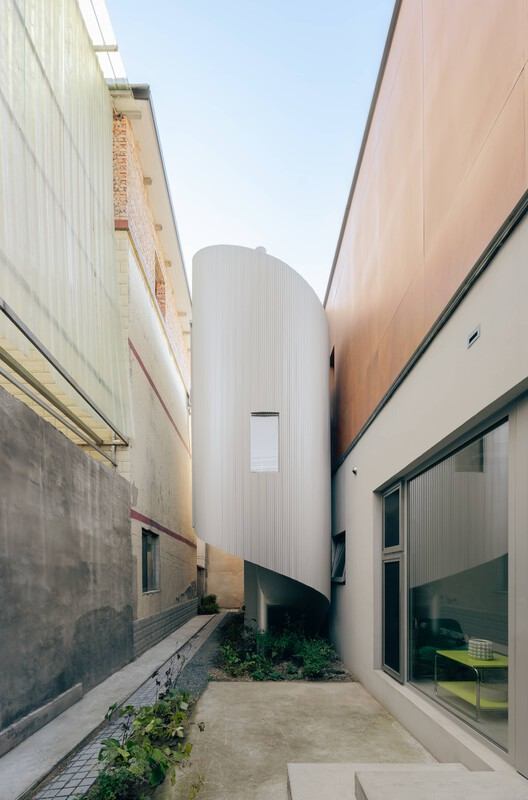

Simultaneously, the streetscape is connected to the internal courtyard in two directions, which, combined with the openness and enclosure of the courtyard walls, provides the possibility for the courtyards to shift between interior and exterior attributes. The courtyards, terraces, and roof platforms maximize the integration of the building with the natural environment; every room has direct access to the outdoors, and the differences in spatial experience caused by varying functions are mitigated by the shared pursuit of landscape permeability.

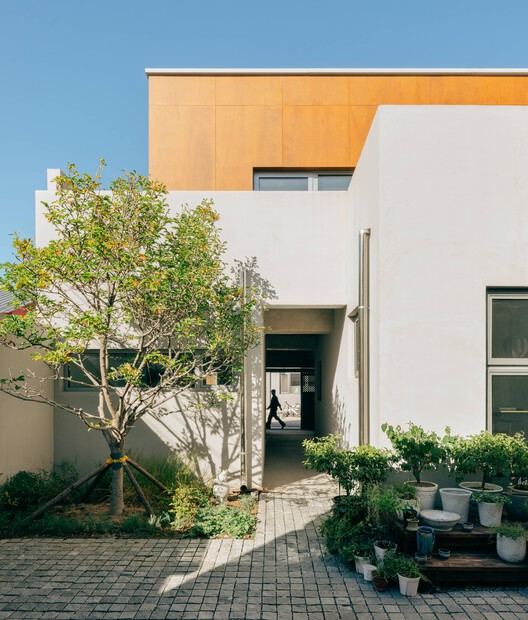

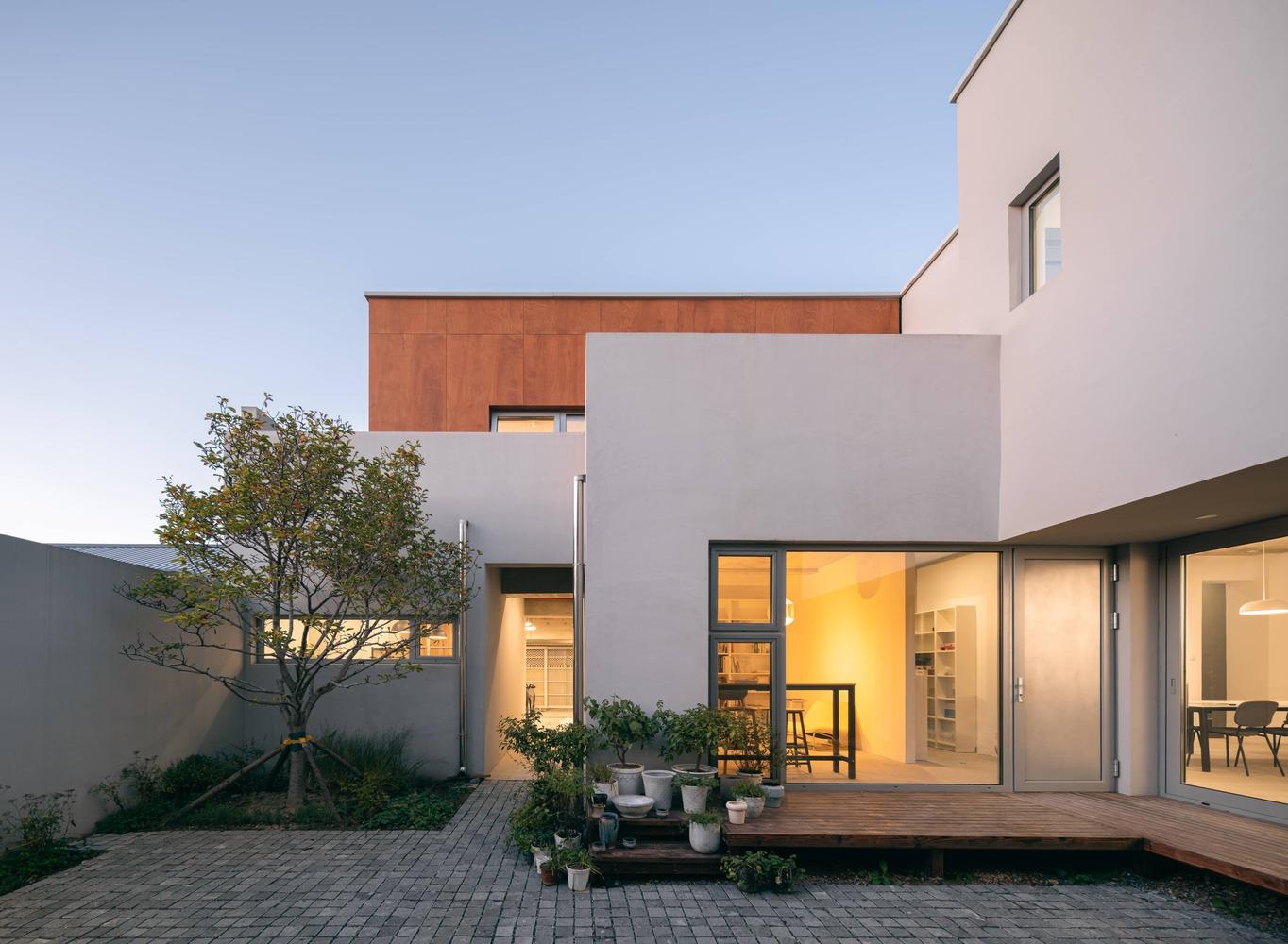

同时，街面空间也与内部庭院在两个方向上贯通连接，结合院墙的开放与封闭，为院落提供了内外属性转换的可能。庭院、露台与屋顶平台最大程度地将建筑与自然环境融合，每个房间均可直接通往室外，因使用功能不同造成的空间感受差异，在共同追求景观渗透性的过程中得以消减。

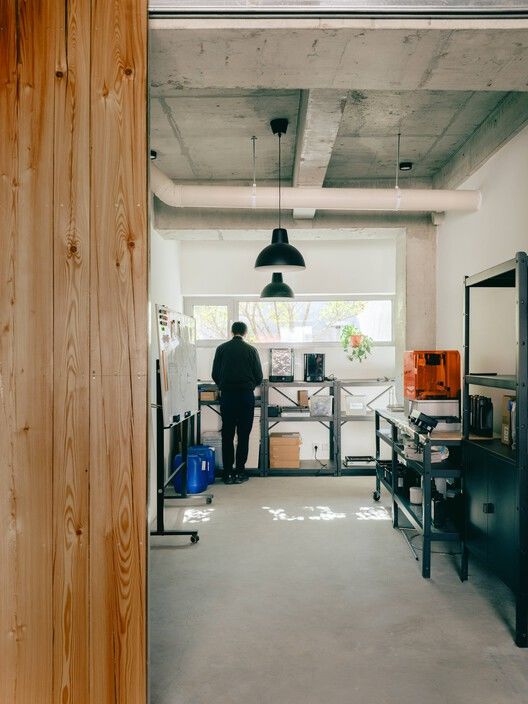

Furthermore, both the homeowner and his father enjoy manual work and require a workshop. We combined the workshop with the garage, also serving as a 3D printing processing space, for woodworking and the design and fabrication of rainwater energy-saving accessories. This shortens the operational workflow while keeping it separate from the main house, ensuring that dust and noise generated during operation are exchanged only with the outdoors.

再者，房主及其父亲则都喜好手作加工，需要一间手工坊，我们将手工坊与车库相结合，兼作 3D 打印加工空间，用于木作加工和雨水节能配件的设计与制作。如此一来，在缩短操作流线的同时，又令其独立于房屋主体之外，确保操作过程中产生的灰尘与噪音仅与户外交换。

With the house completed, this workshop was one of the first rooms to be put into use. The homeowner made non-standard drainage accessories, his father personally made a solid wood sign, and even designed a logo for the house.

随着房子建成，这个手工坊几乎是最先投入使用的房间，房主做了非标的排水配件，房主父亲亲手做了实木门牌，甚至为房子设计了 logo。

2. Office Needs

The homeowner is engaged in the design and R&D of landscape water systems. His main office used to be in the central urban area within the Second Ring Road, but due to colleagues working remotely from various locations, the office utilization rate was not high. Thus, leveraging Xueshan Village's relatively convenient transportation, he had the idea of using this project as his primary office for daily administrative tasks. Although it was just an initial concept, the design needed to account for it. The interior mainly consists of fluid, large spaces, facilitating the flexible definition of usage scenarios as needed.

2.办公需求

房主从事景观水系统相关设计及研发工作，之前的主要办公地点位于二环内中心城区，但由于同事天南海北分散各地远程办公，办公室的使用率并不高，因此，结合雪山村相对便捷的交通条件，他便有了将本项目作为第一办公室，承担日常办公事务的想法。虽然最开始只是一种设想，但设计却要顾全。室内以流畅的大空间为主，方便根据需要自如地定义使用场景。

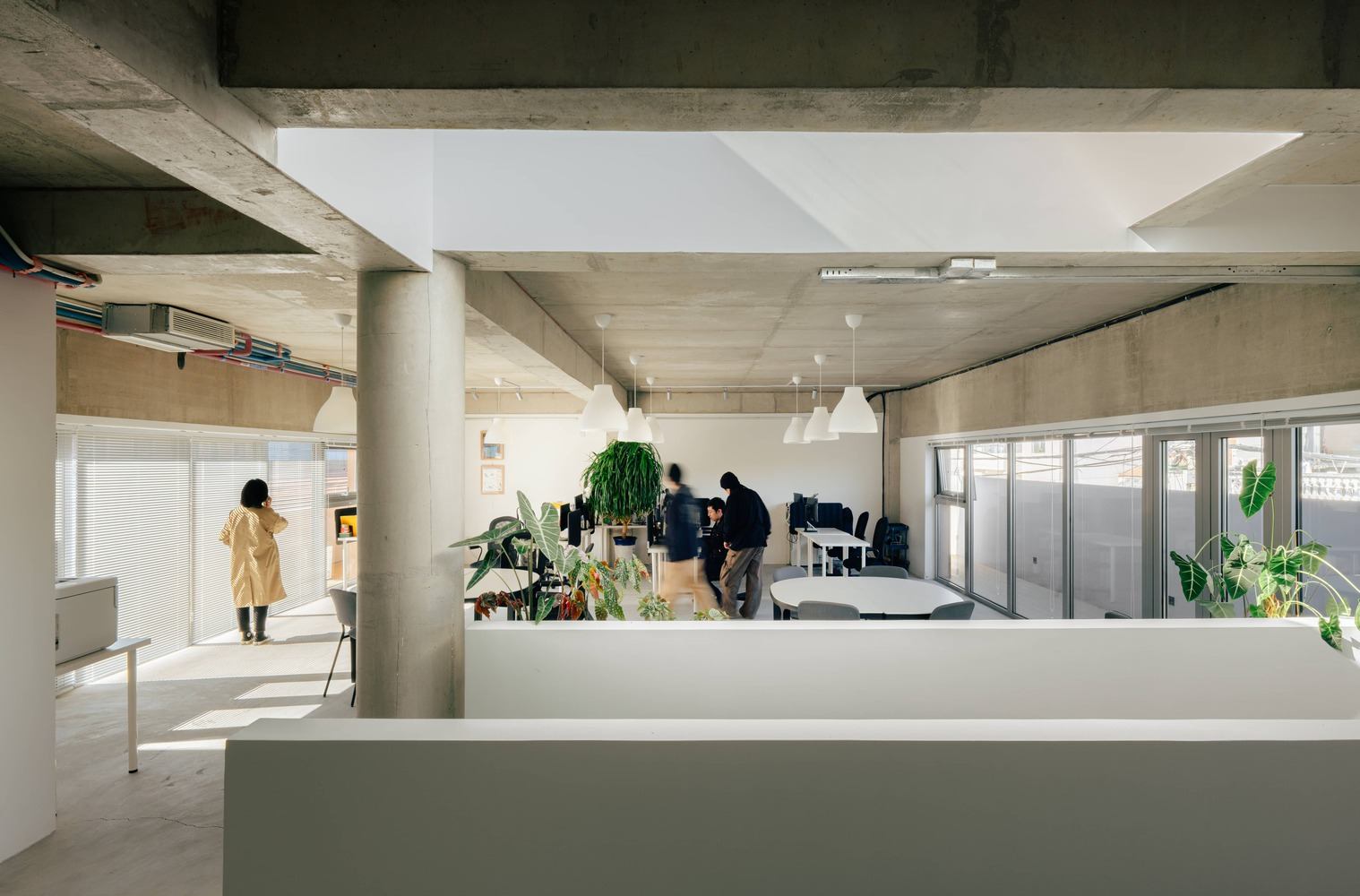

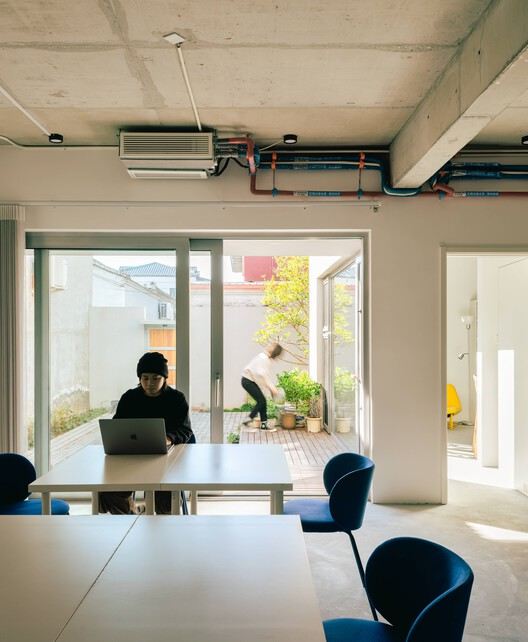

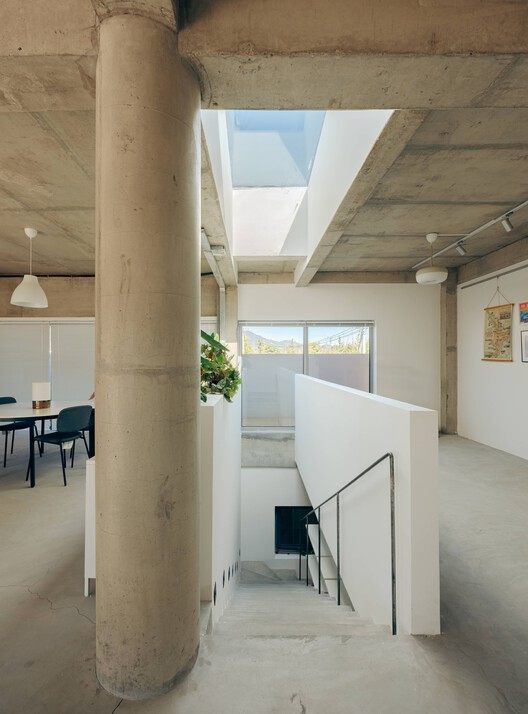

The ground floor public space is paired with the courtyard, extending the spatial fluidity from the exterior to the interior. The flexible large space currently serves as an exhibition area and can also be expanded into an office or living room. The southeast corner of the second floor retains residential functions, while the remaining open spaces are designed as an open office capable of accommodating more than ten people. The north side facing the street is equipped with an independent office entrance, a courtyard foyer, a separate staircase, and a restroom. This arrangement ensures no interference with the residential functions while also providing a door to transition between separation and connection for office and living.

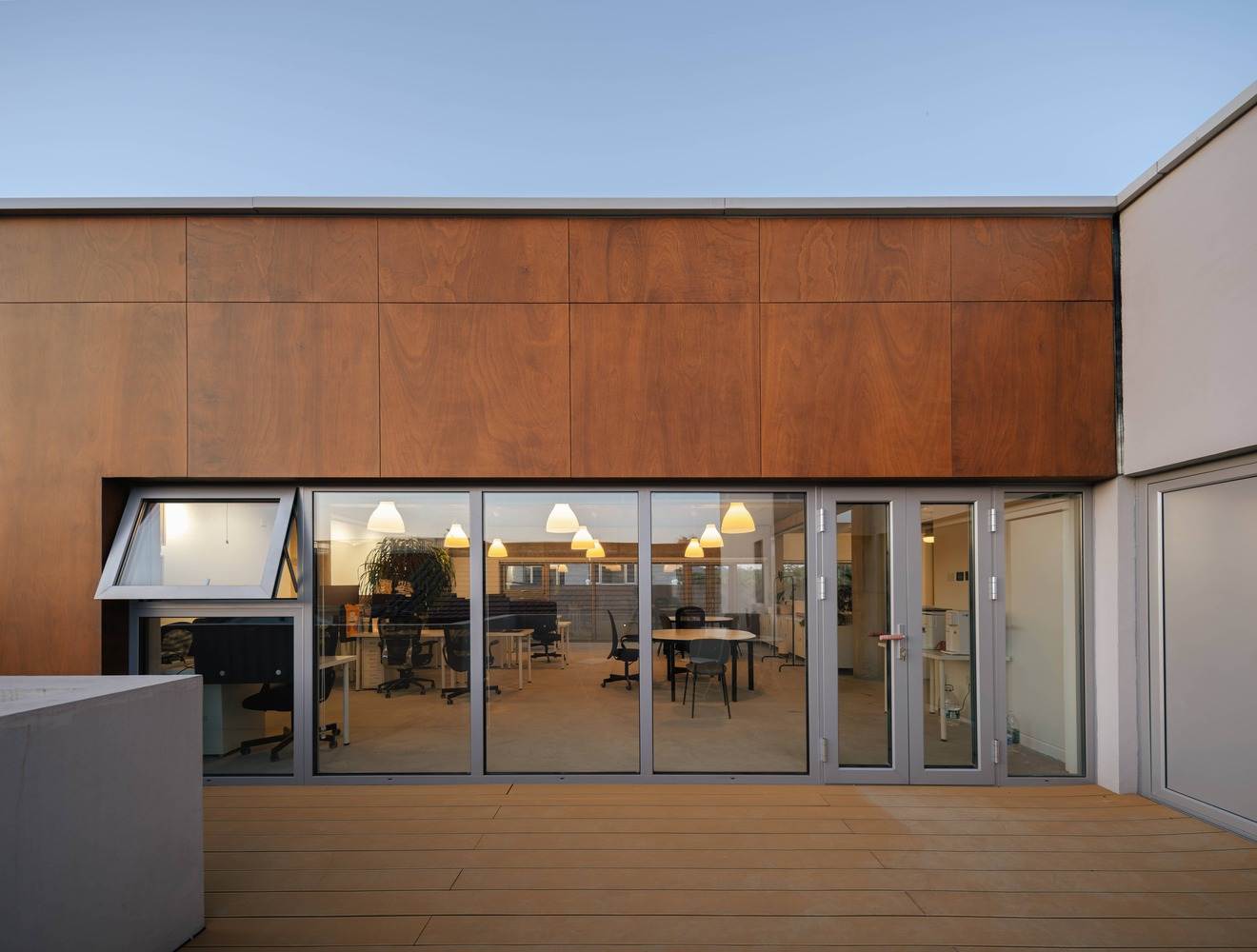

一层公共空间与庭院组合相伴，将空间的流动性从室外延伸至室内。灵活的大空间目前作为展示空间，也可扩展为办公空间或起居室。在二层东南角保留居住功能，其余开敞空间则为可容纳十几人的开放办公室。临街北侧设置办公独立出入口、庭院门厅、独立楼梯和卫生间，如此一来，保证跟居住功能互不干扰的同时，也留了一道门来转换办公和居住的分离或连通。

After more than a year of design and construction, the homeowner has decided to keep only one office in the city for reception and negotiation, moving all other work to this project. In addition to office use, it also serves a partial exhibition function to display research and design achievements; consequently, the former residential living room has been converted into an exhibition hall. Moreover, the house itself serves as an exhibit demonstrating the achievements of rainwater harvesting and recycling technology, with the ground and roof gardens acting as experimental sites for landscape planting.

经过一年多的设计和建造，房主已经决定在城里仅保留一间办公室用于接待洽谈，其他办公皆迁至本项目。除办公外，同时兼顾一部分展示功能，用以展示科研设计成果，相应地，原来居住功能的起居室便转换为展厅。并且，房子本身也是一座展示雨水收集再处理技术成果的展品，地面和屋顶的花园更是其景观种植的实验地。

3. Operational Needs

The initial consideration for the homeowner, based on investment return analysis and surrounding site needs, was the long-term leasing potential of the project for street-front commerce, office, or residence. This proved true; immediately upon completion, the homeowner tested the market with a temporary rental advertisement, which confirmed such demand existed. However, as the design process unfolded and the homeowner became more familiar with the environment, his perspective gradually shifted—from renting the entire building long-term to self-operation. Consequently, the design focus changed: the hope is that this building can serve as a model home, leading by example, to introduce public cultural and commercial spaces into Xueshan Village, forming a replicable model of autonomous construction and development in the urban-rural fringe, attempting to transform independent construction into systematic development to bring more value to the countryside while securing long-term profit.

3.经营需求

原初房主出于投资建设回报和场地周边需求的测算分析，认为该项目在临街商业、办公及居住等方面具有长期租赁潜力。事实也是如此，在建筑刚刚完工时，房主曾临时放出招租广告试验，得到的反馈证明确有此类需求。而在设计过程中，房主对环境更加熟悉后，想法也逐渐发生了变化 —— 从整栋长租转变为自主经营。因此设计的重心也随之发生变化，希望此建筑能够作为样板间，以点带面，为雪山村增加公共文化和商业空间，形成城乡结合部一种可复制的自主建设开发模式，试着把独立建设变为系统开发，为乡村带来更多价值的同时，也可获得长期利润。

Correspondingly, the building's material construction and energy-saving aspects were integrated to be more economical and effective, reducing some personalized expressive forms. In future village planning, the eastern municipal road will be widened, making the building's eastern facade directly face the street; therefore, the area of the exterior glass curtain wall on this side was enlarged to accommodate future street-front business operations. Meanwhile, in current practical use, the original ground-floor bedroom has been converted into a community reading room, open to neighbors and the street, with convenient access.

与之相应的，建筑在材料构造和型体节能等方面也整合得更经济有效，减少了一些个性化的造型表达。在未来的村庄规划中，东侧市政路将拓宽，建筑东立面因此直接临街，故此扩大此处对外玻璃幕的面积，为之后开展临街经营提供条件。同时，在目前实际使用中，将原本首层卧室调整为社区图书室，面向邻里与街道开放，出入便利。

Experiment Two: Applicable Control
Due to the future operational vision mentioned above, we hoped this would be a building with a neutral posture, strong site adaptability, and ease of replication, all while being low-cost and low-energy. Judging from the final professional energy consumption analysis rating, this building basically achieved the expected passive energy-saving goals. The building's exterior form is modest and practical, and the construction methods are as reliable and universal as possible, attempting to reduce some of our previously habitual aesthetic inertia and individual narratives. We hope this design can be systematically and critically examined; this is also a new attempt for us.

实验二：适用控制

由于上述提到的未来经营设想，我们希望这是一栋姿态中性、场地适应性强、易于复制的建筑，并且低成本且低能耗。从最终专业能耗分析的评定结果来看，本建筑基本达到了被动节能的预期。建筑外观低调型体实用，施工工法尽量可靠普适，试着减少些我们过往常用的审美惯性和个体叙事。希望能系统批判地对待这个设计，这对于我们也是一次新的尝试。

The building adopts a passive energy-saving scheme. In addition to basic considerations of the form factor coefficient and the selection of insulation and heat-dissipation measures for walls, floors, and roofs, other factors were repeatedly compared and deliberated: for example, the micro-environmental changes formed by opening and closing doors and windows in the interior space, the insulation performance of the planted roof, and the form, size, and orientation of the exterior windows in each space, etc. Combined with the height and position settings of the courtyard walls, the final result is achieved: promoting natural ventilation through cross-flow ventilation in the summer, while effectively blocking the cold intrusion from the northwest wind on the building and courtyard in the winter.

建筑采取了被动式节能方案。除基本的体型系数考量和墙地顶保温隔热作法的选择之外，也反复比较推敲了其他因素：例如室内空间门窗开闭形成的微环境变化，屋顶种植屋面的隔热性能，各个空间中外窗的形式、大小和方位等等。结合院墙高度位置的设置，最终实现夏季通过穿堂风对流促进自然通风，同时在冬季有效阻隔西北风对建筑和庭院的冷侵袭。

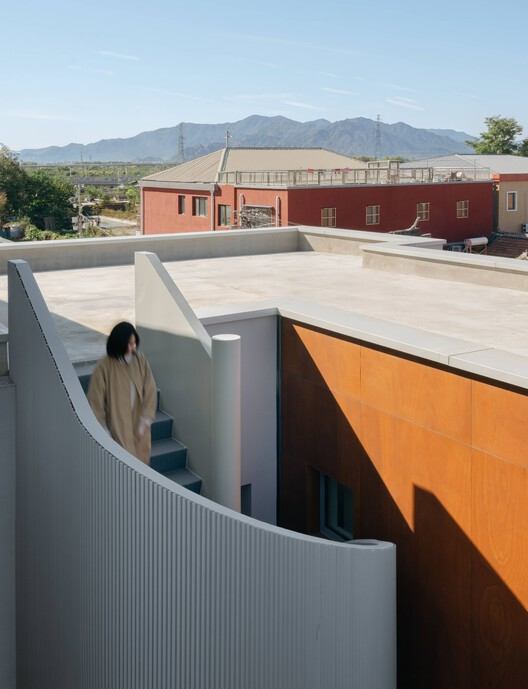

In collaboration with the homeowner's professional experience in rainwater energy saving, the landscape design was jointly completed. Planting beds are reserved in the courtyard and under the courtyard walls. The stone paving is divided into permeable zones and non-permeable rapid drainage zones according to the rainwater flow, and half of the roof is left as soil for a green roof planting experiment zone to explore the subtle connection between soil and rainwater, using the courtyard landscape and green roof as rainwater recovery and treatment facilities to complete a series of effective rainwater resource management processes, including collection, infiltration, and reuse.

结合房主的雨水节能专业经验，景观设计则由我们共同完成。庭院中及院墙下预留种植池，石块铺装根据雨水流程分为渗水区和不渗水快速排流区，并留一半屋顶覆土作为屋顶绿化种植实验区，寻找土壤与雨水之间的微妙关联，将庭院景观与屋顶绿化作为雨水回收处理设施，完成雨水收集、渗透、再利用等一系列的雨水资源有效管理。

Experiment Three: Life Paradigm
Office and residence, exhibition and processing, commerce and lease—all accommodated within one small house, this is a spatial medium through which the homeowner can simultaneously touch work and life. Creating a life paradigm through an independent building project provided the courage for our bold conception—to build an autonomous development housing sample in Xueshan Village that carries more content and is easily replicable, which is the source of the third experiment.

实验三：生活范式

办公与居住，展示与加工，商业和出租，在一栋小房子里相互容纳，这里是房主可以同时触碰工作与生活的空间媒介。通过一个独立的建筑项目创造一种生活范式，为我们的大胆构想提供了勇气——在雪山村建设一个承载更多内容的、容易复制的自主开发住宅样本，这便是第三种实验的源头。

The convenient transportation conditions in this fringe area of the city give Xueshan Village, with its lower housing prices, a unique locational advantage. The convenience of the city and the affordability of the countryside exude a continuous attraction for groups expanding their professional development freely, while also bringing a new vitality engine to the countryside—our goal is to retain people and bring people in.

位于城市边缘区域的便捷交通条件，让房价更为低廉的雪山村拥有了得天独厚的区位优势，城市的便利，乡村的便宜，向自由拓展职业发展的群体散发着源源不断的吸引力，同时也为乡村带来新的活力引擎，把人留住、把人带来是我们的目标。

At the village construction level, the high degree of freedom and the feasibility of planning procedures provide a simplified basis for house leasing and renovation, also bringing possibilities for small-scale autonomous development. The adjacent plots are mostly owned by relatives and neighbors who have similar construction aspirations. Therefore, as development gradually spreads and courtyard walls are removed, the residences will not only be individual entities but also organically growing small community clusters.

在村庄建设层面上，自由度和规划手续的可行性，使得房屋租赁与改建工作具备了化繁为简的基础条件，也给自主小规模开发带来了可能性。此建筑相邻的地块因为多隶属于亲戚邻居，他们中的许多人都有类似的建设愿望，因此随着逐步扩散开发，院墙拆除，住宅便不单是若干个独立个体，也是有机生长的小型社区聚落。

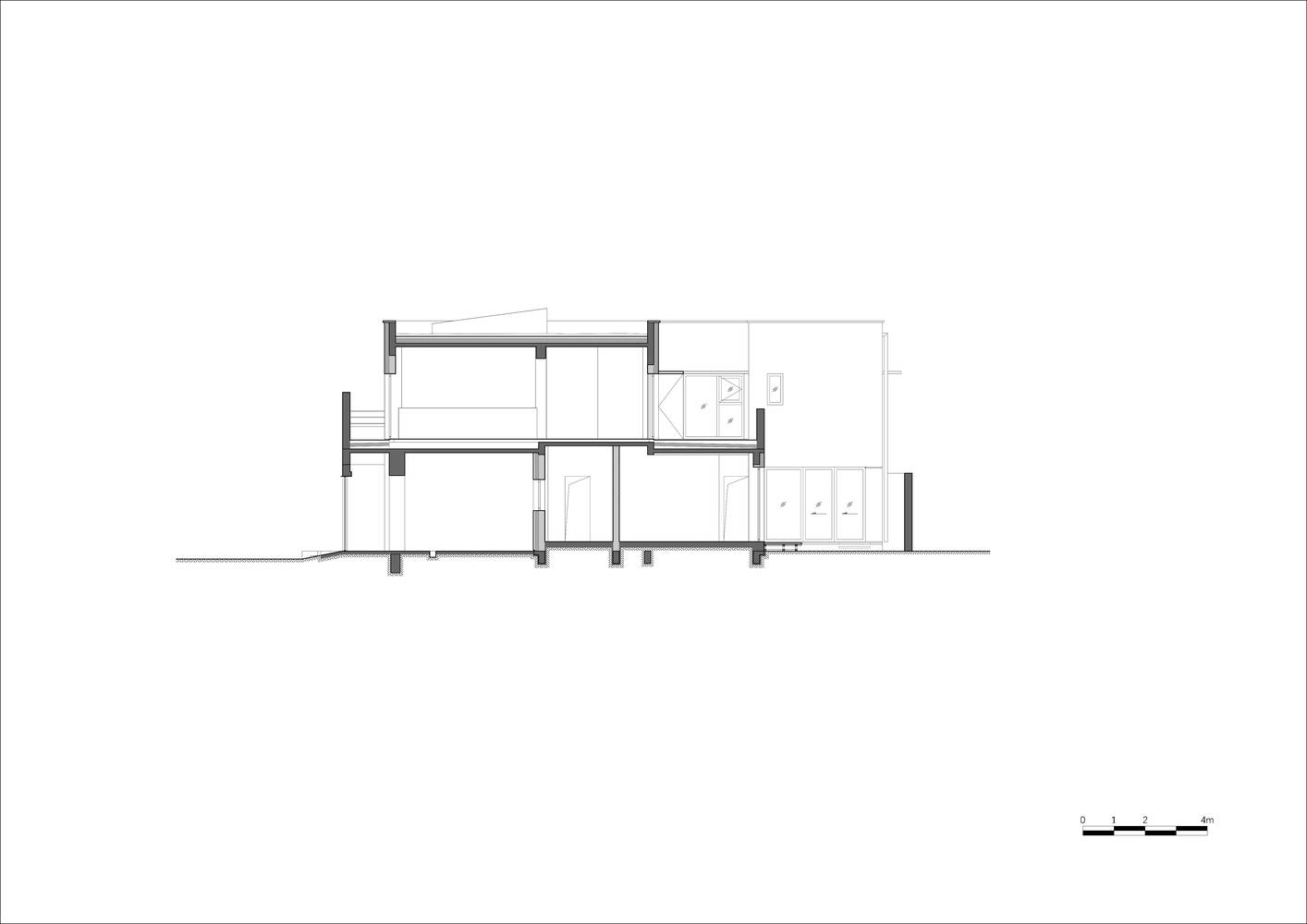

Section View

During the construction process, the homeowner and we were already planning to equip the area with more industrial support: since the train line from Xizhimen to Changping North Station has opened, we plan to operate shuttle buses between the station and the village, making train commuting feasible; for instance, introducing a marketplace/vegetable shop and a coffee pub for interchangeable use by original residents and new immigrants in the village, aligning the village living experience with city life. All these plans are progressing, paving the way for the organic growth of the countryside.

在建设过程中，房主与我们便谋划着能为这里配以更多产业支持：因从西直门到昌平北站的火车线路已经开通，所以我们计划在车站和村庄之间运营通勤班车，使火车通勤变得可行；又比如在村庄中置入供原住民和新移民相互切换使用的市集小菜场和咖啡小酒馆等等，使村中生活体验与城市生活接轨。以上策划都在规划推进中，为乡村的有机生长铺垫更多可能。

Future Experiment
As described, this is a private residence, a design company office, and a public activity space in the countryside. As an experiment based on lifestyle and future vision, it belongs to the scope of architecture and also crosses into the realm of sociology. We hope that the realization of this small house can provide a new life template and framework for more people, ultimately entering a new temporal state of life. Therefore, we view this building as a kind of critical proposal rather than a solution; as a kind of contemporary art action rather than aesthetic nostalgia for the romantic countryside; and as a kind of future social experiment rather than an imagined collective memory.

未来实验

如上，这是一个私人住宅，也是一个设计公司办公室，还是一个乡间公共活动空间。作为基于生活方式与未来构想之上的实验，它既隶属于建筑学范畴，亦横跨在社会学界限之内。我们期望，这栋小房子的落地，可以为更多人提供一种新的生活模板与框架，最终走入新的人生时态里。故此，我们把这个建筑作为某种批判性提案，而非解决方案；把这个建筑作为某种当代艺术行动，而非浪漫乡村的审美怀旧；把这个建筑作为某种未来社会实验，而非集体记忆想象。
