借景之家 / Atelier 京京

Jiejing Home/Atelier Jingjing
借景之家 / Atelier 京京

亮点一：借景与空间重塑：该项目最引人入胜之处在于“借景”的设计理念，巧妙地利用了场地南侧的古树这一自然景观。设计师通过对屋顶高度差的反复推敲和研究，成功将古树的景致引入室内，弥补了传统四合院缺乏庭院的遗憾。这种设计手法不仅解决了采光问题，更赋予了空间独特的意境和诗意。同时，对原有空间的重新布局和优化，特别是对压抑感和回音问题的解决，体现了设计师对空间尺度的精准把握和对居住舒适度的极致追求，展现了改造的专业性和创新性。

亮点二：传统与现代的融合：项目将传统建筑元素与现代设计手法完美结合，是其另一大亮点。设计师保留了结构良好的北房，并对南侧仿古建筑进行了改造，保留了历史的“时间痕迹”。通过对传统青砖、筒瓦、木结构的运用，结合古树和竹子的自然元素，营造出一种富有文化底蕴的空间氛围。同时，现代化的空间布局、开放式设计、对家具的简化以及对储物空间的优化，都体现了设计师对现代生活方式的深刻理解，使得改造后的空间既保留了传统韵味，又兼具了实用性和舒适性，实现了传统与现代的和谐统一。

亮点三：光影与生活体验的交融：该项目对光影的运用堪称经典。设计师充分利用自然光的穿插、直射、折射与漫射效果，将季节变化中的光影融入到空间设计中，与传统建筑元素相融合，营造出丰富且富有层次感的光影效果，让空间更具活力。此外，设计师注重居住者的生活体验，通过开放的布局、多功能活动空间的设计，以及对细节的优化，使改造后的空间更贴合居住者的生活方式，营造出舒适、自由的居住氛围，最终实现了设计与生活的深度融合，展现了设计师对空间的深刻理解和对生活的细腻关怀。

The project is located in a block of hutongs in the old city of Beijing, covering an area of approximately 97 square meters, surrounded by a large courtyard. Before taking over the project, other teams had already undergone a renovation, so this renovation belongs to a second optimization (re renovation). The current situation of the project is not ideal. There is a street facing window in the north room, and in addition, there are two skylights on each of the first and second floors. The skylights on the first floor are located in the square skylight in the corner of the south room and the circular skylight in the center. However, due to the lack of sufficient lighting and the limitations of the courtyard, the first impression given upon entering the space is oppressive, as if one is at the bottom of a well. The scale issue of the space itself is too narrow and high, resulting in a particularly noticeable echo effect and greatly reducing overall comfort.
该项目位于北京旧城胡同的一个街区内，占地约 97 平方米，周围被一片大杂院所环绕。在接手该项目之前，已有其他团队进行过一次改造，因此本次改造属于二次优化（再次改造）。项目现状较为不理想。北房有一个临街窗户，此外，一、二楼各有两个天窗。一楼的天窗分别位于南房角落的方形天窗和正中央的圆形天窗。然而，由于缺乏足够的采光和院落的局限，进入空间后，给人的第一印象是压抑、仿佛置身于“井底”。空间本身的尺度问题，过于狭长，且高度较高，回音效果尤为明显，整体舒适度大打折扣。

TraditionalIntegration of Houses with New Houses--Integration of Traditional and Modern
传统房子与新房子融合——传统与现代融合

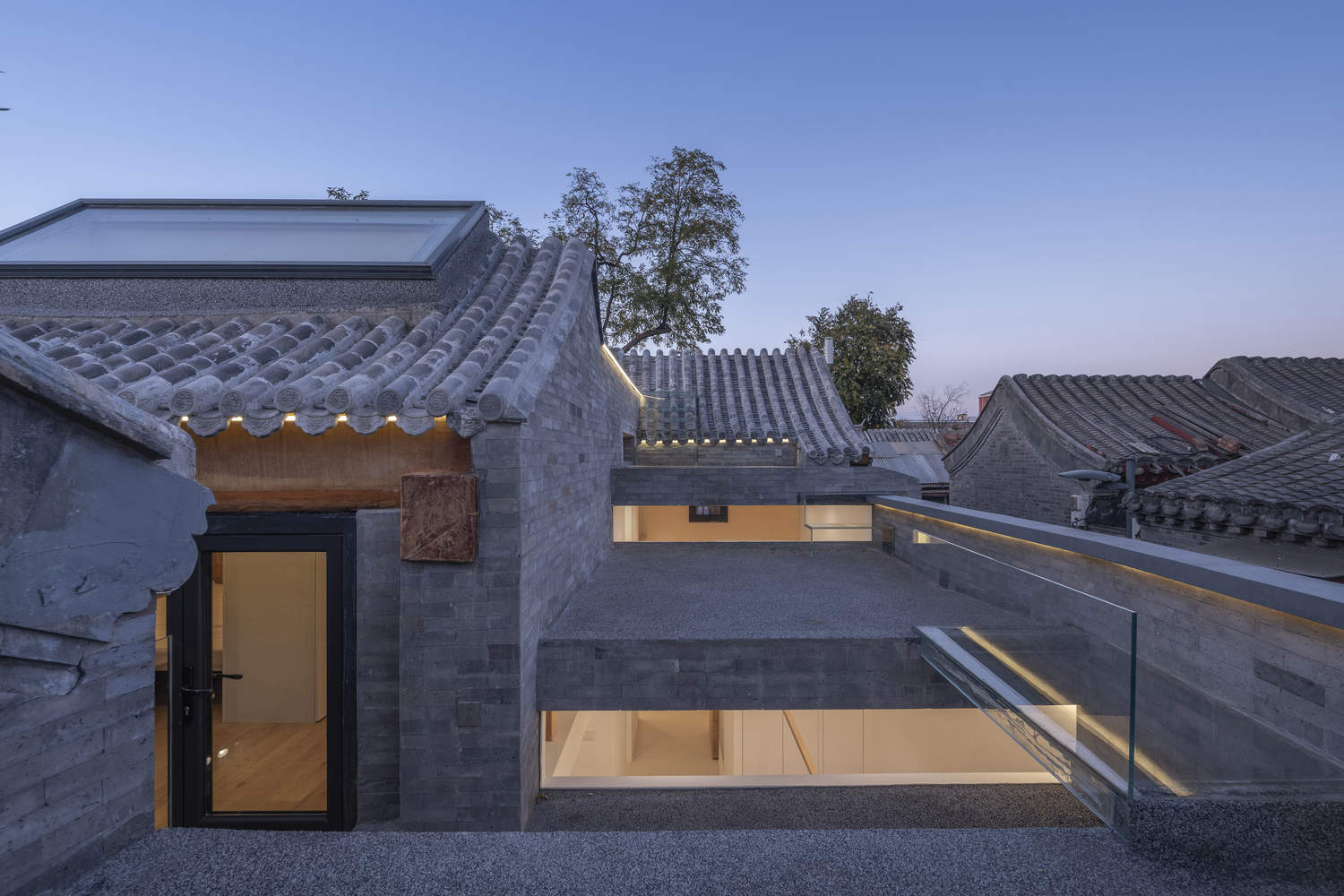

The traditional building on the site is the North Building, which has good structural quality and should be preserved for appropriate renovation. And the long strip south is an antique building construction method. For newly built wooden houses, except for the foundation wall, the rest can be considered for demolition. During the on-site investigation, it was discovered that there is a protected ancient tree with a height of about 21 meters in the courtyard about 32 meters south of the plot. This ancient tree has become a major highlight in the space. As is well known, in the design of traditional courtyard houses and large courtyards in Beijing, courtyards are the core charm. If there is no courtyard, you can directly admire this ancient tree. And this design incorporates the concept of "borrowing scenery" into the renovation plan through repeated deliberation and research on the roof height difference, in order to solve the problems of lighting and courtyard feeling. Traditional green bricks, tube tiles, and wooden structures, combined with natural elements of ancient trees and bamboo, reflect the "traces of time". Through hierarchical integration, they endow new spaces with deeper cultural charm and contemporary significance.
场地中传统建筑是北房，结构质量较好，应予以保留做适当改造。而长条形南方是仿古建筑施工方法，新搭建的木结构房子，除基础墙体外，其余部分可考虑拆除。在实地勘察中发现，地块正南方约 32 米的大杂院内有一棵保护古树，树高约21米。这棵古树成为了空间中的一大亮点。众所周知，北京传统四合院和大杂院的设计中，庭院是其核心魅力所在。如在没有庭院的情况下可以直接观赏到这棵古树。而本次设计通过屋顶高差，反复推敲和研究，将“借景”的概念引入改造方案中，以解决光线和庭院感的问题。传统的青砖、筒瓦、木结构，与古树和竹子的自然元素，共同体现出“时间的痕迹”，通过分层次的融合，赋予新空间更深的文化韵味和时代意义。

TraditionalIntegration of Houses with New Houses--Integration of Traditional and Modern
传统房子与新房子融合——传统与现代融合

During the on-site investigation, it was discovered that there is a protected ancient tree with a height of about 21 meters in the courtyard about 32 meters south of the plot. This ancient tree has become a major highlight in the space. As is well known, in the design of traditional courtyard houses and large courtyards in Beijing, courtyards are the core charm. If there is no courtyard, you can directly admire this ancient tree.
在实地勘察中发现，地块正南方约32米的大杂院内有一棵保护古树，树高约21米。这棵古树成为了空间中的一大亮点。众所周知，北京传统四合院和大杂院的设计中，庭院是其核心魅力所在。如在没有庭院的情况下可以直接观赏到这棵古树。

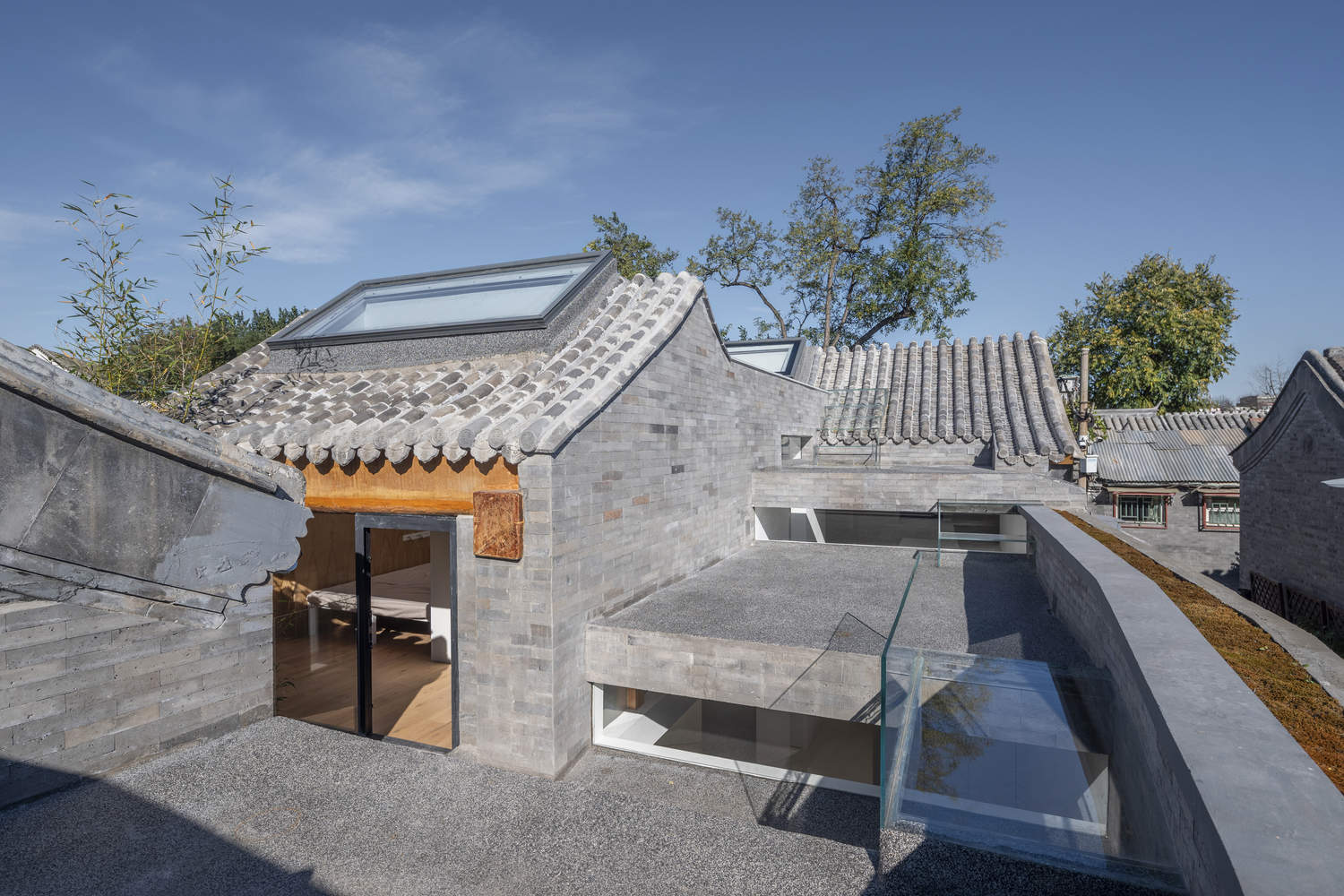

And this design incorporates the concept of "borrowing scenery" into the renovation plan through repeated deliberation and research on the roof height difference, in order to solve the problems of lighting and courtyard feeling. Traditional green bricks, tube tiles, and wooden structures, combined with natural elements of ancient trees and bamboo, reflect the "traces of time". Through hierarchical integration, they endow new spaces with deeper cultural charm and contemporary significance.
而本次设计通过屋顶高差，反复推敲和研究，将“借景”的概念引入改造方案中，以解决光线和庭院感的问题。传统的青砖、筒瓦、木结构，与古树和竹子的自然元素，共同体现出“时间的痕迹”，通过分层次的融合，赋予新空间更深的文化韵味和时代意义。

LightSpace layout and roof--FreedomMixing of activitiesInterweaving and fusion
光与空间布局与屋顶——自由活动的混合穿插融合

This renovation has systematically optimized the existing problems in the space. The two large pillars in the center of the house divide the space into two halves, lacking a foyer and clear spatial definition. The small courtyard in the northwest corner is connected by an outdoor ladder, which not only lacks light and shadow effects, but also limits the fluidity of the space.
此次改造针对原有空间存在的问题进行了系统优化。房屋中央的两根大柱子将空间分隔成两半，缺乏玄关和明确的空间定义，西北角的小庭院通过室外爬梯连接，不仅光影效果不足，还限制了空间的流动性。

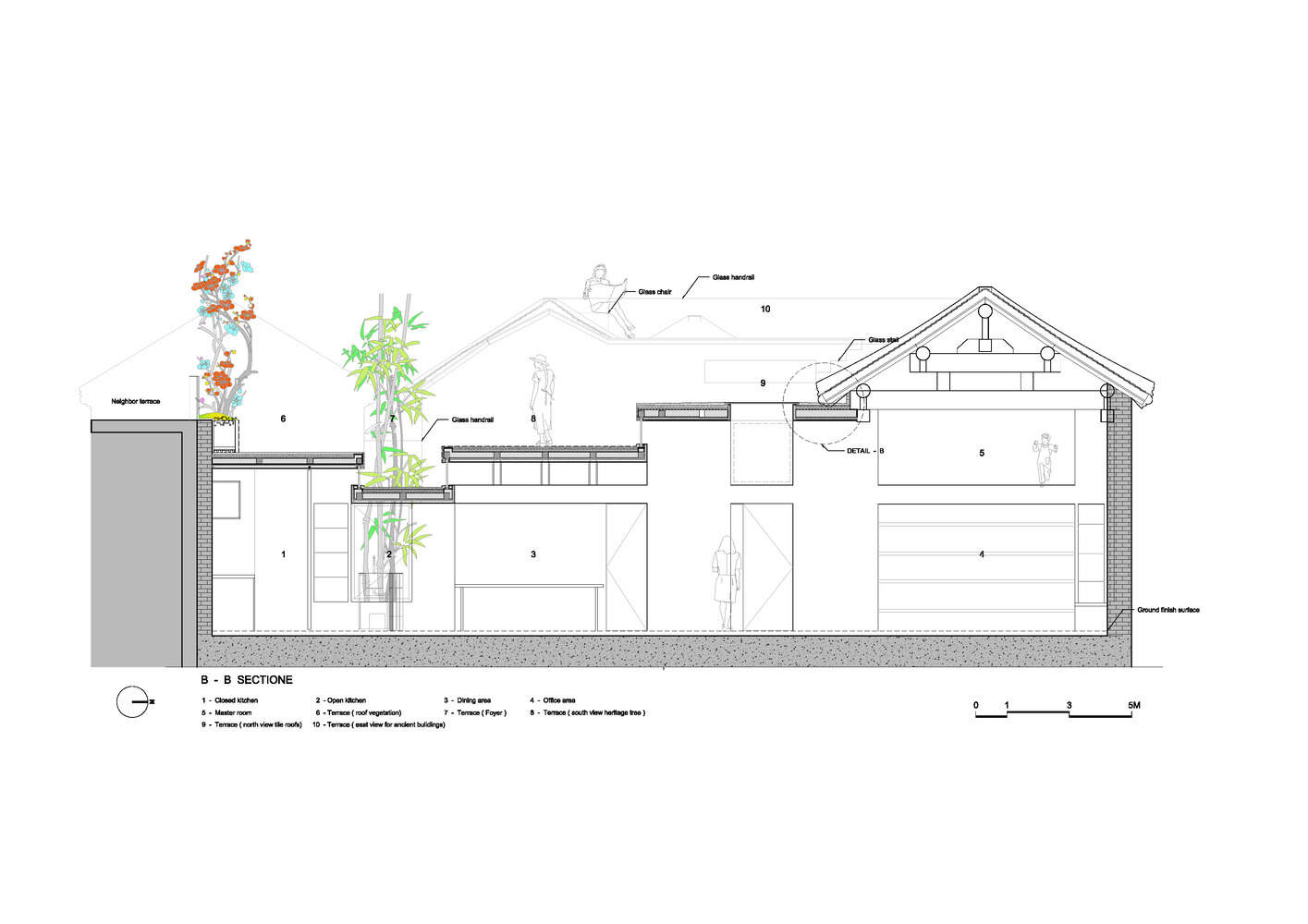

剖面图

设计策略：

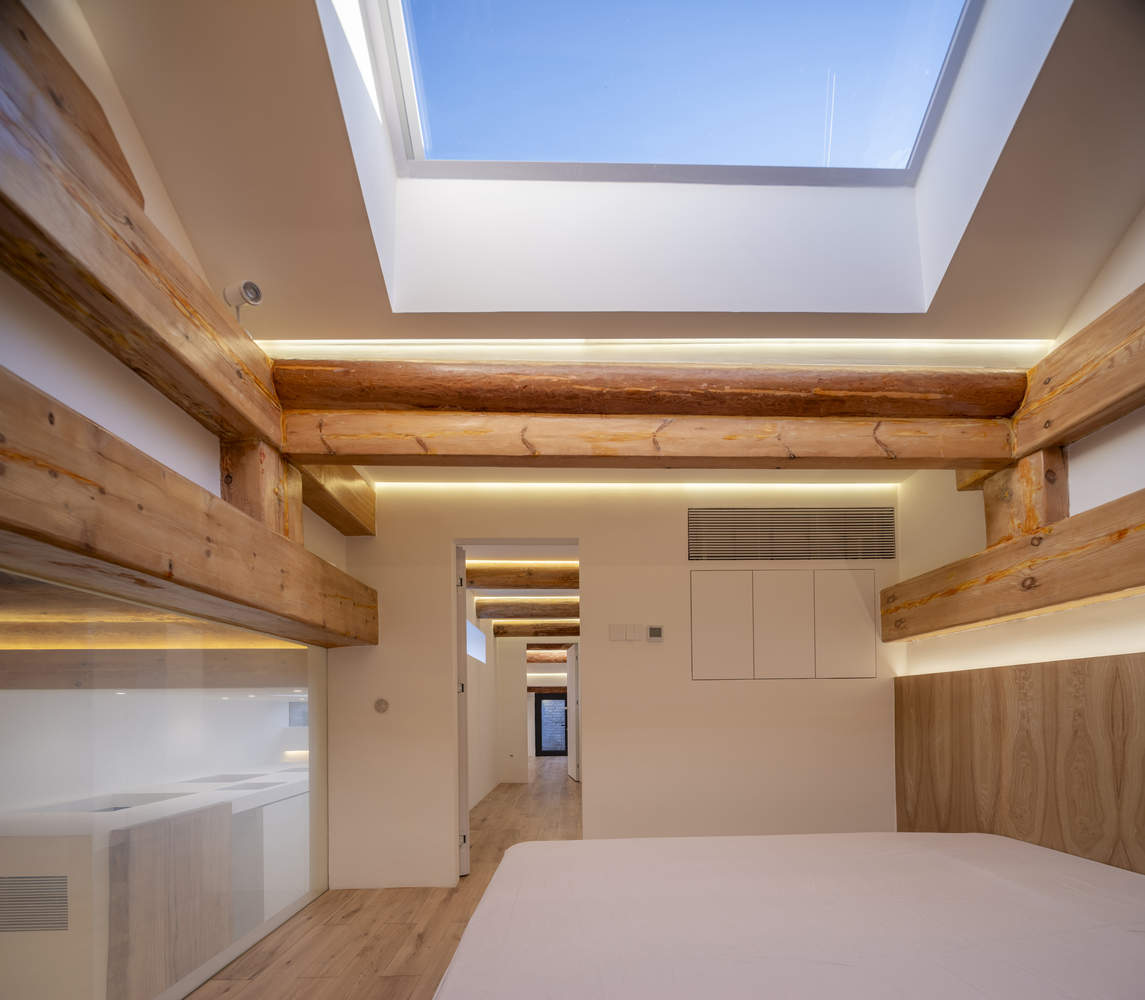

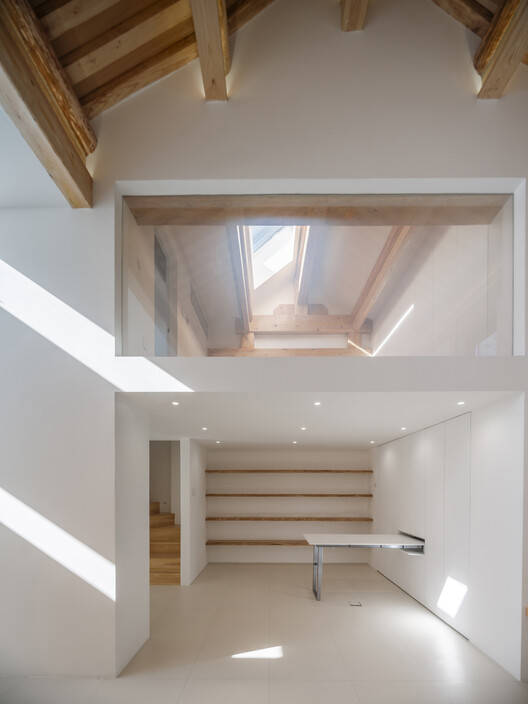

The mezzanine is equipped with two bedrooms and one bathroom, and a window is opened in the staircase buffer zone, providing a view of the Beijing Bell Tower and ancient trees with light and shadow.

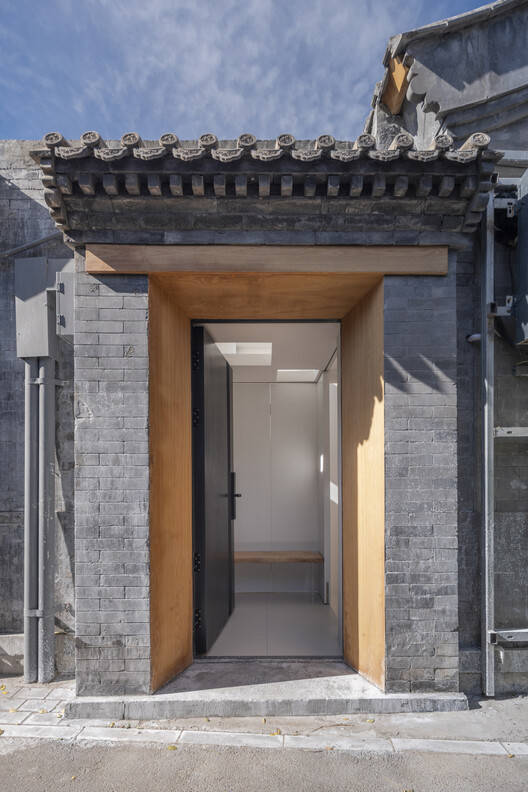

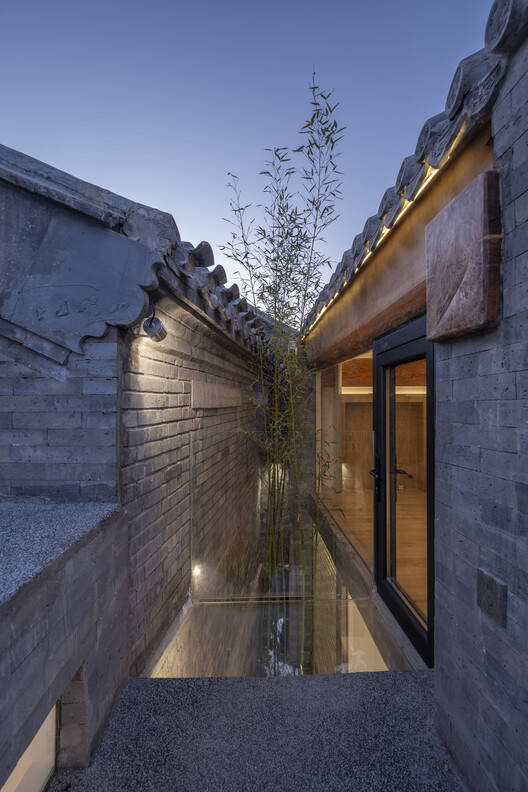

设计将西北角庭院稍做扩展，移除爬梯，改造为景观庭院，增强空间的采光与视觉延展性。一层新增玄关，不仅提升了隐私性，还增设储物区域，用于摆放婴儿车、自行车及换鞋。一层布局开放化，除厨房、玄关和干湿分离区外，其余区域作为多功能活动空间，方便年轻夫妇和儿童的使用。二层次卧被划分为独立的休息区和衣帽间，两者互不干扰，通过流线设计，将衣帽间与屋顶平台连接，形成自然连续的动线。夹层设置了两个卧室和一个卫生间，并在楼梯缓冲区开设条窗，带来观赏北京钟楼与古树光影的视野。

© 金伟奇

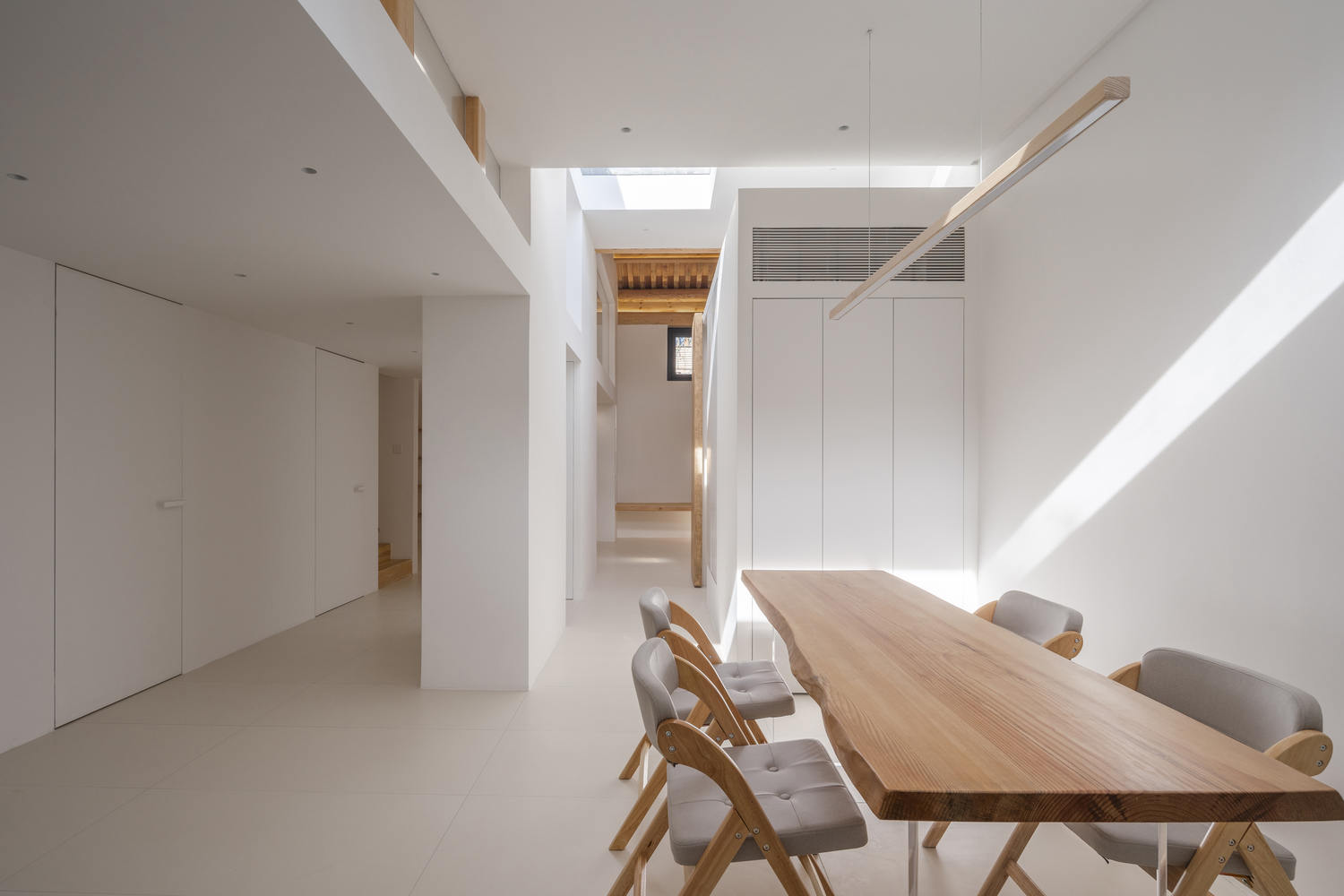

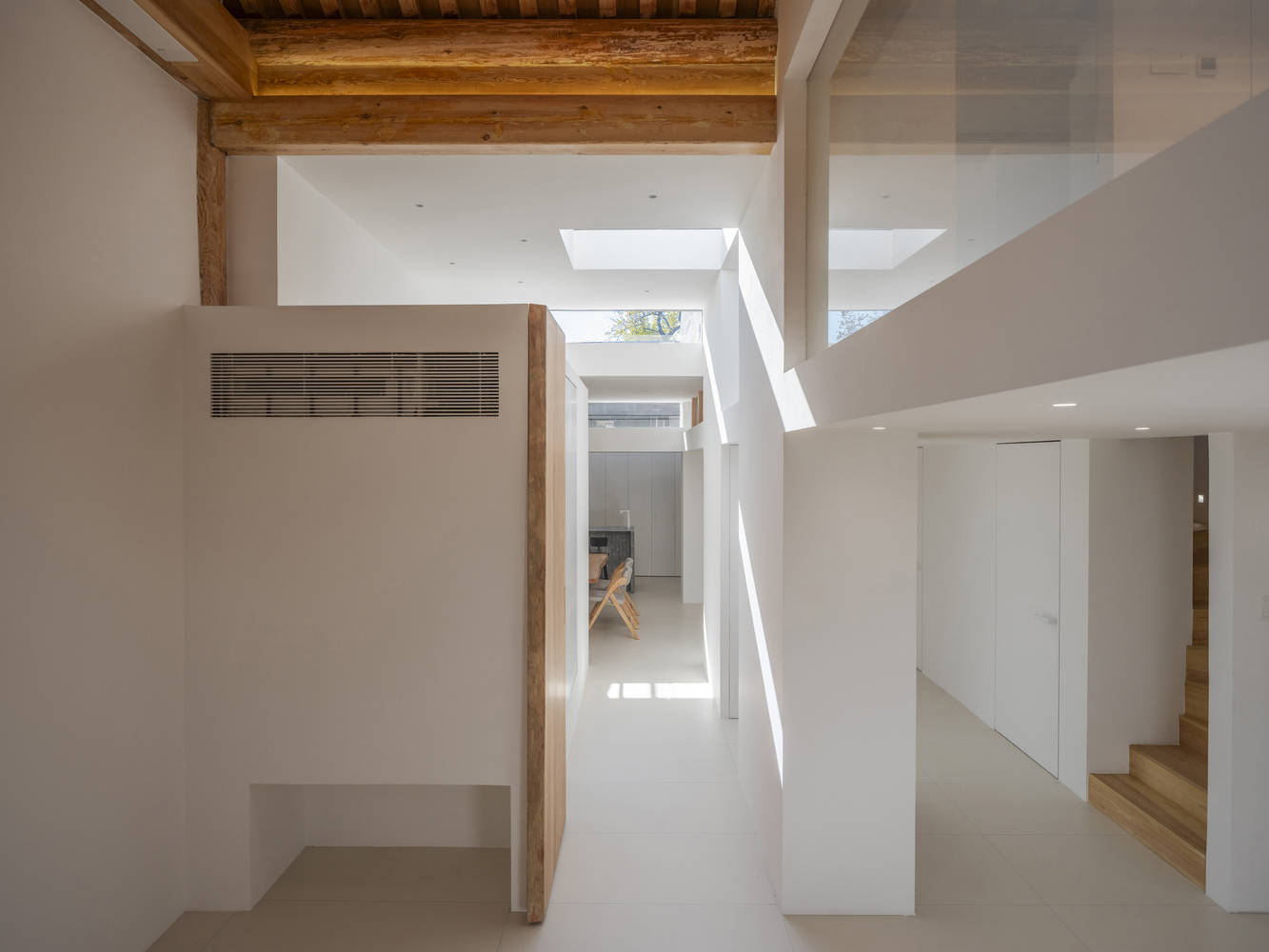

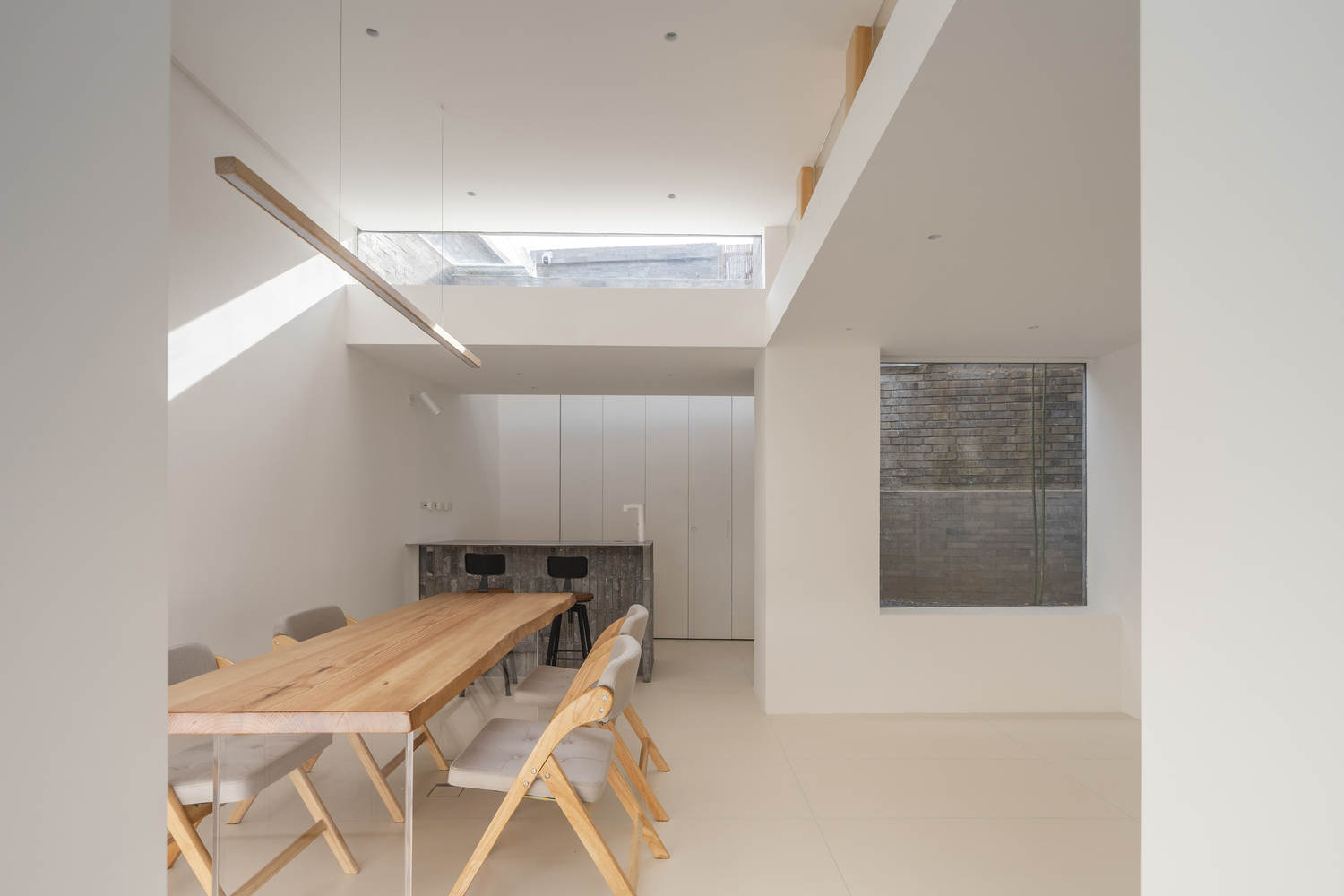

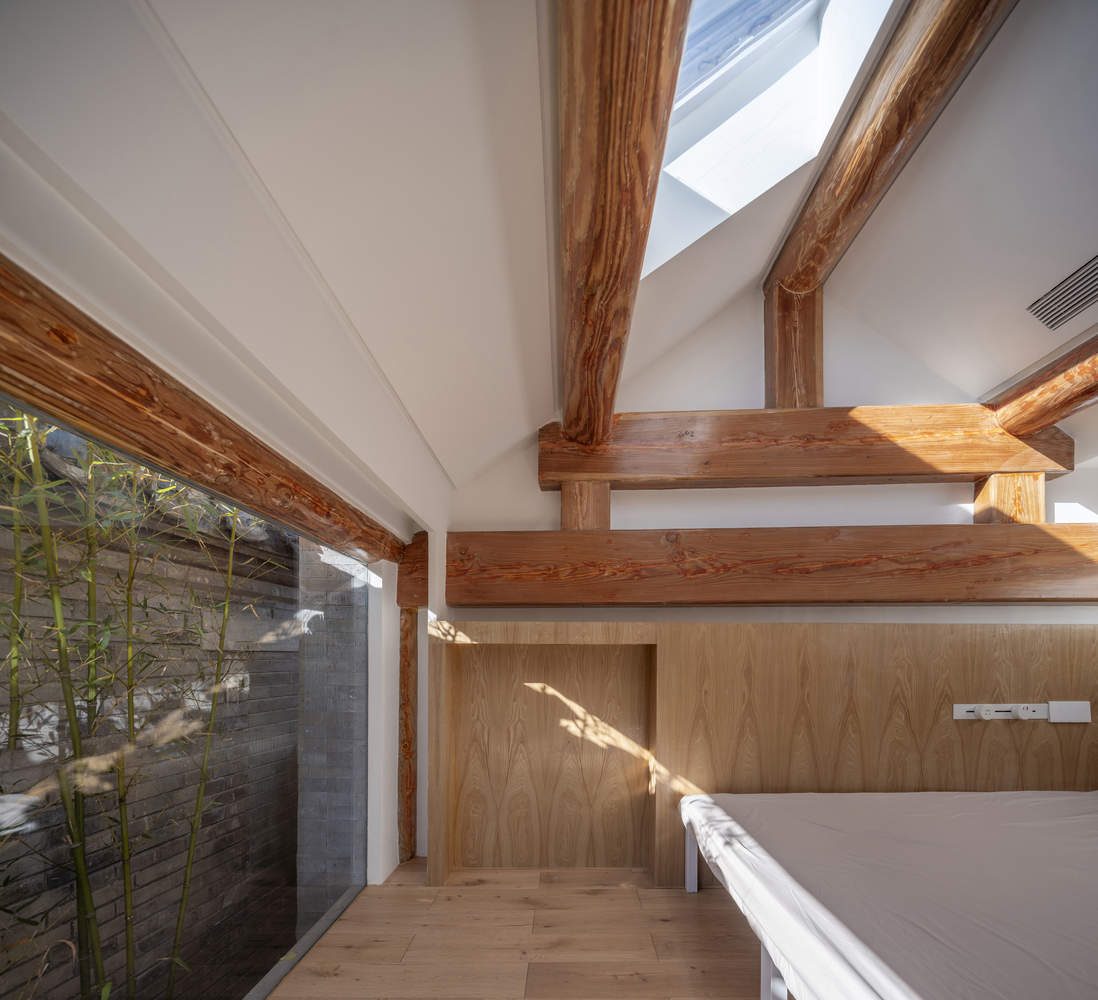

In the entire space design, furniture has been simplified, retaining only necessary elements such as beds and chairs, while optimizing storage space to meet actual needs. On this basis, fully utilizing the interweaving, direct, refraction, and diffusion effects of natural light, the light and shadow in seasonal changes are integrated with the "time traces" of traditional blue bricks, tube tiles, and wooden structures to create a modern residential space that combines functionality and cultural heritage.
整个空间设计中，简化了家具，仅保留床、椅等必要元素，同时通过优化收纳空间满足实际需求。在此基础上，充分利用自然光的穿插、直射，折射与漫射效果，将季节变化中的光影与传统青砖、筒瓦、木结构的“时间痕迹”相融合，打造出兼具功能性与文化底蕴的现代居住空间。

© 金伟奇

设计哲学

The definition of space lies not in simple change, but in the integration of design and life. The original intention of the design is to optimize the space to fit the lifestyle of the residents, allowing them to feel comfortable and free in it, and truly enjoy their own life.
空间的定义不在于单纯的改变，而在于设计与生活的融合。设计的初衷是通过优化空间，使其契合居住者的生活方式，让他们在其中感受到舒适与自由，真正享受属于自己的生活。
