成都大运会东安湖场馆景观连廊 / 四周建筑

多功能适应性与动态空间体验：该项目通过一座精心设计的连廊，实现了“一场三馆”在赛事期间的高效交通连接，并成功过渡到赛后与周边公共空间的深度融合。其核心精髓在于其灵活的适应性，不仅满足了大型赛事的即时需求，更通过空间形态的竖向起伏、螺旋下降和分叉平台设计，创造了丰富多维的行走体验和多样的观景点位，体现了面向未来的城市基础设施设计理念。

结构与色彩的张力与引导性：在结构设计上，项目采用了1米厚的钢箱梁和V型柱，展现了稳固的工程基础。尤为出色的是其色彩策略：内部主体的亮橙色与外部的白色薄片表皮形成了强烈的视觉对比。这种对比不仅突出了结构本身的引导性与运动感，更通过白色表皮对周边环境色彩的反射，巧妙地将建筑体量轻盈化，使之在整体环境中既醒目又和谐。

表皮设计实现光影与融合：连廊的表皮设计是其美学和功能性的重要体现。采用双层3mm厚钢板栓接构成的白色薄片，不仅在白天能反射环境色彩，减轻体量感，更巧妙地将灯光系统嵌入两片薄板之间。这种处理使得夜间照明不仅提供了功能照明，更创造出富有层次感的夜景效果，使连廊成为连接人流、景观与建筑的动态光影界面。

Aerial view of the Lianlang Center and Platform
连廊中心与平台鸟瞰图

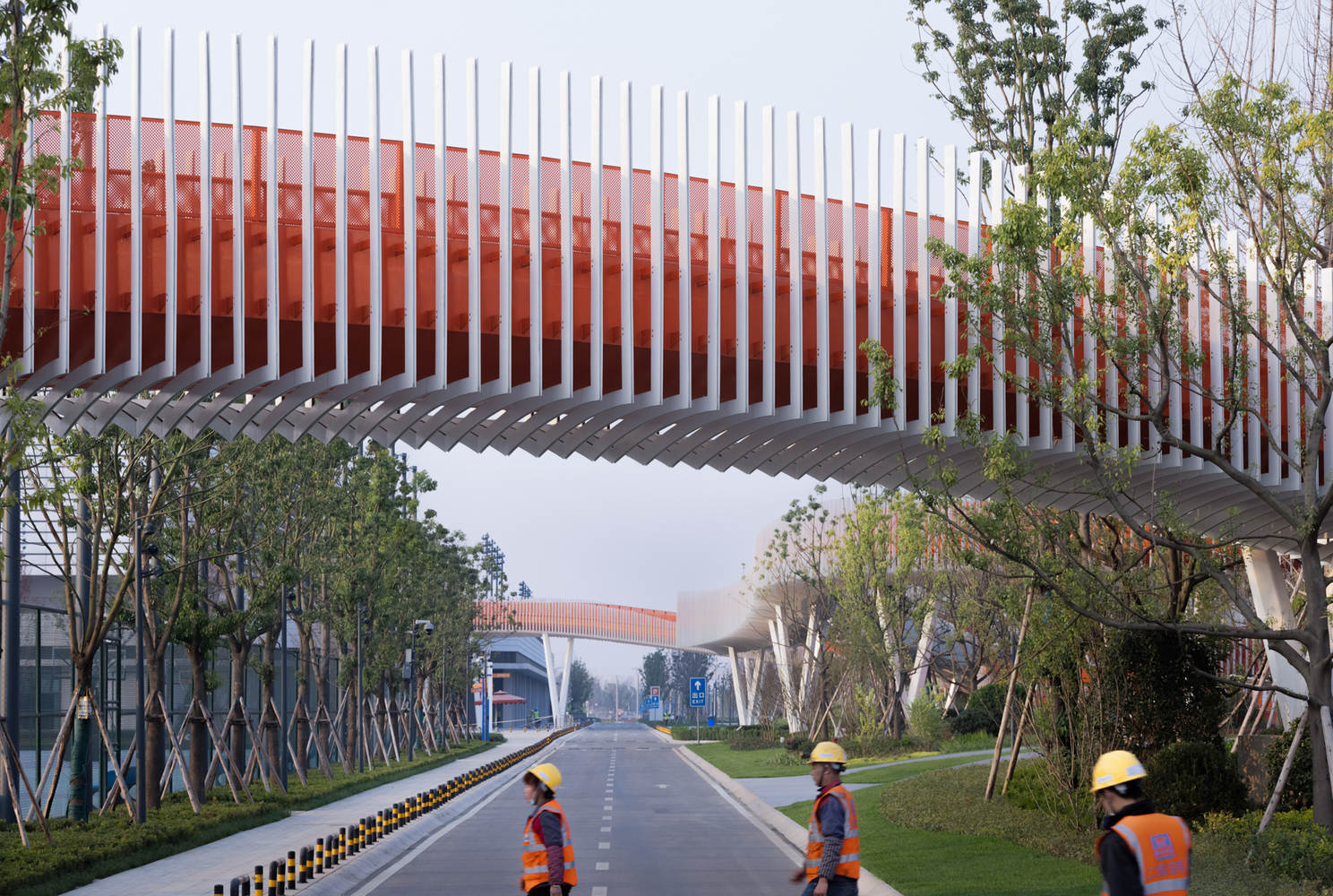

Feature view
特色视图

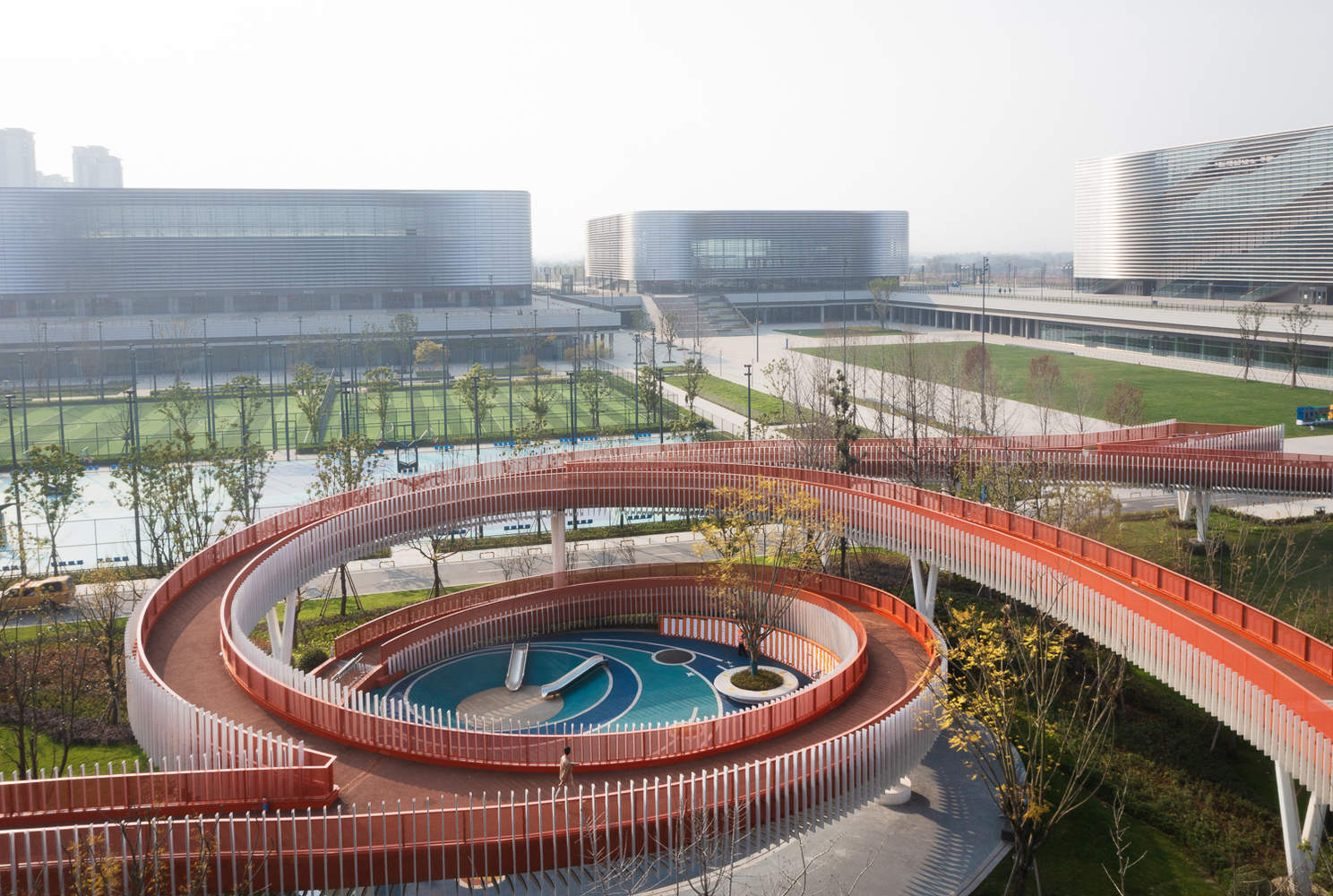

Bird's eye view of the site
场地鸟瞰

The Dong'an Lake Sports Complex is located in the core area of Chengdu's "Eastward Expansion," in the Dong'an New Town of Longquanyi District, and served as the opening ceremony venue for the 31st World University Games. The site includes "One Stadium and Three Halls"—a 40,000-seat main stadium, a diving hall, a multi-function gymnasium, and a small ball gymnasium, along with supporting landscapes, activity plazas, basketball courts, football fields, and other public spaces.
东安湖运动场馆位于成都“东进”核心区龙泉驿东安新城，是第31届世界大学生运动会开幕式举办地。场地内包含“一场三馆”——4万座大运会主体育场，及跳水馆、多功能体育馆、小球馆，以及配套景观、活动广场、篮球场、足球场等公共空间。

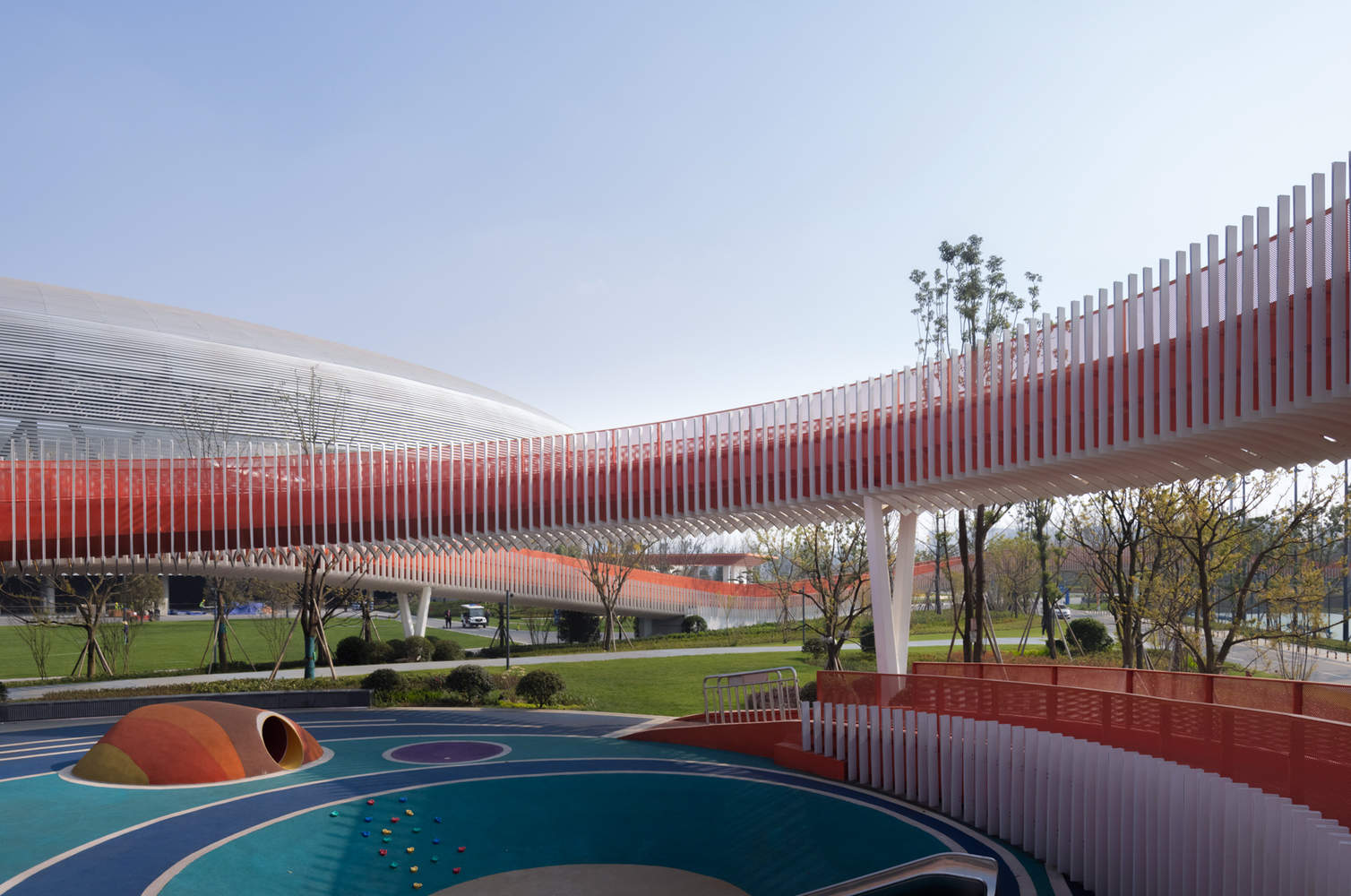

Connection between the central corridor and public spaces
连廊中心与公共空间连接

Connecting the "One Stadium and Three Halls" with Public Spaces
During the Universiade, the corridor focused on enhancing traffic efficiency, connecting the terrace spaces of the "One Stadium and Three Halls" to allow for quick access between different venues. After the Universiade, the corridor shifts its focus to interacting with public spaces and sports fields, increasing public accessibility, enriching the visual layers of the landscape, and providing auxiliary and additional space for post-event use and operation.
连接“一场三馆”与公共空间
大运会举办期间，连廊侧重提升交通效率，连廊连接“一场三馆”的露台空间，使不同场馆之间能够快速互通到达。大运会结束之后，连廊侧重与公共空间及运动场的互动，增加公共空间可达性，丰富景观视觉层次，并为会后的场地使用及运营提供辅助和额外空间。

Spatial Morphology

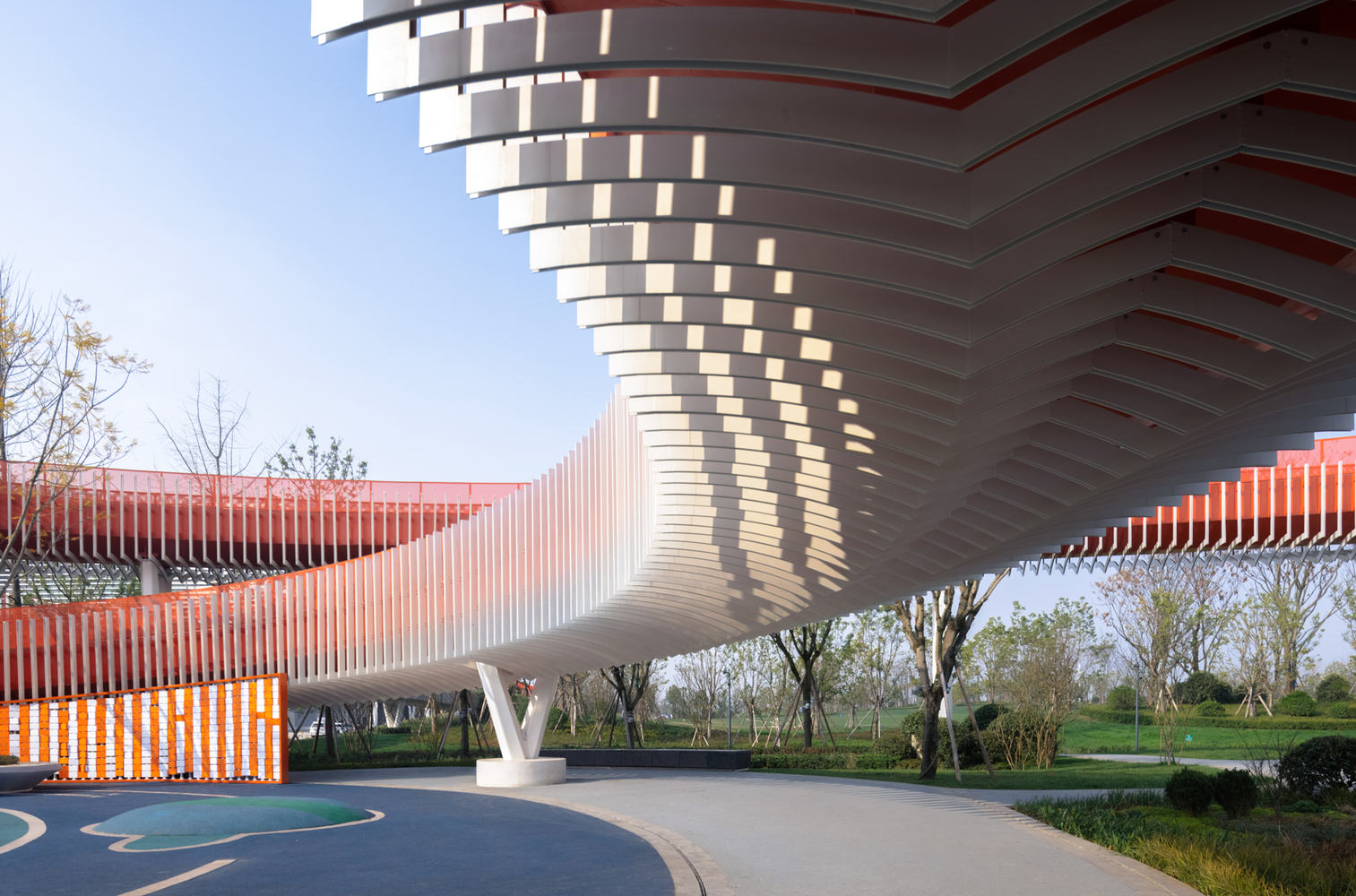

The corridor extends from the terraces of the "One Stadium and Three Halls," forming vertical undulations that create different elevated visual experiences while walking. It spirals downward and contracts towards the center of the site, enclosing a children's activity area to form a cohesive, central gathering space with a sense of volume. The middle section branches into platforms, establishing good viewing points and exits connecting to the courts, plazas, and venues. The variation in the corridor's form generates a dynamic spatial experience and diverse sightlines, while also ensuring mutual access with the public spaces.
空间形态
连廊从“一场三馆”露台延申出，形成竖向起伏的变化，在行走中形成不同标高的视觉体验。至场地中心区螺旋下降收缩，中心环绕了儿童活动区，形成了有体量感向心的围合空间；中间段形成分叉的平台，与球场、广场、场馆形成良好的观看点，并设置出入口。连廊的形体变化形成了变化的空间体验与多样的视线关系，同时与公共空间互达。

Main Structure

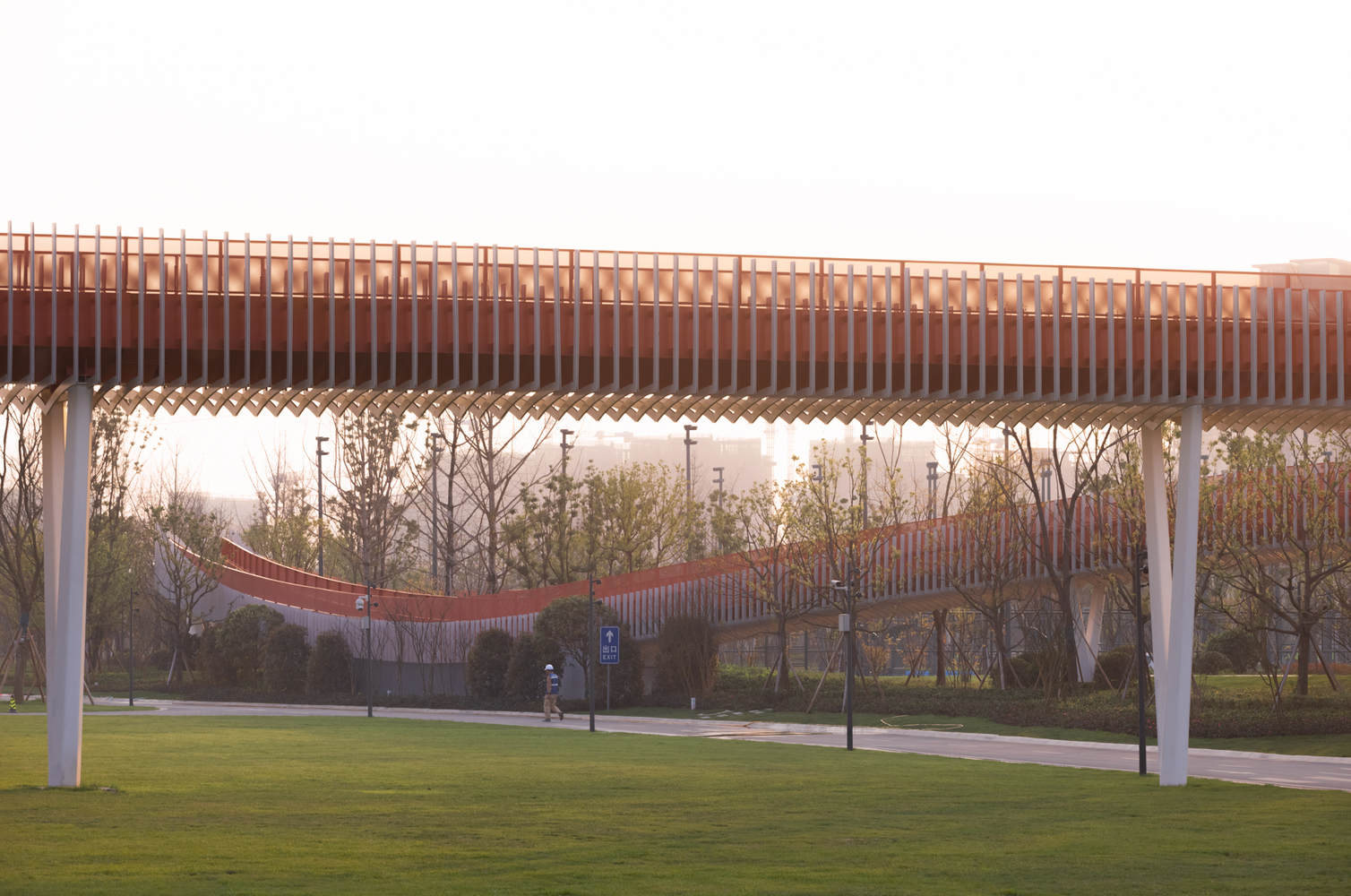

The main structure of the corridor is a 1m thick steel box girder, with V-shaped columns placed at spans of 20m–30m in a hexagonal cross-section. The orange color of the internal main structure contrasts with the environment, simultaneously highlighting its guiding function and sense of dynamism.
主体结构
廊道主体结构是1m厚钢箱梁，六边形截面V型柱跨度20m-30m布置，内部的主体结构的橙色与环境形成了对比，同时突出了引导性与运动感。

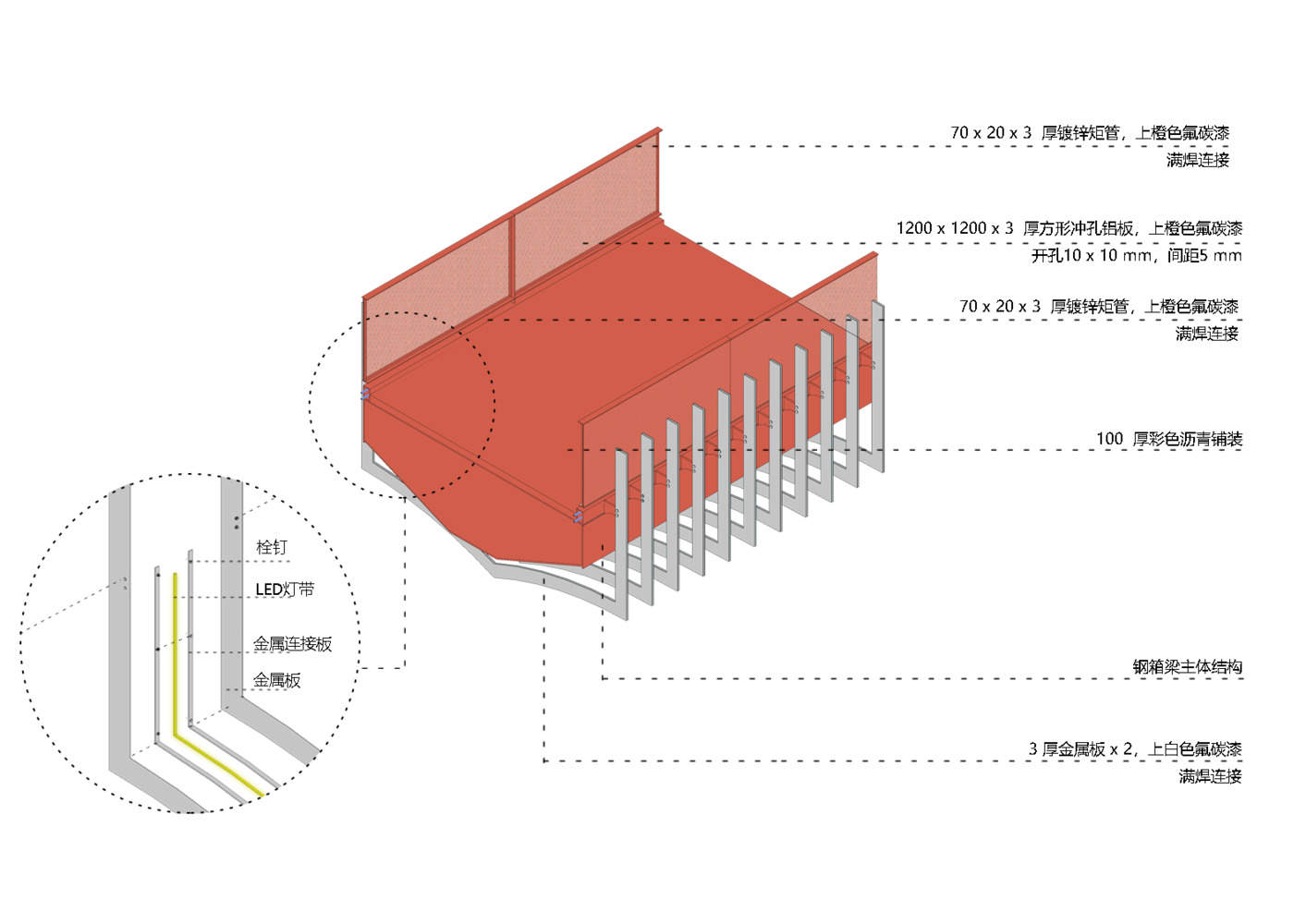

Facade and Lighting Construction

Facade

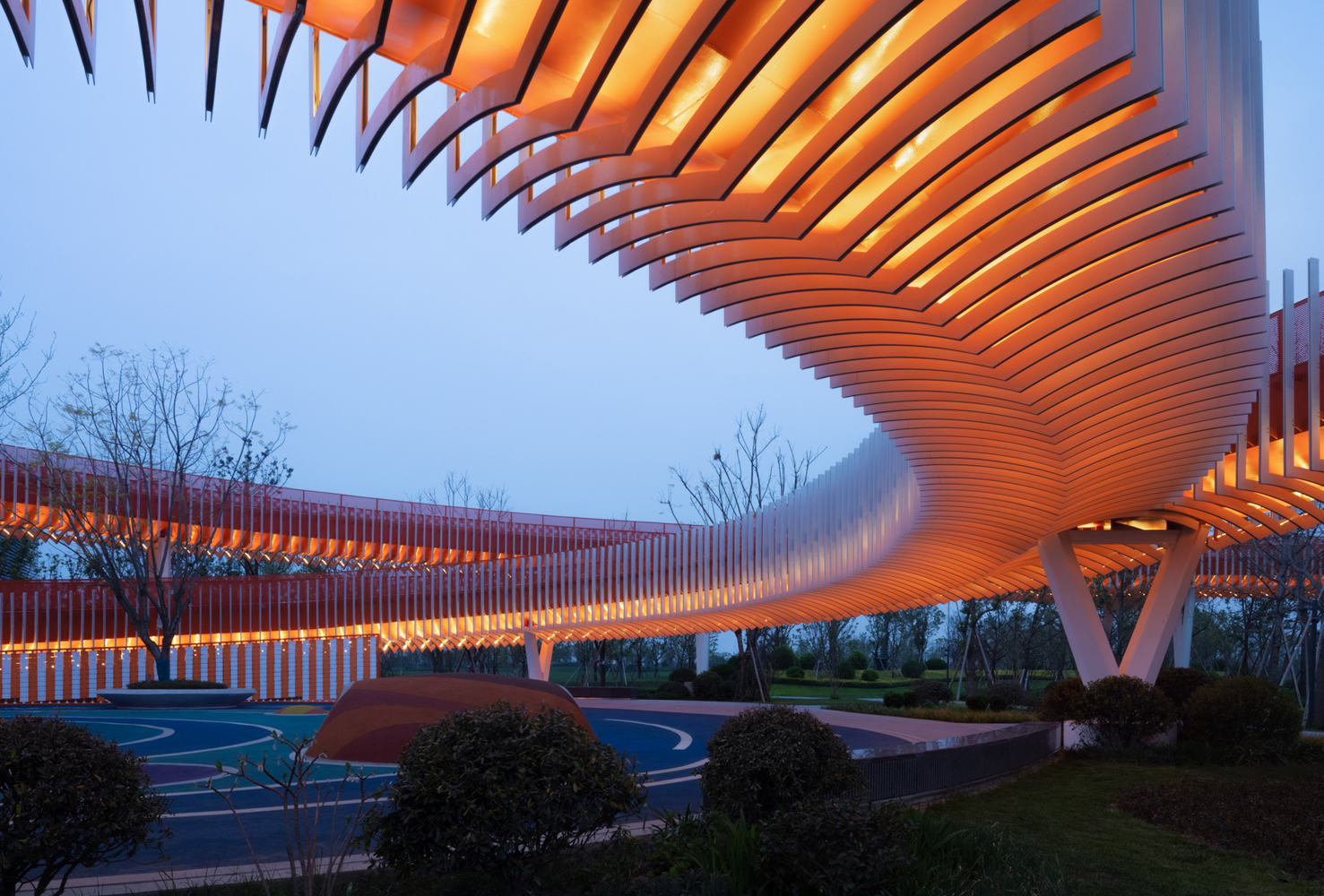

The facade is composed of two bolted 3mm thick steel plates. The white thin sheets reflect the main orange color and the surrounding green, integrating with the site and making the volume appear lighter. The lighting is placed between the two thin plates, providing rich layers to the bridge at night.
表皮
表皮为2片3mm厚钢板栓接组成，白色的薄片反映了主体橙色与周边的绿色，与场地融合在一起，让体量变得轻盈。灯光放置在两片薄片之间，夜间照明给桥身提供了丰富的层次。
