SAFRA 蔡厝港会所 / DP Architects Pte Ltd

地标性的形态与场所精神的呼应：SAFRA蔡厝港会所成功地将建筑语汇与健身活动精神进行高度统一。其大胆的超大桁架和预制混凝土拱形正面，不仅赋予建筑鲜明的、富有张力的外部形象，更象征着军人社群的力量与团结。这种雕塑感强的立面设计，使其在广阔的公共公园中成为一个引人注目的地标。更精妙的是，这种坚固的“外壳”下，巧妙地构建了一个渗透着自然气息的活力社区空间，实现了外在的标志性与内在的社区活力的完美平衡。

自然渗透与空间连通性的极致运用：项目最核心的精髓在于其对“多孔空间”的营造和自然环境的深度整合。建筑师巧妙地利用公园的区位优势，通过中央主干线将公园景观“引流”至建筑内部，形成绿意盎然的中央庭院。尤其是将游泳池架空至树冠层，这一创举不仅提供了独特的观景视角，更实现了人、建筑与自然环境的垂直交融。这种打破室内外边界的设计策略，最大化了空间的渗透性与使用者的体验感。

激发“积极流动性”的垂直交通核心：“生命阶梯”是该设计的点睛之笔，它超越了传统楼梯的功能定义，成为连接建筑内部健身功能与外部公园路径的动态枢纽。这条垂直的脉络鼓励使用者进行“积极流动”，邀请人们攀登 100 级台阶，从而模糊了健身活动的水平和垂直界限。这种对垂直交通的设计投入，体现了建筑师对激发社区活力和促进健康生活方式的深刻理解，为会所注入了强劲的生命力与参与热情。

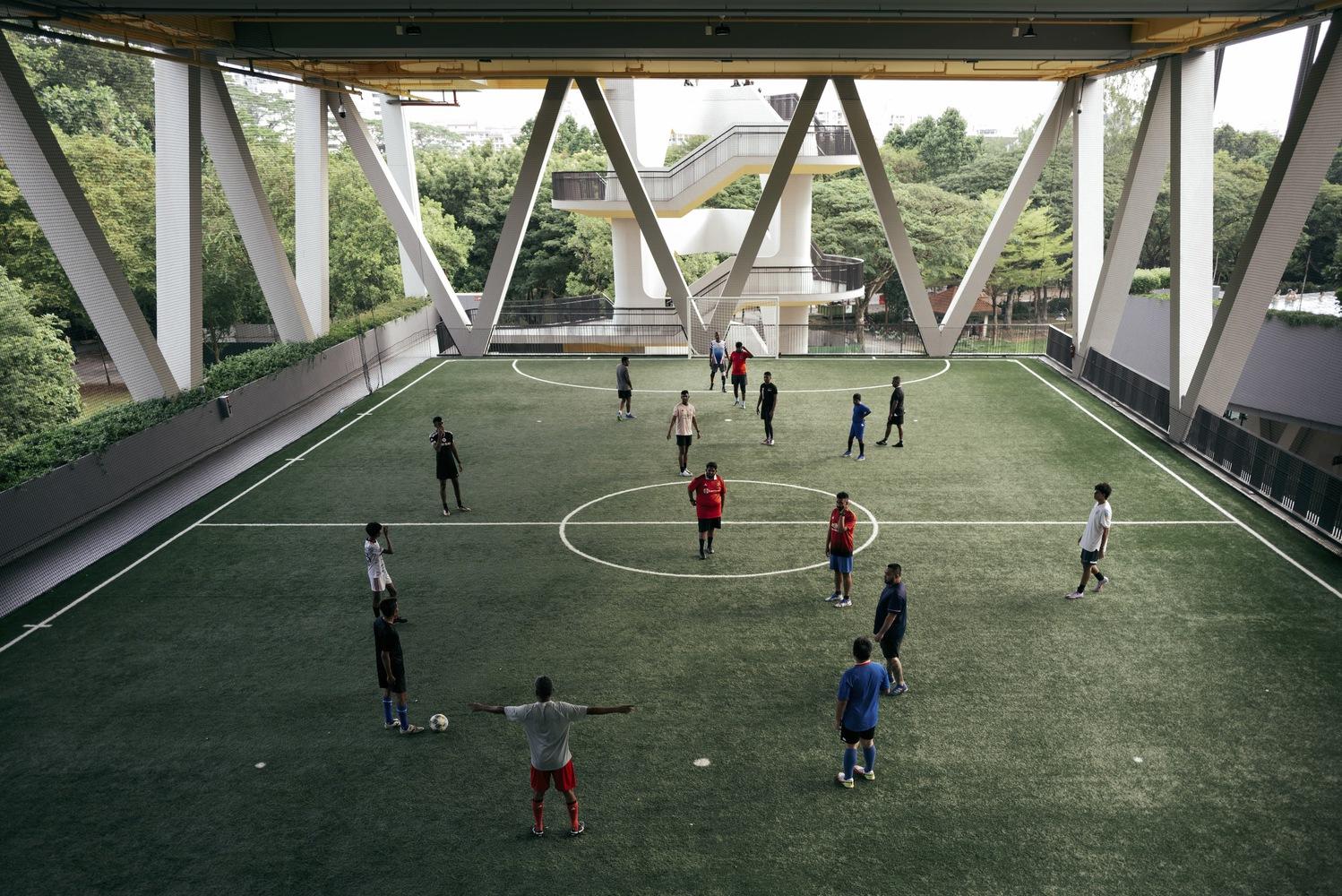

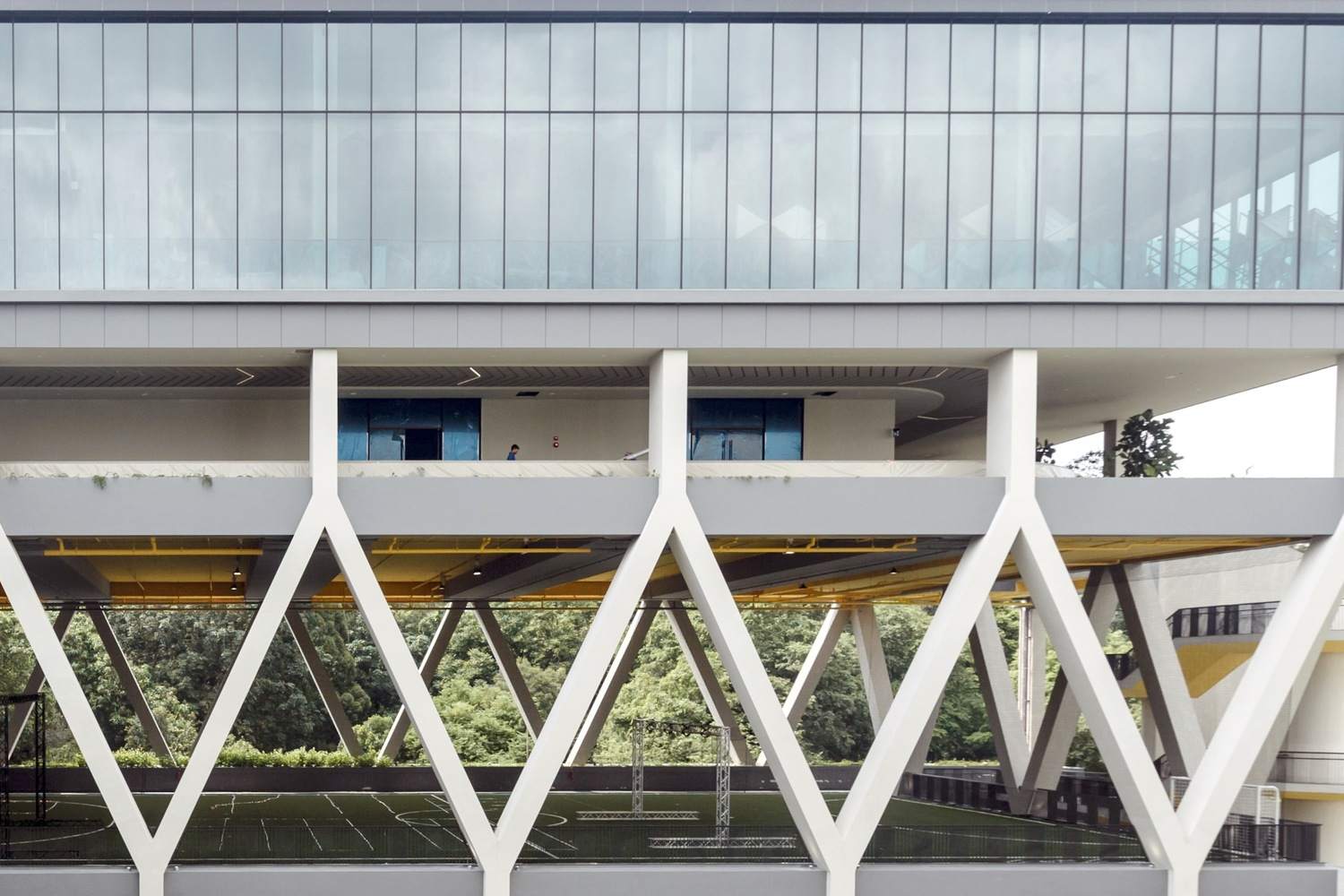

The SAFRA Choa Chu Kang clubhouse, situated in the heart of a vast public park, is a recreational facility offering a wide array of fitness and wellness activities for national servicemen and their families, including swimming pools, five-a-side soccer pitches, karaoke rooms, and a spa. The architectural style of SAFRA CCK is assertive and distinct, drawing inspiration from fitness movements—from bold, oversized trusses to precast pigmented concrete arches symbolizing unity and strength. Beneath this robust exterior lies a vibrant natural and human community, flowing in from the park via a central main artery. The result is a seamless interweaving of nature and fitness, revitalizing the community spirit.

来自建筑师。SAFRA蔡厝港会所坐落在广阔的公共公园中心，是一个休闲会所，为国家军人及其家属提供丰富多样的健身和保健活动，包括游泳池、五人制足球场、卡拉 OK 厅和水疗中心。SAFRA CCK 的建筑风格张扬、独特，让人联想到健身运动并从中受到启发--从大胆的超大桁架到象征团结和力量的预制颜料混凝土拱形正面。而在其坚固的外表下，则是一个充满活力的自然和人文社区，通过一条中央主干线从公园流淌而入。其结果是自然与健身的无缝交错，为社区注入了新的活力，重振了社区精神。

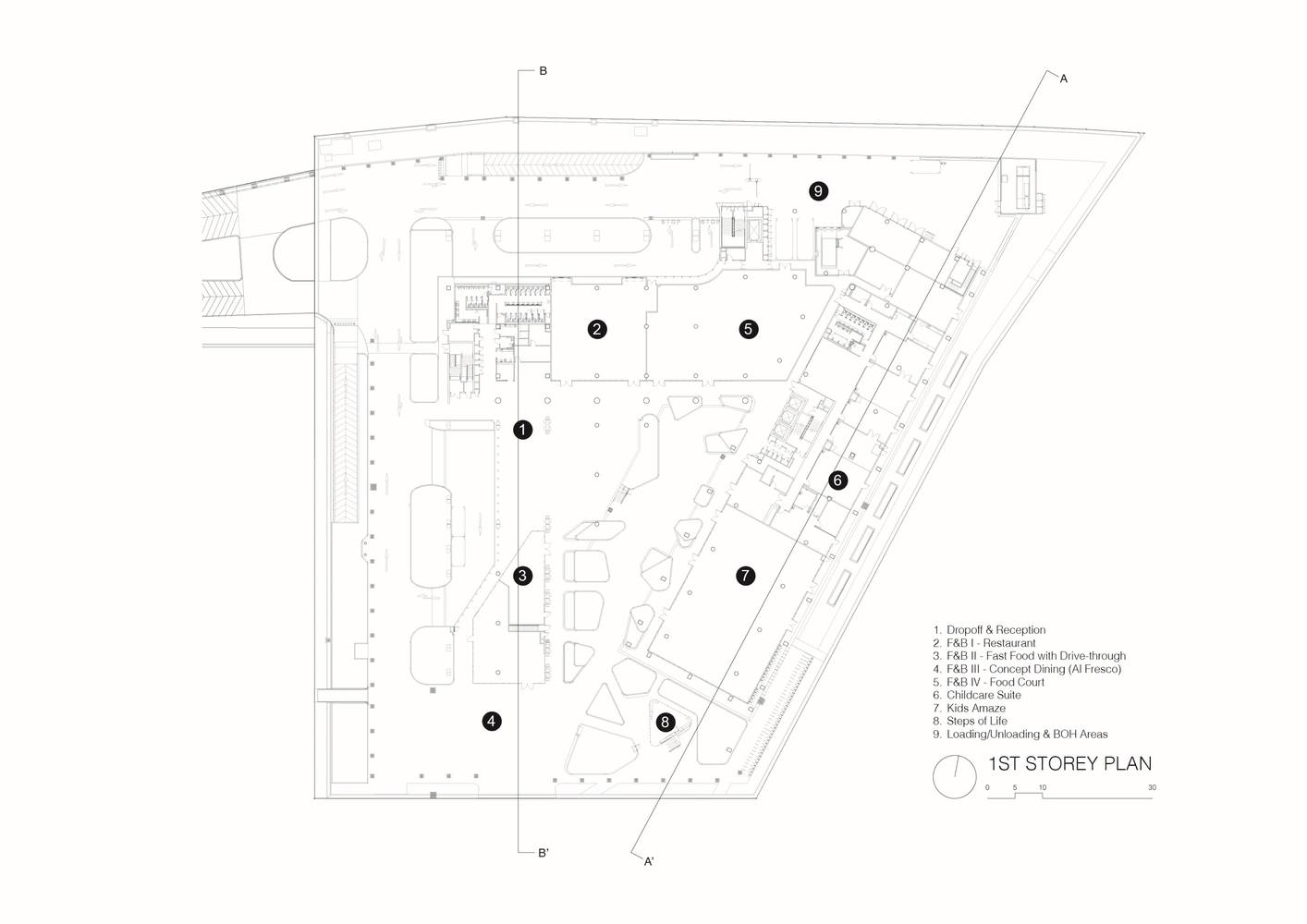

First Storey Plan

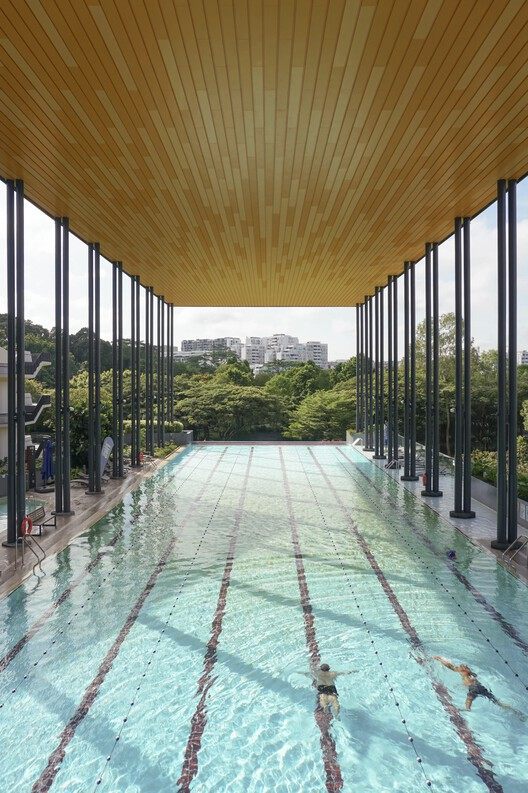

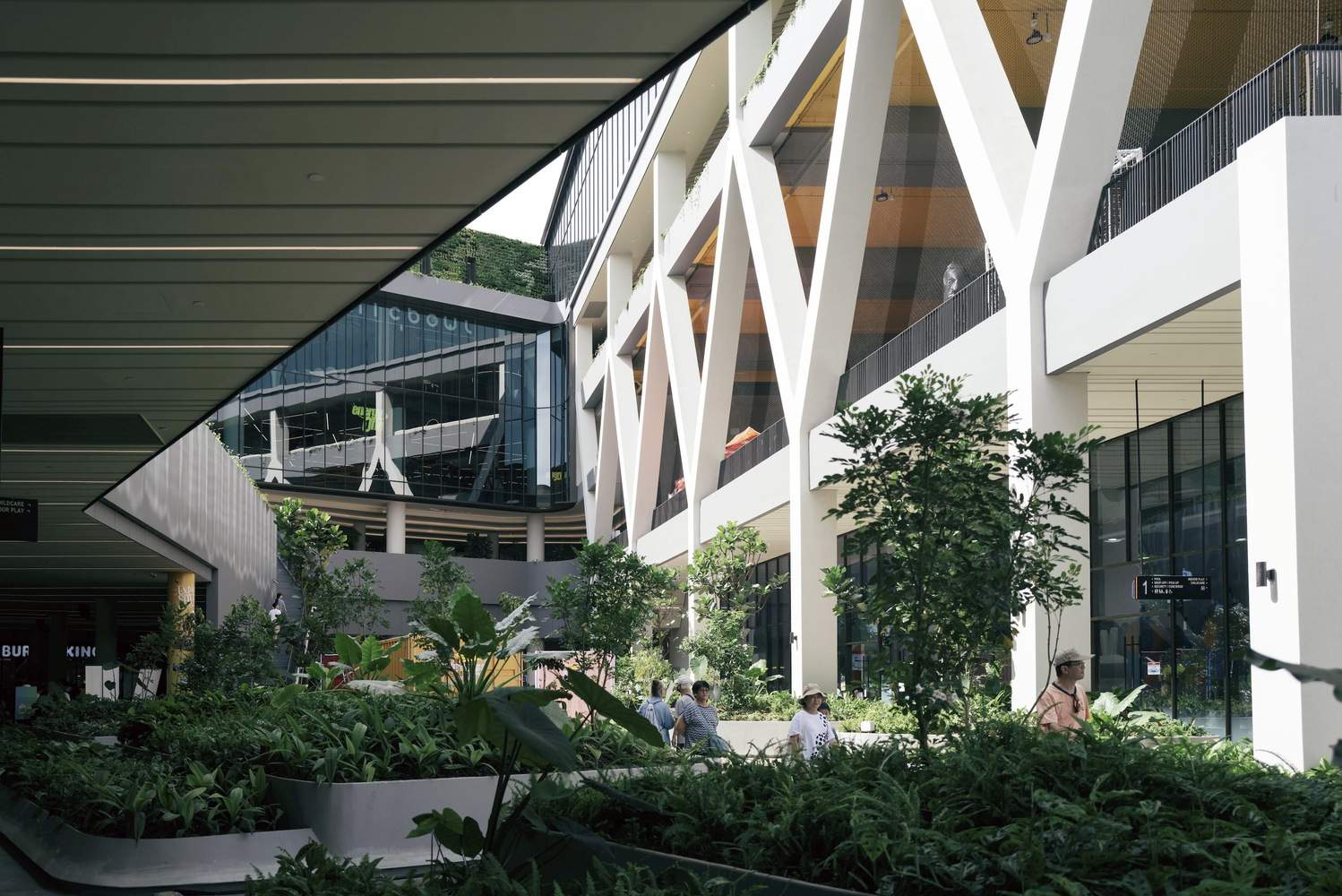

From the outset, the massing and programming were guided not only by the internal logic of hierarchy and purpose but also by external factors such as visual permeability and spatial connectivity. Located within the park, the clubhouse's design philosophy leverages its geographical position to foreground porous public spaces that seamlessly integrate surrounding greenery with the built structure. The building is intentionally oriented towards the park, drawing in the surrounding nature and activities to create a verdant central courtyard that channels the outdoors in. To further enhance permeability, the swimming pool is elevated into the tree canopy, freeing up the ground plane to connect with the park. This not only offers a commanding view of the park from above but also allows the pool to extend into the foliage, blending in perfectly with the leaves.

首层平面图

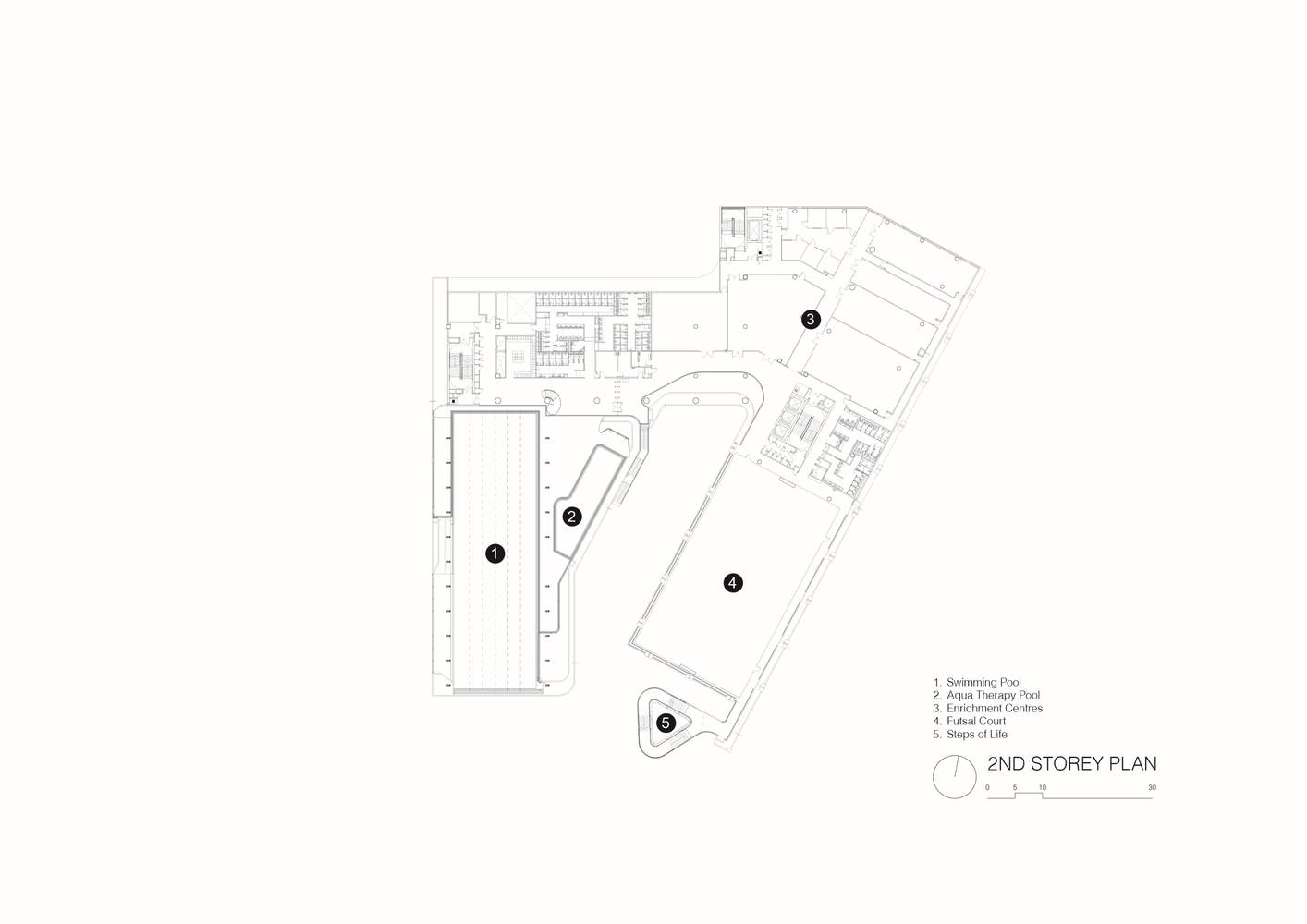

Second Storey Plan

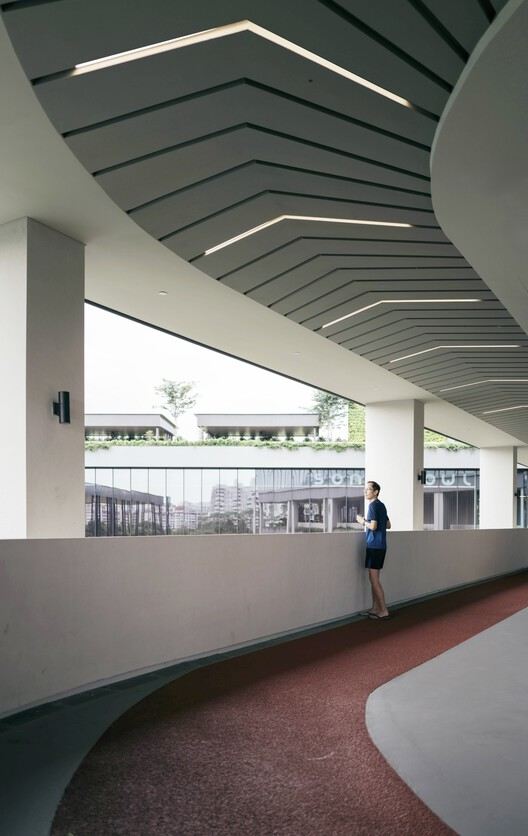

Adjacent to the courtyard, the 'Staircase of Life' acts as the vertical nucleus of the project, not only connecting the fitness amenities within the clubhouse but also linking the park’s running routes with the sky track on the fourth level. It embodies active mobility, inviting visitors to ascend 100 steps, thus breaking the conventional idea that fitness and parks are confined to the ground plane. Spanning different domains—public and private, horizontal and vertical—it injects the clubhouse with a unique verve and enthusiasm. The high-volume spaces are arranged along the building's outstretched arms to maximize natural light and cross-ventilation. In air-conditioned spaces, high-performance double-glazing is utilized to mitigate heat transfer, resulting in significant energy savings.

二层平面图

Beyond passive design strategies, SAFRA CCK optimizes energy consumption through green technologies and sustainable building practices. It features high-efficiency water-cooled chillers, a 100% smart automated irrigation system for rainwater harvesting in the landscape, rooftop photovoltaic panels, and energy-efficient lighting systems. During construction, green concrete and recycled steel were used, resulting in a 23% reduction in embodied carbon per square meter of construction. Due to an overall energy saving of 42.7%, totaling 1890 MWh, the project was awarded the Green Mark Platinum for Super Low Energy Building certification by the Building and Construction Authority (BCA) of Singapore. This recognition underscores the clubhouse's commitment to coexisting harmoniously with nature, highlighting its role as a thoughtful, sustainable space that prioritizes the well-being of its occupants in every aspect of its design and function.
