用友运动中心 / 大观建筑

企业品牌精神的视觉化融入：项目成功地将用友网络的品牌规范——用友红和用友灰——深度融入空间设计，并辅以橙、蓝、绿等分区色彩，实现了品牌形象与功能区域的和谐统一。这种色彩的渗透与过渡不仅在视觉上提供了和谐的连接，更重要的是，它将企业的文化和活力注入到员工的日常活动空间中，使体育馆超越了单纯的运动设施，成为一个具有强烈企业身份认同感的“精神场域”。

“跑道概念”的流线与导向核心：建筑师以“跑道”概念作为核心设计语汇，贯穿了从室内标识、导视系统到地面铺装的各个层面。这一概念有效地解决了多功能、多层次空间流线组织的问题。跑道不仅是物理上的动线，更是汇聚人流、连接不同运动区域（咖啡区、健身房、球场）的逻辑主线，极大地提升了空间的可读性和使用效率，体现了对使用者体验的精细化考量。

立面改造的动态感知与空间激活：立面改造大胆采用了金属拉伸网，通过灯光折射，将原先零散的构件转化为统一的、富有层次感的整体表皮。同时，开敞式的斜切入口柔化了建筑与环境的界限，并利用色彩和开放休闲区的设置，积极地邀请社区和员工进入使用。这种对外部形象的激活，不仅提升了建筑的现代感和吸引力，也强调了体育馆作为园区公共社交场所的功能导向。

In March 2022, Daga Architects received an invitation from Yonyou Network to renovate a gymnasium located within the Yonyou Software Park at No. 68 Beiqing Road, Haidian District, Beijing. The primary goal was to satisfy the park's needs for sports and commercial sales. Unlike traditional large-scale venue construction, the Yonyou Gymnasium presents a light and minimalist image. Upon completion of the upgrade, the gymnasium will fully serve its function as a supporting facility for Yonyou and surrounding enterprises, mainly for employees, providing venues for various sports including basketball, badminton, table tennis, and a multi-functional fitness room.
2022年3月，大观建筑收到了用友网络的邀请，改造一处位于北京市海淀区北清路68号用友软件园内，以满足园区内运动及商业销售为主要目的的体育馆。不同于传统的大型场馆建设，用友体育场馆展示出轻盈且简洁的形象。体育馆升级完成后将充分发挥园区配套设施的服务属性，以面向用友及园区企业员工使用为主，为多种运动项目提供场地，包括：篮球、羽毛球、乒乓球及多功能健身房。

Yonyou Network is a world-leading provider of enterprise cloud services and software, committed to advancing business and social progress through innovation and technology. During the planning phase, we unified the visual focal points of the venue, using Yonyou Red and Yonyou Gray from the corporate visual identity standards as the main spatial color palette. The gymnasium, fitness room, and track areas are further empowered by distinct zones of orange, blue, and green. Walls with different color temperatures transition and permeate from one area to another, creating a harmonious connection.
用友网络是全球领先的企业云服务与软件提供商。致力于用创想与技术推动商业和社会进步。规划前期我们统一了场馆中的视觉锤，以用友视觉形象规范中的用友红和用友灰作为空间主色调，体育场，健身房与跑道区并以橙色，蓝色与绿色的分区赋能，不同色温的多色墙面从一处区域过渡到另一处区域，相互渗透，形成和谐的连接。

Courtesy of 大观建筑

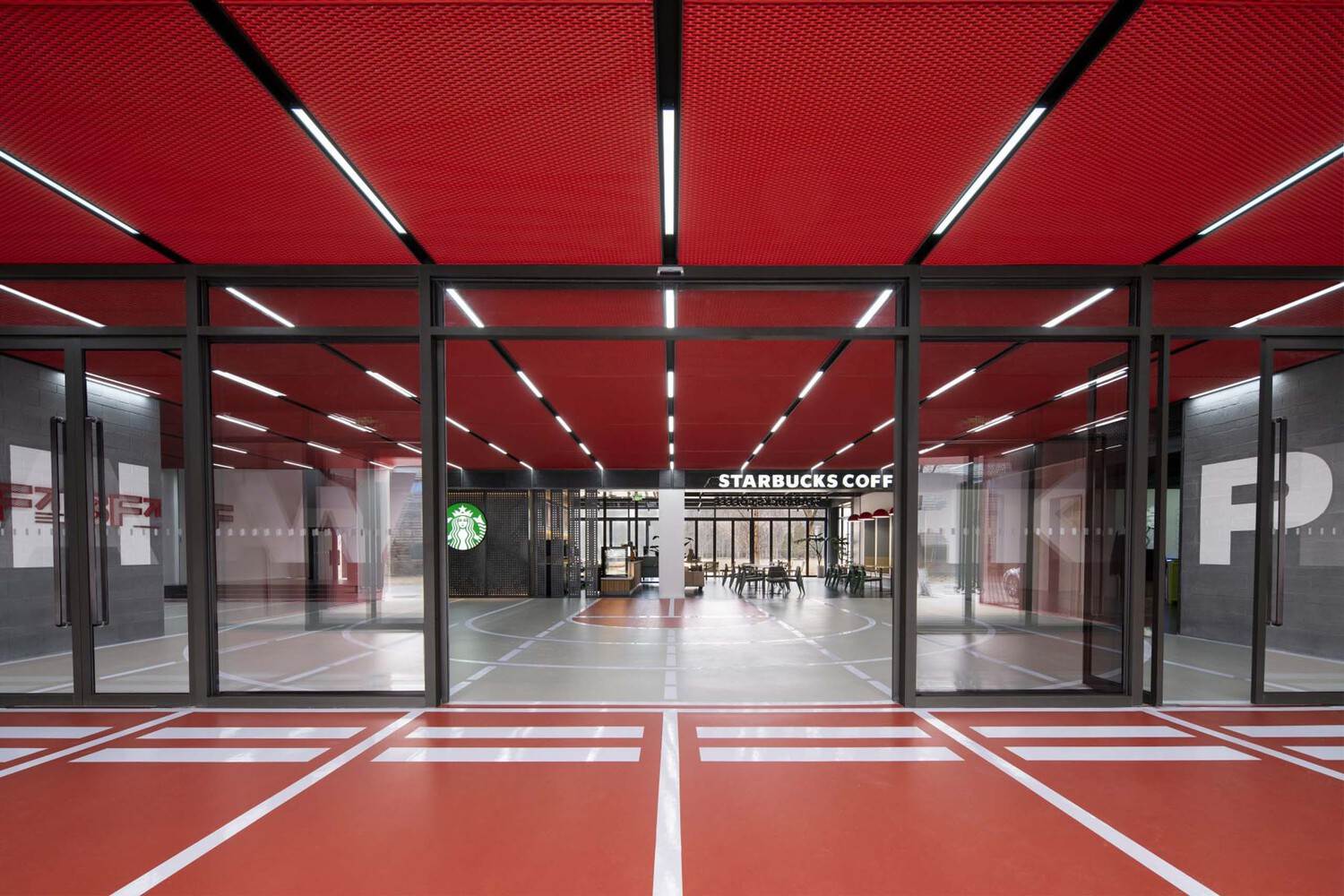

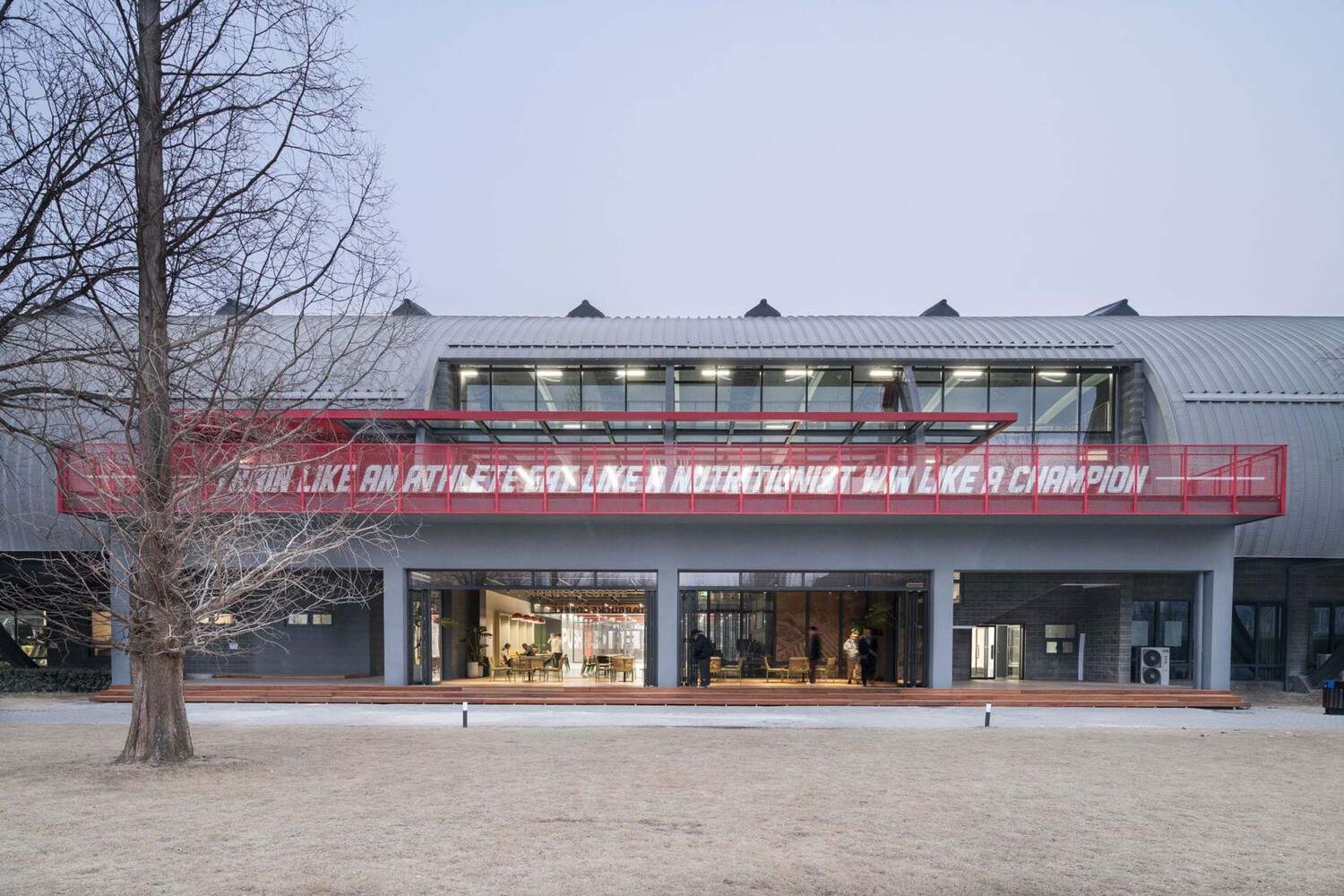

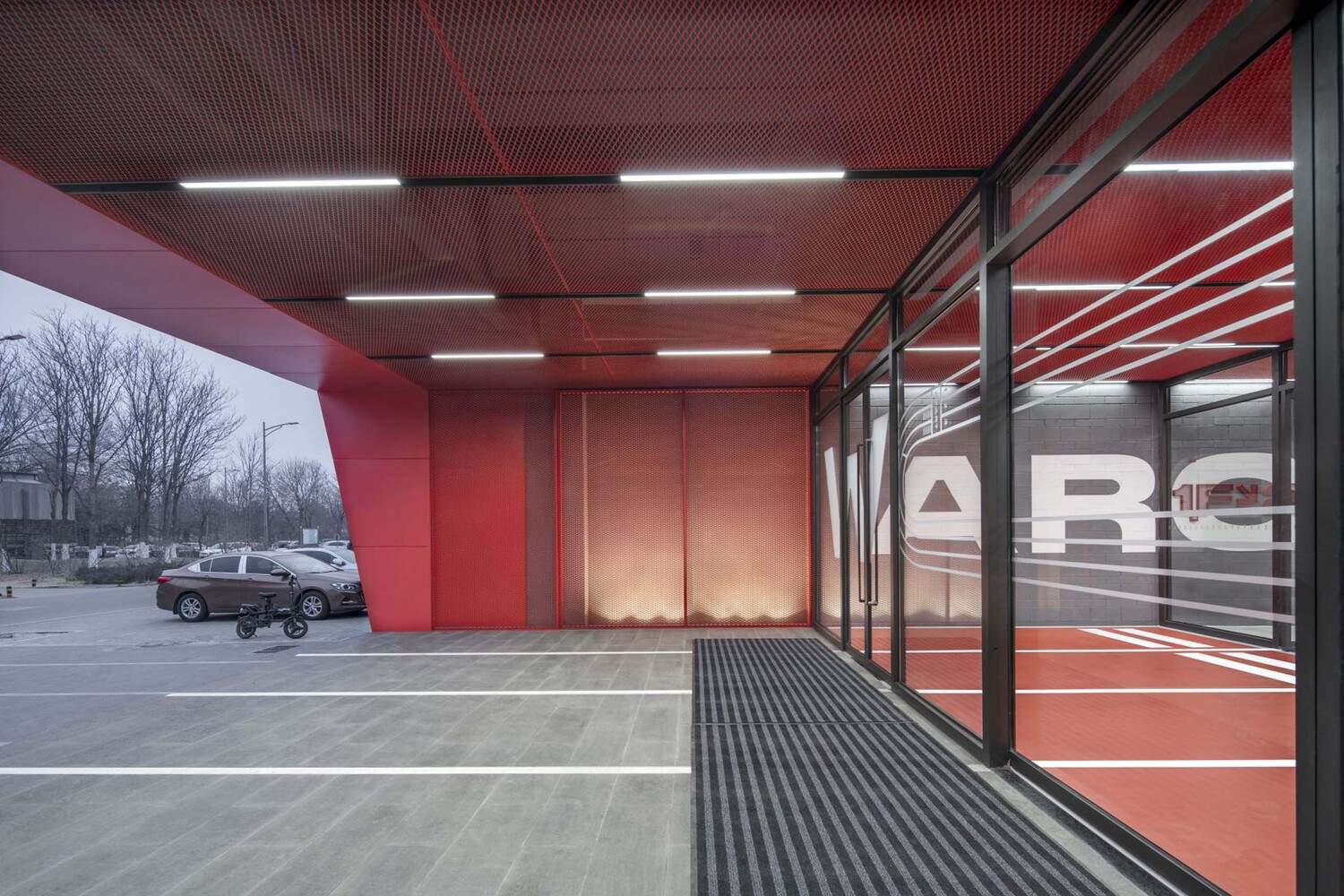

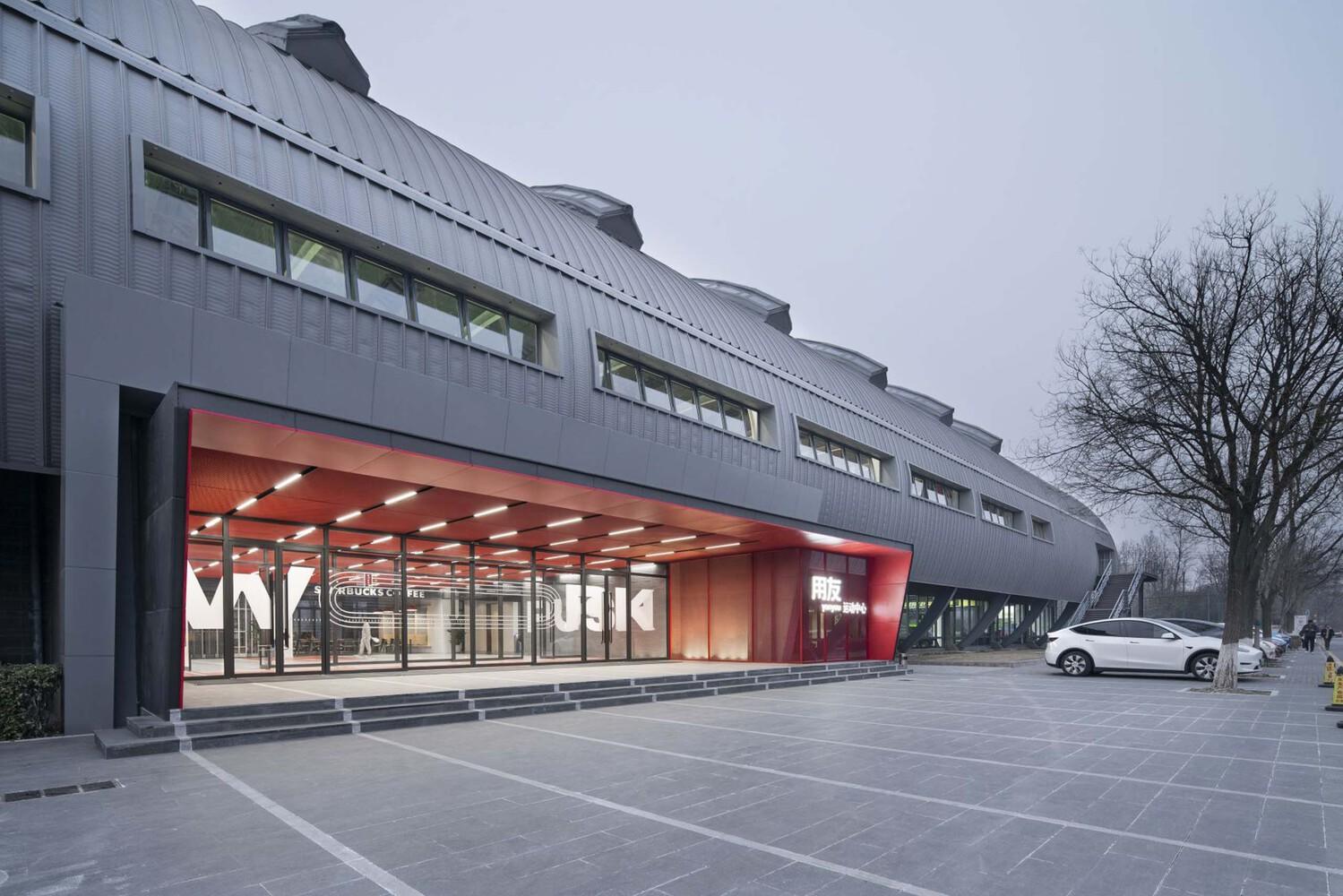

Before the renovation, the exterior facade was relatively plain and dated. Based on this, we first enlarged the original entrance canopy. The stretched metal mesh material extends from the entrance to the interior. When the light tubes shine down through the metal mesh, the refraction transforms scattered, fragmented components into a unique whole, with a ceiling in a strong, emotional red creating more layers through its translucency. We attempt to spark curiosity and a desire for knowledge in people about the renovated site, much like a child wonders what’s inside a gift box. The new entrance of the renovated gymnasium adopts an open, chamfered design facing the public, softening the harsh boundaries between the original site's interior and exterior. Color serves both as a guiding concept for the space and as a decorative element. The north facade faces a large area of green space, acting as an extension of the spatial movement form. The entrance merges with the greenery, providing a sense of spaciousness and relaxation, while the added open leisure area at the north entrance encourages people to walk in and truly utilize every part of the space.
改造前外立面相对单一且陈旧，基于此，首先扩大了原本门头的大小，金属拉伸网材质从门头延伸到室内，当灯管从上往下照透过金属网的同时，折射使零散分布的碎片化构件变成一个独特的整体，带有强烈色彩情绪的红色天花在半透明之间制造了更多的层次。我们试图激发人们对改造后场地的的好奇心和对求知欲：就像孩子总想知道礼物盒子里装了什么一样。改造后的新体育馆的入口采用开敞式的斜切口造型迎向大众，柔化了原场域内外生硬的界限。颜色是空间指引的概念，也是装饰的一部分。建筑北立面正对片大面积绿地作为空间运动性形态的延伸，入口与绿地相融，给人以宽敞和放松的感觉，而北入口增加的开放休闲区，吸引着人们走进并真正地去使用它的每个空间。

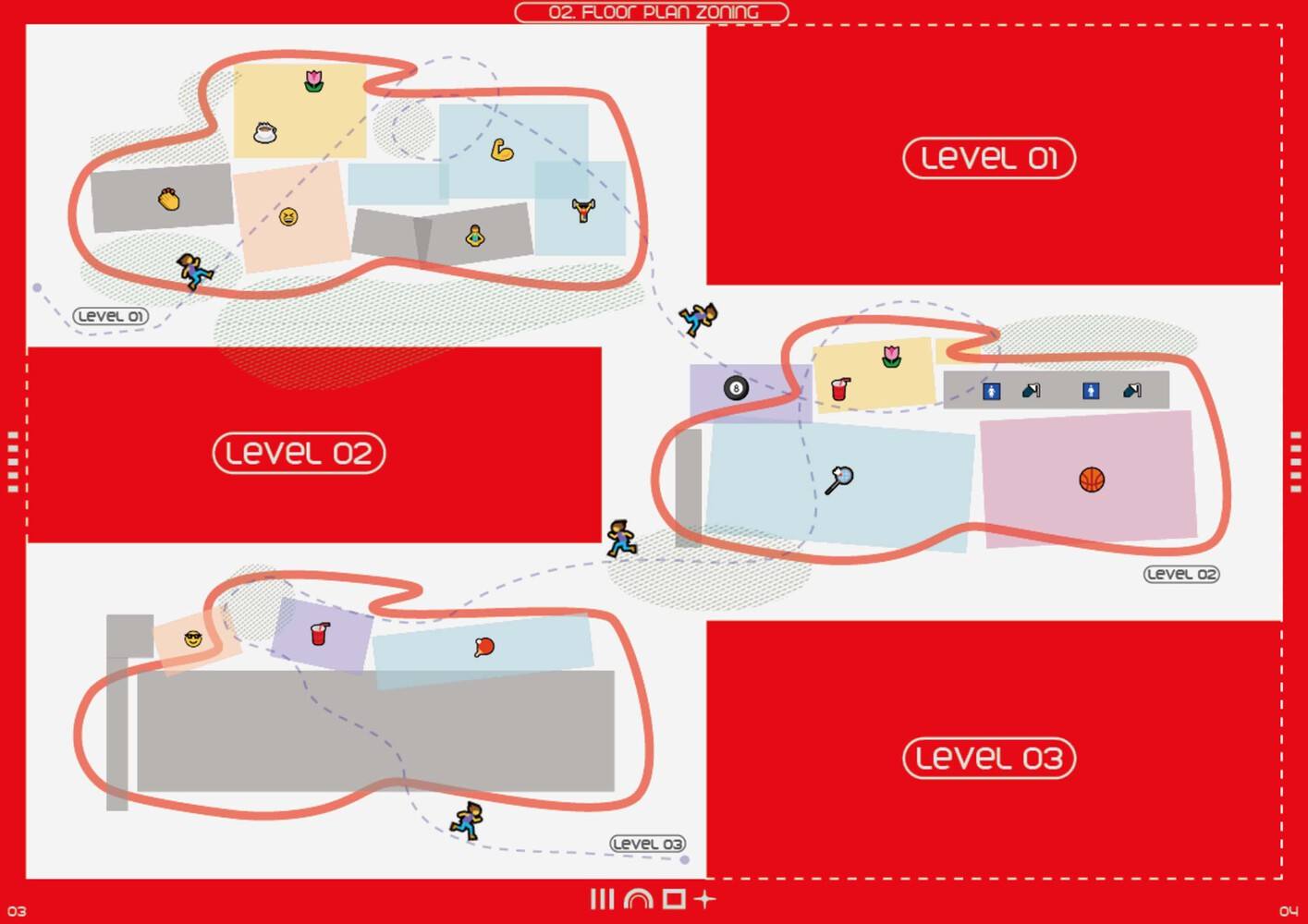

分析图

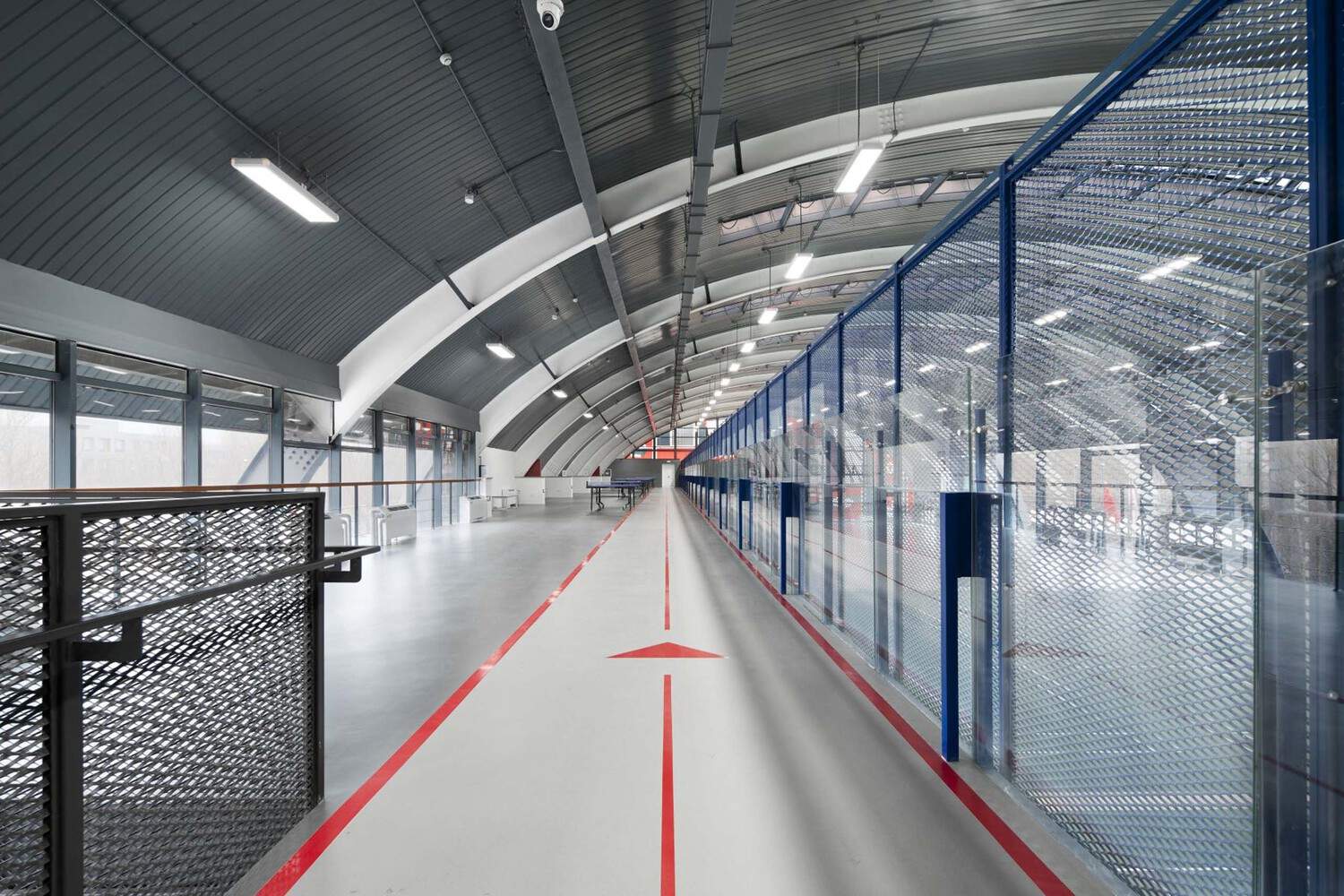

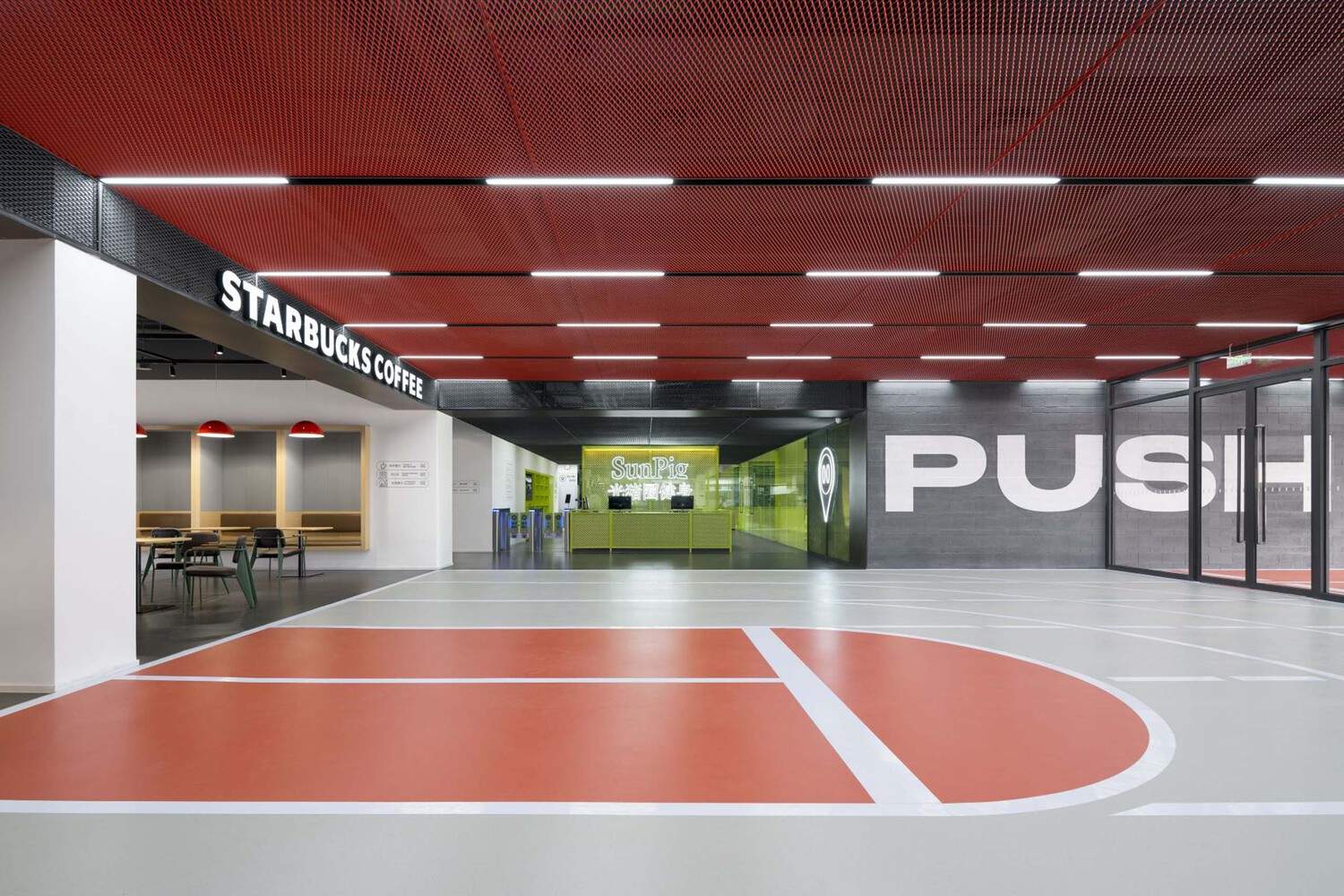

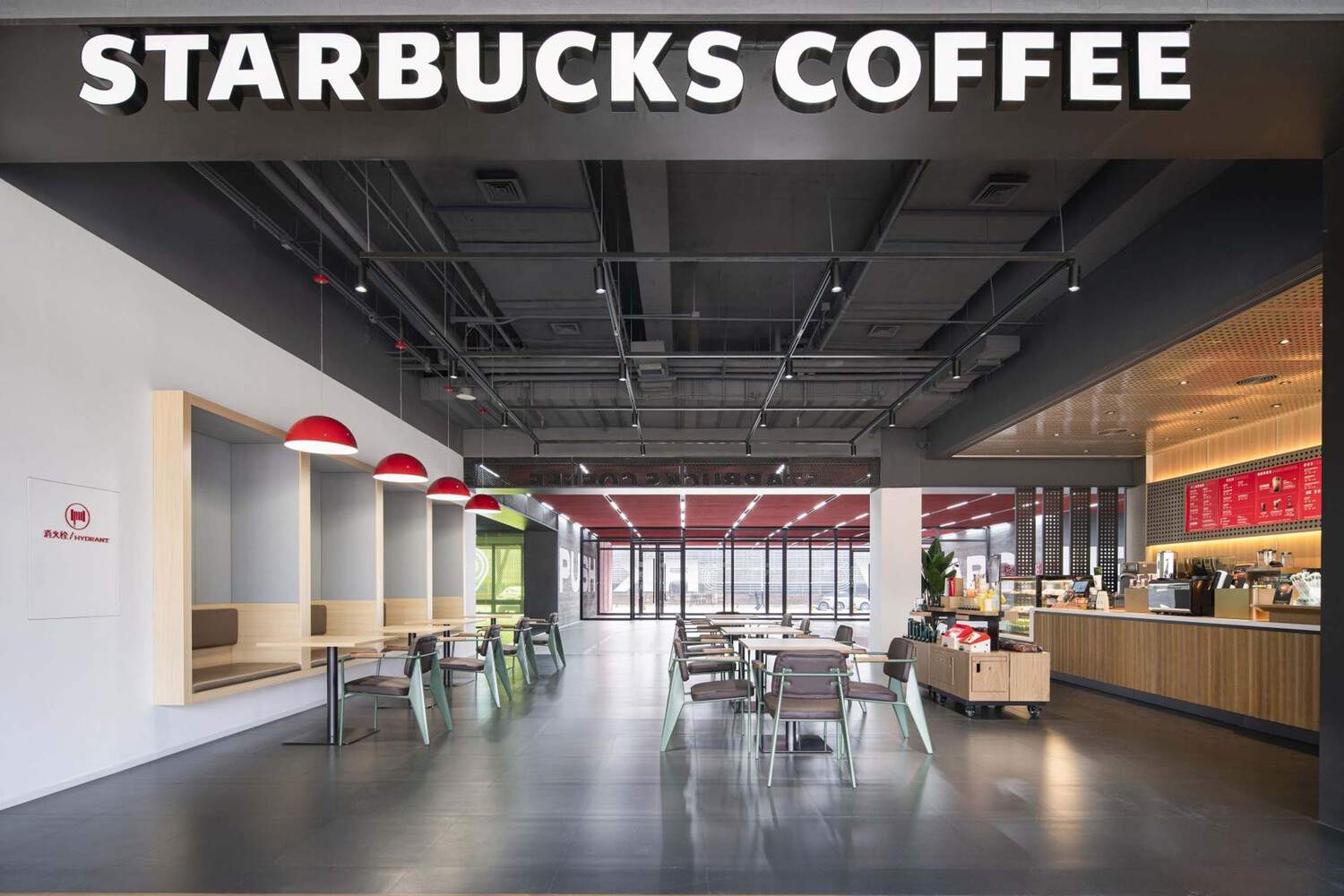

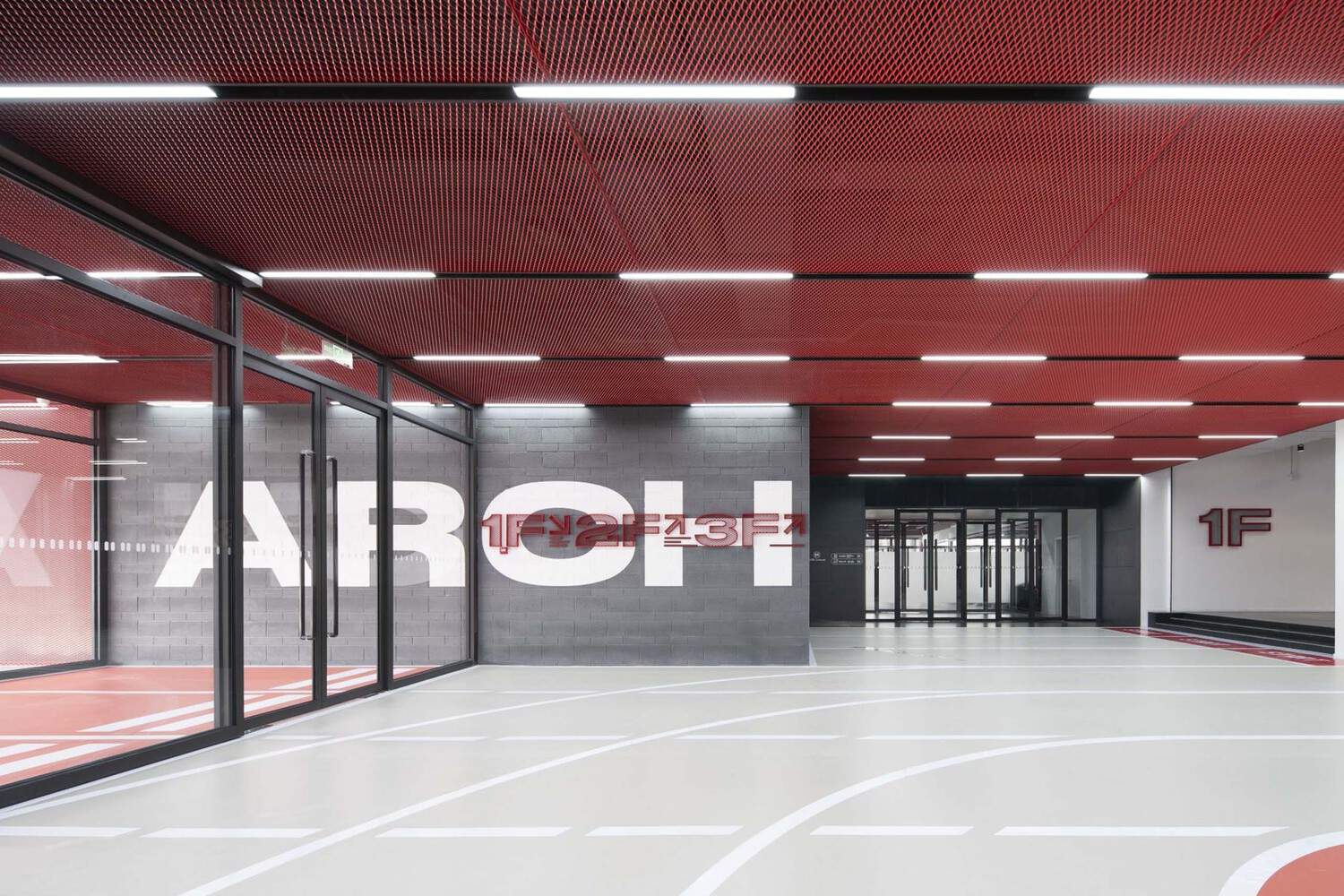

Given the cost constraints, we emphasized the interior design highlights by using sports-style indoor signage, specifically designing a track-style VI system, a stretched metal mesh guidance system, and floor tracks. The internal functional areas are distributed around the broad "track concept," which receives and gathers pedestrian flow while also connecting the various functional spaces within the building. Following the "track" from the exterior leads indoors to the first-floor coffee area and fitness room; continuing along the "track" upstairs leads to the second-floor badminton and basketball courts; and the "track" extends all the way to the third-floor table tennis area.
在成本受限的前提下，我们将运动风格的室内标识作为空间设计的亮点，特意设计了跑道风格的vi系统、金属拉伸网的导标系统、地面跑道等。内部的功能区域围绕着宽阔的“跑道概念”分布，后者在接收和汇聚人流的同时，也连接了建筑内部的各种功能空间，从室外沿着“跑道”进入室内，通往一层的咖啡区与健身房；继续沿着“跑道”走上二层进入羽毛球篮球场；“跑道”一直延续到三层的乒乓球区。

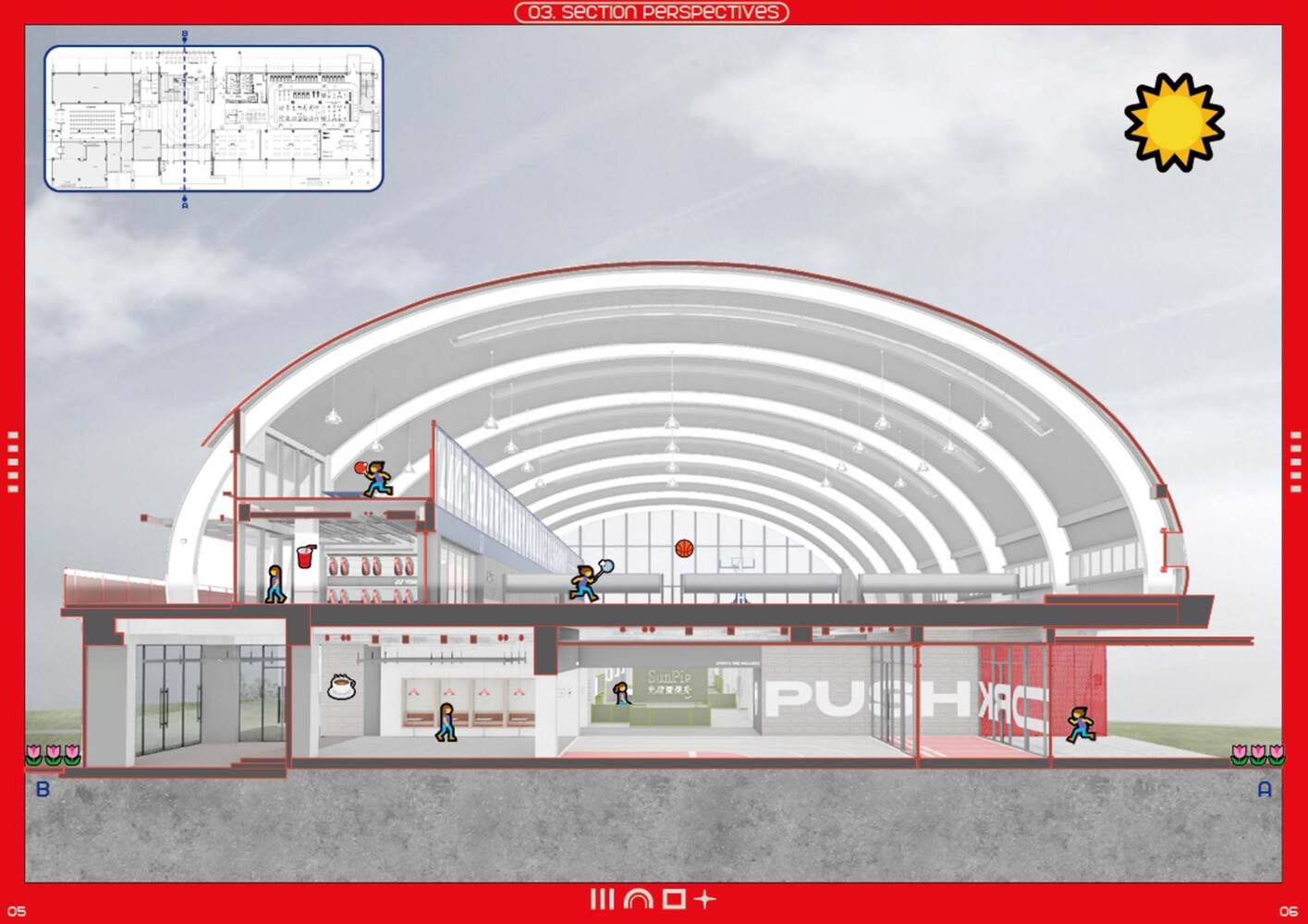

剖透视图

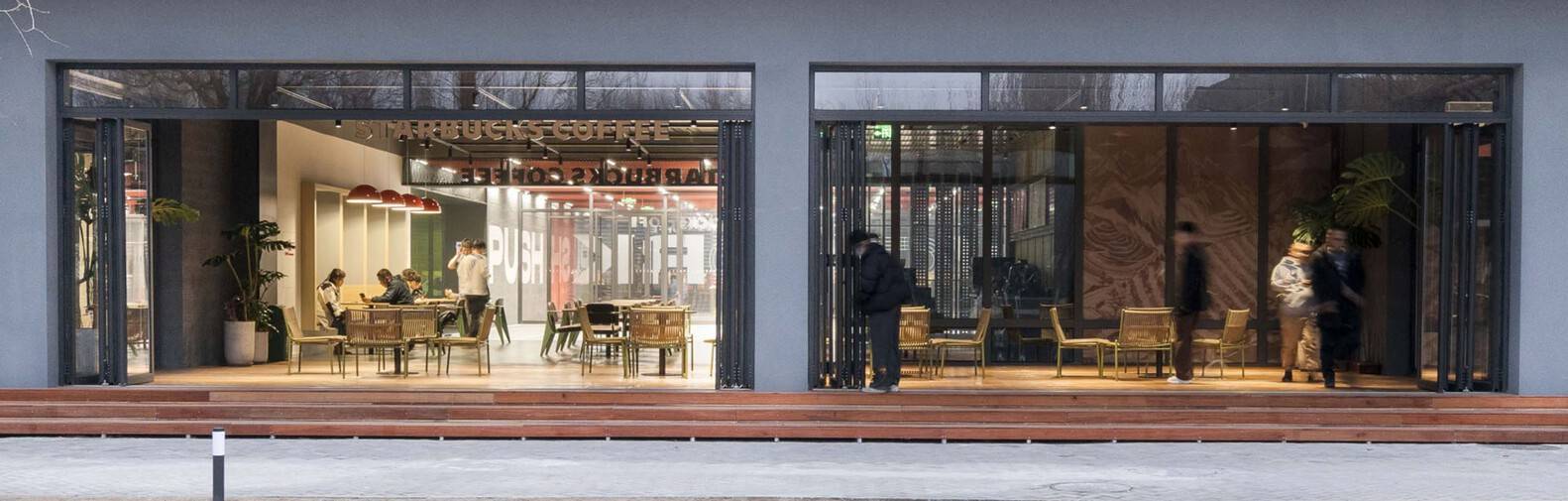

As a dedicated sports facility for the Yonyou Industrial Park, we aimed not only to provide employees with a rich selection of sports but also to create a social hub for young people outside of work hours. The clear and simple floor plan allows visitors to quickly understand the building's spatial organization. The venue incorporates various sports types and supporting services. During the initial design phase, we considered the different experiences and potential issues users might encounter in various scenarios from different perspectives. The custom-designed icons and signage facilitate a smoother connection throughout the space, using color to delineate scenes, find order within the colors, and discover the laws of movement through the splicing and overlapping of materials.
作为用友产业园区的自用运动场所，我们希望不仅为员工提供丰富的运动选择，同时也可以成为年轻人在工作之余进行社交的场所。清晰简单的平面规划让来访者可以很快读懂建筑空间。场馆内包含了多种运动类型以及配套服务，在设计初期从不同角度考虑到使用者们在设定的场景中所需要的不同体验与可能发生的问题，特别订制的图标与导视选择得利于整个空间更舒缓的串联，利用颜色将划分场景，在颜色中寻找秩序，在材质的拼接与交叠中寻找运动规律。

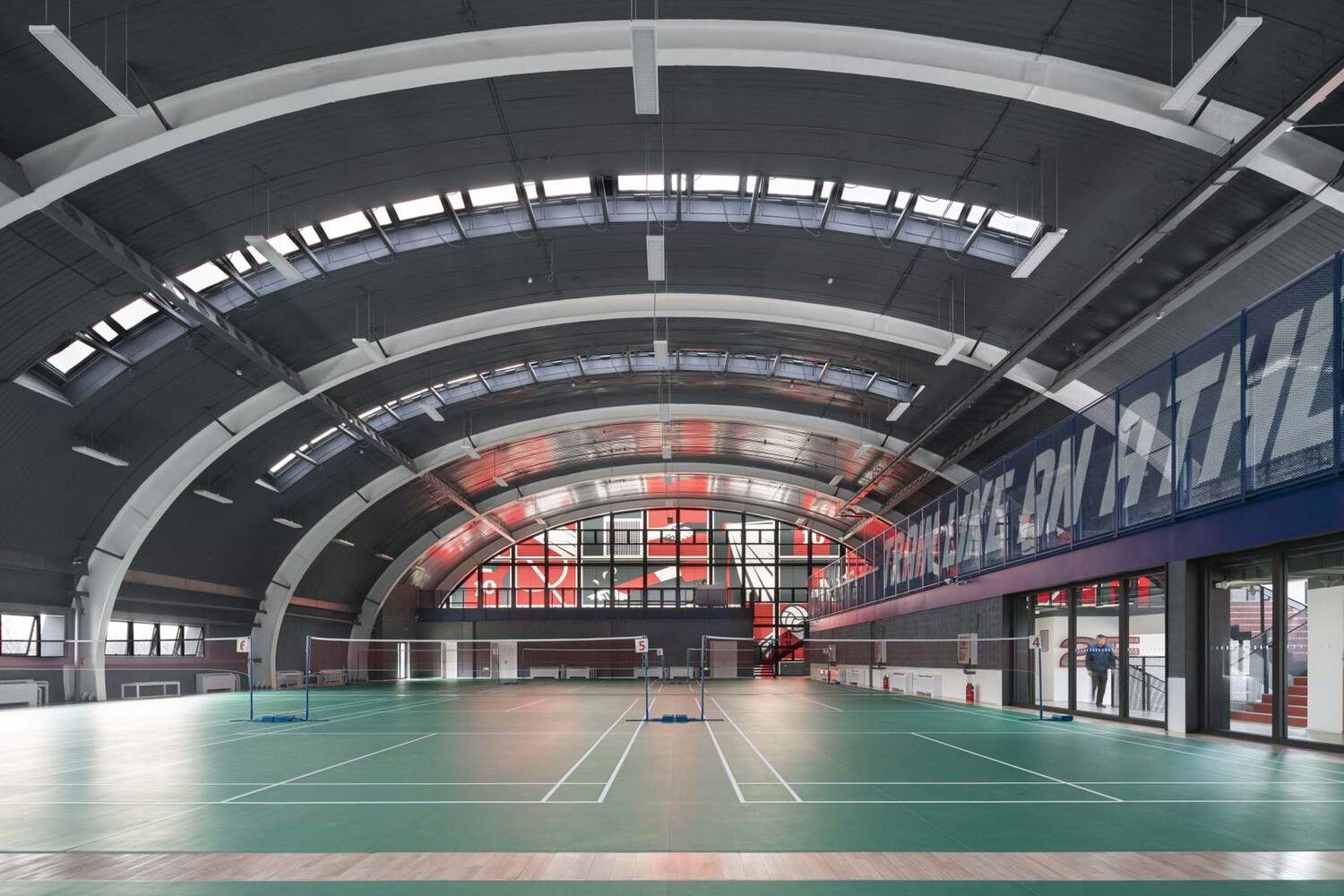

The vaulted structure's original skylights were retained. However, to prevent uncontrollable natural light from affecting sports activities, a translucent film was installed on the interior side of the glass. This ensures natural lighting while accommodating the needs of badminton play. Supporting spaces such as restrooms and changing rooms continue the strong contrast of red and gray, featuring custom-made metal mesh partitions and mirrored cabinets that punctuate the space. The exposed ceiling light fixtures are also mounted on red brackets, adding a dynamic line to the dark gray exposed ceiling.
体育馆的拱形结构原有的采光天窗依旧保留，但是为了防止不可控的自然光对体育运动的影响，采取在玻璃内侧装透光膜的方式，既保证自然的采光又照顾到羽毛球运动的需要。体育馆的卫生间更衣室等配套空间依旧延续红色与灰色的强对比，采用金属网定制的卫生间隔断与镜箱跳跃在空间中。裸顶的吊灯也安装在红色支架上，给深灰色的裸顶增加一条灵动的线条。

Initially, we started from the concept of the track and its extending tension. Upon completion, the track concept also carries the spiritual philosophy we conveyed across the three levels. We hope that color can awaken the spirit of the sports venue, conceive possible scenarios within the site, and thus utilize these architectural materials by imagining how people will meet, interact, and respond to the surrounding landscape to create space. Let sports open up infinite possibilities for the future.
最初我们从跑道出发，以它延伸的张力作为概念创造，最终完成时它同样也承载了整个三层空间我们所传达的精神理念，我们希望色彩可以唤醒运动场域精神，对场地中可能发生的情景进行构想，从而来运用这些建筑材料，通过设想人们怎样相见、互动还有与周围景观的呼应来创造空间。让运动开启未来的无限可能。
