La Paz 医院加速器展馆 / Murado & Elvira Architects

La Paz Hospital Accelerator Exhibition Hall/Murado&Elvira Architects
La Paz 医院加速器展馆 / Murado & Elvira Architects

空间设计的巧妙融合：该项目最引人入胜之处在于其对空间设计的巧妙运用。它不仅是一个展览馆，更是一个连接室内外、融合技术与想象的康复场所。通过木制坡道与医院塔楼的连接，将原本单调的建筑空间转化为多层次的体验。设计师精心设计了不同功能的空间，包括非正式锻炼区、指导锻炼区、研究实验室和室外露台。这些空间在功能上相互补充，在心理上为患者提供了多样化的活动选择，帮助他们暂时摆脱医院环境的束缚。这种设计理念充分体现了对患者身心健康的关怀，将建筑设计提升到了一个全新的高度。

模块化与工业化的创新：该项目在设计理念上展现出极高的前瞻性。它提出了一个基于模块化建筑系统的解决方案，考虑到未来在不同医院的推广与应用。这种设计思路使得建筑可以主要在场外预制，减少了施工对医院运营的影响。同时，模块化设计也为不同项目的个性化定制提供了可能性，通过单元目录的选择与组合，可以根据不同医院的实际需求进行调整。这种设计策略不仅提高了建造效率，也赋予了建筑更强的适应性和可持续性，体现了建筑设计与工业化生产的完美结合，具有重要的实践意义。

材料与氛围营造的和谐统一：在材料选择和氛围营造方面，该项目也展现出卓越的专业水准。室内木质饰面的使用，搭配植被的引入，为患者创造了一个宁静而充满活力的环境。这种设计策略有助于缓解患者的焦虑情绪，促进身心健康。几何形状构成的外立面与周围环境形成鲜明对比，传递出友好乐观的信息。整体设计既注重实用功能，又兼顾了美学感受，将建筑的外部形态与内部功能有机结合，使展馆成为一个充满希望的、有助于康复的场所。这种对材料、色彩、光线的细致把握，体现了建筑师对细节的极致追求。

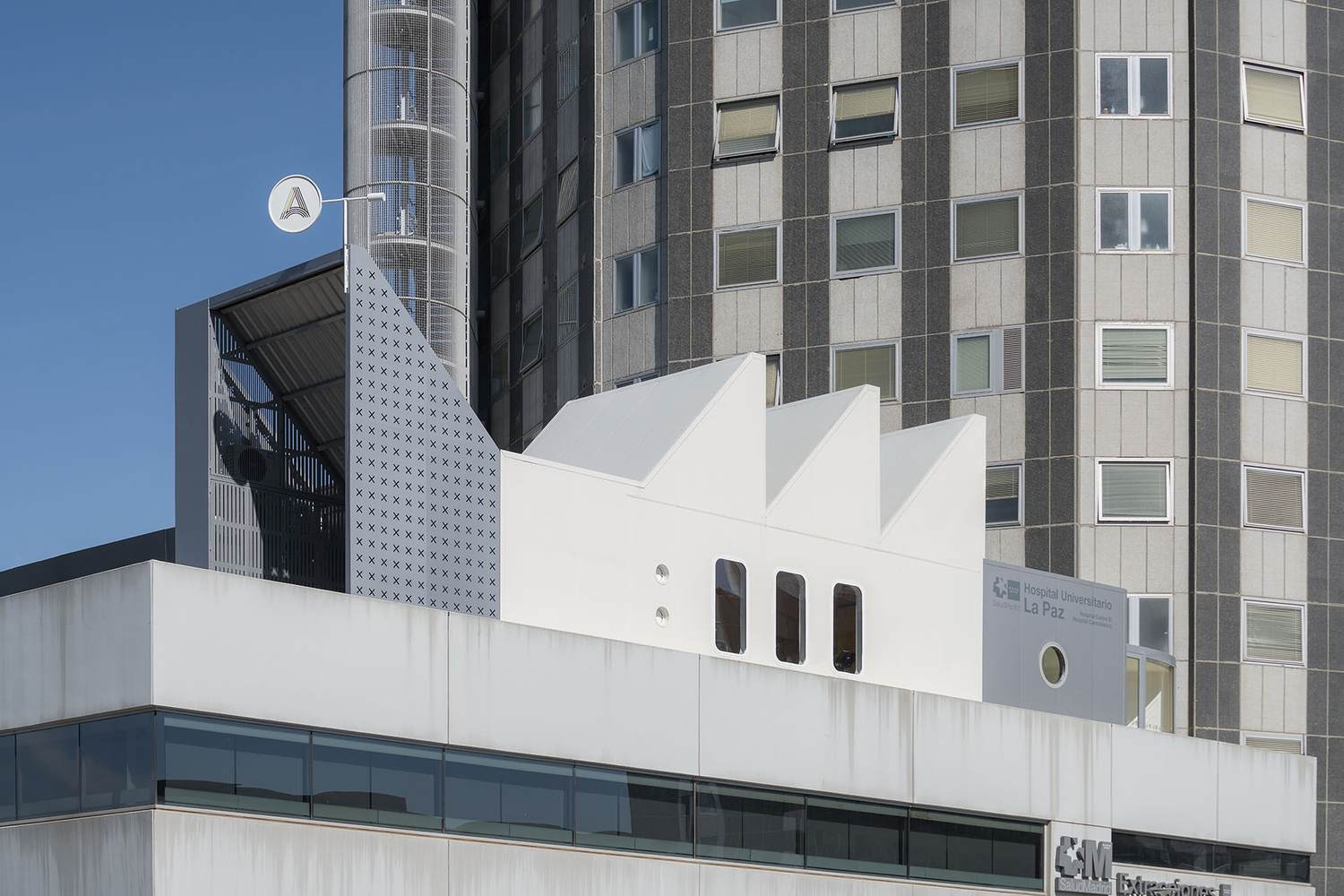

Aceleradora at the La Paz Hospital in Madrid is the first of a series of exhibition halls promoted by the Unoencentenmil Foundation. It is part of a research project aimed at accelerating the recovery of childhood cancer through physical exercise. The exhibition hall is located on the roof of the hospital and can be accessed through a window on the ward tower. It is both an outdoor space and a new indoor space, integrating technology and imagination that are conducive to rehabilitation. Inpatients can temporarily escape the strict space and time regulations of the main building.
马德里拉巴斯医院的 Aceleradora 是 Unoentrecienmil 基金会推广的一系列展馆中的第一个。它是一个研究项目的一部分，该项目旨在通过体育锻炼加速儿童癌症的康复。展馆位于医院屋顶，可通过病房塔楼上的一扇窗户进入。它既是一个室外空间，同时也是一个新的室内空间，融合了有利于康复的技术和想象。住院病人可以暂时摆脱主楼严格的空间和时间规定。

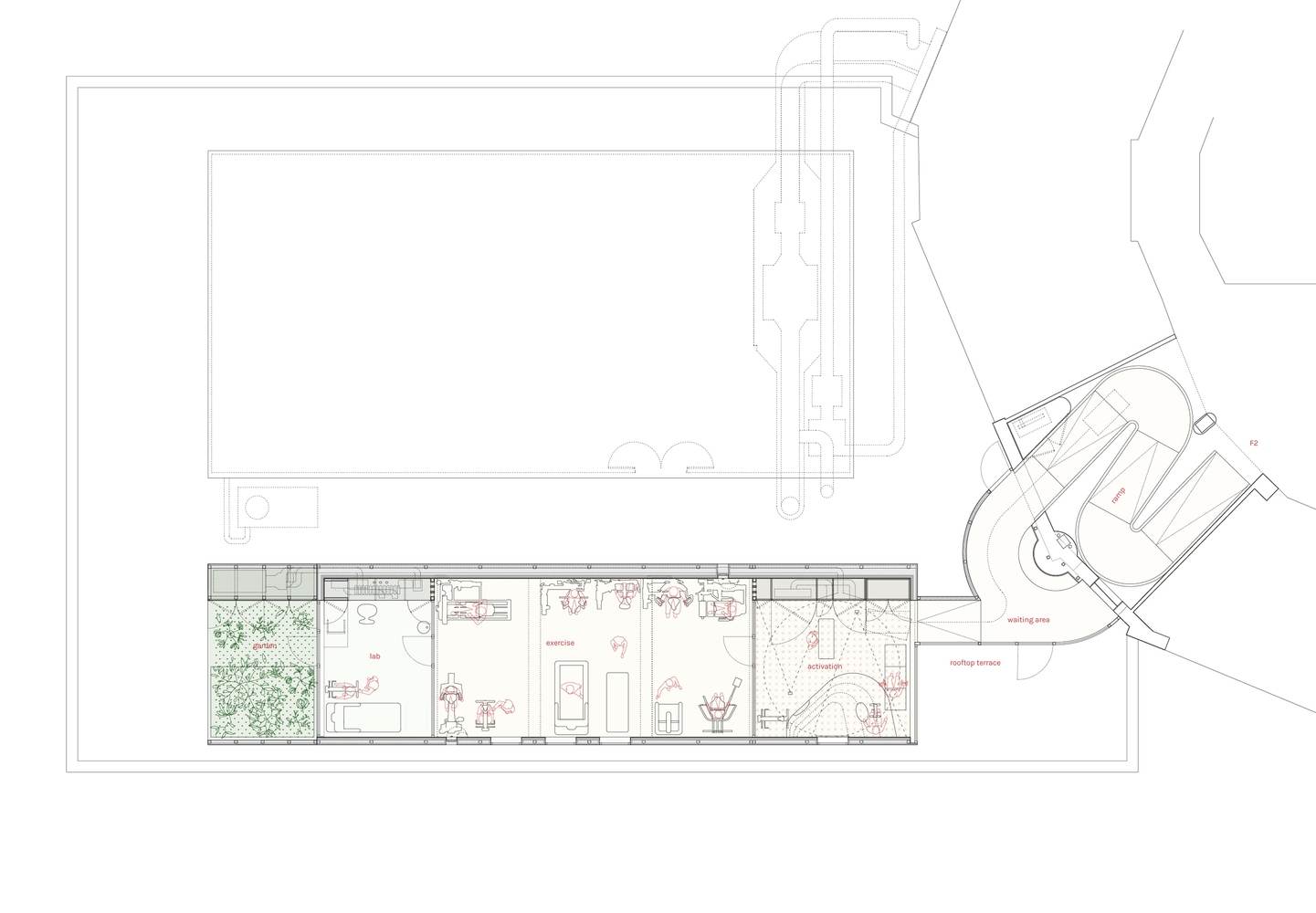

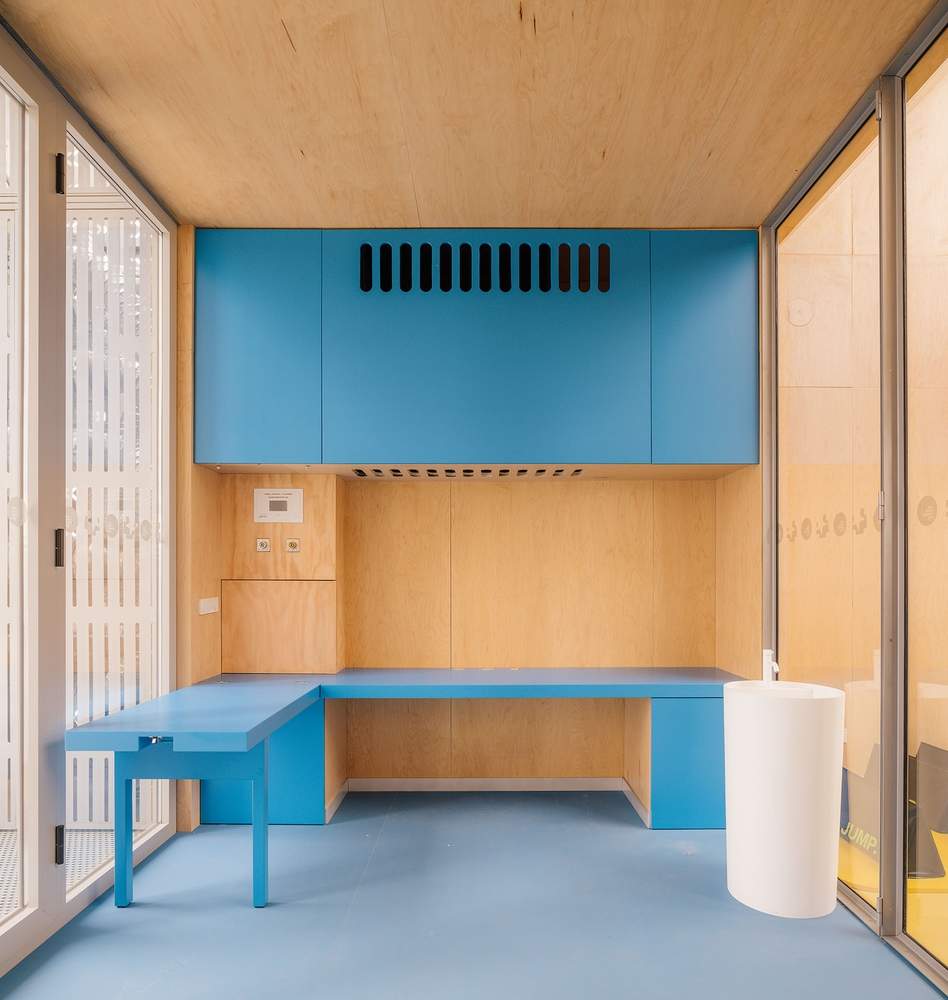

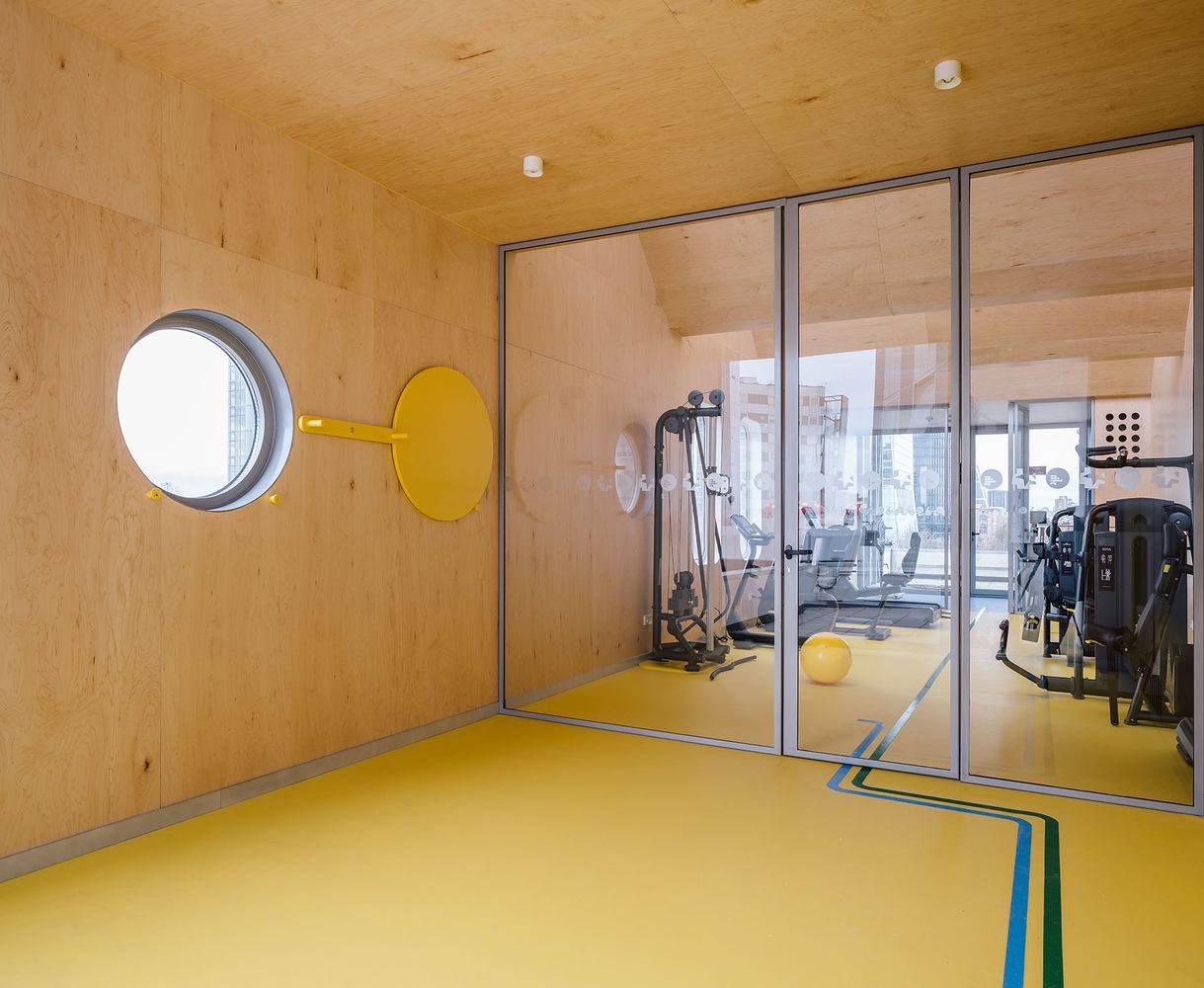

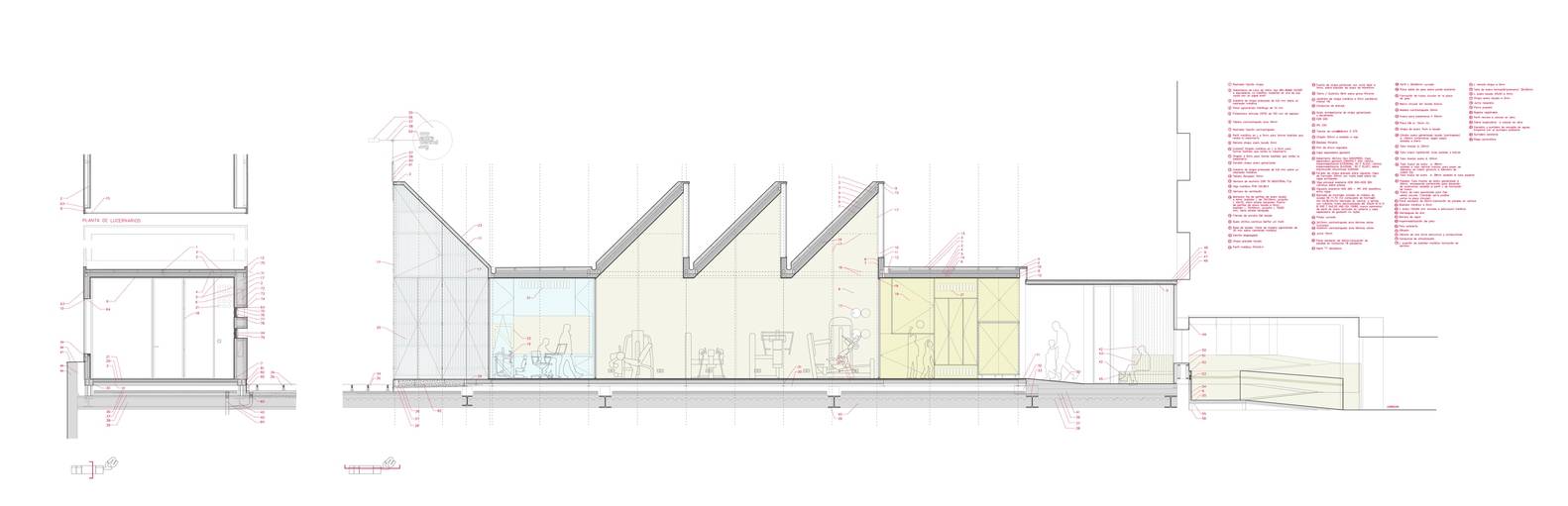

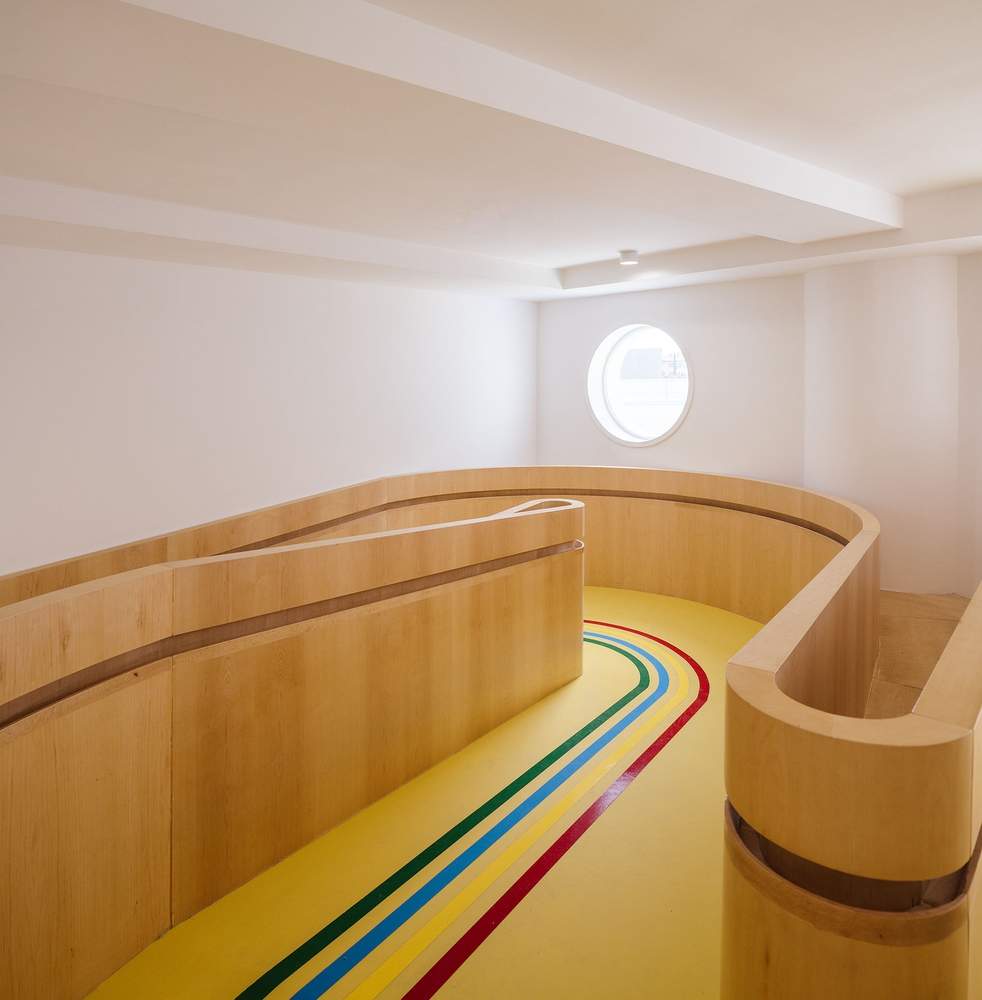

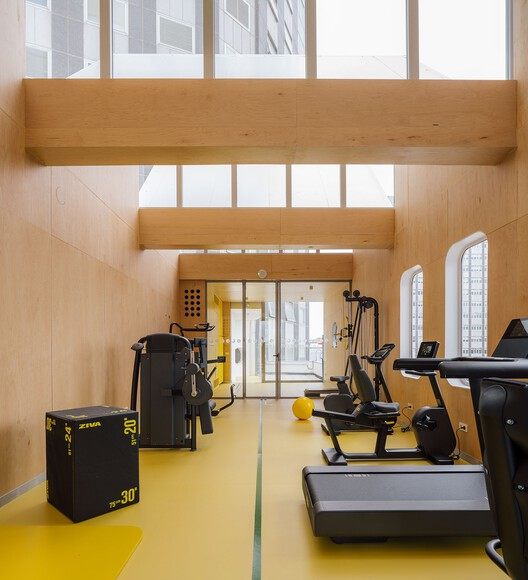

The accelerator exhibition hall consists of a series of spaces. Each space is slightly different, but together they form a unique space. The connection to the hospital tower is solved internally through a wooden ramp, which spans the facade in three sections and leads to the waiting pavilion. The next two spaces are dedicated to physical exercise; The first space is used for informal exercise and socializing, while the second space is larger with three skylights for exercising under the guidance of a therapist. Next is a research laboratory dedicated to collecting and measuring data generated by the activities carried out by the unit. The final space in this series is a covered outdoor terrace that can protect the laboratory from sunlight during summer and also accommodate a small garden of local species. The use of vegetation and indoor wooden finishes provides a peaceful and uplifting atmosphere for residents.
加速器展馆由一系列空间组成。每个空间都略有不同，但共同构成了一个独特的空间。与医院塔楼的连接是通过一个木制坡道在内部解决的，坡道分三段跨越立面，通向候诊亭。接下来的两个空间专门用于体育锻炼；第一个空间用于非正式锻炼和社交，第二个空间较大，有三个天窗，用于在治疗师指导下进行锻炼。接下来是研究实验室，专门用于收集和测量该单位开展的活动所产生的数据。这一系列的最后一个空间是一个有顶棚的室外露台，在夏天可以保护实验室免受阳光的照射，还可以容纳一个本地物种的小花园。植被和室内木质饰面的使用，为居住者提供了一个宁静而又令人振奋的氛围。

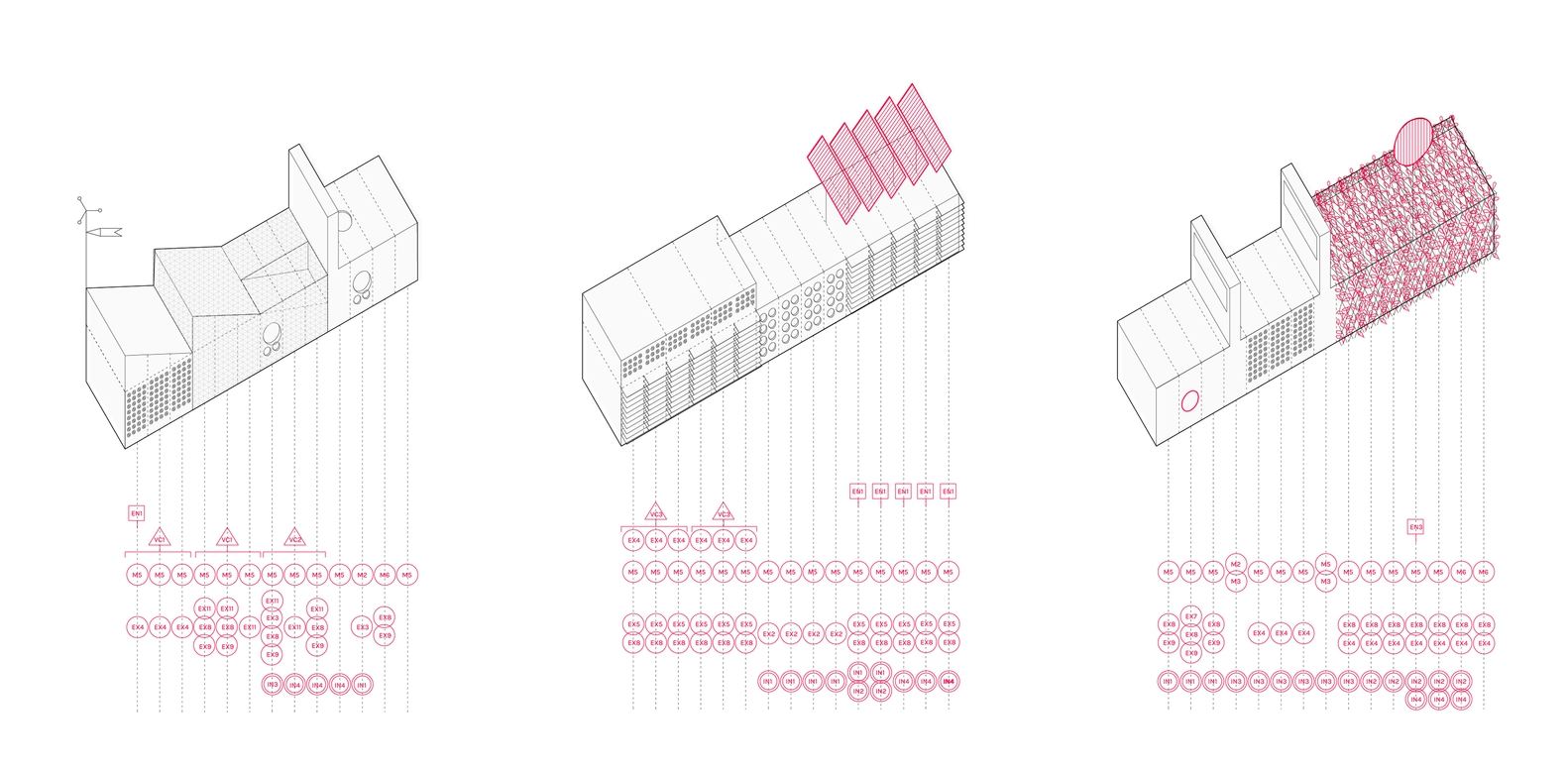

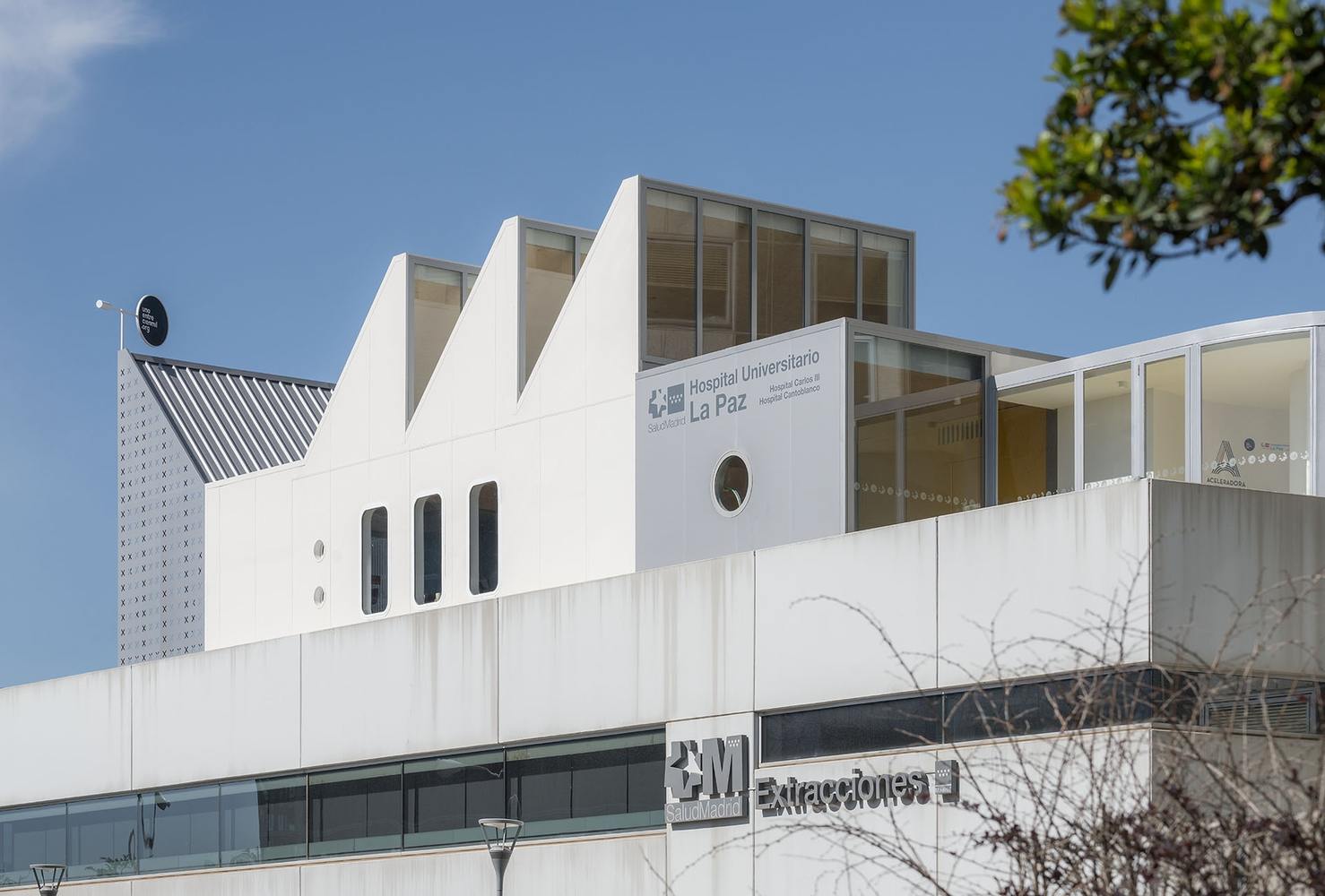

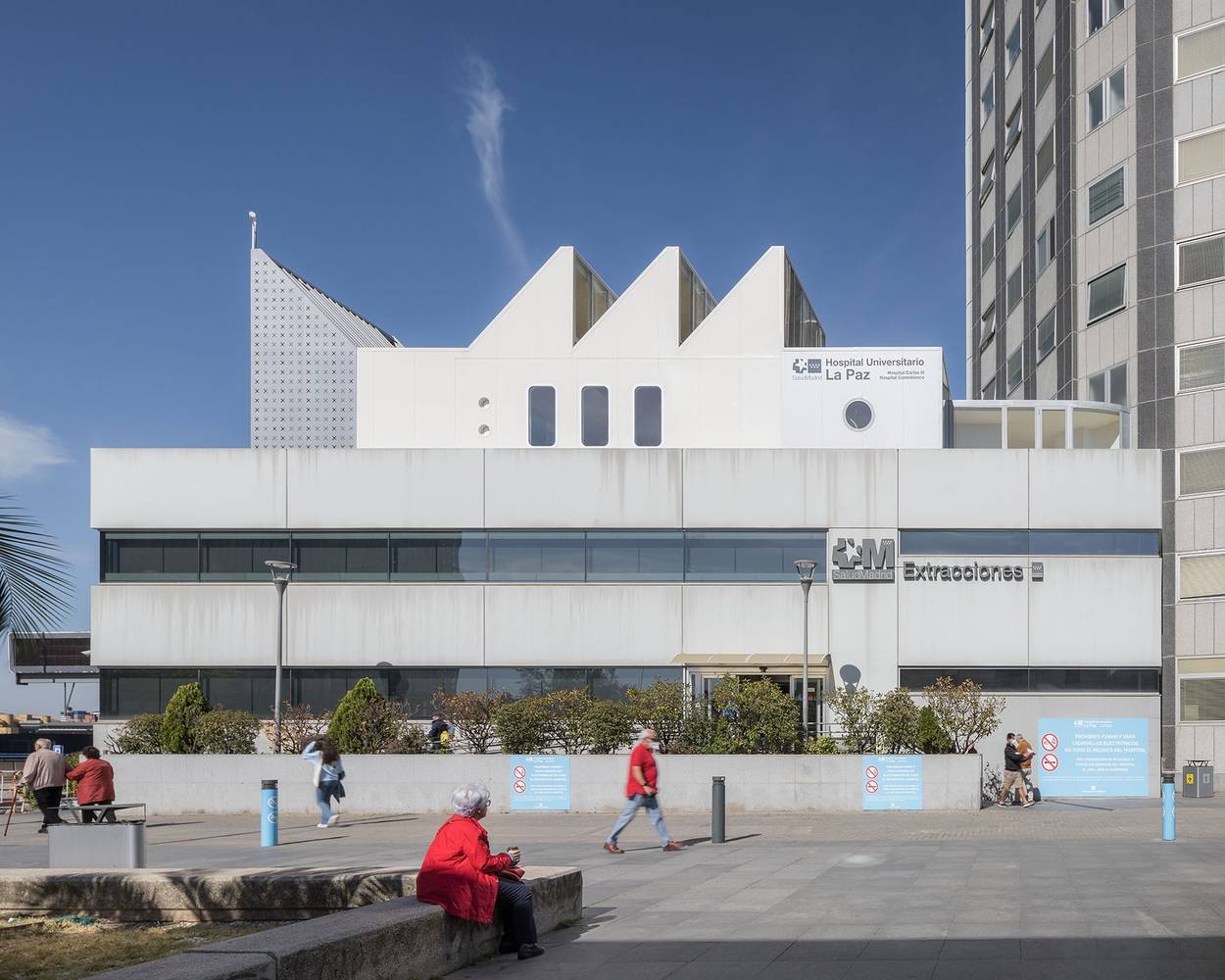

Due to the need to implement these research spaces in different hospitals in the future, the project needs to be understood as a composite system. By using unit catalogs with different internal and external decorations, as well as lighting control devices and other 'plugins', each project is a selection and combination of pre designed units. Therefore, each accelerator will become part of a common solution series and be adjusted according to the needs of different locations. Based on this concept, we propose an industrialized and modular building system. This also means that construction is mainly carried out off-site, avoiding the inconvenience that prolonged construction may cause to hospital operations. The appearance of the exhibition hall clearly conveys its combination and modular nature to the outside. The volume composed of geometric shapes intentionally contrasts with the surrounding environment, presenting a friendly and optimistic space.
由于未来需要在不同的医院实施这些研究空间，因此需要将项目理解为一个组合系统。通过使用具有不同内部和外部装饰以及灯光控制装置和其他“插件”的单元目录，每个项目都是对预先设计的单元进行选择和组合。因此，每个加速器都将成为共同解决方案系列的一部分，并根据不同地点的需求进行调整。根据这一理念，我们提出了一种工业化和模块化的建筑系统。这也使得建筑施工主要在场外进行，避免了长时间施工可能给医院运营带来的不便。展馆的外形向外部明确传达了其组合和模块化的性质。由几何图形构成的体量有意与周围环境形成对比，展现出一个友好、乐观的空间。
