拉贡研究所 / Payette

Lagon Institute/Payette
拉贡研究所 / Payette

设计理念的巧妙运用：拉贡研究所的设计充分展现了建筑师对于场地、功能以及可持续性的深刻理解。项目在不规则的三角地块上，巧妙地运用悬挑设计，化解了复杂的空间关系，赋予建筑独特的艺术魅力。建筑师通过流畅的体量曲线，与周围环境和谐共生，展现了对城市文脉的尊重。同时，建筑师并未简单地将建筑融入周边环境，而是主动退让，沿主街打造连续的线性公园，为城市贡献了公共空间，体现了设计师的社会责任感。建筑师在设计中融入了对科研功能的深刻理解，将建筑的外部形态与内部空间完美结合，创造出既美观又实用的科研场所。

可持续与性能的完美结合：拉贡研究所在可持续设计方面表现出色，将性能策略融入到设计的各个层面。通过参数化建模优化的遮阳板，不仅提升了建筑的能源效率，还最大限度地降低了碳足迹，体现了建筑师对环境的责任。与低碳木材幕墙和三层玻璃窗的结合，进一步增强了建筑的节能性能。设计还注重水资源管理，采用实验室净化回收水和机械冷凝水用于灌溉等，并配备绿色屋顶和雨水管理系统，从而减少了对自然资源的依赖。这些措施不仅降低了建筑的运营成本，也为未来的建筑设计提供了宝贵的经验，是绿色建筑的典范。

材质与空间的和谐统一：拉贡研究所在材质的选择和空间的营造上达到了高度统一。首层材质的选取，灵感来源于温暖的景观色调，采用高度纹理化的瓦尔斯石英岩墙面板等材料，为建筑赋予了独特的质感和韵律。遮阳板的运用，不仅实现了功能性，还为建筑增添了视觉上的动态美感。室内外空间的衔接也十分巧妙，充足的自然采光、可开启窗户、室内外花园的设置，营造出亲近自然的舒适环境，满足了科研人员对工作环境的需求。总而言之，该项目不仅在外观上独具特色，更在细节之处体现了建筑师对材料、空间和可持续发展的深刻理解，为未来建筑设计提供了参考。

The Ragon Institute is a unique scientific research alliance jointly built by Massachusetts General Hospital, Massachusetts Institute of Technology (MIT) and Harvard University, and always stands at the forefront of infectious disease research such as AIDS/AIDS and COVID-19. The newly-built research building with an area of 323000 square feet (GSF) is located on the main street at the intersection of Kendall Square and the Massachusetts Institute of Technology campus, occupying an independent triangular plot.
拉贡研究所（The Ragon Institute）是麻省总医院（Mass General）、麻省理工学院（MIT）与哈佛大学携手共建的独特科研联盟，始终站在艾滋病（HIV-AIDS）及新冠肺炎（COVID-19）等传染病研究的前沿。其新建的、面积达 323000 平方英尺（GSF，总建筑面积单位）的科研大楼，坐落于肯德尔广场（Kendall Square）边缘与麻省理工学院校园交汇处的主街旁，占据一块独立三角地块。

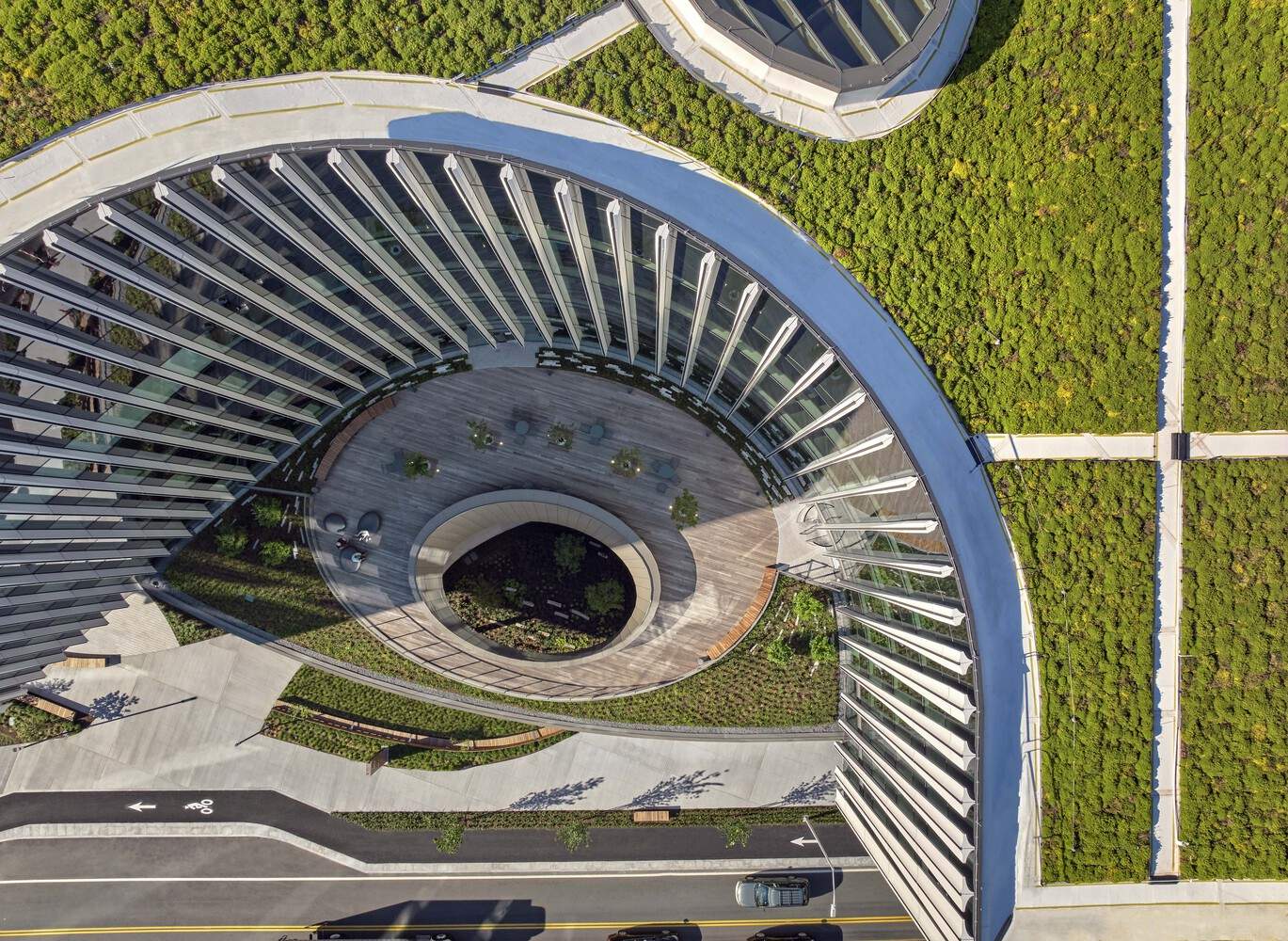

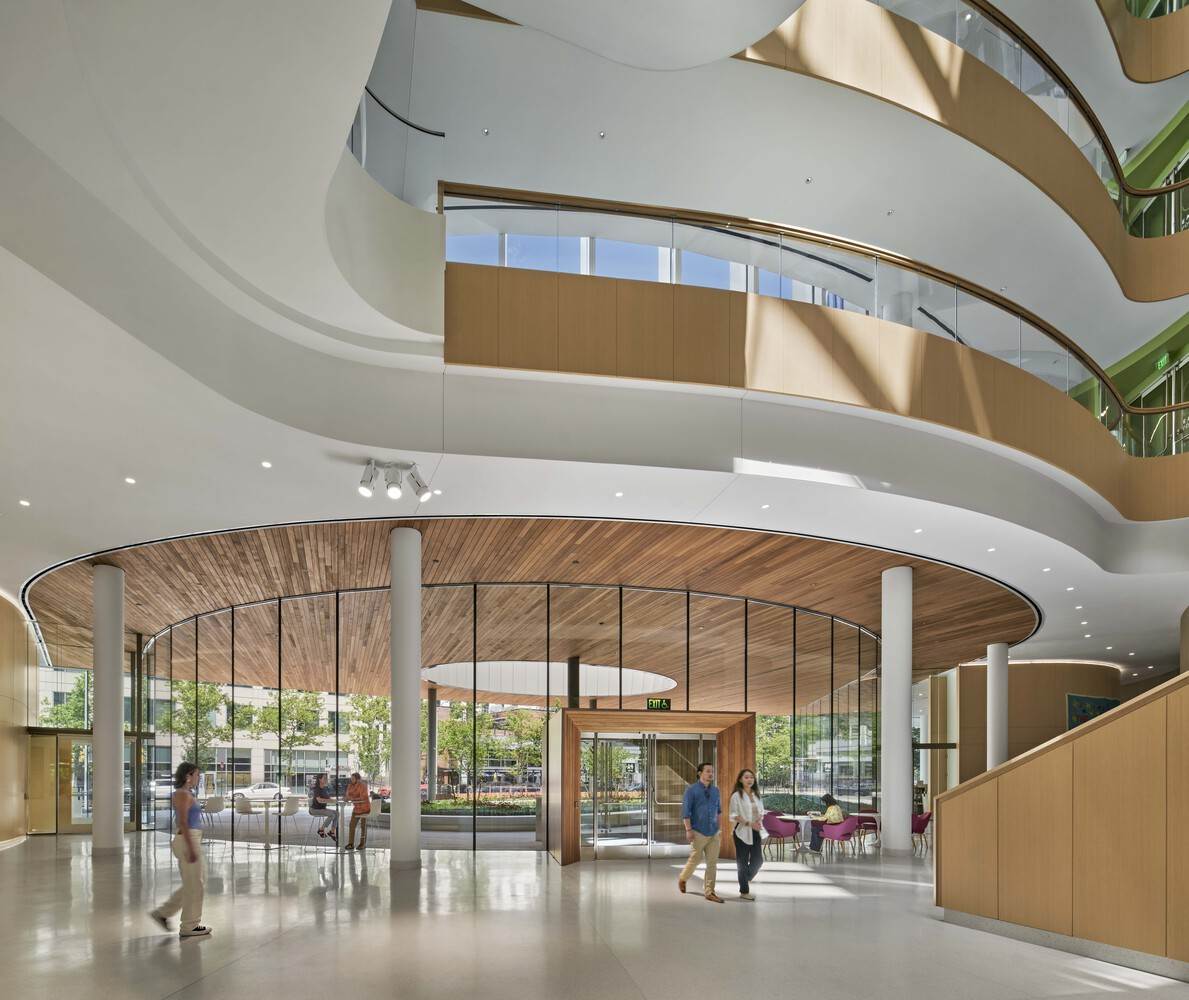

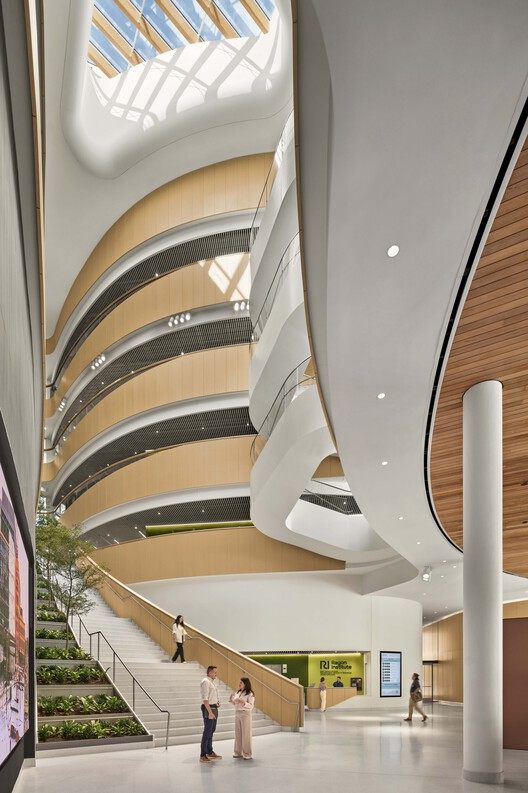

The building boldly adopts cantilever design at three corners, shaping this irregular triangular plot into a unique artistic masterpiece with extraordinary creativity. The main body of the building is lightly suspended on the continuous landscape belt around it, cleverly resolving the complex directional relationships at the entrance of the site with smooth volume curves, showcasing the beauty of harmony: its green roof winds down the street area, stretching for three floors, which is magnificent. The intricately carved elliptical courtyard space in the main building further outlines the unique architectural silhouette, adding a touch of dynamic silhouette along the main street; This design is also an elegant extension of the organic atrium, the core area of the research institute.
该建筑在三个转角处大胆采用悬挑设计，以非凡创意将这一不规则三角地块塑造为一件独一无二的艺术杰作。建筑主体轻盈悬浮于四周连绵景观带之上，以流畅的体量曲线巧妙化解场地入口处的复杂方位关系，尽显和谐之美：其绿色屋顶沿街区蜿蜒而下，绵延三层，蔚为壮观。建筑主体中精心雕琢的椭圆形庭院空间，进一步勾勒出独特的建筑轮廓，为主街沿线增添了一抹灵动剪影；这一设计亦是研究所核心区域 —— 有机形态中庭的优雅延伸。

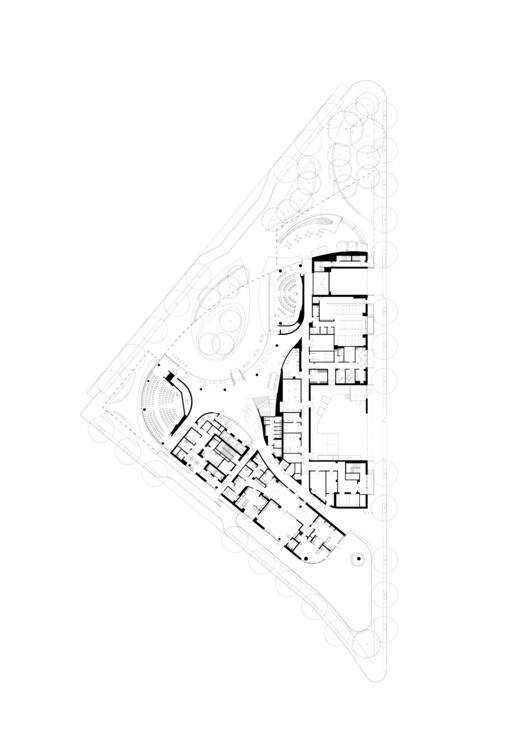

一层平面图

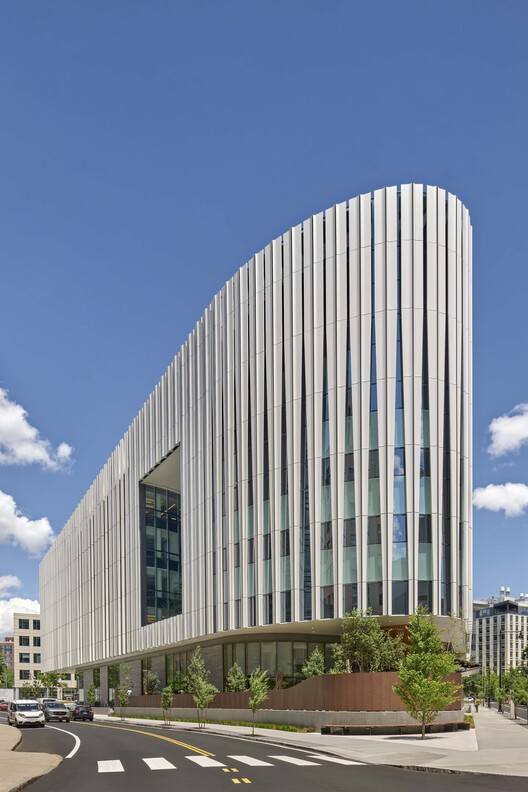

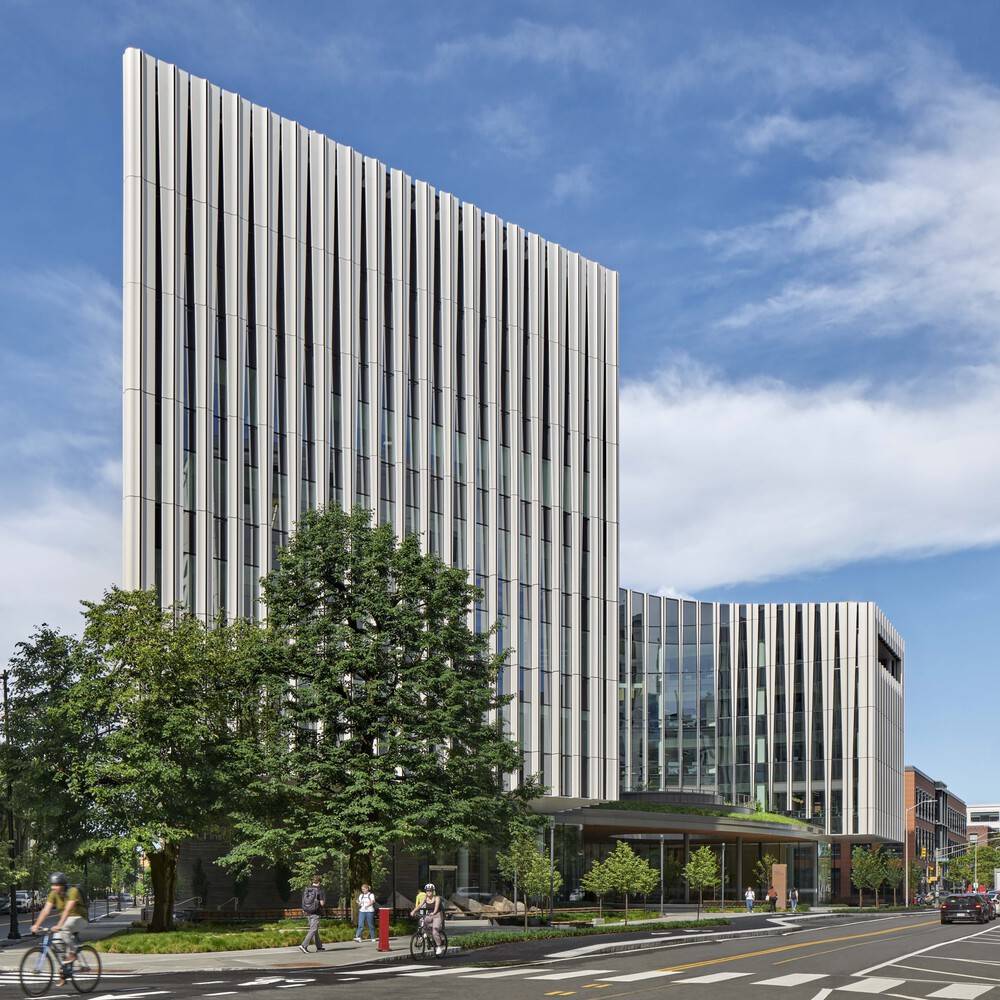

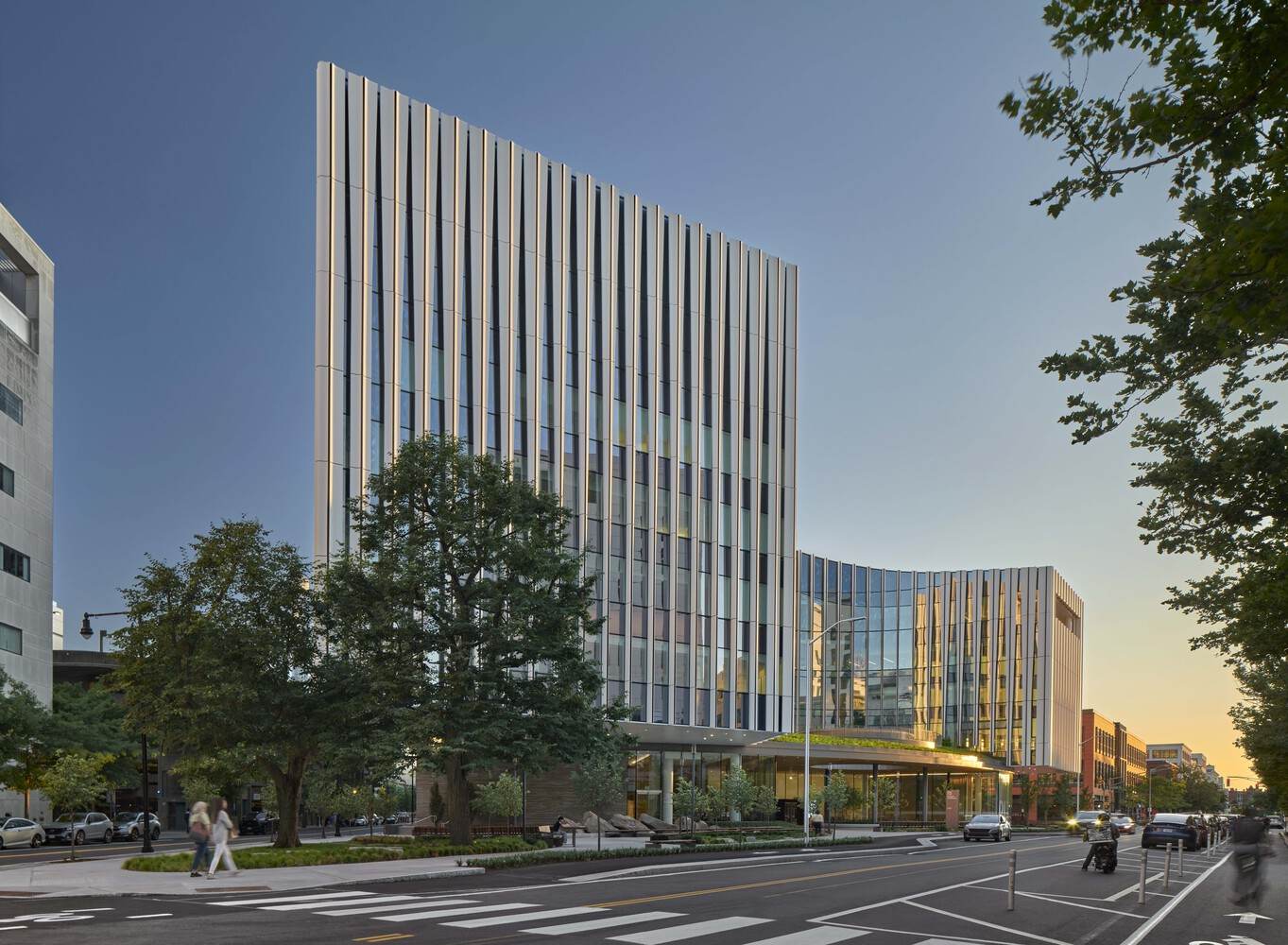

The Lagon Institute's minimalist color scheme and elegant curved design create a sharp contrast with the angular and diverse commercial buildings surrounding Kendall Square. Unlike the layout of surrounding buildings closely adjacent to the street, the Lagon Research Institute took the initiative to retreat and create a continuous linear park along the main street. Its minimalist exterior design is unique, soft and lightweight, covered with continuous vertically arranged fan-shaped aluminum sunshades, cleverly wrapping the high-performance exterior walls of the building; The opening of the sun visor gradually adjusts according to the needs of scientific research functions and changes in climate orientation, which is both practical and beautiful.
拉贡研究所以其简约的色彩搭配与优雅的曲线设计，与肯德尔广场周边棱角分明、风格各异的商业建筑形成鲜明对比。与周边建筑紧贴街道的布局不同，拉贡研究所主动退让，沿主街打造出一片连绵不断的线性公园。其极简主义的外立面设计独具特色，柔和轻盈，覆以连续垂直排列的扇形铝制遮阳板，巧妙包裹建筑的高性能外墙；遮阳板的开口随科研功能需求与气候朝向的变化而渐变调整，既实用又美观。

Green Island

A carefully planned network of public open spaces creates a landscape that can withstand climate change, covering building roofs and underground parking lots, revitalizing the concept of Cambridge's "urban forest".. Iconic landscape spaces include a linear park along the main street, a dome garden at the main entrance, a cantilevered terrace facing the Technology Square, a daycare garden facing the MIT campus, and a private courtyard garden suspended above the main street.
绿色之岛

精心规划的公共开放空间网络，构建出一片能够抵御气候变化的景观，覆盖建筑屋顶与地下停车场，让剑桥市“城市森林”的理念重焕生机。标志性景观空间包括：沿主街的线性公园、主入口处的穹顶花园、面向科技广场的悬挑露台、朝向麻省理工学院校园的日托花园，以及悬于主街上方一层的私密庭院花园。

First layer material

Below the suspended cantilever volume, the first layer material is inspired by warm landscape tones, using highly textured Vals quartzite wall panels, anodized copper loading and unloading doors, and garden walls.. The texture of the sun visor is arranged in a staggered manner, injecting dynamic rhythm and lively atmosphere into the overall design; Its matte texture evokes the eternal beauty of stone in the original buildings of MIT, Harvard University, and Massachusetts General Hospital (such as Killian Square, Harvard Hall, and Ether Dome).
首层材质

在悬浮的悬挑体量下方，首层材质灵感源自温暖的景观色调，采用高度纹理化的瓦尔斯石英岩墙面板、阳极氧化铜装卸门及花园围墙。遮阳板的纹理错落有致，为整体设计注入动态韵律与灵动气息；其哑光质感，则让人联想到麻省理工学院、哈佛大学及麻省总医院（如基利安广场、哈佛厅、乙醚穹顶）原有建筑中石材的永恒之美。

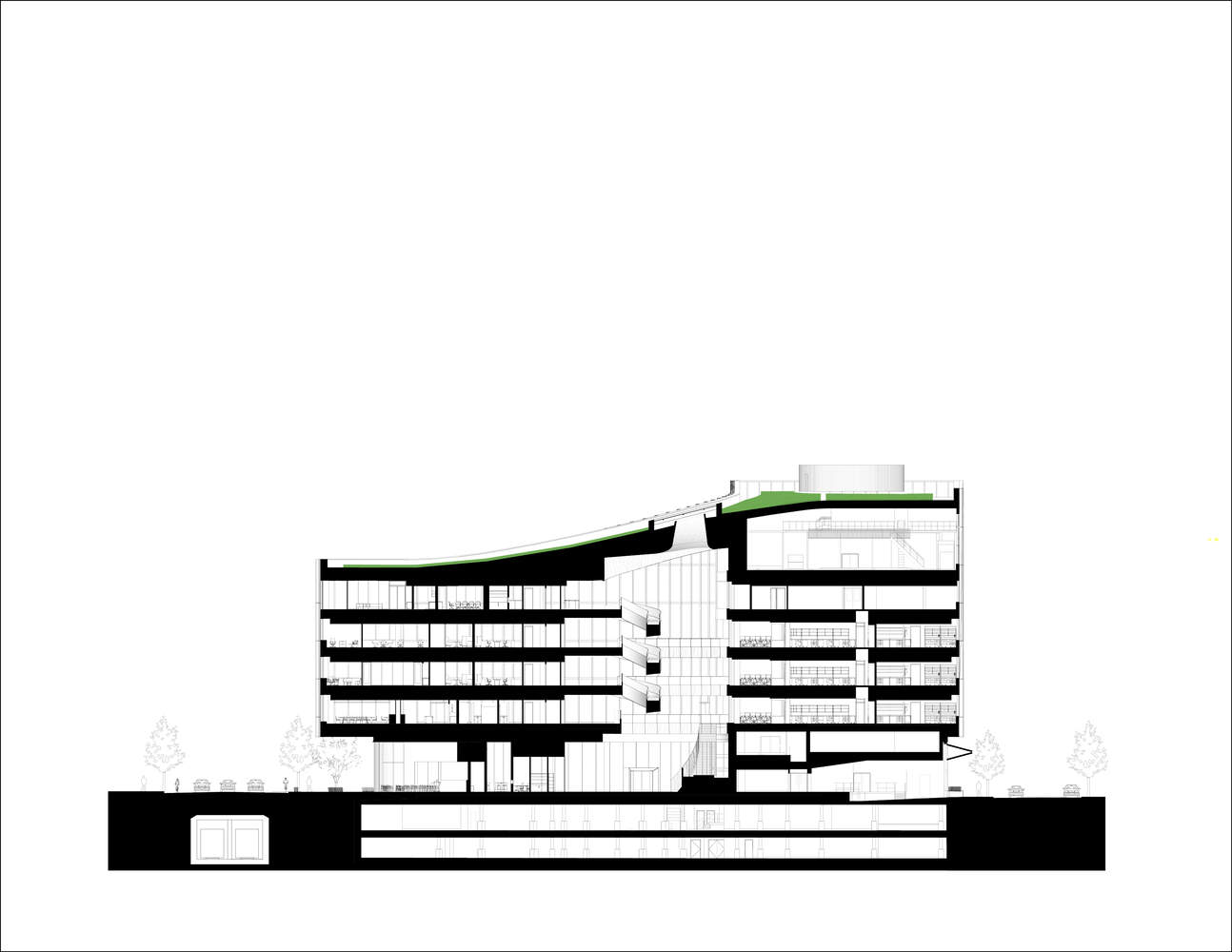

剖面图

Performance Strategy

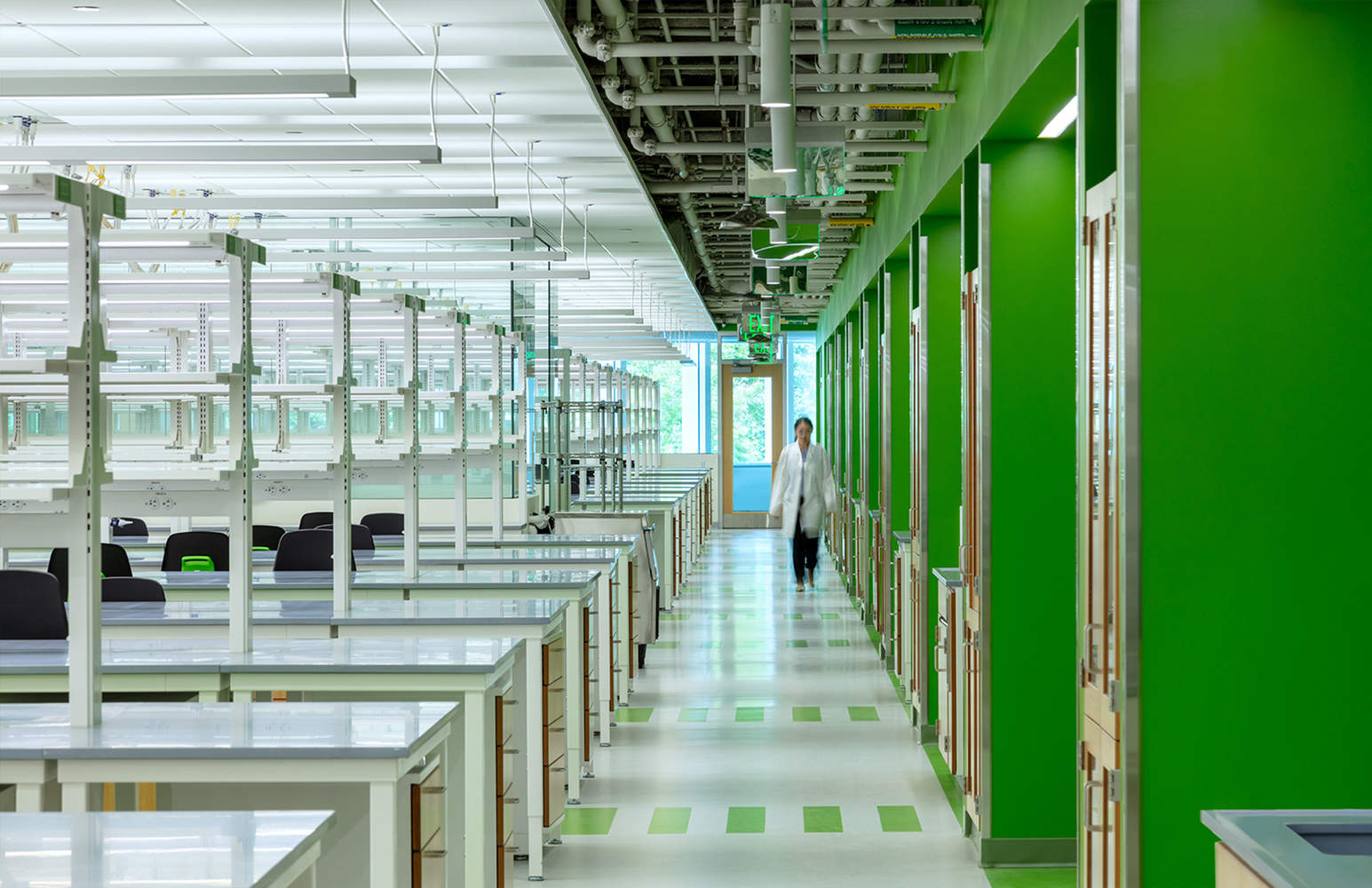

The Lagon Institute integrates performance considerations into every aspect of design.. The sun visor optimized through parameterized modeling ensures energy efficiency while minimizing carbon footprint; It complements the low-carbon wood curtain wall and three-layer glass windows. The functional zoning design guides air from the writing area to the laboratory, and the fully electrified HVAC system achieves a 61% reduction in energy consumption, equivalent to the annual electricity consumption of 716 households.
性能策略

拉贡研究所将性能考量融入设计的每一层面。经参数化建模优化的遮阳板，在确保能源产出效益的同时，最大限度降低碳足迹；其与低碳木材幕墙和三层玻璃窗相得益彰。功能分区设计引导空气从书写区流向实验室，全电化就绪的暖通空调系统实现 61% 的能耗降低，相当于 716 户家庭的年用电量。

Laboratory purified recycled water and mechanical condensate water are used for irrigation, site water features, and cooling tower replenishment. Green roofs and rainwater management measures effectively respond to rainfall. The building is located on a flooded area to ensure the safety of the underground garage. Adequate natural lighting, openable windows, indoor and outdoor gardens, no harmful materials, and sufficient fresh air supply together create a space environment that is close to nature, healthy, and pleasant.
实验室净化回收水与机械冷凝水用于灌溉、场地水景及冷却塔补水，绿色屋顶与雨水管理措施有效应对降雨。建筑坐落于洪泛区之上，确保地下车库安全无虞。充足的自然采光、可开启窗户、室内外花园、无有害物质材料及充足的新风供应，共同营造出亲近自然、健康宜人的空间环境。
