罗西利亚 3 号社会住宅 / Ricardo Sánchez González

Rosilia No. 3 Social Housing/Ricardo S á nchez Gonz á lez
罗西利亚 3 号社会住宅 / Ricardo Sánchez González

设计理念的精妙与实用：该社会住宅项目展现了对于设计原则的深刻理解和实践。首先，其对通风和采光的极致追求令人印象深刻。通过确保所有公寓实现穿堂风对流，并避免使用内部庭院，设计师将居住者的健康和舒适度置于首位。这种设计选择不仅满足了马德里社会住房公司的规范要求，更体现了对可持续建筑理念的积极响应。同时，放弃传统的中央走廊布局，转而采用双朝向设计和每层仅服务两户公寓的垂直交通核心，极大地提高了空间利用效率和居住品质，充分体现了对细节的极致关注。

体块布局的策略性与创新：项目的“T”字形布局是其另一大亮点。这种布局策略性地利用了地块的规划限制，将建筑高度的变化巧妙地融入设计中。西侧的塔楼和东侧的低层建筑在底层相互连通，既满足了功能需求，又丰富了建筑的形态。这种设计手法在保证了建筑的整体性和连贯性的同时，也创造了独特的视觉效果。简洁的正交体块布局，强调了建筑的实用性和经济性，反映了设计师在满足社会住宅的经济适用性要求的同时，依然追求设计品质的努力，为同类项目提供了宝贵的参考。

细节处理的精湛与品质：除了整体布局和设计理念外，项目在细节处理上也展现出卓越的专业水准。通过对每一个公寓的精心设计，确保了最佳的采光和通风效果，极大地提升了居住的舒适度。这种对细节的关注，体现在对每个户型都进行双朝向设计，以及每个垂直交通核心仅服务两户公寓等设计决策上。这些设计决策不仅提高了空间利用效率，还为居民创造了更宜居的生活环境。整体而言，该项目在保证了建筑的实用性和经济性的同时，也兼顾了居住的舒适度和品质，体现了设计师对社会责任的担当。

The development project is located on the APE 18.05 La Rosilla plot in Villa de Vallecas, Madrid, Spain, with a maximum usable residential area of 6500 square meters. The maximum building depth of the plot is 12 meters, and the planning specifications allow the building height at the west end of the plot to be the ground floor+7 floors (VIII floor), and the east end to be the ground floor+4 floors (V floor). The project design fully optimized these conditions.
该开发项目位于西班牙马德里维拉德瓦莱卡斯区（Villa de Vallecas）的 APE 18.05 拉罗西利亚（La Rosilla）地块内，住宅用途的最大可建面积为 6500 平方米。地块最大建筑进深为 12 米，规划规范允许地块西端建筑高度为底层 +7 层（VIII 层），东侧为底层 +4 层（V 层）。项目设计充分优化了这些条件。

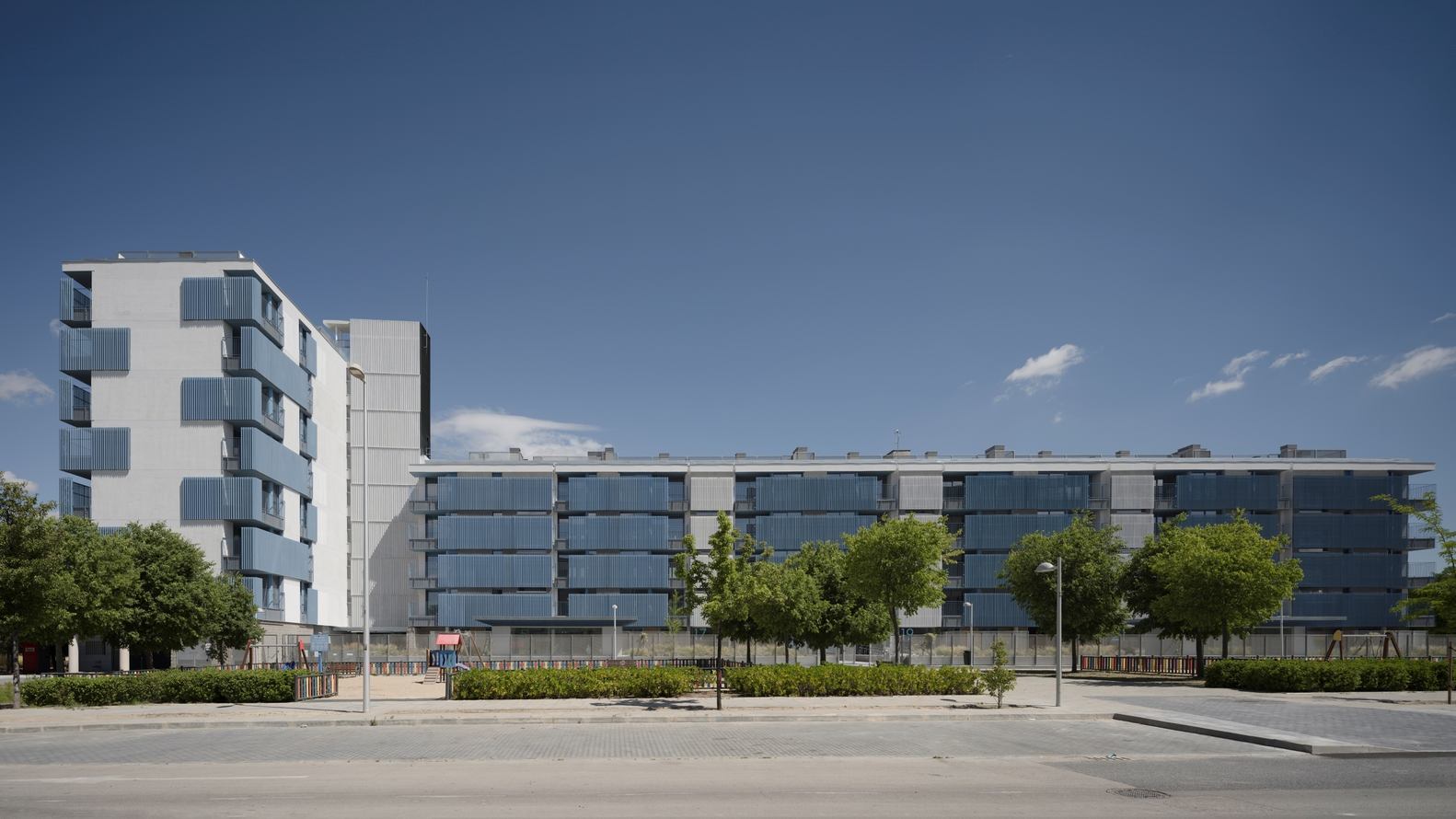

The design scheme adopts a simple orthogonal block layout, emphasizing rationality, construction convenience, and cost-effectiveness. According to regulatory requirements, the project consists of two independent volumes: a ground floor+7-story tower on the west side and a long strip building with ground floor+4-story on the east side. The two are arranged in a "T" shape and are interconnected at the bottom layer.
设计方案采用简洁的正交体块布局，着重强调合理性、施工便捷性及成本效益。根据规范要求，项目由两个独立体量构成：西侧为一栋底层 +7 层的塔楼，东侧为一栋底层 +4 层的长条形建筑。二者呈 “T” 字形排列，并在底层相互连通。

The building is designed based on several key principles. Firstly, ensure that all apartments have ventilation through the air. According to the Residential Code Requirements (NRP) of the Madrid Social Housing Company (EMVS), three bedroom and four bedroom units must meet this requirement, and two bedroom units are also strongly recommended. In a rectangular building, all apartments have two opposing facades that allow for direct ventilation and convection; In the tower, two vertical facades can achieve 90 degree cross ventilation.
该建筑基于若干关键原则进行设计。首先，确保所有公寓实现穿堂风对流，根据马德里社会住房公司（EMVS）的《住宅规范要求》（NRP），三居室和四居室单元必须满足此要求，二居室单元也强烈建议采用。在长条形建筑中，所有公寓均拥有两个相对的外立面，可实现直接穿堂风对流；而在塔楼中，两个垂直的外立面可实现 90 度穿堂风对流。

Secondly, the project avoids using internal courtyards, and all ventilation and lighting come directly from the outside. Similarly, the central corridor layout with apartments on both sides has been abandoned, as this layout would occupy too much public area. As an alternative, all units are designed with a dual orientation, and each vertical transportation core only serves two apartments on each floor, ensuring space utilization efficiency and quality.
其次，项目避免使用内部庭院，所有通风和采光均直接来自外部。同样，摒弃了两侧均设有公寓的中央走廊布局，因为这种布局会占用过多公共区域面积。作为替代方案，所有户型均为双朝向设计，且每个垂直交通核心仅服务每层两户公寓，从而确保了空间利用效率和品质。
