Ness+N3ss Restaurant/Oficios Asociados
Ness + N3ss 餐厅 / Oficios Asociados
外观与体量的巧妙利用: 项目最令人印象深刻的莫过于对原有仓库外观的保留与重新诠释。设计团队巧妙地保留了九米高的简洁体量和极简主义风格,这不仅是对原有建筑结构的尊重,也为后续的内部空间设计奠定了基础。通过对上层小开口和底层百叶窗入口的巧妙设计,建筑外观在保持整体性的同时,也展现了丰富的层次感。这种手法体现了建筑师对场地特性的深刻理解,以及对改造建筑的创造性运用。它既保留了建筑的工业感,又通过细节的改变赋予了新的生命力,使建筑在周围环境中脱颖而出。
空间重塑与功能重组: 项目的核心在于对室内空间的重新组织。原有的承重墙被金属横梁和立柱取代,极大地提升了空间的开放性和灵活性。围绕新的服务核心,设计团队巧妙地利用金属木工系统,配置了不同的使用形式,将餐厅、酒吧和生产厨房融为一体。这种设计手法不仅实现了空间的最大化利用,也打破了传统餐厅的布局模式,创造了更具互动性和体验感的用餐环境。这种对空间流线的重新设计,反映了建筑师对使用者需求的深刻理解,以及对功能与美学的完美结合的追求,赋予了建筑全新的活力。
细节塑造与整体呼应: 在大型的三层高通高空间内,设计团队巧妙地运用了一系列元素来塑造空间的特征和尺度,例如烹饪岛、橄榄树和天窗。这些元素通过其运动和色彩变化,营造出引人入胜的场景,同时与室外建立了独特的联系。家具和小型物品的设计也同样精彩,它们的功能性特征与整体风格完美融合,细节的精心雕琢更像是更大系统中不可或缺的组成部分。这种对细节的极致追求,使得建筑的整体性和统一性得到了完美的呈现,体现了建筑师对设计的全面掌控和对品质的不懈追求,最终呈现出一个充满活力且引人入胜的用餐空间。
© Fernando Schapochnik
© Fernando Schapochnik

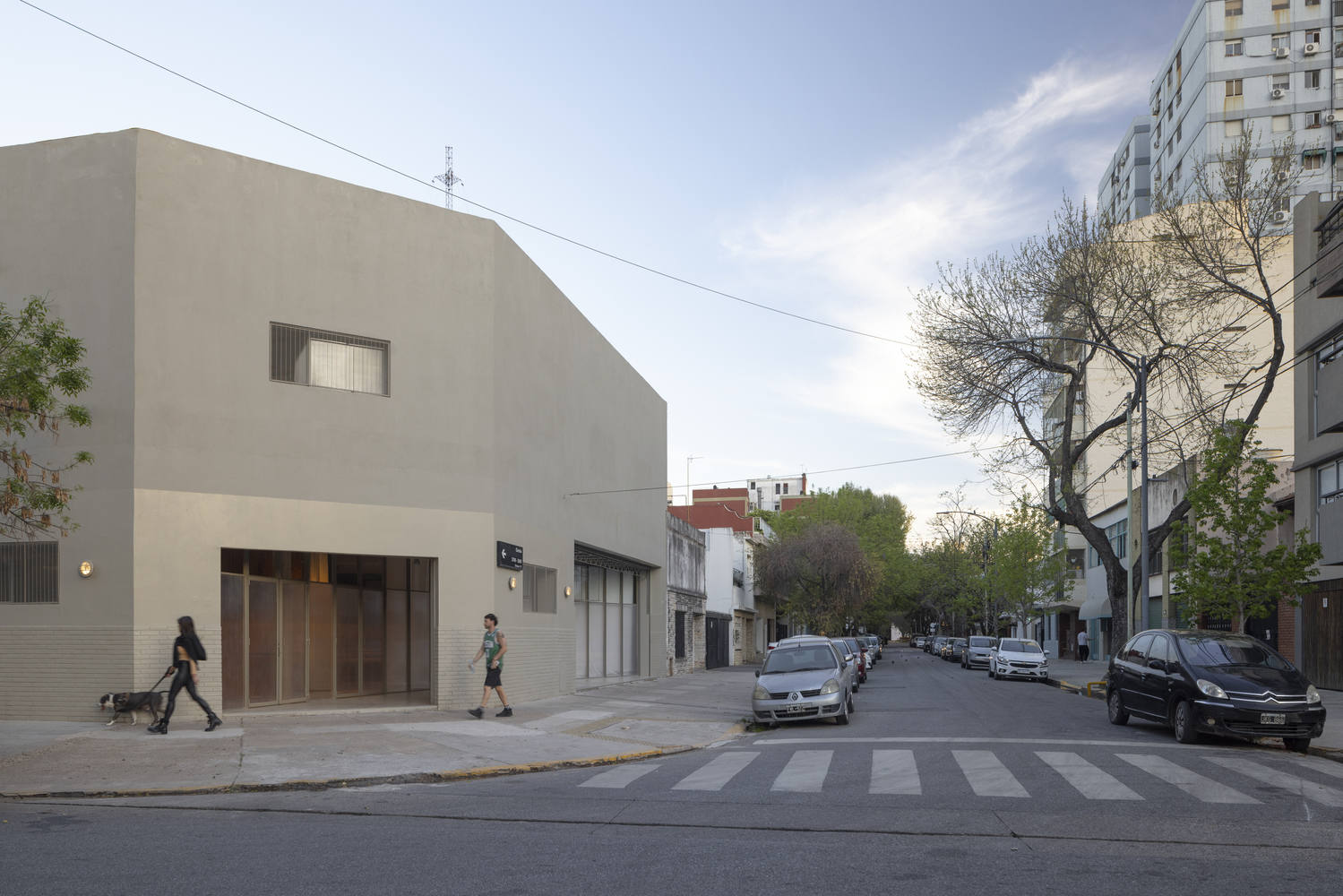

The project is located in the Nunez community of Buenos Aires, Argentina, where building density and usage are constantly changing, often requiring renovation and reuse of existing buildings. In the Ness project, the design team transformed a corner warehouse used as storage space into a restaurant, bar, and production kitchen.
该项目位于阿根廷布宜诺斯艾利斯市的努涅斯社区,这里建筑密度和用途不断变化,经常需要对现有建筑进行改造再利用。在“内斯”(Ness)项目中,设计团队将一个用作储物空间的角落仓库改造成了一家餐厅、酒吧和生产厨房。
© Fernando Schapochnik

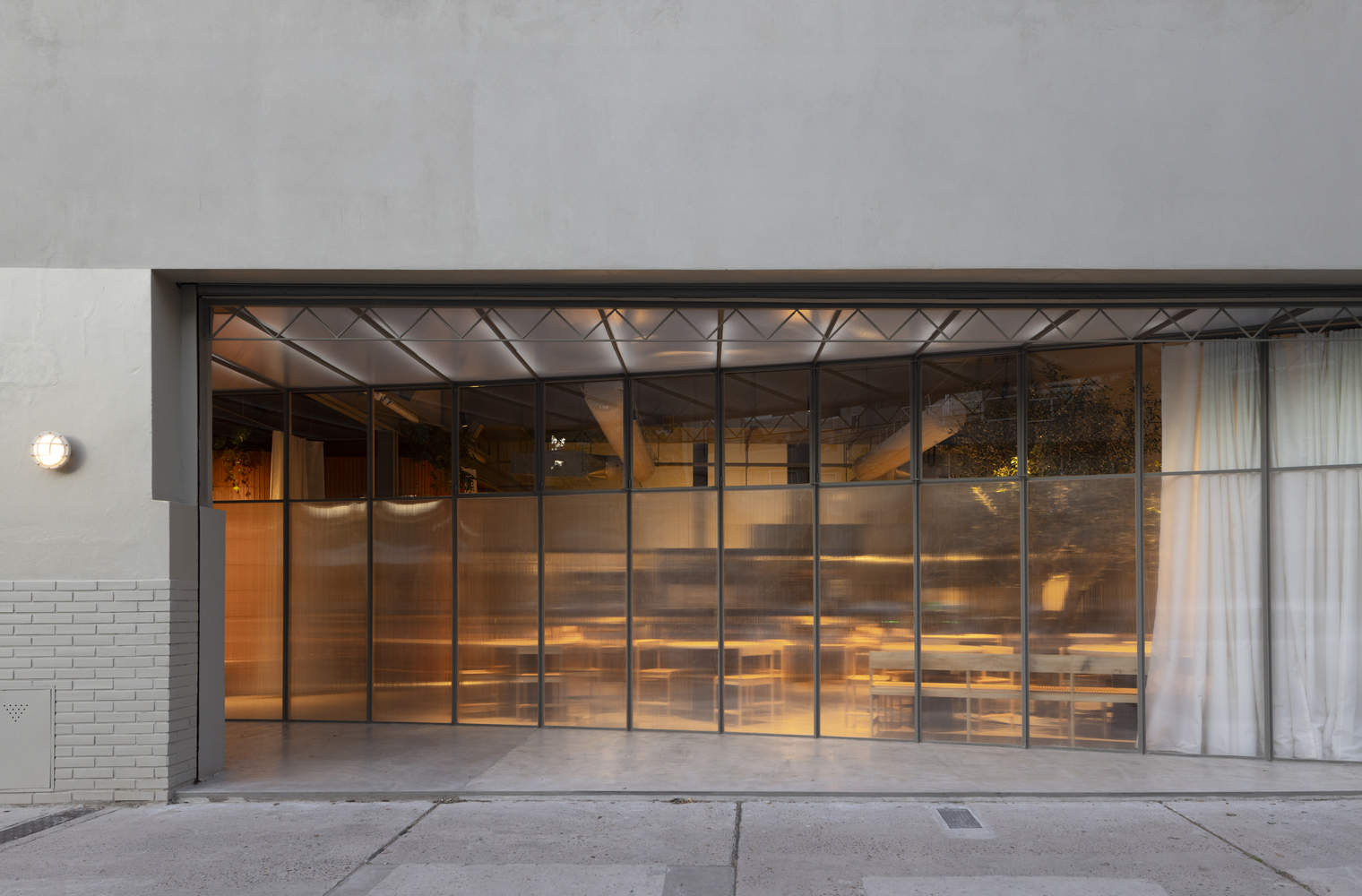

In terms of appearance, the design team retained the minimalist style and volume formed by the nine meter high wall. The upper level has some small openings, and the lower level has three louvers as entrances to different areas of the warehouse.
在外观上,设计团队保留了由九米高墙形成的简约风格和简洁体量,上层设有一些小开口,底层设有三个百叶窗,作为通往仓库不同区域的入口。
© Fernando Schapochnik
© Fernando Schapochnik
剖面图

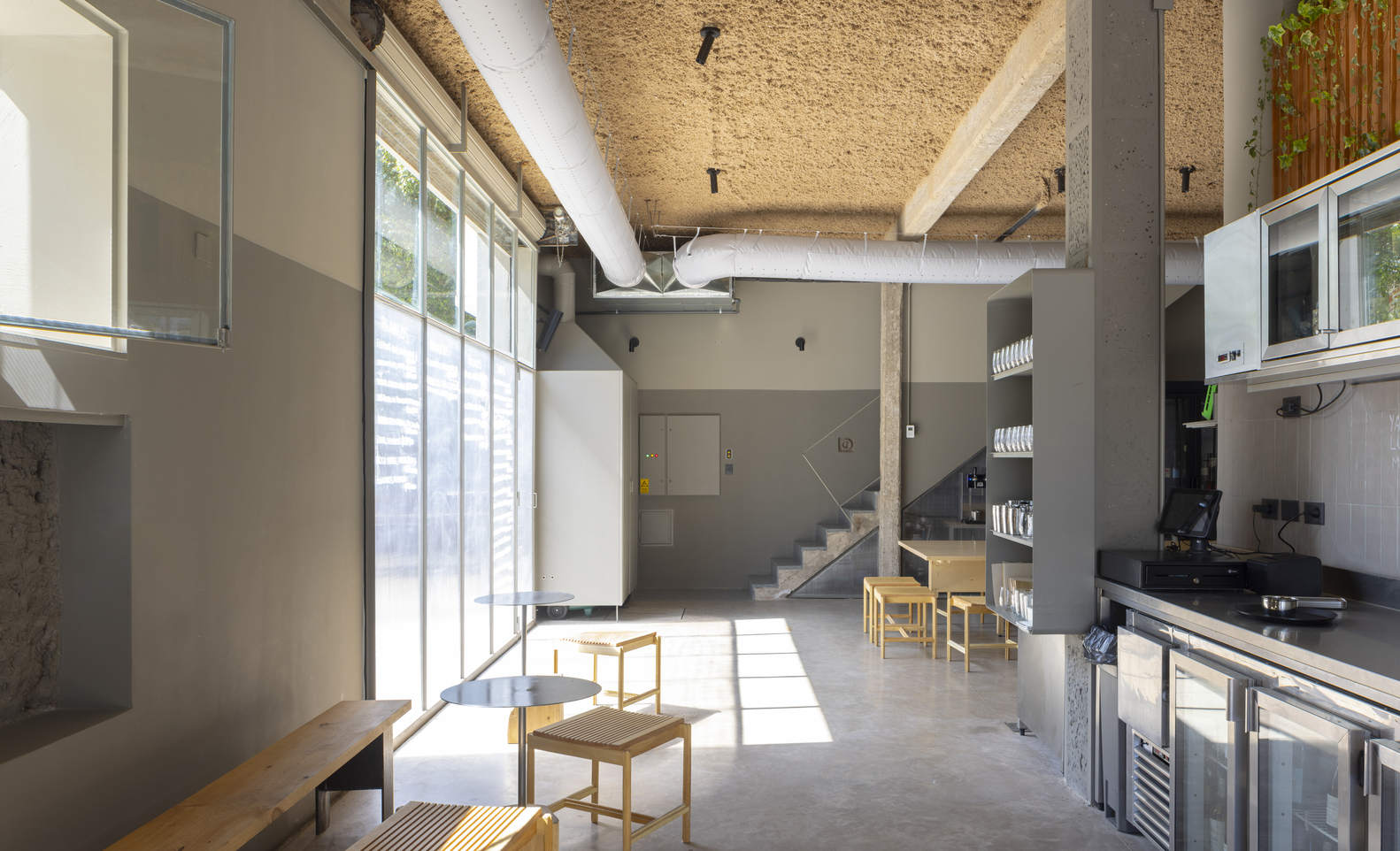

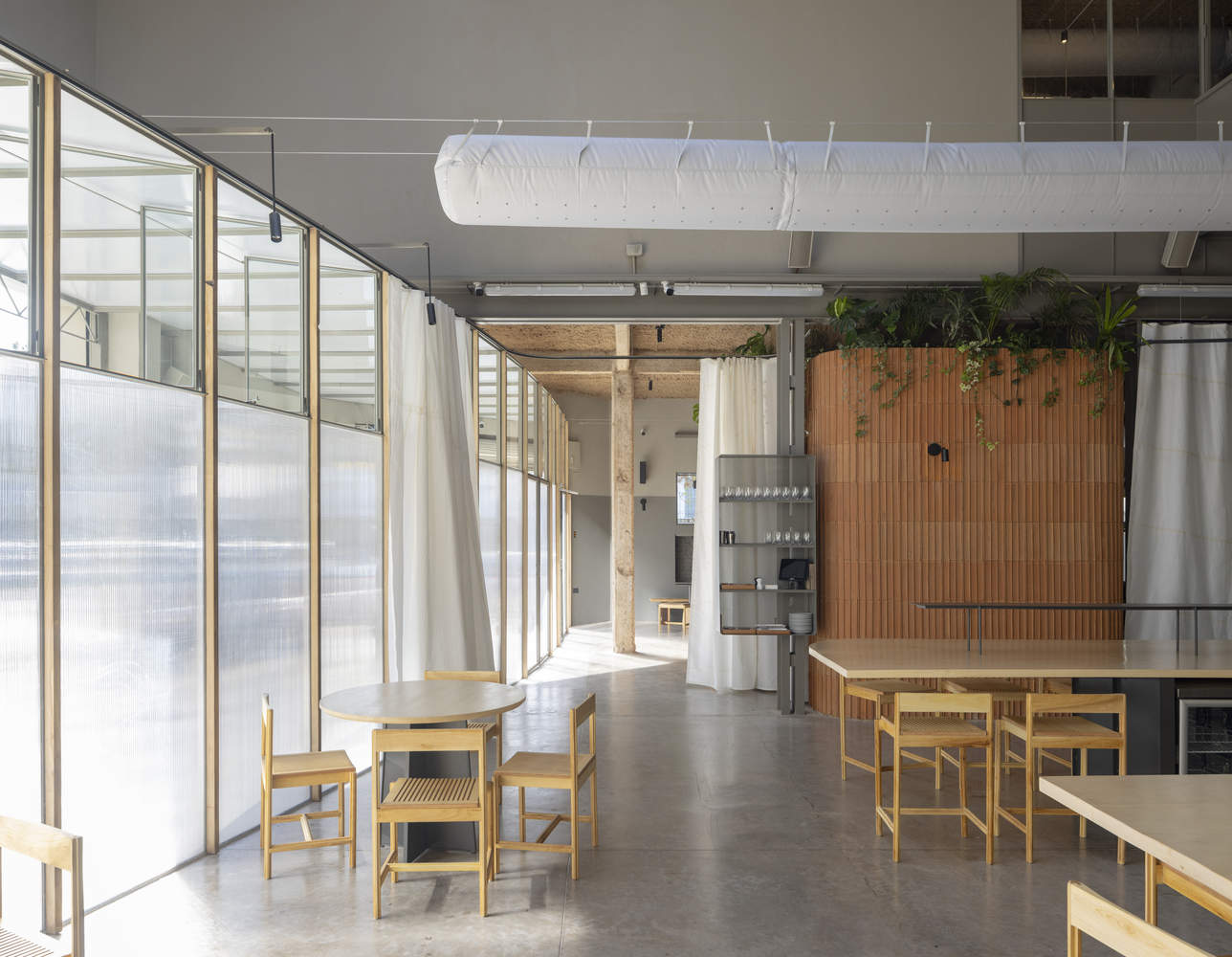

Indoors, the load-bearing walls that originally separated the ground floor have been replaced by metal beams and columns, allowing the space to open up and reorganize around a new service core. Through the metal woodworking system, different usage forms have been configured, redefining the relationship between these new spaces and the public.
在室内,原本将底层分隔开的承重墙被金属横梁和立柱取代,使得空间得以开放并围绕新的服务核心重新组织。通过金属木工系统,配置了不同的使用形式,重新定义了这些新空间与公众的关系。
© Fernando Schapochnik

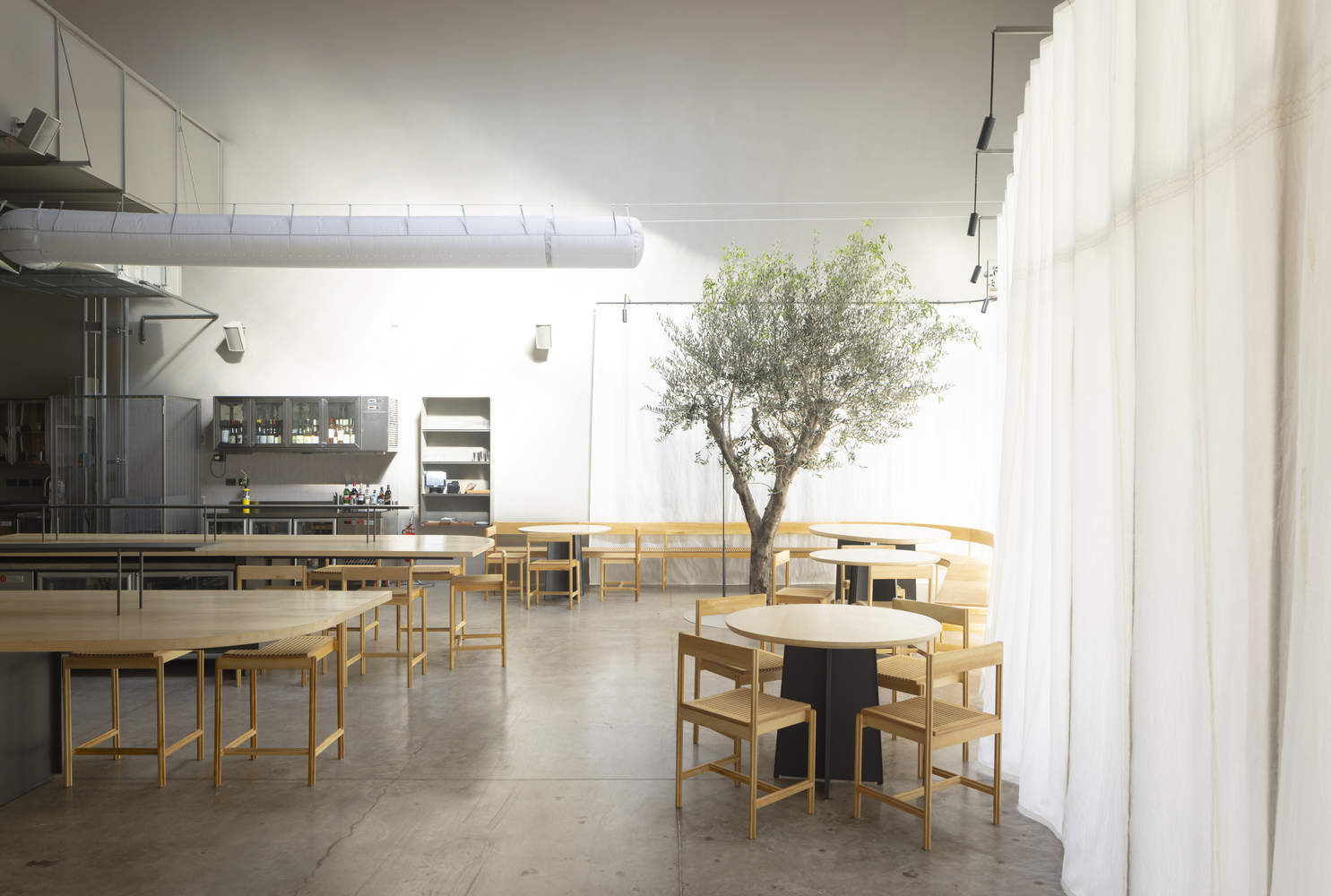

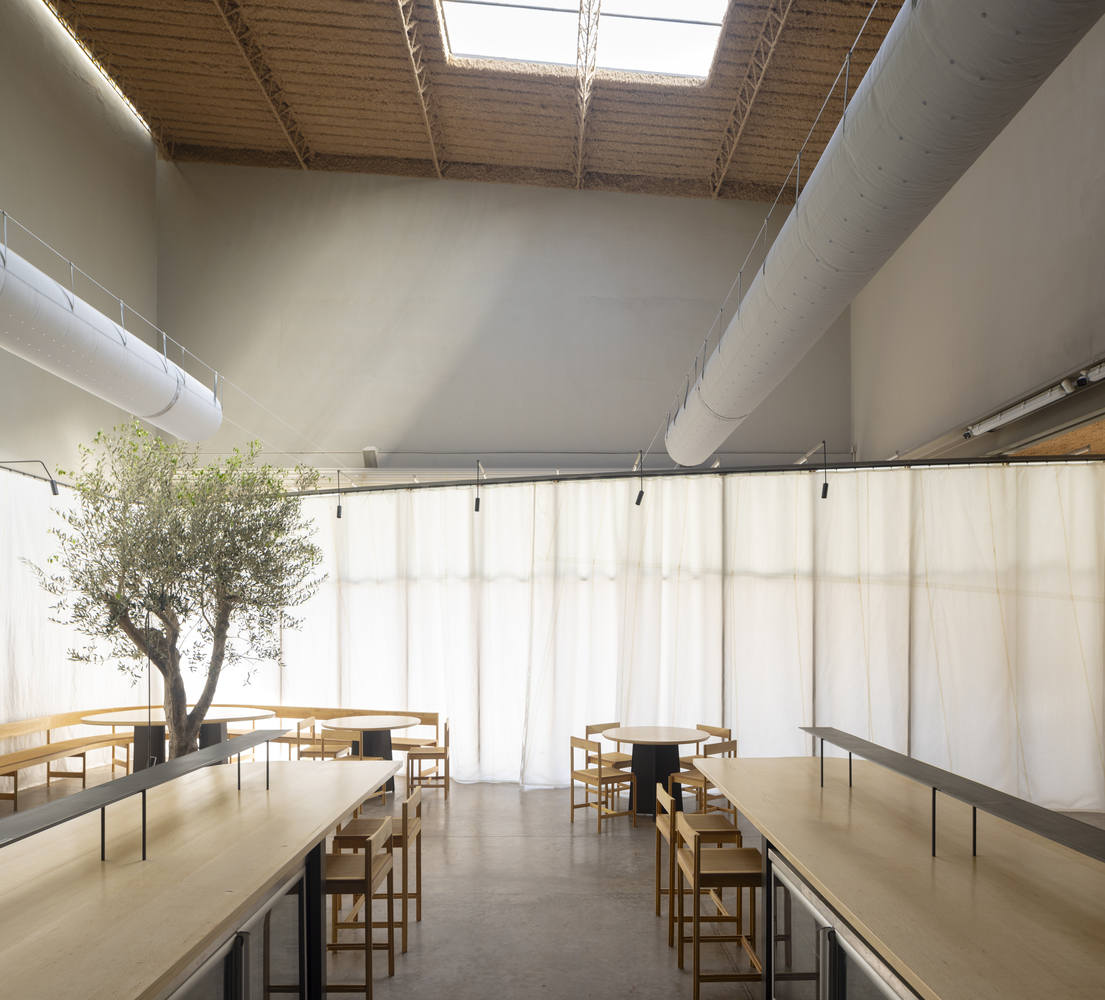

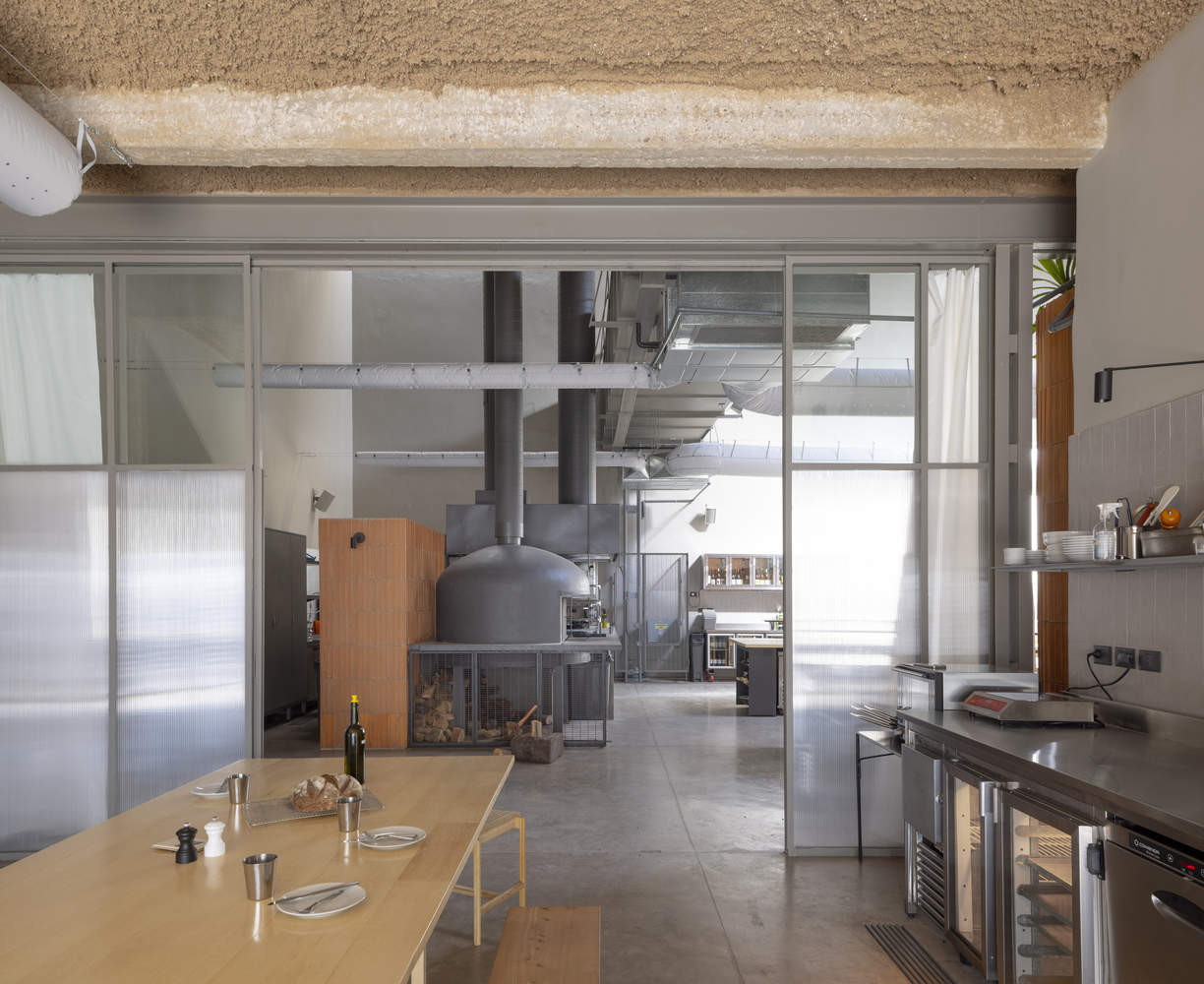

In a large three story high rise space, a series of elements are crucial for shaping features and scale: cooking islands and their exhaust systems, freight elevators, olive trees, and zenith light from skylights. These elements create different scenes through their movement and color changes, while establishing a unique relationship with the outdoors.
在大型的三层高通高空间内,一系列元素对于塑造特色和尺度至关重要:烹饪岛及其排气装置、货运电梯、橄榄树以及来自天窗的天顶光。这些元素通过其运动和色彩变化,营造出不同的场景,同时与室外建立了独特的关系。
© Fernando Schapochnik
The design of furniture and small items has strong functional features, while their details and materials are also intended to contribute to the whole, as if they are the smallest components of a larger system, which gain their own dimensions in their interrelationships and collaborations with the different elements mentioned above.
家具和小型物品的设计具有强烈的功能性特征,同时其细节和材质也旨在为整体做出贡献,仿佛它们是更大系统中最小的组成部分,这些组成部分在与上述不同元素的相互关系和协作中获得了自己的维度。
© Fernando Schapochnik
