Nana Coffee Roasters / IDIN Architects

空间叙事的精妙运用：项目最引人入胜之处在于其对空间叙事的巧妙运用。设计师从“隧道尽头的光明”这一品牌故事出发，创造了一个“空间中的空间”的洞穴状结构，将咖啡馆打造成一个探索的场所。通过不同大小和层次的体量，模拟洞穴的氛围，引导顾客在其中穿梭，感受空间的变化。这种设计手法不仅仅停留在视觉层面，更是通过空间序列的组织，赋予了建筑情感的表达。深灰色的统一色调、联锁华夫格结构，以及照明设计，共同营造出一种独特的沉浸式体验，完美地呼应了品牌故事，也提升了咖啡馆的体验价值。

内外统一的建筑语言：该项目成功地将建筑和室内设计融为一体。外立面采用弯曲的石贴面，形成与光线互动、产生阴影的独特效果，营造出一种神秘感，吸引顾客进入。内部空间延续了外部的有机形态，家具的圆形设计与洞穴般的空间相呼应，保持了设计语言的统一性。这种内外一致的设计理念，使得整个空间具有连贯性和完整性，增强了品牌的视觉识别度。此外，对材料、色彩和灯光的精心选择，也为空间增添了层次感和质感，营造出一种既私密又开放的氛围，提升了顾客的舒适度和体验感。

细节之处的品牌故事：除了整体空间的设计，项目在细节之处也体现了对品牌故事的深刻理解。夹层的设计象征着文明的开始，与咖啡馆整体的“洞穴”氛围形成对比，突出了品牌的历史传承。壁画、标牌和图形元素，都源于品牌的身份和咖啡制作过程，巧妙地将咖啡的故事融入到设计之中。点餐柜台上的线条、家具的形状和色彩，都与咖啡的生产流程和品牌理念相呼应。这种对细节的关注，不仅丰富了空间体验，也引发了顾客与咖啡师之间的互动，进一步强化了品牌的内涵和价值，将咖啡馆打造成一个讲述故事的场所。

建筑师提供的文字描述。Nana Coffee Roasters，Central Westville分店从如何在150平方米的小面积内以独特的方式传达Nana Coffee烘焙品牌的故事开始。这个概念源于与品牌所有者的对话，他回忆起自己的商业之旅，当时他看到了“隧道尽头的光明”，这个故事与可用的小空间相结合，激发了建筑师设计一个包含“空间中的空间”的洞穴状结构。
Text description provided by the architects. Nana Coffee Roasters, Central Westville Branch started from the question of how we can communicate the story of the Nana Coffee Roaster Brand in a distinctive way within a small area of 150 sq.m. The concept is derived from the conversation with the brand owner as he recalled his business journey to the time when he sees the "light at the end of the tunnel", this story, combined with the available small space, have inspired the architect to design a cave-like structure containing "space within space".

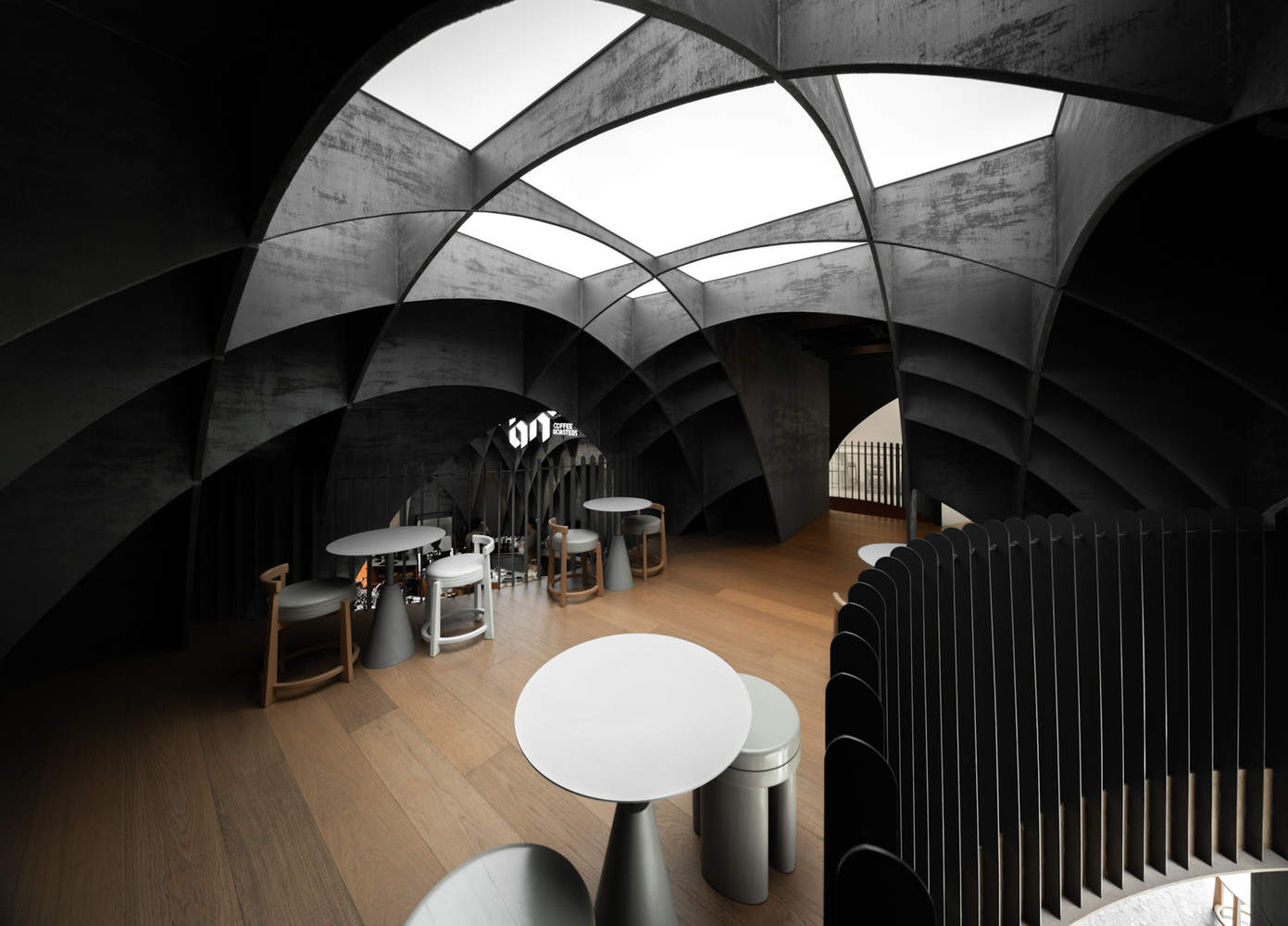

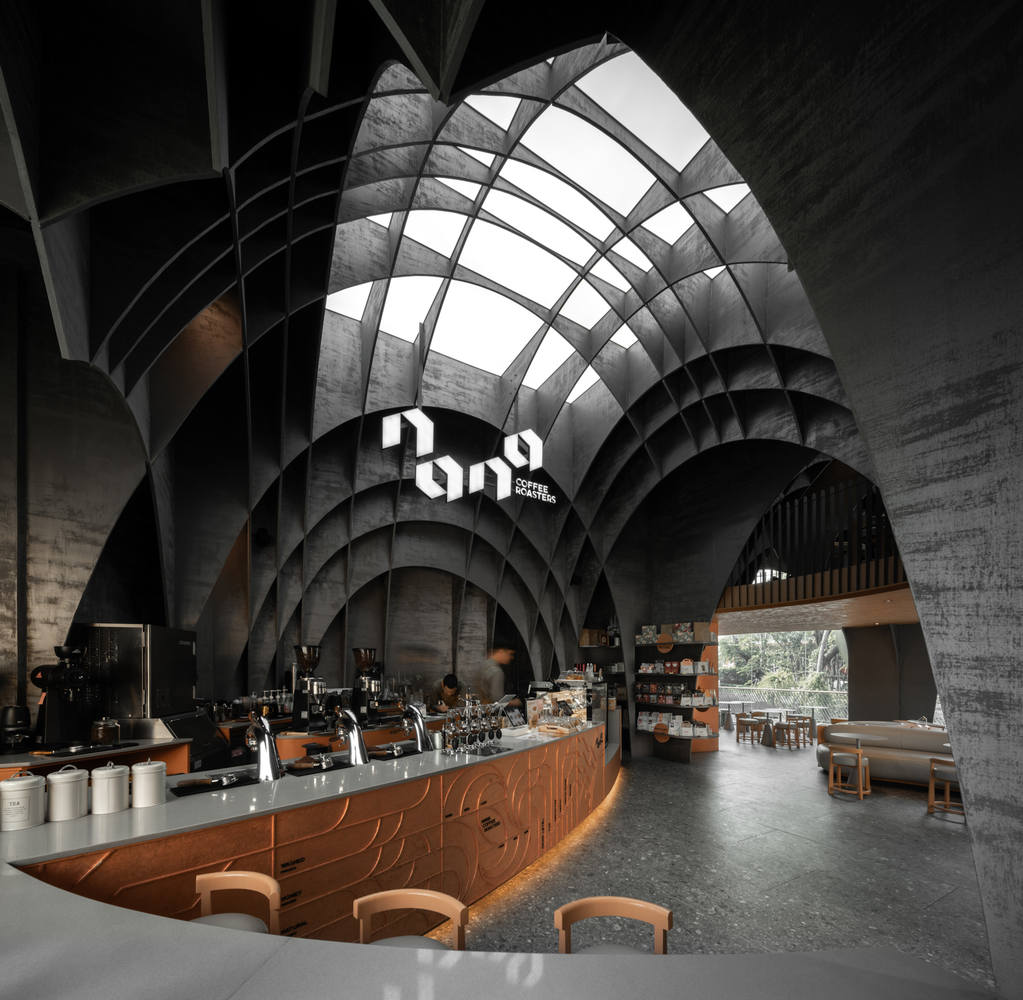

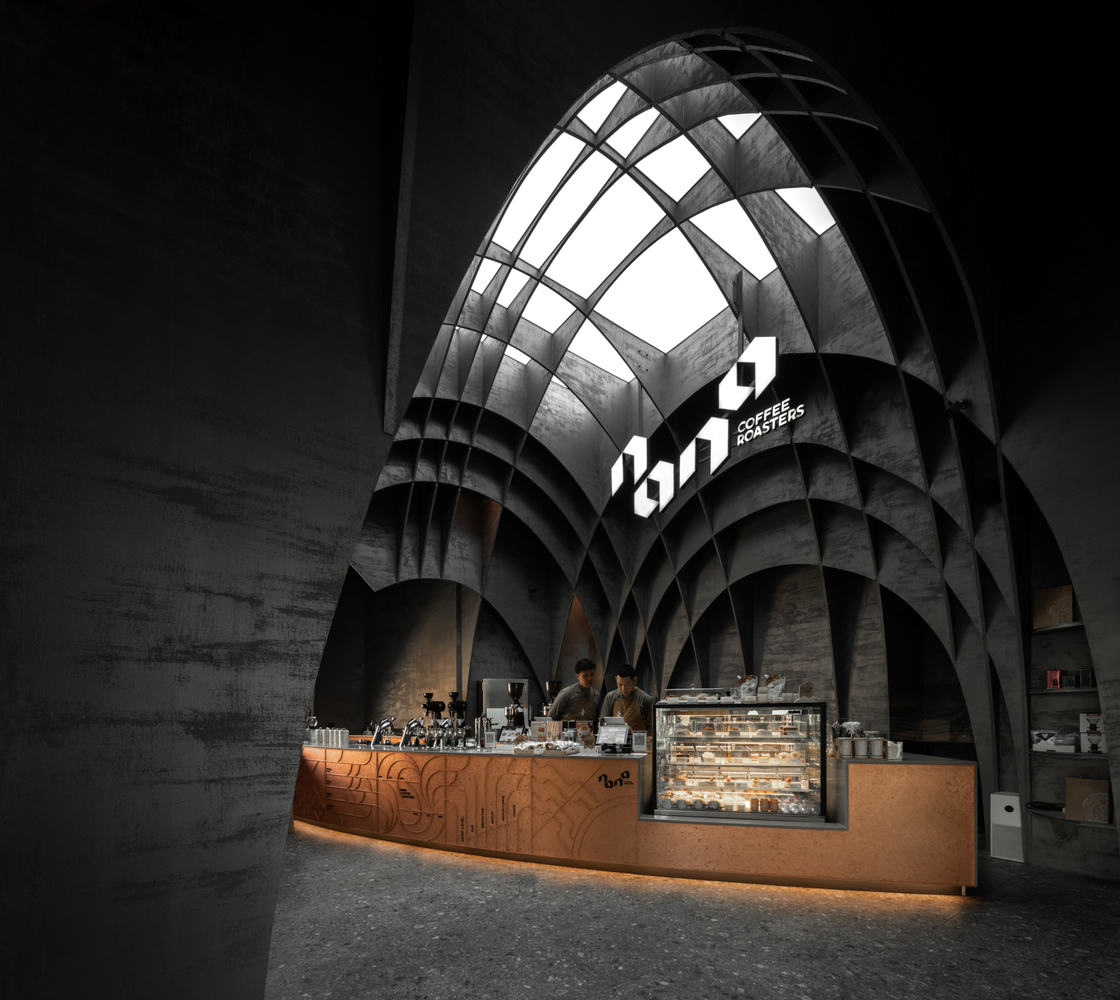

这些体积层次大小不同，促使客户探索“体积序列”，模仿洞穴的空间氛围。通过体量形成的负空间充满了各种间距的联锁华夫格结构，但以相同的纹理深灰色色调呈现，在洞穴中散发出天然的石材表面。照明设计在结构的网格内，突出了中央门厅，这是入口的主要区域。然后，门厅流入建筑内不同体积的其他区域。增加了一个夹层，作为一个更私人的座位区，同时也为顾客创造了另一个探索区。
These layers of volumes differ in size, urging the customers to explore the "sequence of volumes", imitating the spatial atmosphere of caves. The negative spaces created through the formation of volumes are filled with an interlocking waffle structure with various spacings, but are presented in the same textured dark gray tone to exude a natural stone surface in caves. The lighting is designed to be within the grids of the structure, highlighting the central foyer, which is the main area from the entrance. The foyer then flows into other areas of different volumes within the building. A mezzanine floor is added for a more private seating area while at the same time, also creating another zone for customers to explore.

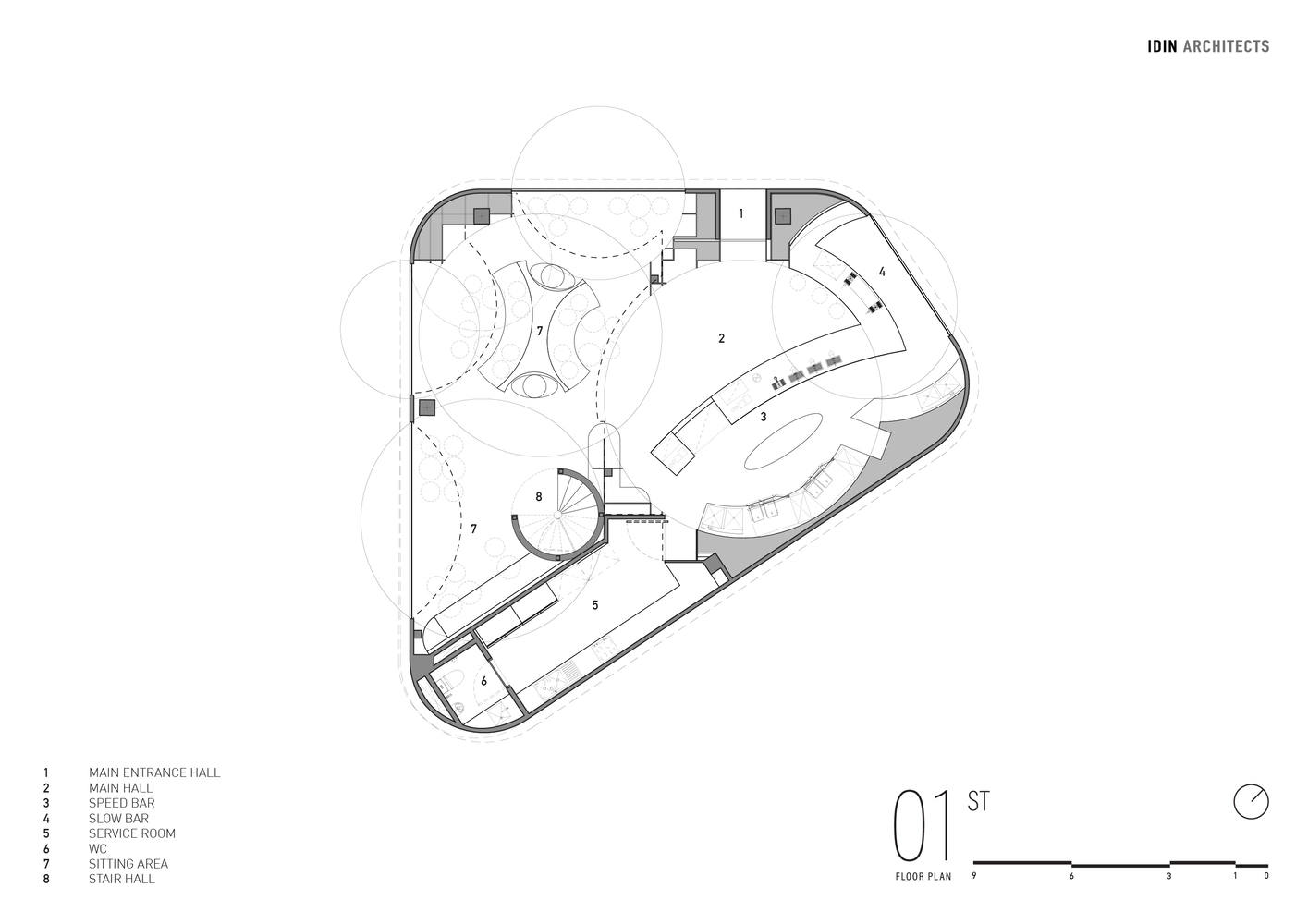

Plan - Ground Floor

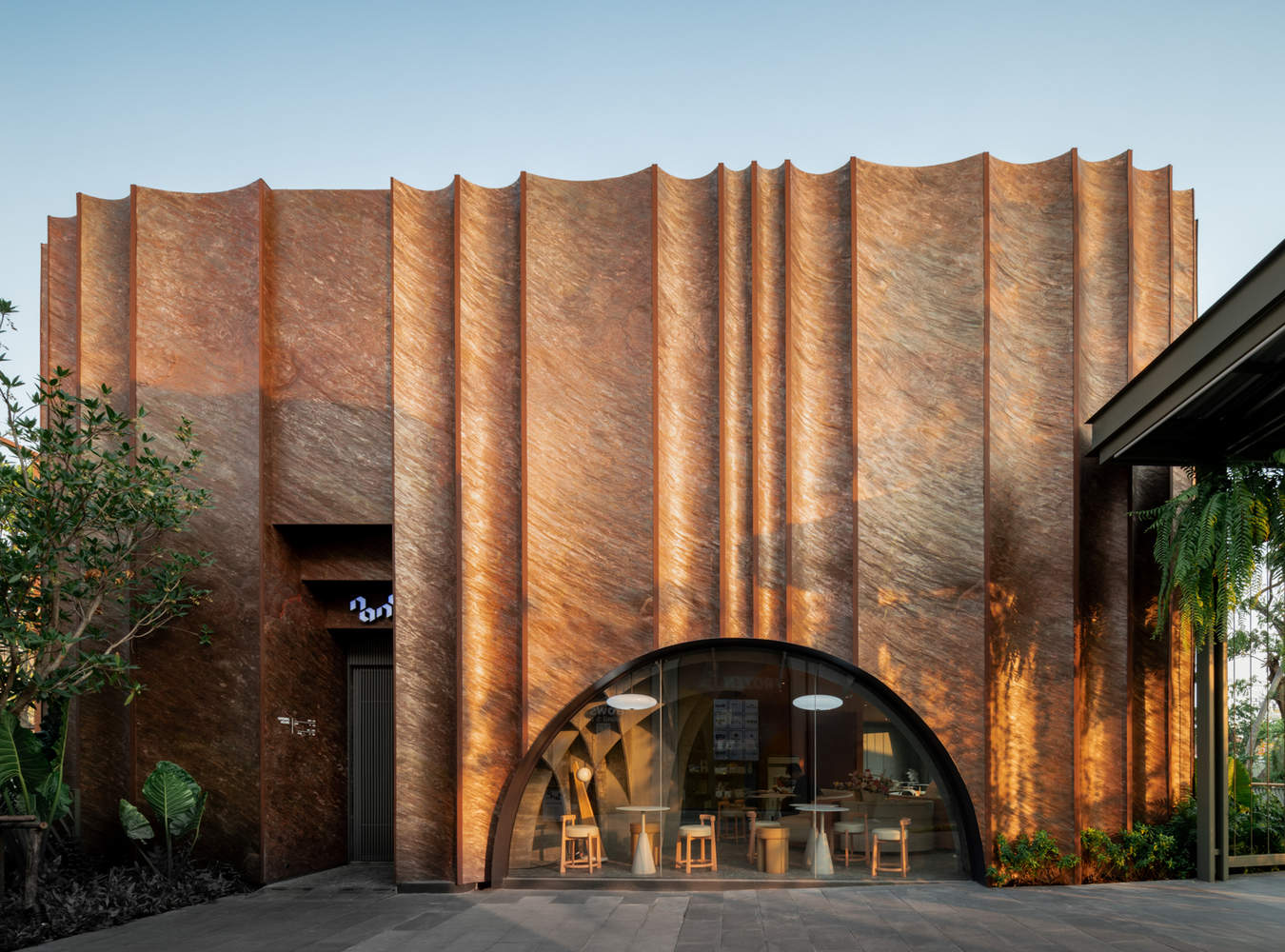

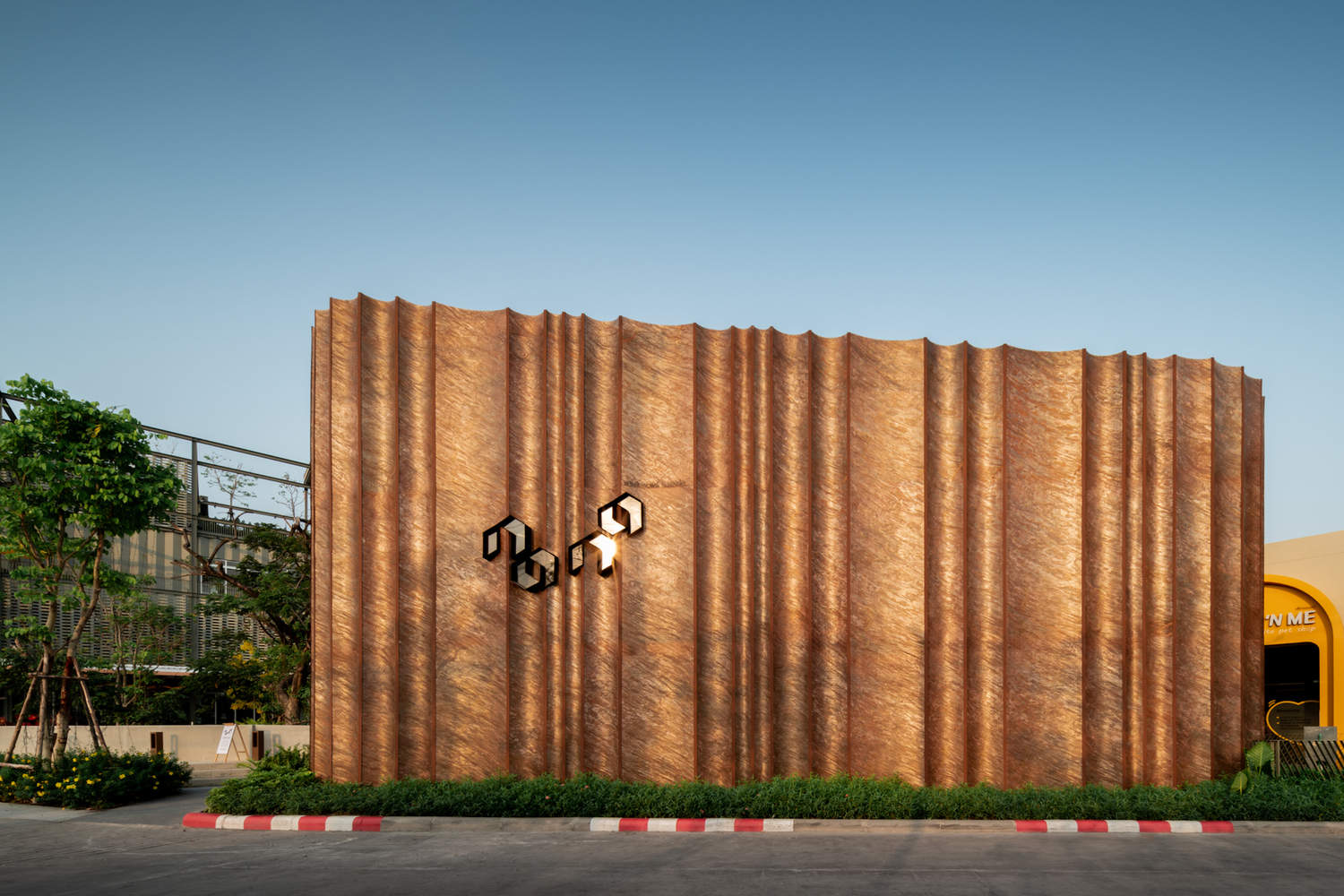

该项目将建筑和室内设计融为一体；外部设计为封闭式，以隐藏内部，并在控制进入内部空间的自然光量的同时创造惊喜元素。该建筑被弯曲的石贴面包裹，形成与阳光相互作用的脊，在立面上形成阴影图案。外部类似于一个坚固的体量，以鼓励游客对内部感到好奇。家具根据内部空间的各种“体积”进行布置，游客可以从私人单人座椅到团体座椅进行选择，所有选定的家具都具有圆形形状，以反映内部体积的有机形状，并控制在灰色、黑色、铜色和木色的相同方案内，以保持设计的连续性。
This project combines architecture and interior design into one; the exterior is designed to be enclosed to hide the interior and creates an element of surprise while controlling the amount of natural light that enters the interior spaces. The building is wrapped with stone veneer that is curved to create ridges that interact with the sunlight, forming shadow patterns on the facade. The exterior resembles a solid mass to encourage the visitors to be curious about the interior. The furniture is arranged according to the various "volumes" of the interior space, visitors can choose from private single seats to group seating, where all selected furniture feature rounded forms to reflect the organic shapes of the internal volumes and are controlled within the same scheme of gray, black, copper and timber tone for design continuity.

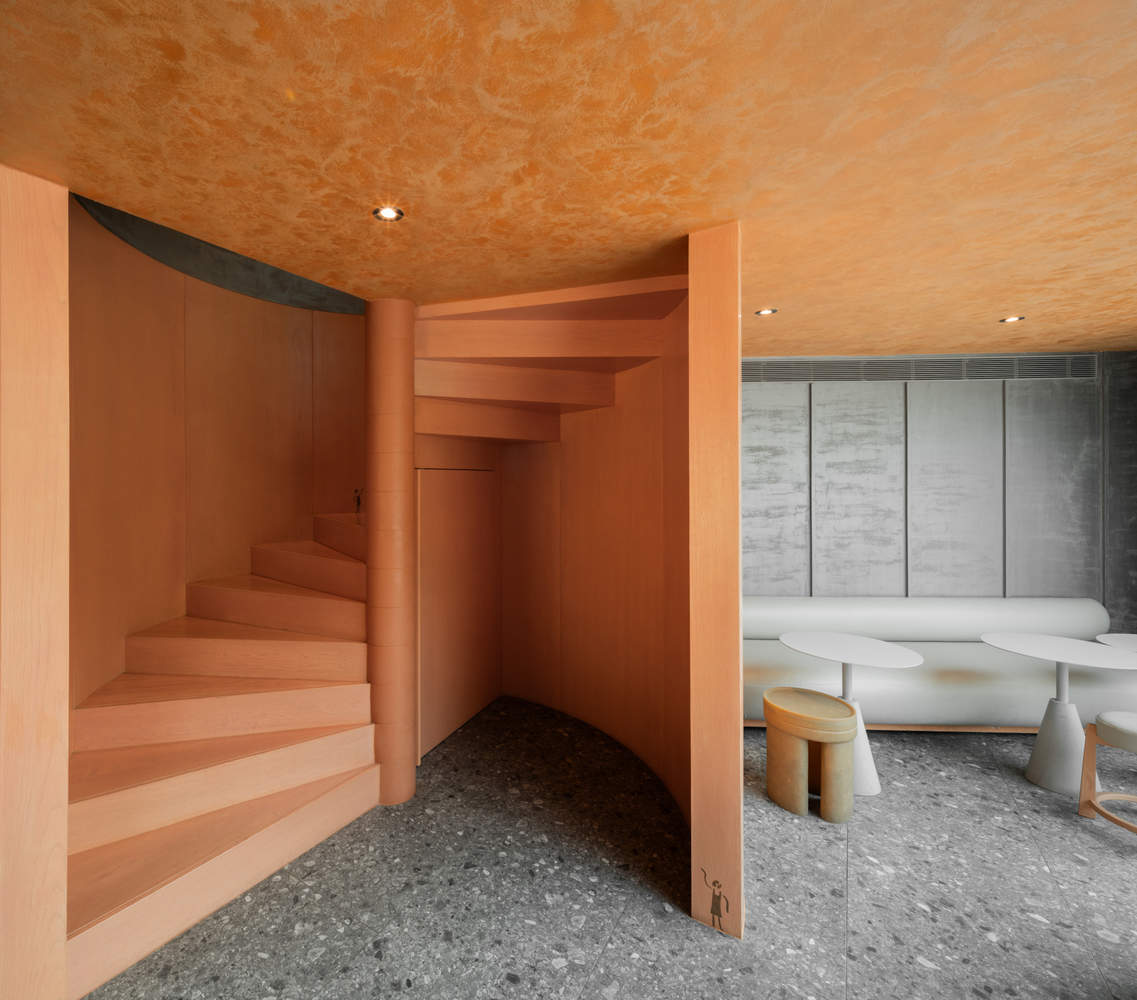

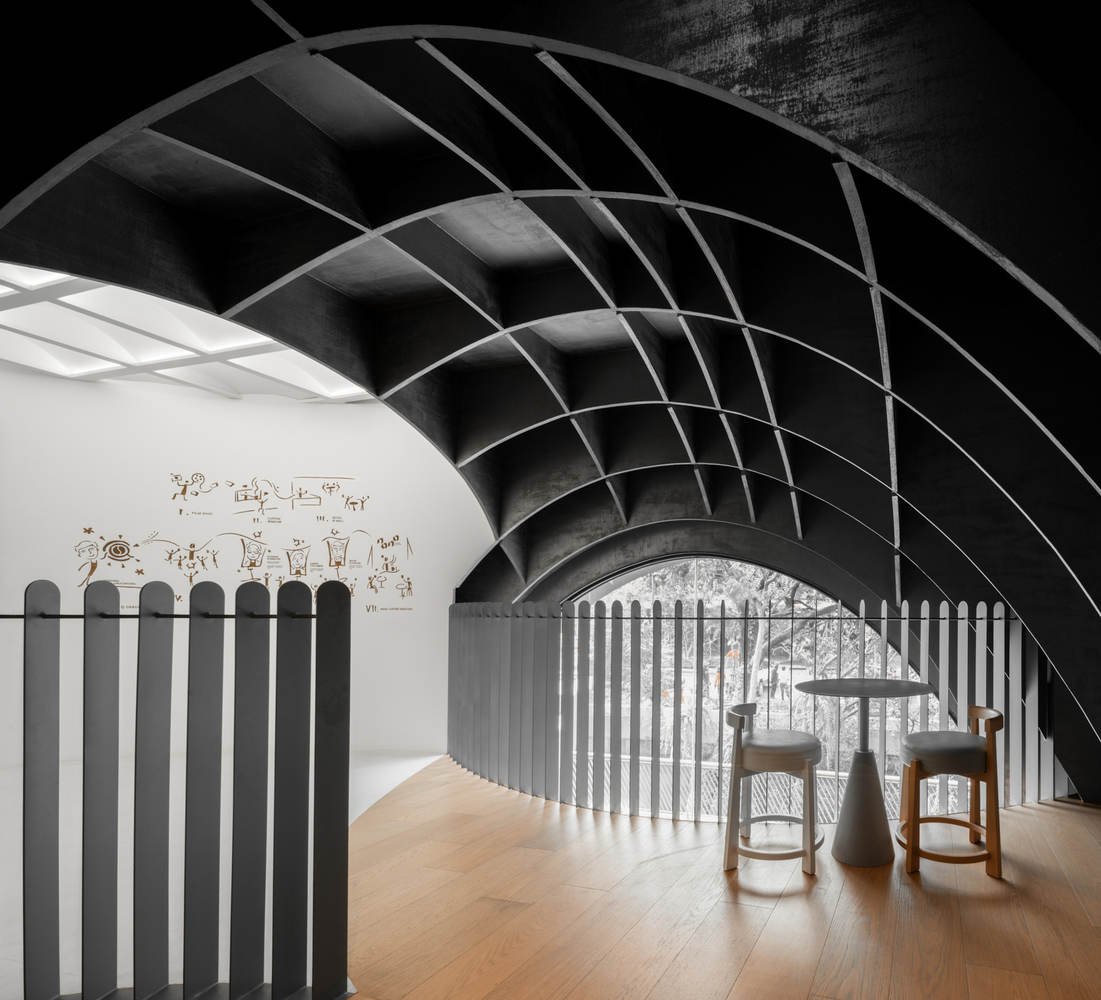

夹层上有一个较大的团体座位，可用于举行会议或团体活动，如咖啡杯。这个区域的墙壁上有类似洞穴壁画的壁画，讲述了娜娜咖啡烘焙师从开始到现在的故事。隐喻地说，这个夹层区域也代表了文明的开始，因此，它被漆成白色，与咖啡馆其他地方较暗的“洞穴”区域形成对比。
A larger group seating is located on the mezzanine, where it can be utilized to hold meetings or group activities such as coffee cupping. The wall in this zone features murals that resemble cave paintings, telling the story of Nana Coffee Roasters from its beginning to the current time. Metaphorically, this mezzanine area also represents the start of civilization, and hence, it is painted in white to contrast with the darker "cave" zones in the rest of the cafe.

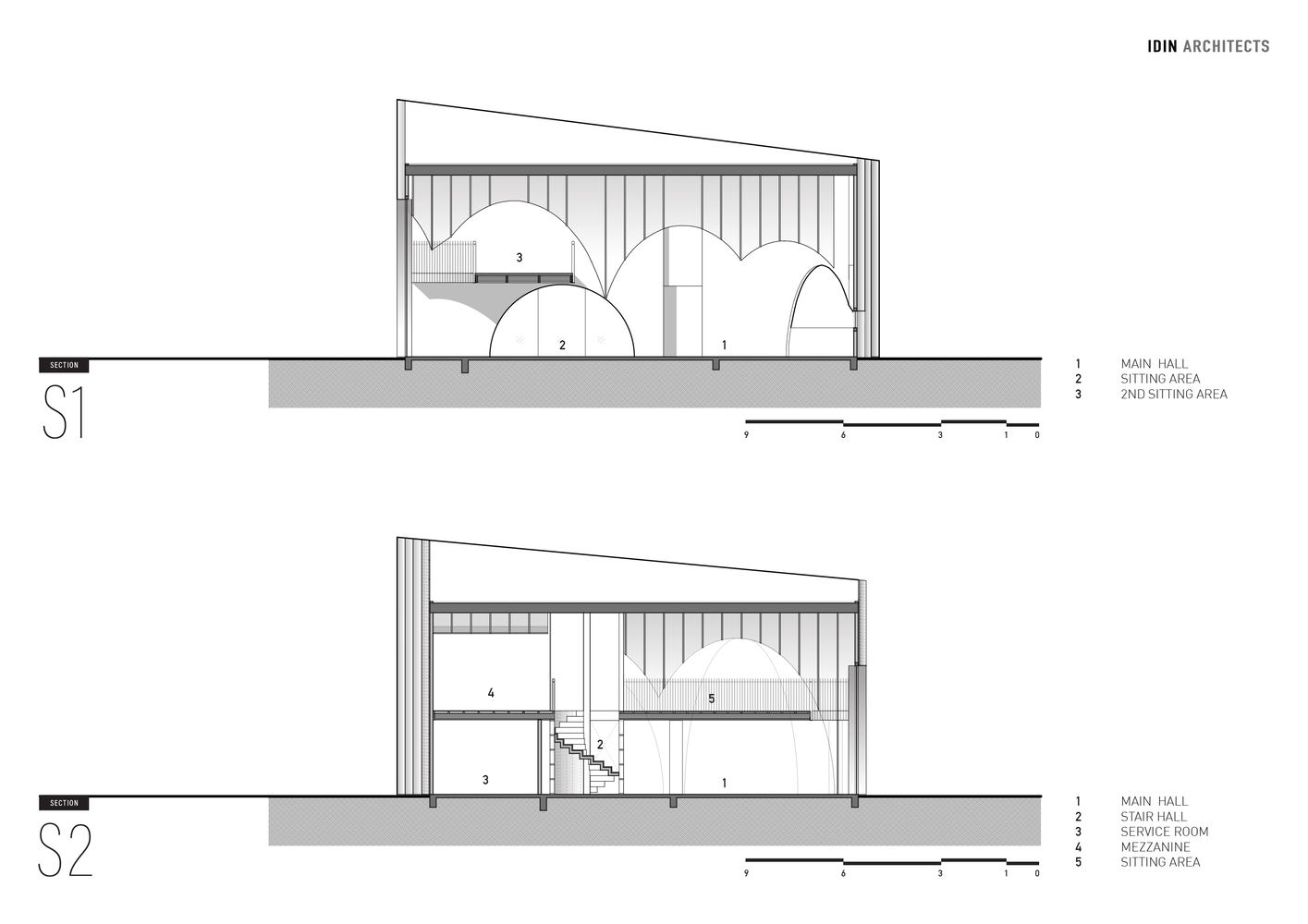

Sections

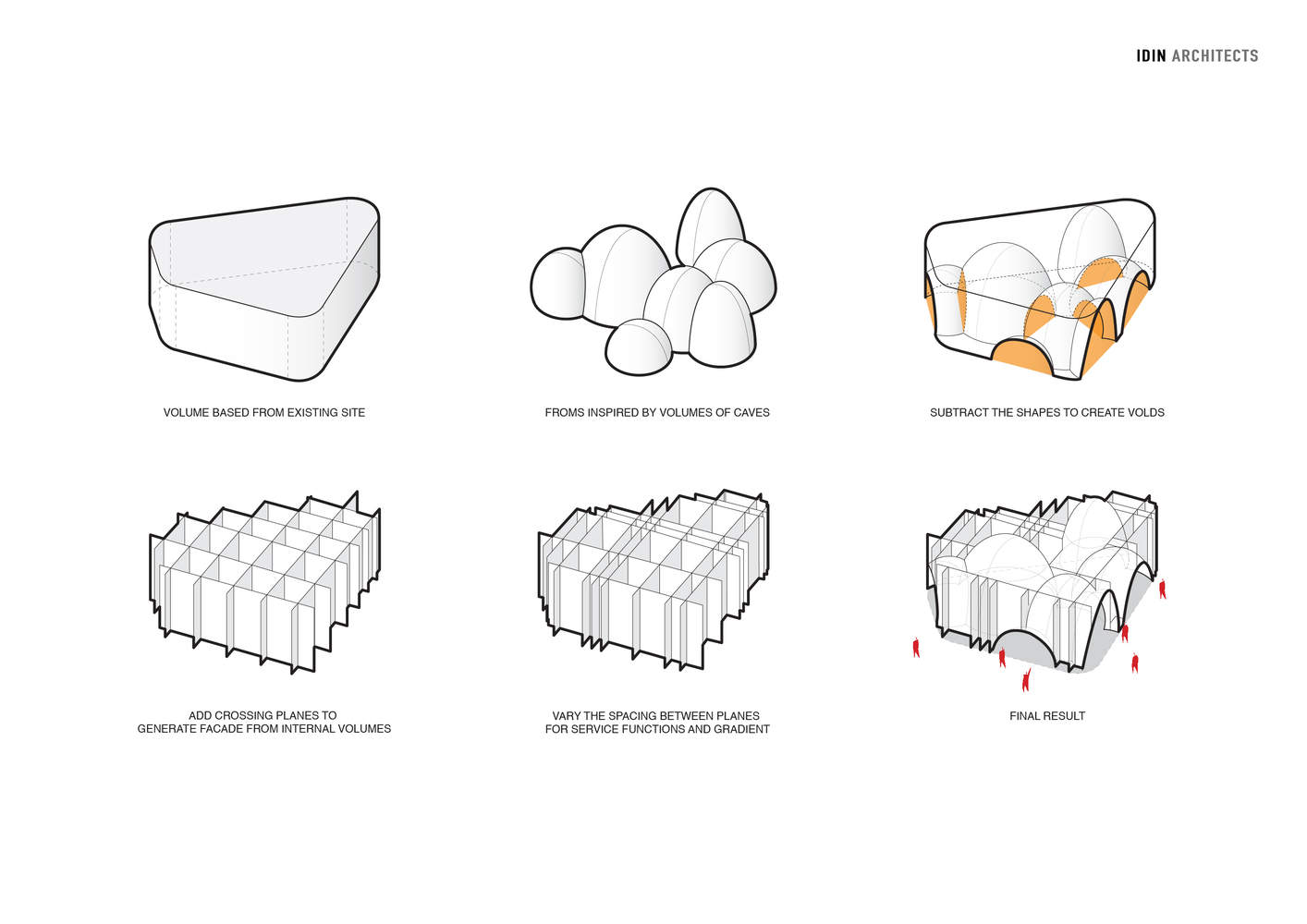

Diagram 01

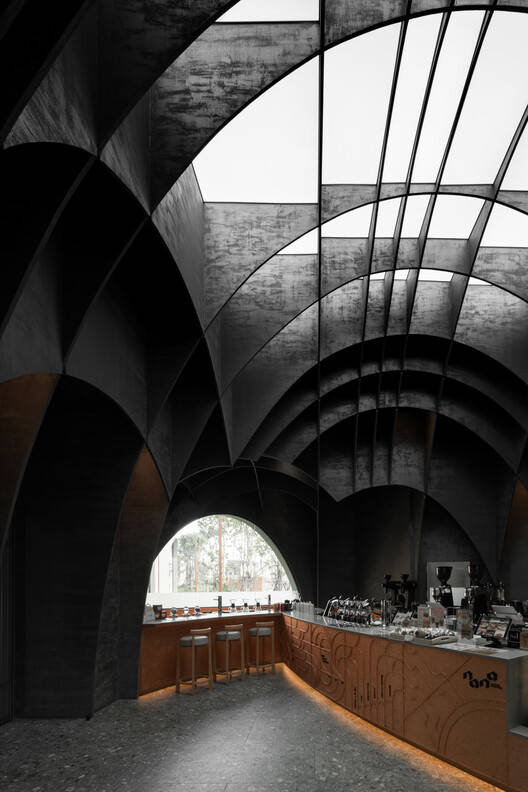

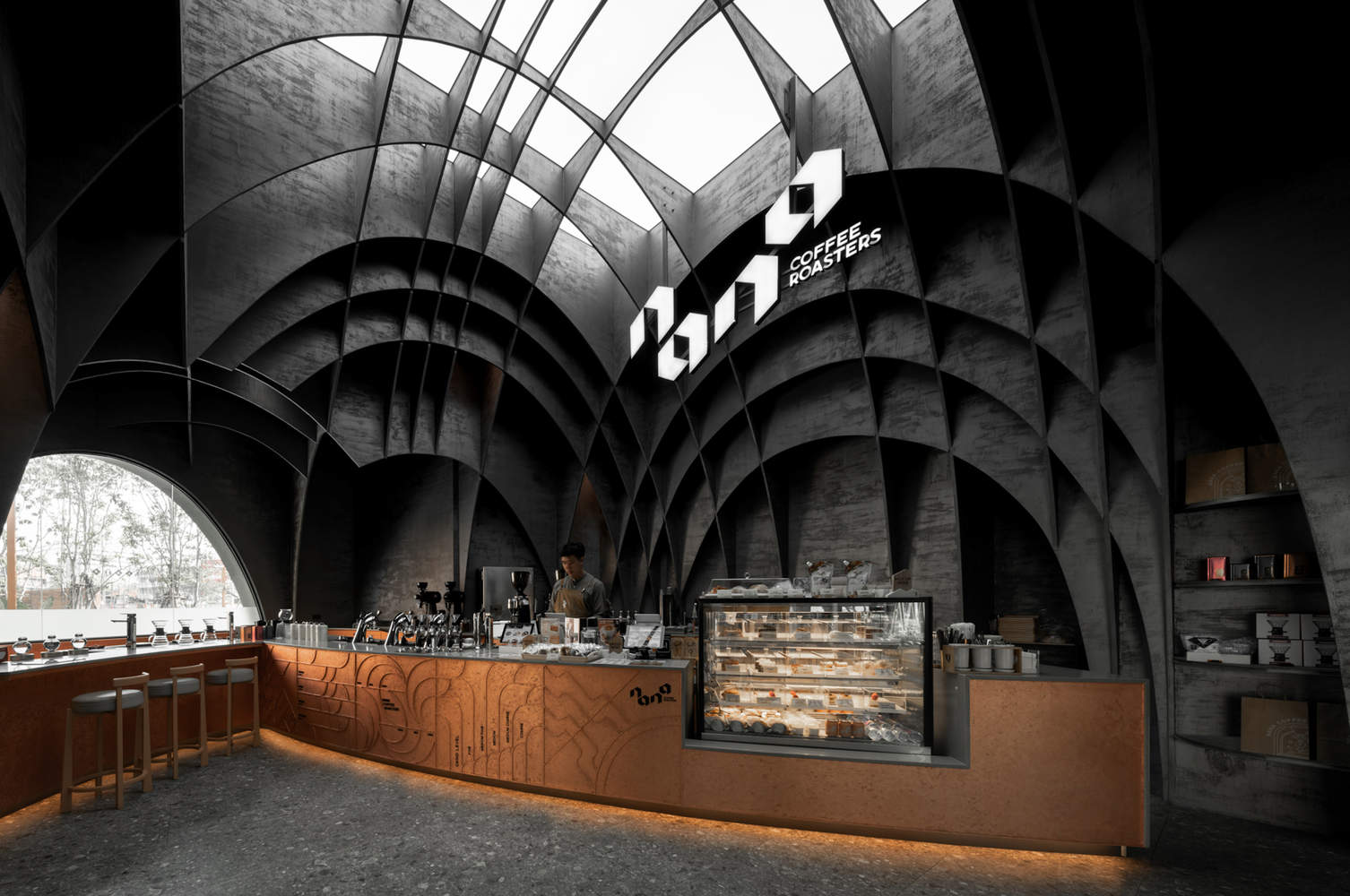

除了建筑和室内设计。标牌和图形元素，如点餐柜台上的线条，源于品牌的身份、故事、咖啡制作过程，从种植园开始到烘焙和酿造阶段。因此，咖啡的故事与设计的内容交织在一起，引发了游客和咖啡师之间的对话，因为他们沉迷于他们最喜欢的咖啡。
Apart from the architecture and interior design. The signage and the graphic elements, such as the lines featured on the ordering counter, have been derived from the brand's identity, in terms of its story, from its coffee-making process, from the start of the plantation to the roasting and brewing stage. The story of coffee is, therefore, intertwined into the content of design, sparking conversations between visitors and the baristas as they indulge in their favorite cups of coffee.
