KYMS技术中心/Archmixing工作室
KYMS Technology Centre / Atelier Archmixing
立面改造的策略与效果：该项目最显著的亮点在于其对建筑立面的改造策略。设计师敏锐地捕捉到市场竞争的需求，将立面改造作为提升项目价值的关键。通过覆盖银色铝板幕墙，建筑在保留工业基因的同时，实现了引人注目的视觉效果。这种“闪亮、突出、高调”的设计理念，将立面转化为广告，有效地提升了建筑的商业价值，并为城市注入了新的活力。这种以立面改造为核心的策略，体现了设计师对市场趋势的深刻理解和对建筑语言的精准把握，是项目成功的关键。
新旧元素的和谐统一：在立面改造过程中，设计师巧妙地平衡了新旧元素。通过保留街道立面的现有地板和结构，并采用落地窗系统，最大程度地利用了原有框架。同时，设计师巧妙地运用铝幕墙的凹凸图案和光滑表面，在保证建筑整体性的同时，赋予了立面丰富的层次感和视觉变化。这种对既有结构的尊重和创新元素的运用，使得建筑既保留了历史的痕迹，又展现出时尚现代的气息。项目成功地实现了新旧元素的和谐统一，赋予了建筑新的生命力。
材料的选择与细节的精致：项目在材料的选择和细节处理上展现出精湛的技艺。铝制幕墙的选择，不仅赋予了建筑金属质感，还通过光线的反射，营造出流动的视觉效果，使建筑与周围环境形成鲜明对比。细节方面，穿孔板的应用、庭院幕墙的设计，都体现了设计师对整体风格的统一性和对细节的精益求精。这些精心挑选的材料和精细的细节处理，共同构成了建筑的精致外观，进一步提升了项目的品质，也展现了设计师对建筑设计的专业素养。
Courtesy of Atelier Archmixing
Courtesy of Atelier Archmixing
建筑师提供的文字描述。原贝尔工厂位于上海市西藏北路525号，南临秋江路。有两个主要结构，一个9层，另一个7层，以及一个设备室和一个变电站。客户希望将其翻新为高端办公室出租，以满足该地区的市场需求。

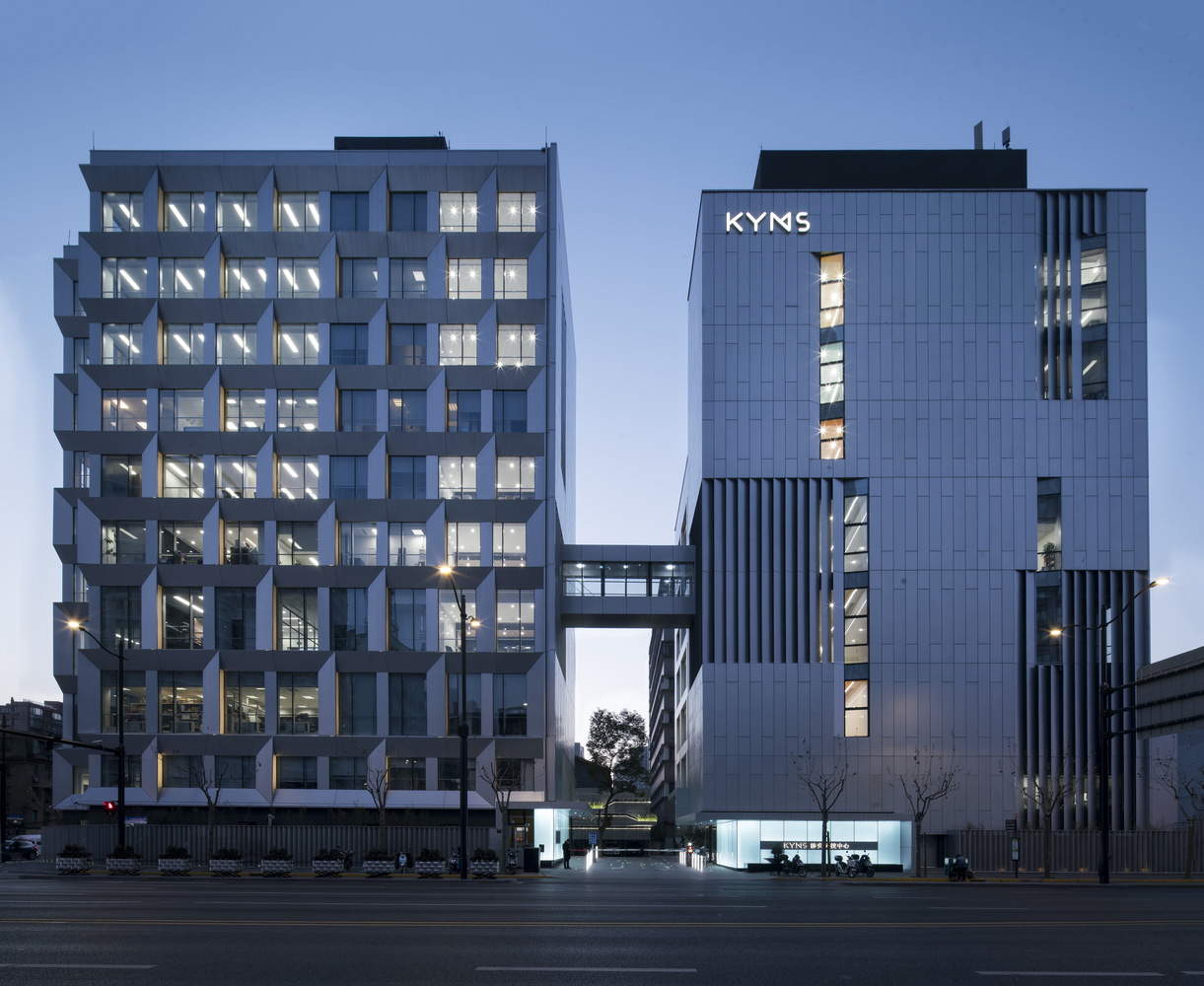

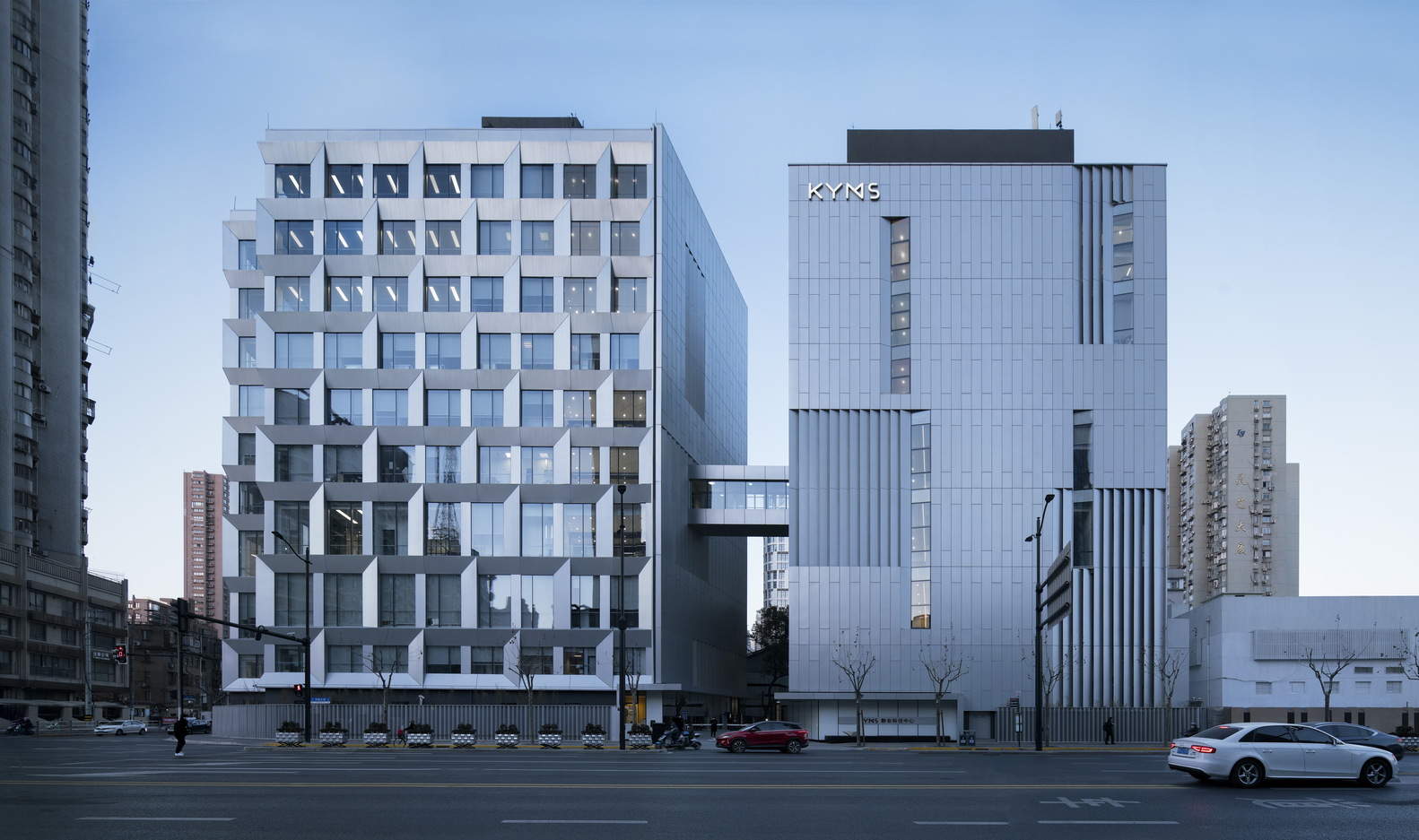

Text description provided by the architects. The former Bell factory was located at No. 525 North Xizang Road, Shanghai to south is Qiujiang Road. There are two major structures, one 9-storey and the other 7-storey, as well as a device room and a transformer substation. The client wants to renovate it into a high-end office for rental to meet the market demanding in this region.
Courtesy of Atelier Archmixing
Courtesy of Atelier Archmixing
然而，2019年的办公室租赁市场已经充满挑战。为了吸引潜在客户，仅仅提高室内空间质量和办公服务是不够的。这座建筑的外观将具有显著的意义。此外，周围的城市环境和建筑已经过时。主入口位于现场东侧，靠近主干道，人流和交通密集。但由于有围墙，场地不够开放，行人体验不佳。考虑到所有这些因素，设计师和客户都认为彻底翻新旧工厂是最有效的方法。

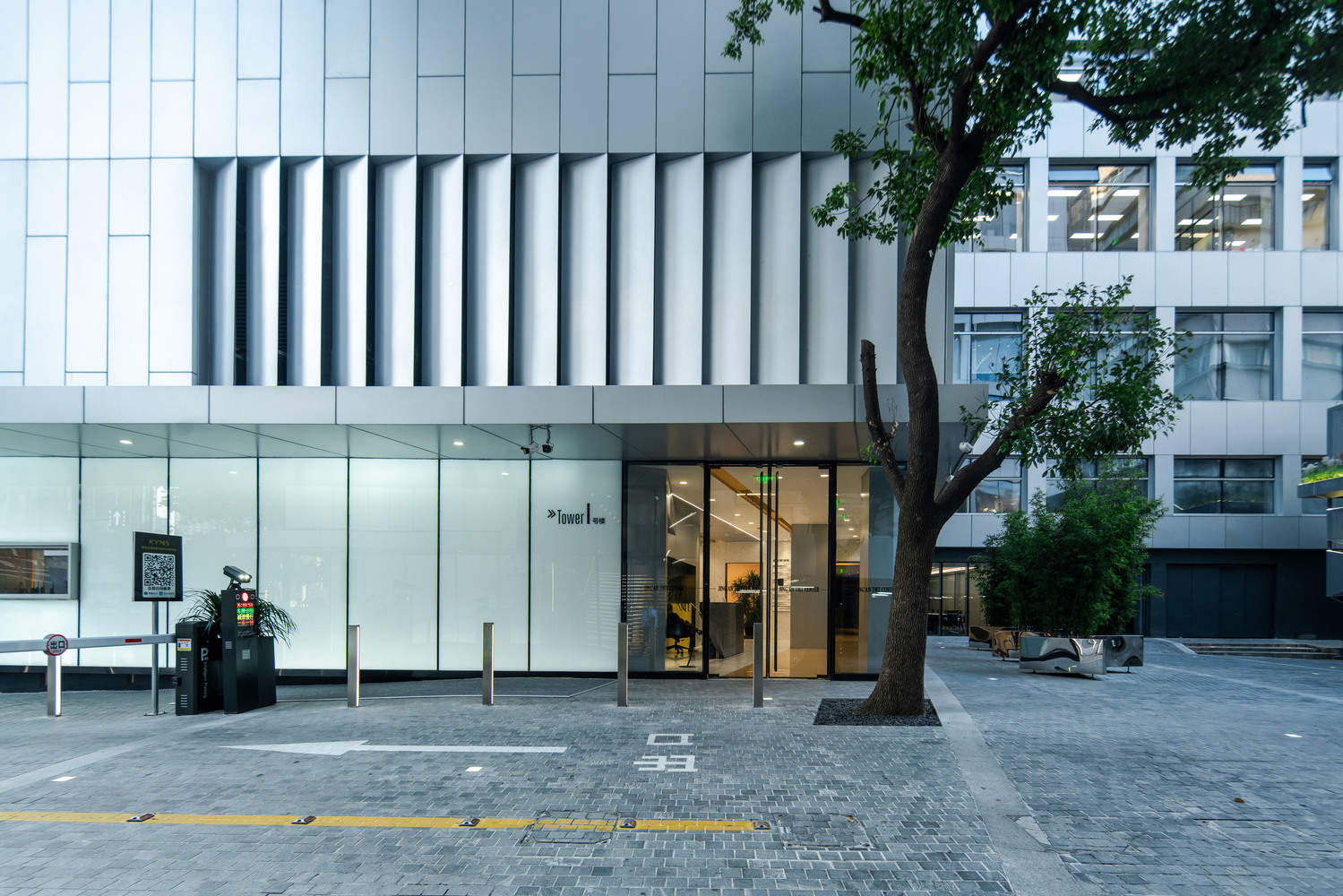

However, the office rental market was already challenging in 2019. To attract potential clients, it would be insufficient to only improve the interior spatial quality and office services. The building's appearance would have notable significance. Additionally, the surrounding urban environment and buildings are outdated. The main entrance is at the east side of the site, close to the main road with dense flow of people and traffic. But with walled boundary, the site is not open enough and the pedestrian experience is poor. Taking all these factors into consideration, the designer and the client both agree that completely refreshing the old factory would be the most effective approach.
Courtesy of Atelier Archmixing
Courtesy of Atelier Archmixing

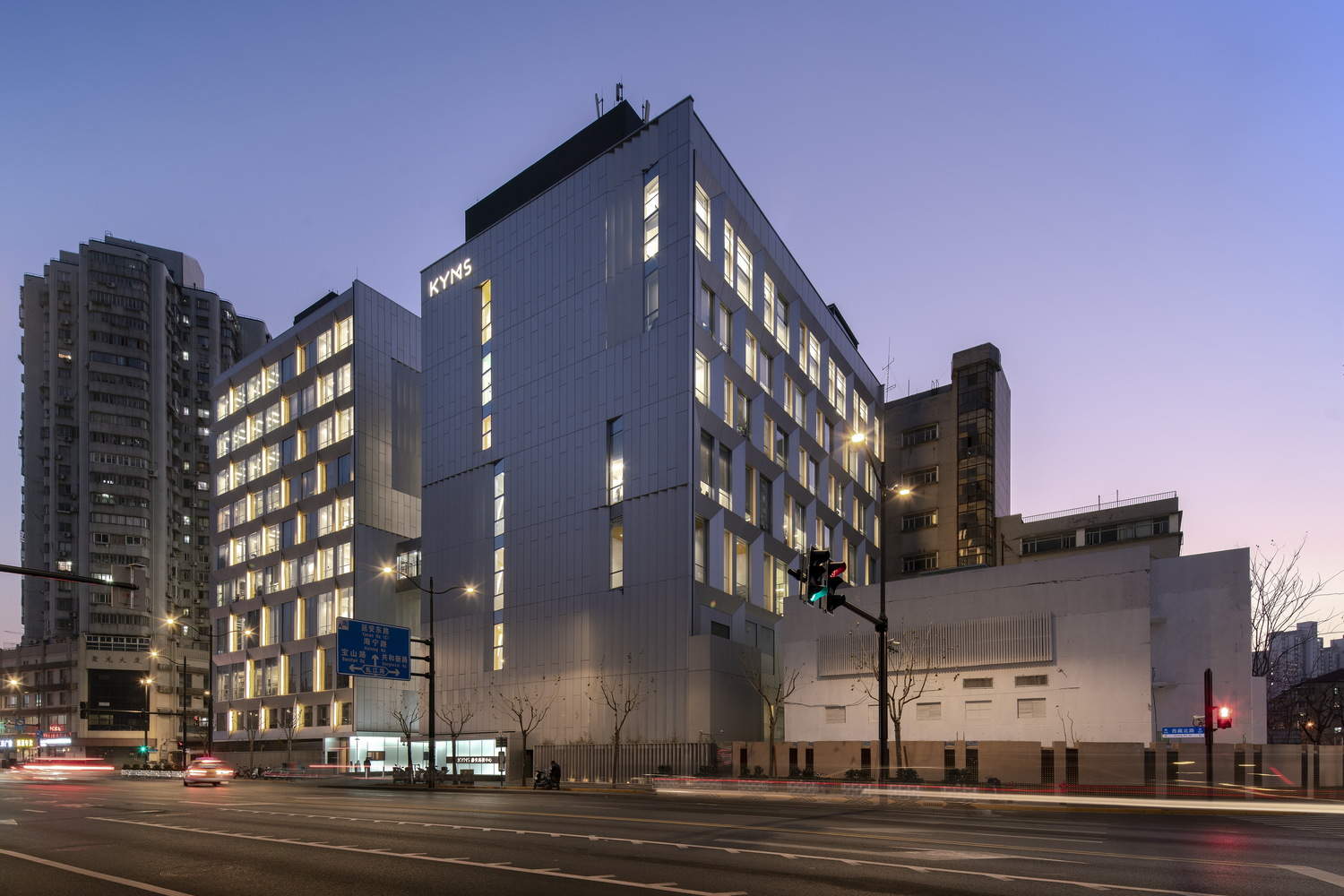

设计团队提出了一个简单的策略，即创造一个“闪亮、突出、高调的形象”——将立面变成广告。通过覆盖银色铝板幕墙，该建筑不仅保持了其工业金属基因，而且以时尚的质感引人注目。立面改造成功达到了令人耳目一新的效果。客户对改造既提升了商业价值，又增强了城市活力感到满意。

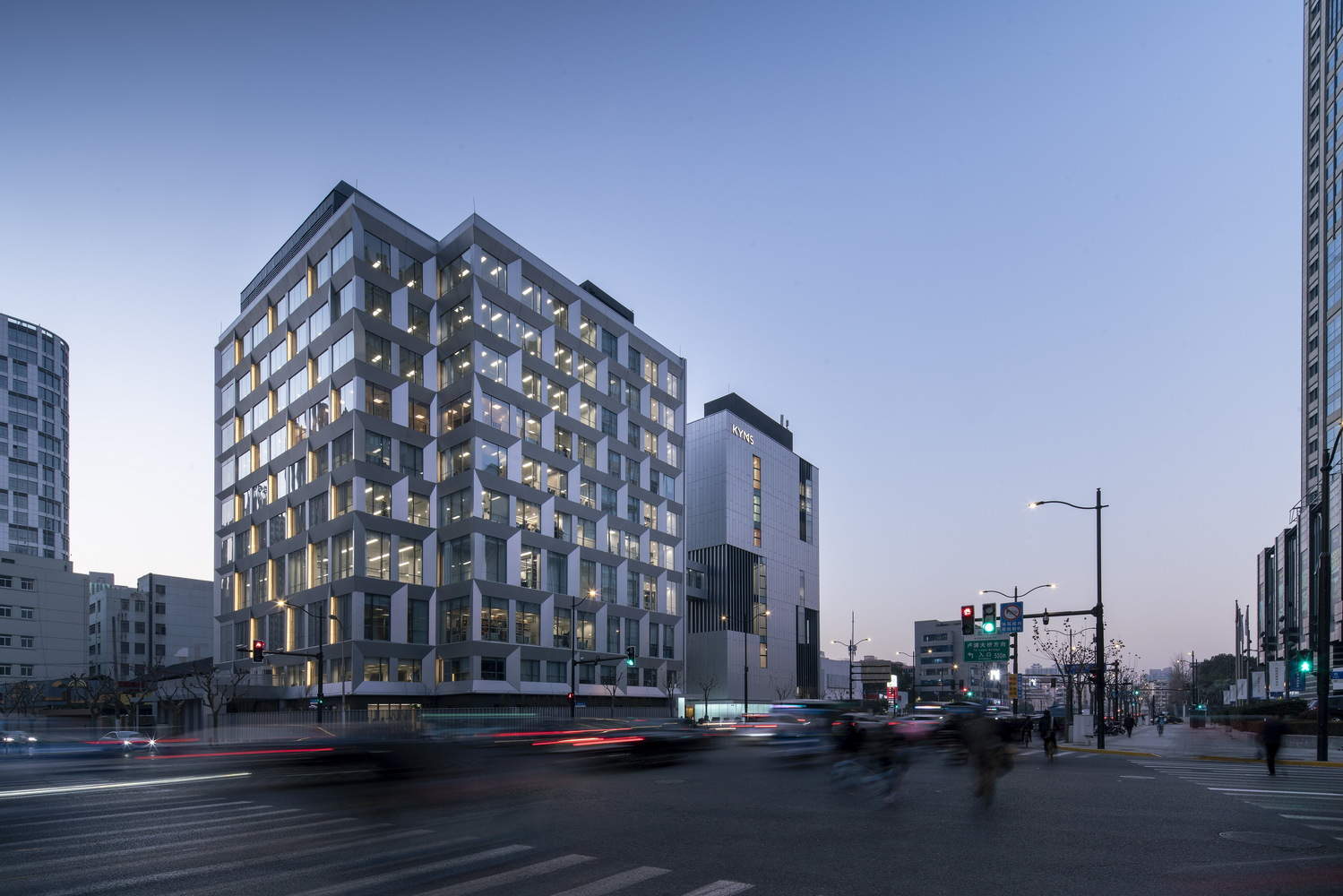

The design team proposed a straightforward strategy of creating a "shiny, prominent, and high-profile image " – turning the façade into advertising. Through covering a silver aluminum panel curtain wall, the building not only maintains its industrial metallic gene but also becomes eye-catching with fashionable textures. The façade renovation has successfully achieved the fully refreshing effect. The client is satisfied for the renovation has promote both the commercial value and the urban vitality.
Courtesy of Atelier Archmixing
Courtesy of Atelier Archmixing

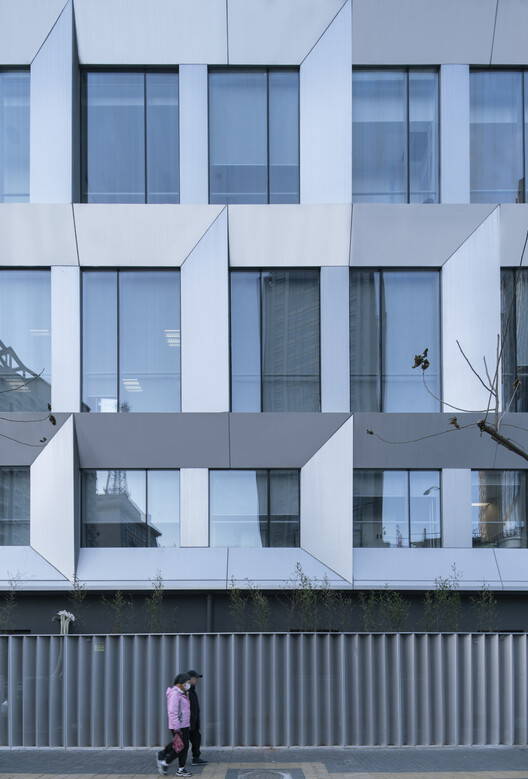

我们保留了街道立面的现有地板和结构。在保证消防安全的同时，使用了落地窗系统来填充框架。大型玻璃立面大多保持完整，只用穿孔板覆盖侧开口。铝幕墙在主窗墩上采用有节奏的凹凸图案，而在大山墙上采用光滑的表面，变化有限。沐浴在阳光下，这面银色的幕墙看起来像一件流动的金属斗篷，将这座建筑与周围的环境区分开来。

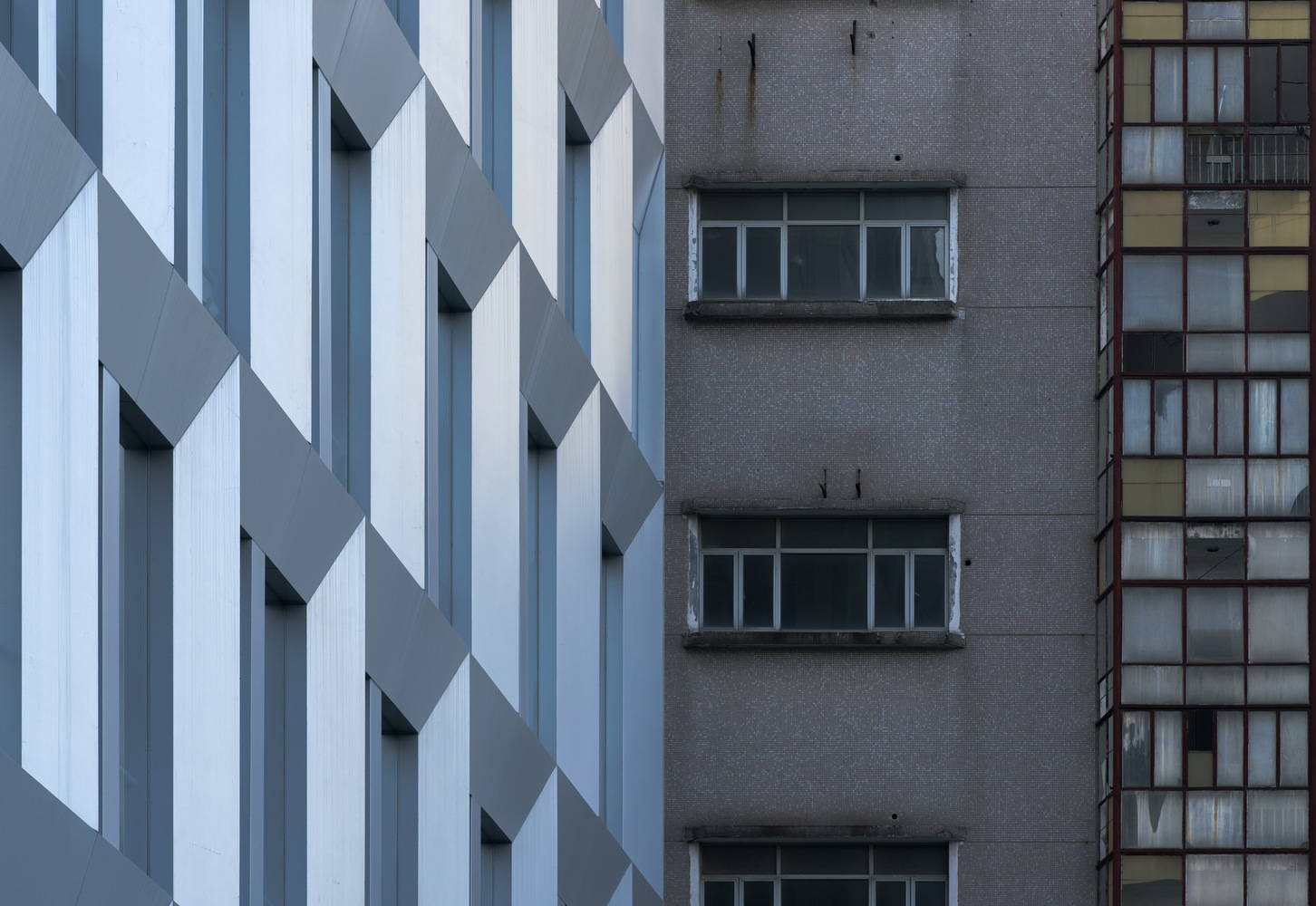

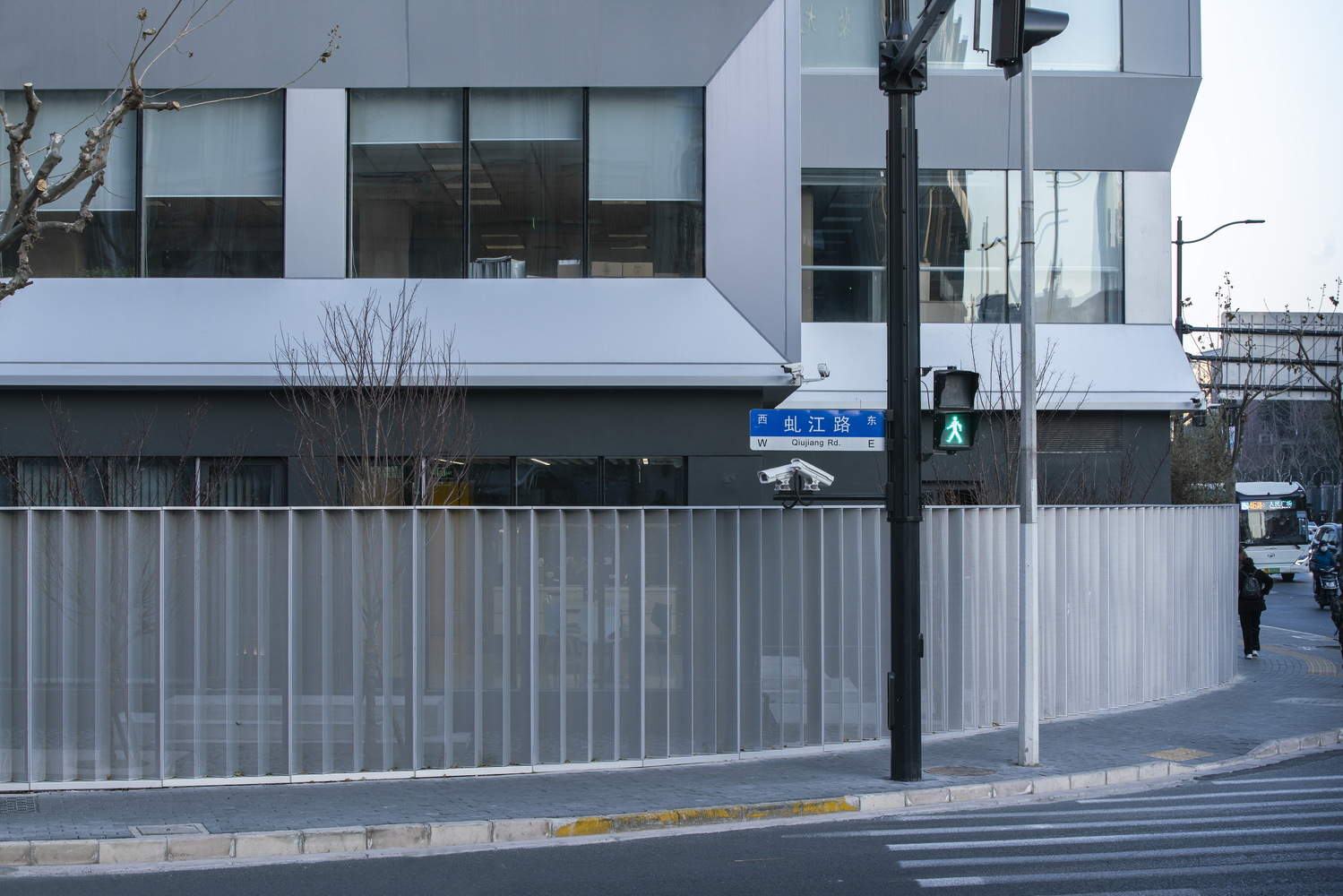

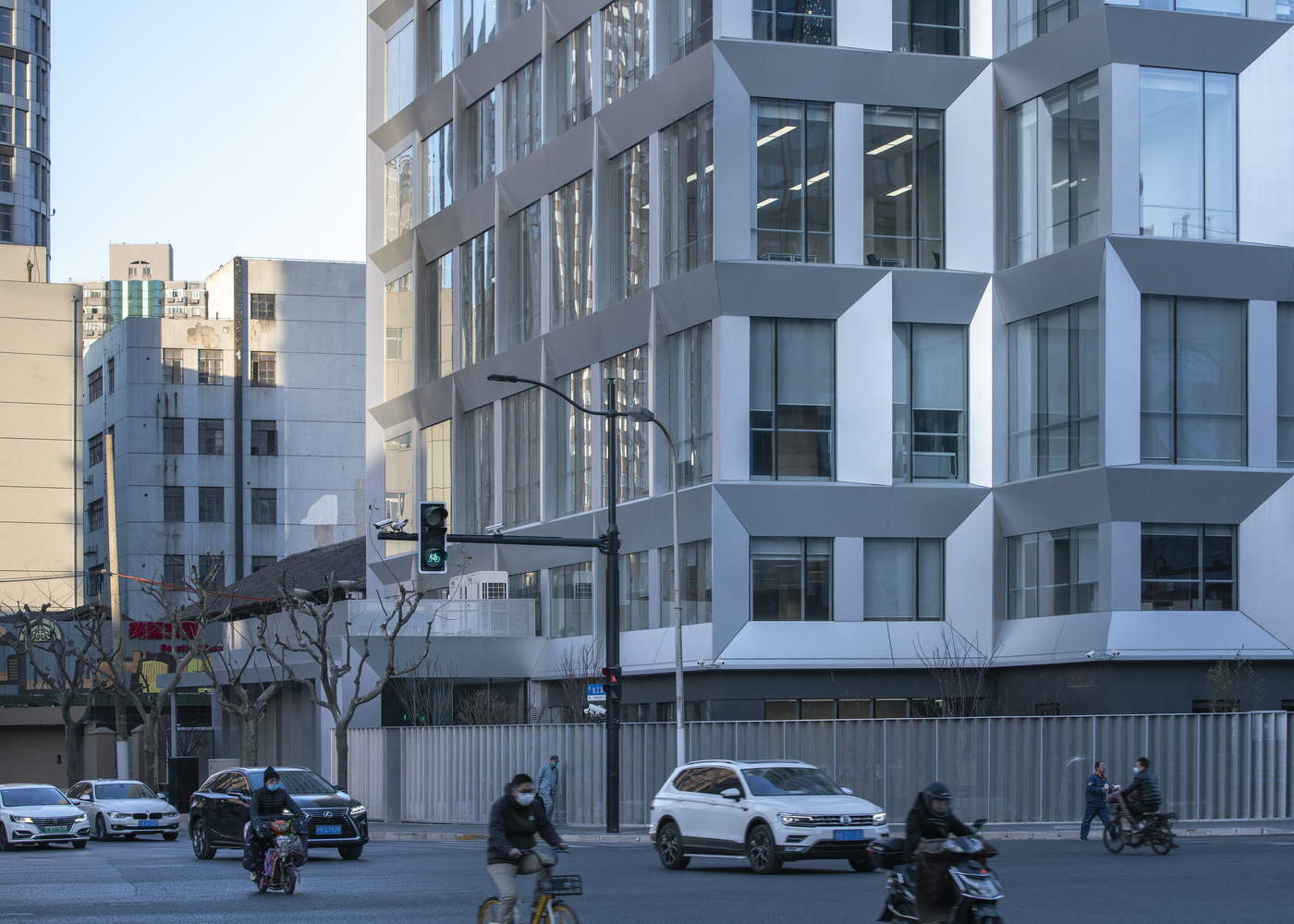

We have preserved the existing floors and structures for the street elevation. When guaranteeing the fire safety, floor-to-ceiling window systems were used to fill the framework. The large glass façade is mostly kept integrity, only covering the side openings with perforated panels. The aluminum curtain wall features rhythmic concave-convex patterns on main window piers, while adopting smooth surface on the large gable walls, with limited variations. Bathing in the sunlight, this silver curtain wall looks like a flowing metallic cloak, distinguishing the building from its surroundings.
Courtesy of Atelier Archmixing
Courtesy of Atelier Archmixing
庭院立面基本上得到了保留，只有细节上的改进。我们只采用了经济型玻璃窗和金属饰面，以确保一致性。同时，庭院内的主车库设计了一道轻盈优雅的穿孔金属装饰幕墙。

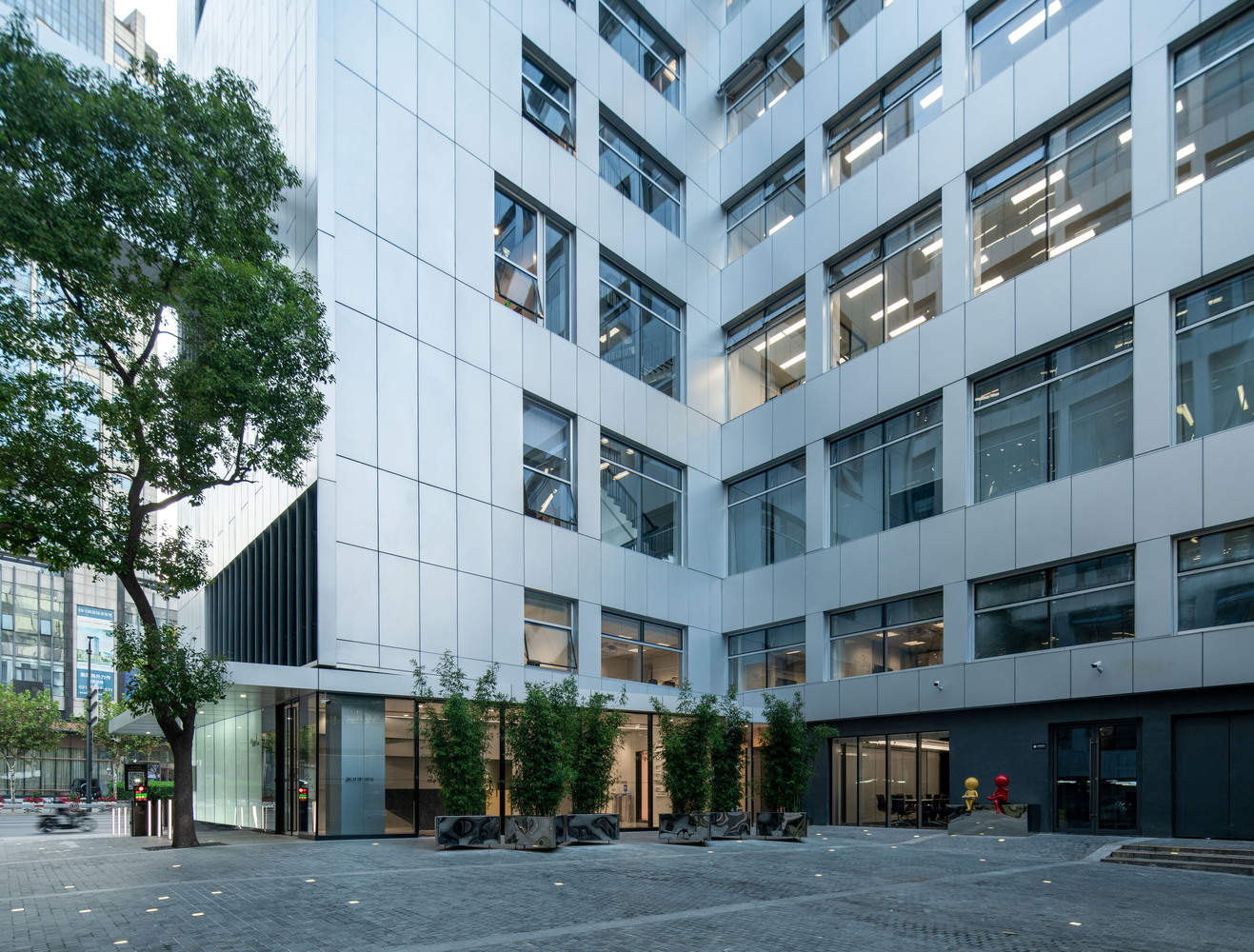

The courtyard façades have been largely preserved, with only detailed refinements. We have only applied economical glass windows and metal finishes to ensure the consistency. Meanwhile, a lightweight and elegant perforated metal decorative curtain wall was designed for the main garage in the courtyard.
