A House in the Grape Farms / Studio Frozen Music

独特的设计理念：这座位于葡萄农场的房子，巧妙地融合了当代与传统建筑风格。设计师划分区域，制作功能块并组合，为平面图和结构提供清晰轮廓。主要功能区位于中心，与东西向对齐，服务区在东南区，卧室面向迎风方向。半遮荫的凉棚入口庭院营造欢迎姿态，客厅宽敞且与凉棚相连，礼拜室如岛屿被水体环绕，独特的布局使每个区域都有充足阳光、通风和景观。

出色的室内设计与材料选择：室内设计注重空间的舒缓与视觉融合。浅米色哑光地板砖和统一缅甸柚木色调的家具，为室内提供无缝的触觉和视觉吸引力。家具现场定制，兼顾用户功能要求和建筑特点。通过建筑规划，表达了不同空间配置的“孤立凝聚力”，呈现出隐私与互动的有趣融合，既重视个人隐私，又提供有利于家庭价值观的开放性和稳定性。

“将天空与大地融为一体”-这栋房子位于纳西克市附近一个名为Belagon Dhaga的小村庄。土地所有者主要是职业农民，专门从事葡萄种植。他们想在农田上建一座新房子。该地点拥有一个非常风景优美的环境，背靠远处的山脉，邻近的葡萄农场、芒果和香蕉种植园，以及附近的农田，为快速嘈杂的城市生活提供了一个宁静的休憩之所。要求是一栋四居室的房子，有宽敞的生活和室外使用区以及设备齐全的私人空间。他们特别希望在空间规划以及结构的视觉表达方面融合当代和传统的建筑风格。空间的分区需要遵循印第安瓦斯图原则，但他们特别不希望住宅的外观采用典型的、封闭的、矩形的建筑体量。挑战和愿望是制定一个建筑和室内解决方案，试图满足这些方面的要求。
'Merging The Sky with The Ground' - This house is situated in a small village called Belagon Dhaga near Nashik City. The owners of the land are primarily farmers by profession and specialize in grape farming. They wanted to build a new house on the farmland. The site possesses a very scenic setting against the mountains far beyond, the adjacent grape farms, mango and banana plantations, and agricultural lands nearby providing a peaceful retreat from the fast and noisy urban life. The requirement was for a 4-bedroom house with spacious living and outdoor use areas and well-equipped private spaces. They especially wanted a blend of contemporary as well as traditional styles of architecture, in terms of spatial planning as well as visual expression of the structure is concerned. the zoning of the spaces was required to follow the Indian Vastu principles, but they particularly did not want a typical, confined, rectangular-type of architectural massing for the external appearance of the residence. The challenge and desire were to work out an architectural and interior solution that would try to fulfill these aspects.

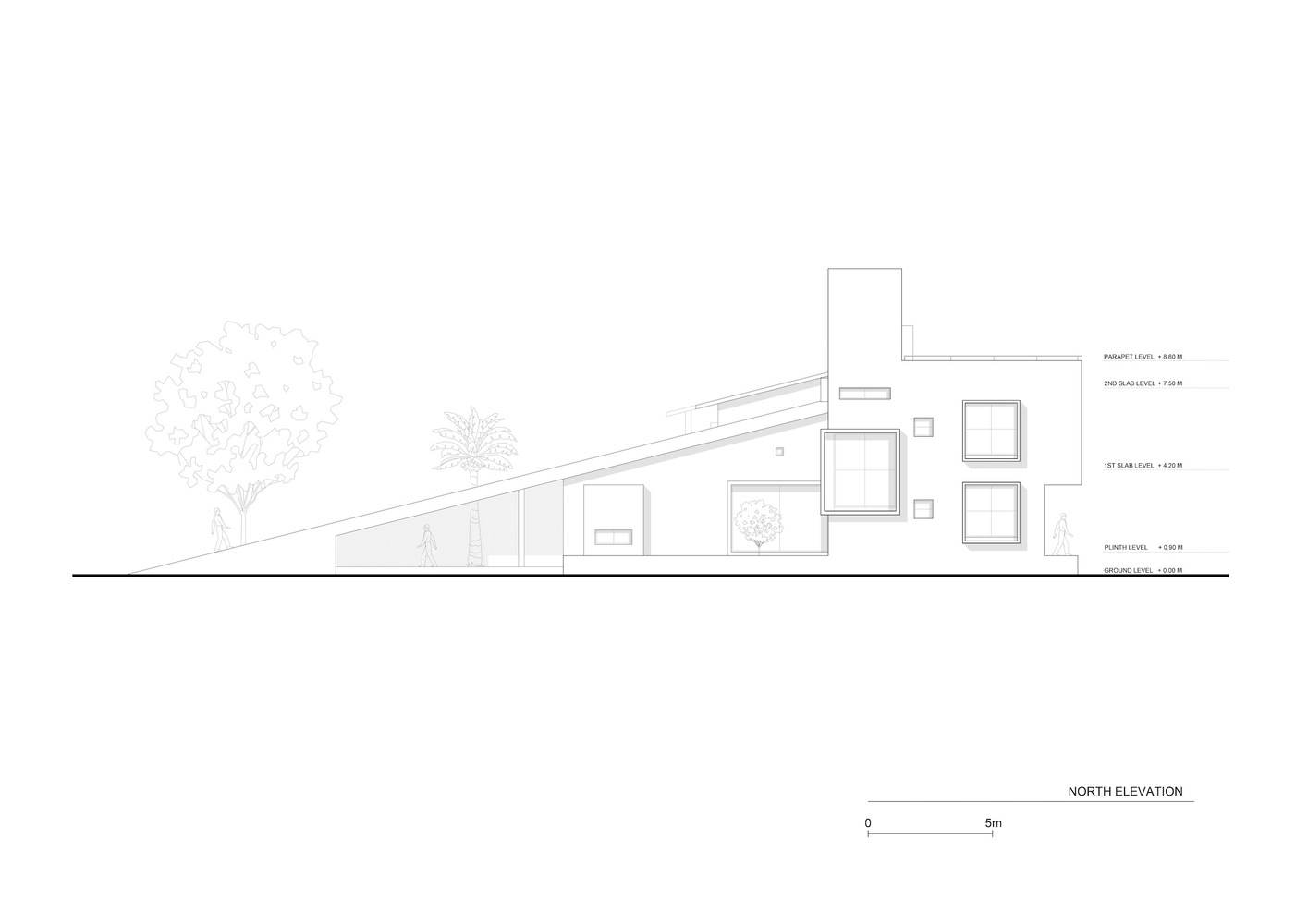

North Elevation

建筑规划-作为一名设计师，我首先划分了这些区域，制作了单独的功能块，然后将这些功能块组合在一起，为平面图和结构提供一个“多方面”和清晰的轮廓。功能块在水平和垂直方向上进化并适应不同的“尺度”，而“平面几何”则展示了这种不同“尺度”的综合入口门廊、起居室和餐厅等主要功能区位于中心区域，与东西方向完全对齐。厨房、商店和公用设施等服务区位于东南区。卧室面向西方，这主要是场地的迎风方向。主入口变得有些隐蔽和人性化，主要是因为延伸的倾斜屋顶线一直延伸到地面，为倾斜的草坪创造了一个环境。从笔直的东面望去，斜坡草坪逐渐与凉棚遮阳相连，最终形成了传统的芒格洛尔瓦斜屋顶。结构的这种渐进的视觉过渡确立了房屋中心功能轴的突出地位，其动态的视觉语言渴望成为结构的美学地标。

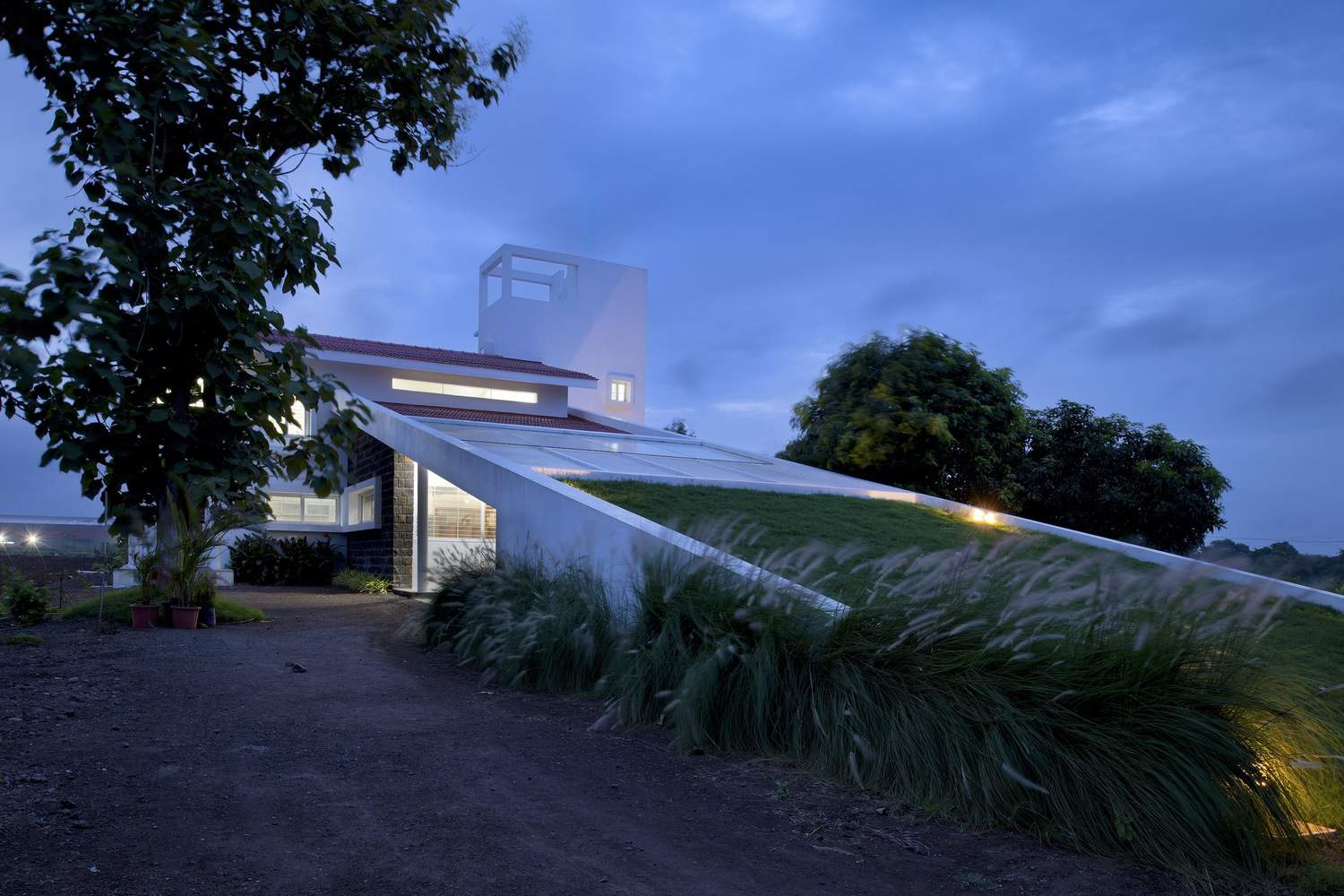

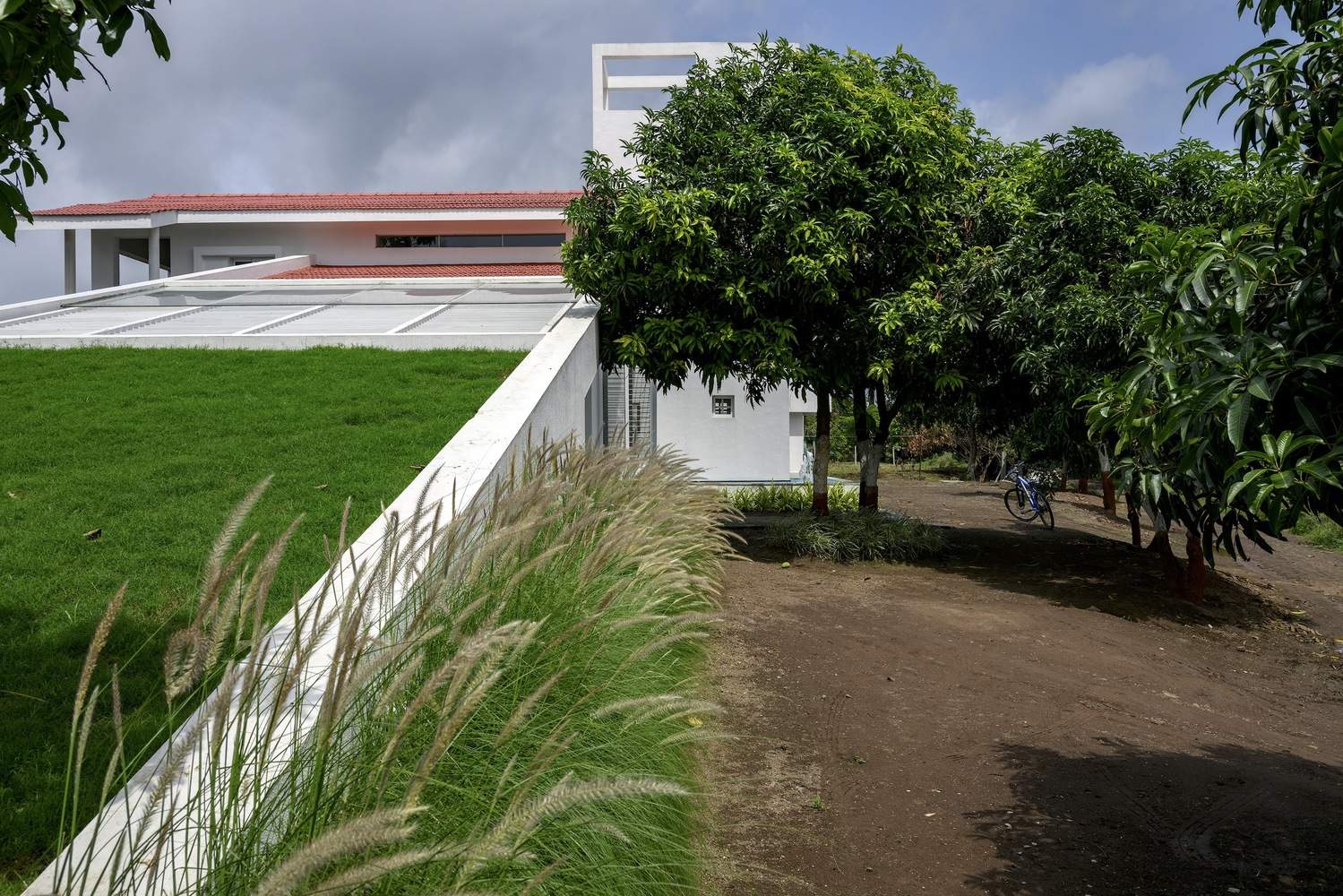

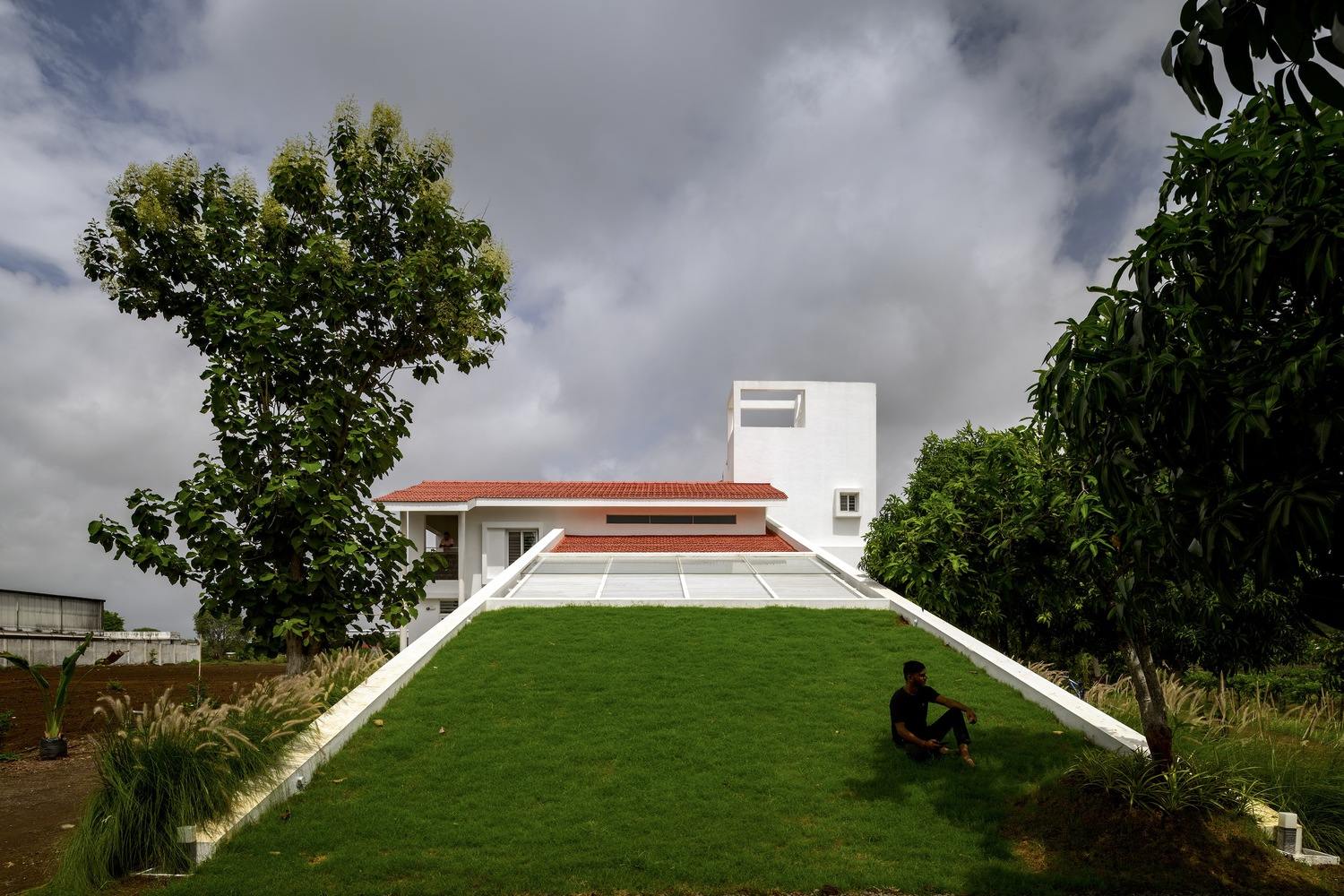

Architectural Planning - As a designer, I first demarcated these zones, made separate functional blocks, and then combined those functional blocks in such a manner that would provide a 'multifaceted' and articulative outline' for the floor plan and the structure. the functional blocks evolve and adapt to different 'scales', both horizontally and vertically and the 'floor-plan geometry' shows this synthesis of varying 'scales.' The primary functional areas like the entrance portico, living and dining, are positioned in the central zone and aligned with the exact east-west direction. The service areas like Kitchen, Store, and Utility are positioned in the southeast zone. The bedrooms face the West, which is primarily the windward direction for the site. The Main entrance somewhat becomes hidden and humane, primarily due to the extended sloping roofline which goes all the way to the ground level and creates a setting for the sloping lawn. looking from the straight eastern frontage, the Sloping lawn, gradually connects with the pergola shade which then finally culminates in the traditional Mangalore tile sloping roof. This gradual Visual transition of the structure establishes the prominence of the central functional axis of the house with its dynamic visual language that would aspire to become an aesthetic landmark for the structure.

© Hemant Patil

半遮荫的凉棚入口庭院为房子形成了一种欢迎的姿态。这名太空军官将远处群山的风景尽收眼底。客厅是一个宽敞的区域，有两倍高的体积，向下朝向凉棚，使空间在物理上人性化，同时在视觉上无缝衔接。礼拜室位于一个单独的街区，就像一个被水体和喷泉环绕的岛屿。这个街区的谦逊规模及其在水体周围的独立位置为日常的礼拜仪式创造了一个独特的环境，使这个空间真正和平而沉思。总体而言，由于这种分散的规划、孤立的功能块和不同的空间体量并置，房子的每个区域都有充足的阳光、畅通无阻的通风和独特的景观。

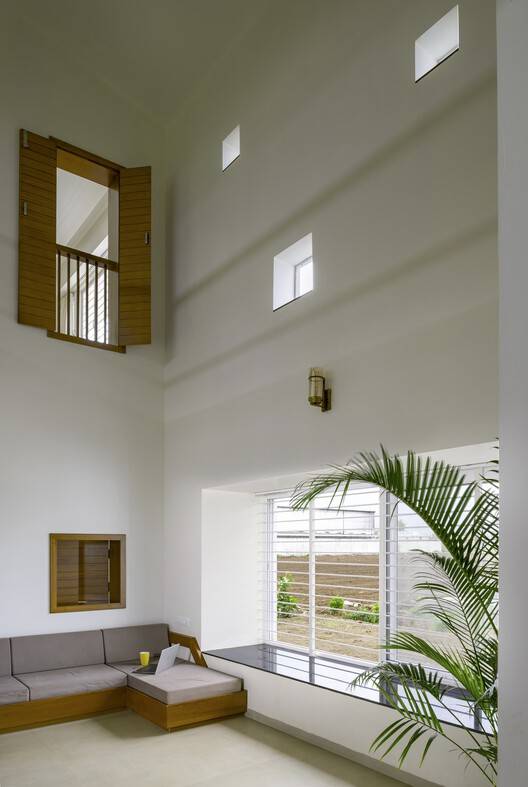

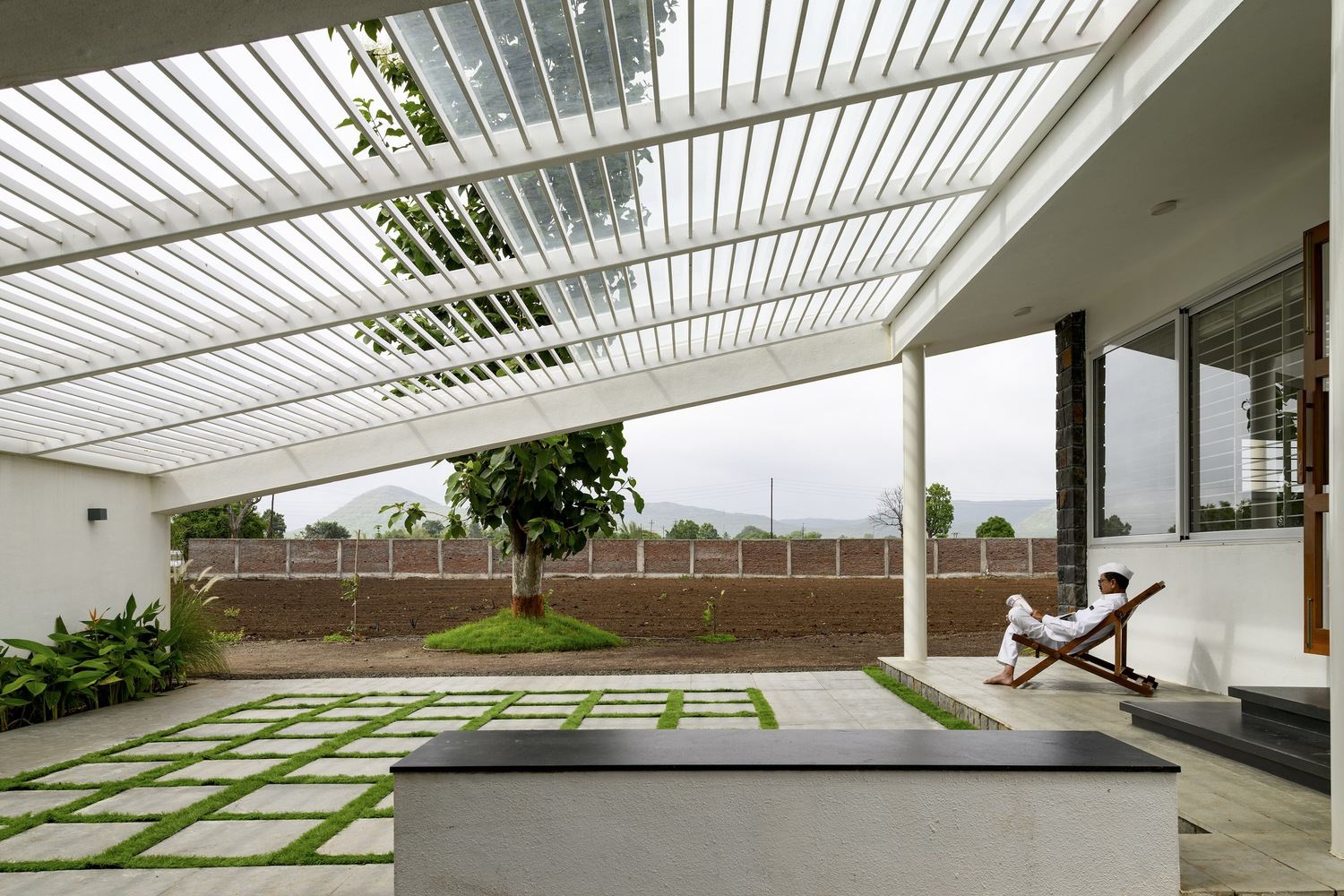

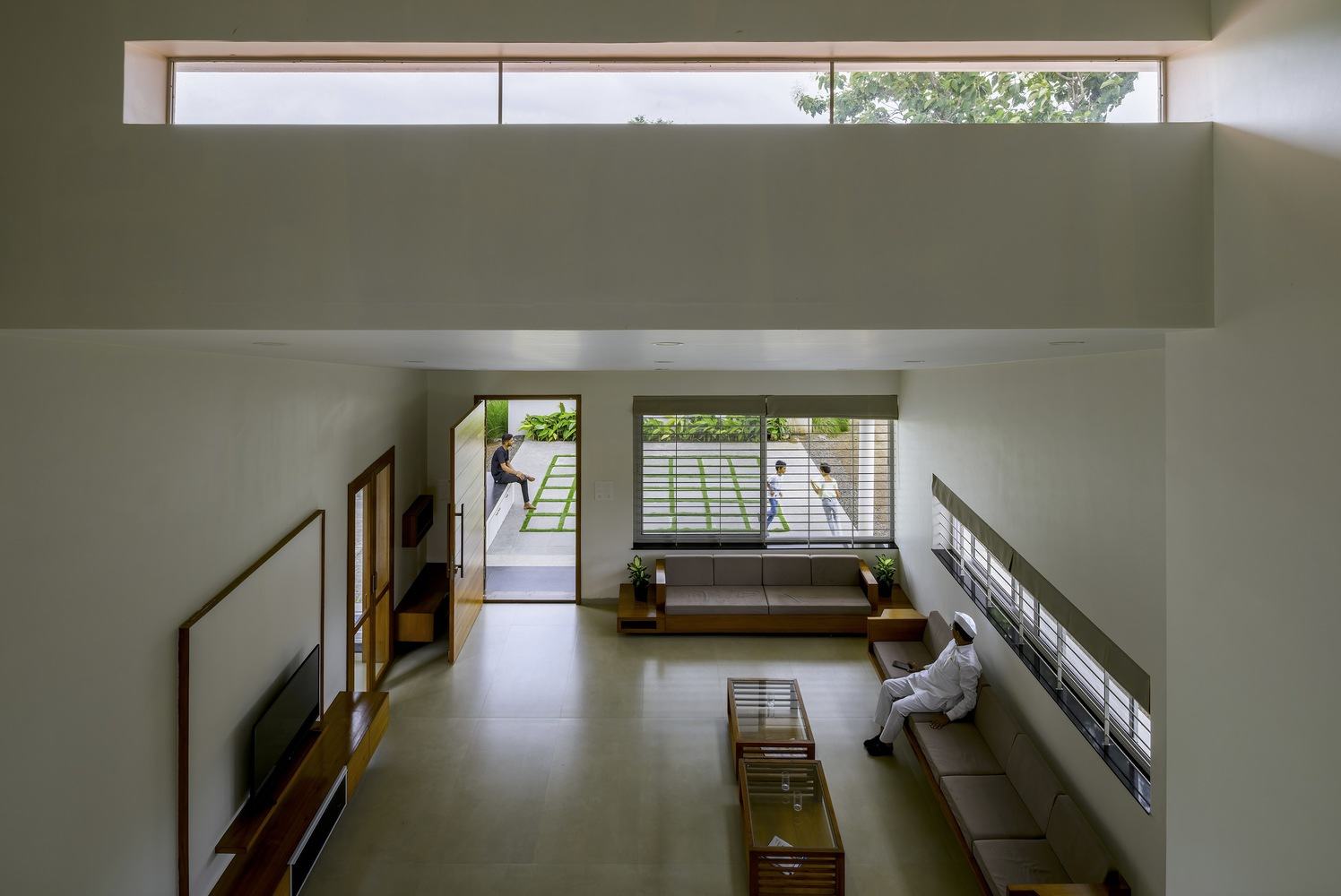

The semi-shaded pergola entrance court forms a welcoming gesture for the house. This space officers some scenic vistas of the mountains placed far beyond. The living room is a spacious area with a double height volume that lowers down towards the pergola court, making the space physically humane but visually seamless at the same time. The puja room is housed in a separate block -like an island surrounded by the water body and fountains. The humble scale of this block and its detached placement around the waterbody create a unique setting for the daily puja rituals, making that space truly peaceful and contemplative.Overall, Due to this scattered planning, isolated functional blocks, and varying spatial juxtaposition of volumes, each area of the house derives ample sunlight, unobstructed ventilation, and unique vistas.

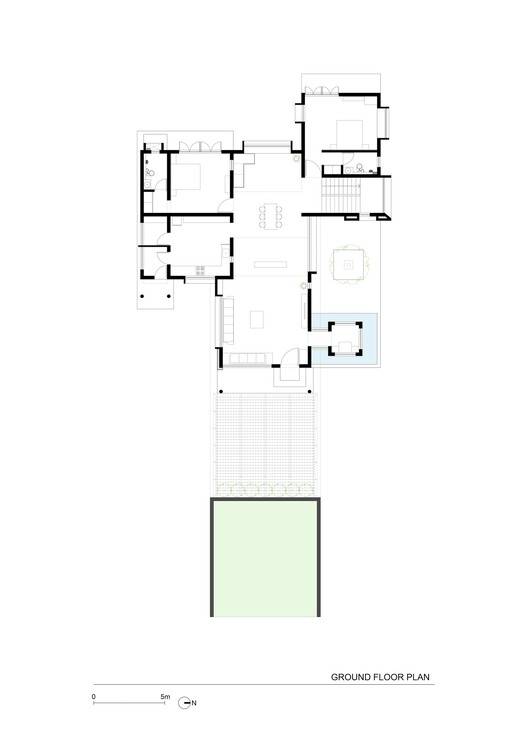

Plan - Ground Floor

室内设计和材料托盘-在进行室内设计时，我们希望空间看起来舒缓，视觉上融为一体。物料托盘的设计考虑到了这一点。整个区域都使用了带有亚光饰面的浅米色地板砖，以及用于家具的统一缅甸柚木色调，为室内提供了无缝的触觉和视觉吸引力。所有家具主要是现场定制设计，考虑到用户的功能要求和房屋的建筑特点。

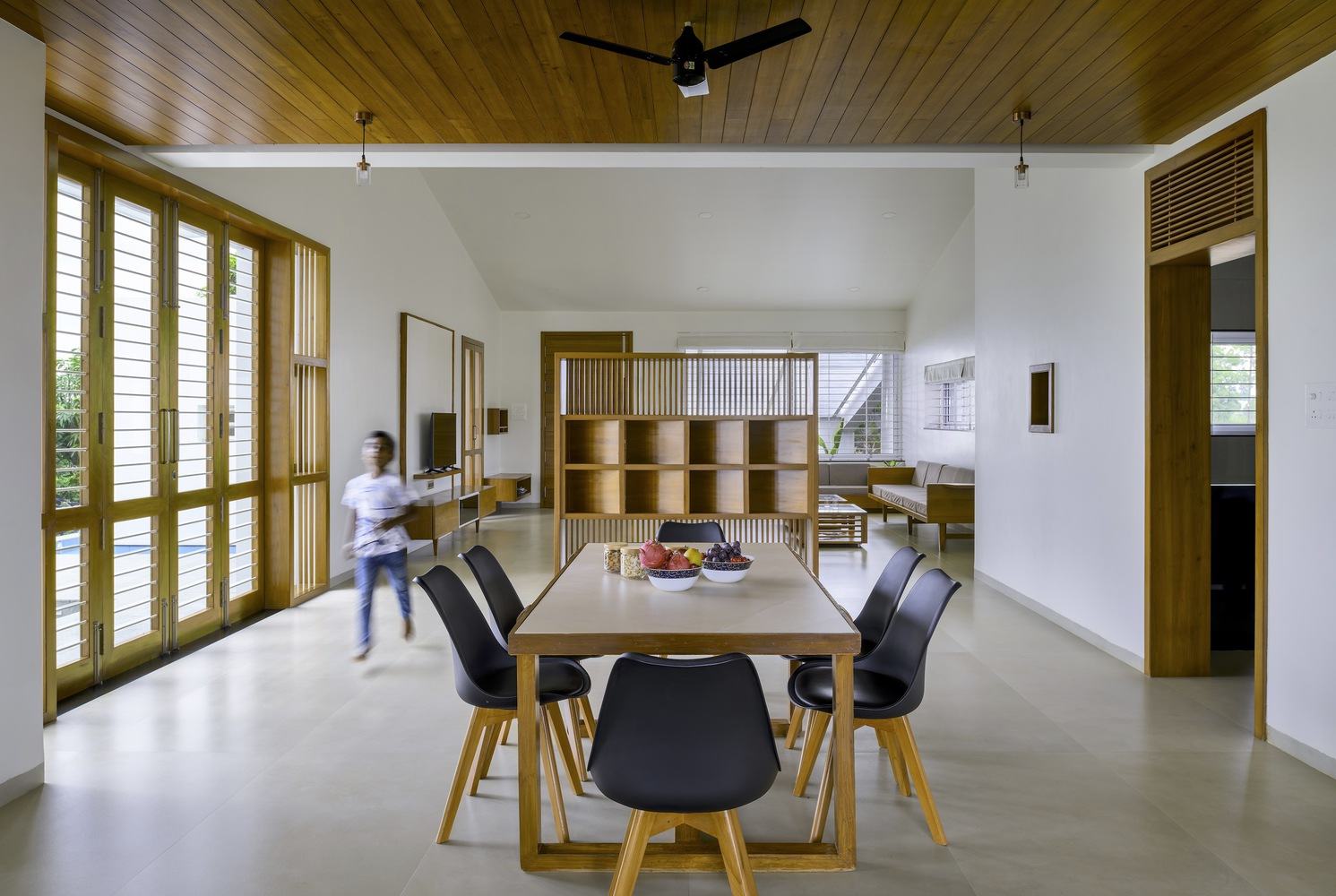

Interior Design and Material Pallet - While doing the interior design, we wanted the spaces to look soothing and visually blend. Material pallet is designed with this aspect kept in mind. A Light beige color flooring tile with a matt finish is used all over the areas along with a uniform Burma-teak shade used for the Furniture to provide a seamless tactile as well as visual appeal for interiors. all furniture is mainly custom-designed on-site, keeping in consideration the functional requirements of the users and the architectural character of the house.

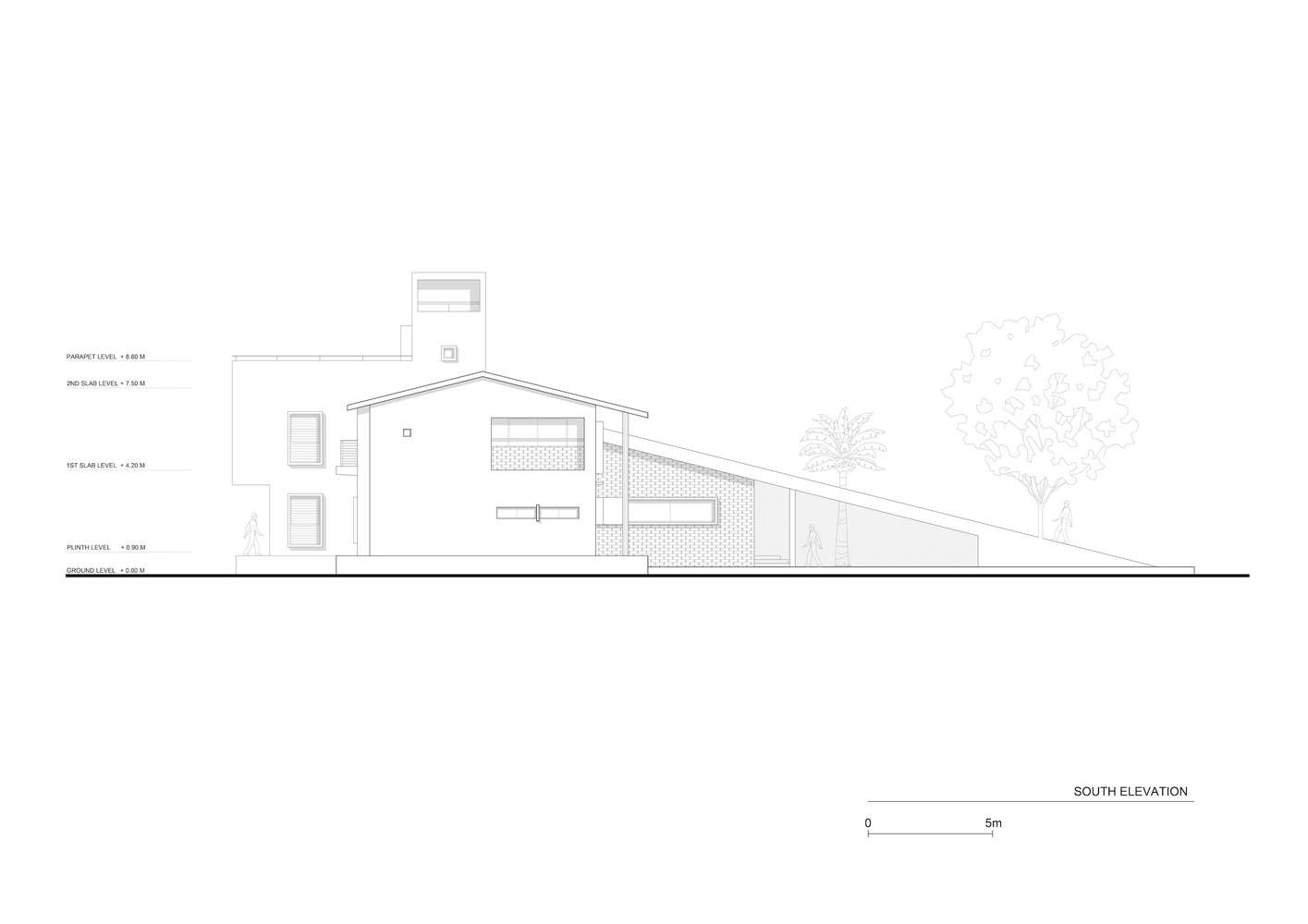

South Elevation

通过建筑规划，表达了整个功能区不同空间配置的“孤立凝聚力”（或“内聚隔离？”），这座房子试图呈现一种有趣的“隐私和互动”的融合这些空间确实重视房子里个人的隐私，但也希望提供有利于家庭价值观的开放性和稳定性。
With an architectural planning, that expresses an 'isolated cohesion'(or 'cohesive isolation?') of varied spatial configurations throughout the functional areas, this house attempts to present an interesting blend of 'Privacy and Interaction.' the spaces do value the privacy of an individual in the house but also wish to provide an openness and stability conducive for family values.
