Tieshou Coffee Friendship Store Garden Store/Shenjianghai Architectural Firm
铁手咖啡友谊商店花园店 / 申江海建筑事务所
设计理念的创新与反差:该项目最引人注目的地方在于其设计理念的创新性。在竞争激烈的CBD环境中,设计师反其道而行之,提出了“在北京CBD盖大棚”的概念。这种具有行为艺术反差的设计手法,成功地抓住了人们的眼球。这种反差不仅体现在设计概念上,更体现在对场地特性的深刻理解和利用上。设计师将原本荒废的设备用房改造成一个充满生机与活力的咖啡店,这种转变本身就具有极高的创意价值。通过将花园引入室内休息区域,营造出一种独特的“树荫下的咖啡厅”场景,成功地构建了一个与周围环境形成鲜明对比的特色空间,吸引顾客并延长停留时间。
对历史与环境的尊重与融合:项目在改造过程中,对原有建筑和环境的尊重体现得淋漓尽致。设计师并非简单地推倒重建,而是充分利用原有的建筑结构和场地条件。通过打开建筑顶部与侧面,引入自然光线和树影,使废弃建筑重新与自然环境共生,这种设计手法极具巧思。同时,项目在空间设计中融入“历史碎片”,通过选择性地保留和转译历史遗存,使空间成为“可触摸的历史叙事载体”。这种方式既保留了历史的温度,又避免了复古设计的沉重感,使现代空间与过去形成对话,而非简单的复制。这种对历史和环境的尊重与融合,赋予了项目独特的文化底蕴和生命力。
细节处理的匠心与实用性:除了设计理念和空间氛围的营造,项目在细节处理上也展现了建筑师的匠心独运。针对“玻璃大棚”可能带来的夏季过热问题,设计师从结构遮阳、张拉网滤光等方面着手,巧妙地解决了这一问题,体现了设计师在实用性方面的考虑。这些细节处理不仅提升了项目的舒适度和使用体验,也展现了设计师对技术和材料的精准把握。例如,通过缩减玻璃面积、保留与树冠交错部分,以及铺设铝张拉网等手段,有效地控制了光照和温度,使空间既能最大限度地享受自然光线,又能保持舒适的室内环境。这种对细节的关注,使得项目更具可持续性和实用性,也更能满足现代人的生活需求。
© UK Studio
© UK Studio

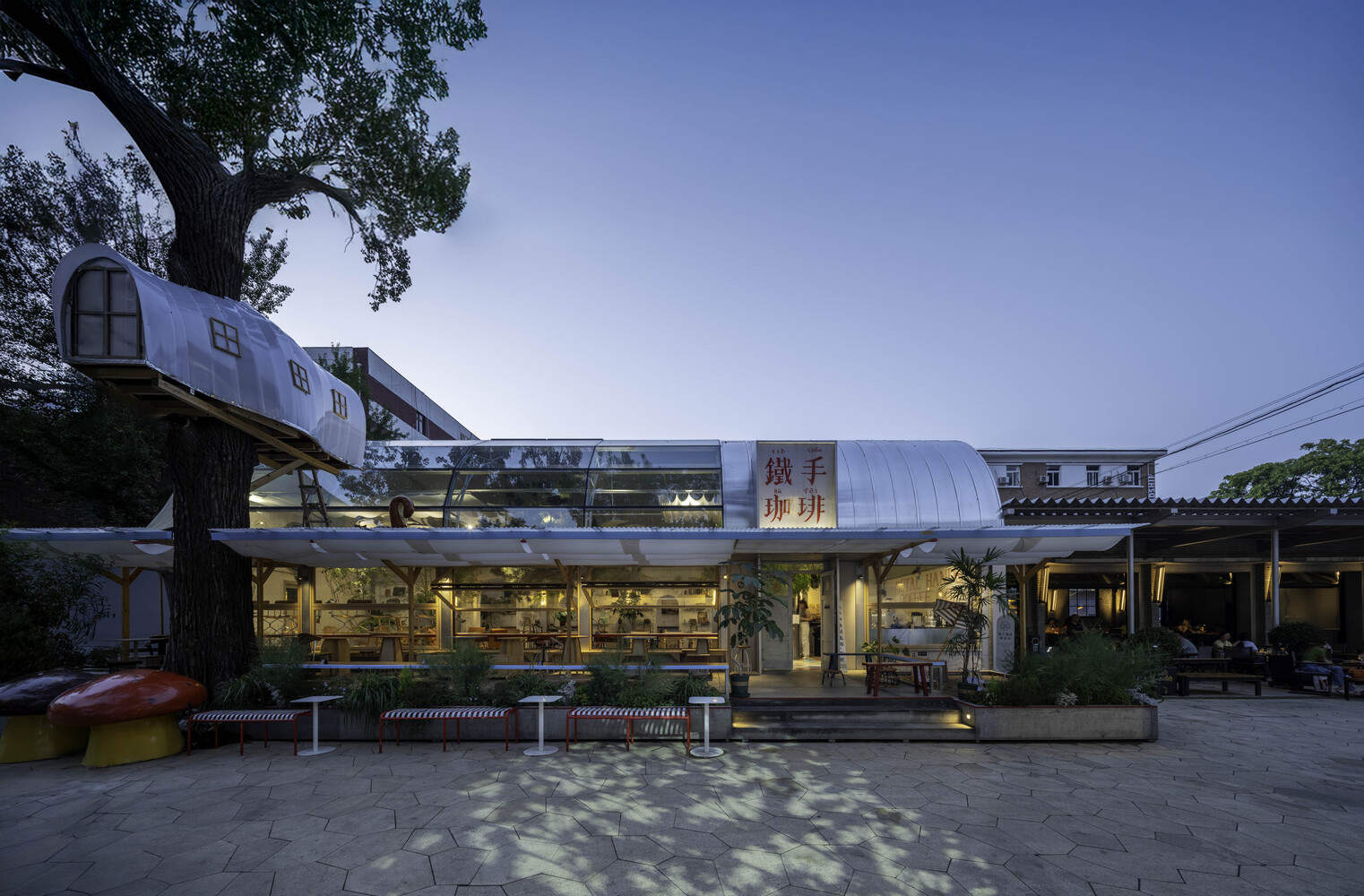

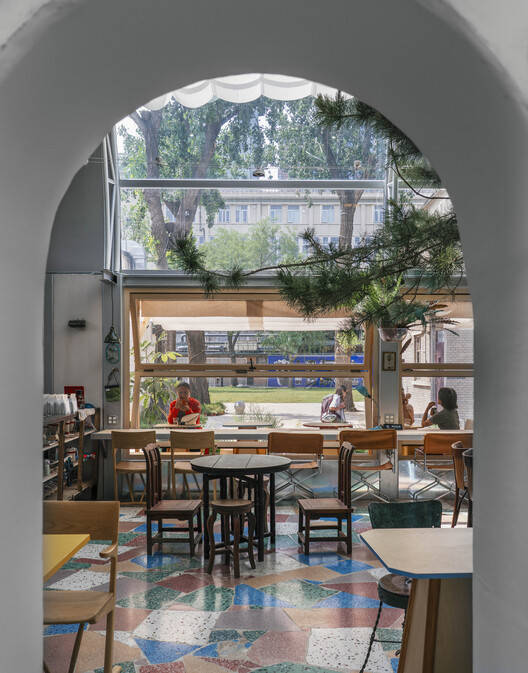

Our reflection on business is what kind of architecture and interior effects should be presented in small courtyards near the Guomao CBD in Beijing to compete with the surrounding chain coffee brands and boutique coffee shops, not only attracting people, but also making them stay and willing to consume multiple times. So we proposed the idea of "building a greenhouse in Beijing CBD", which is quite contrasting with performance art, and introduced the garden into the indoor rest area.
我们对商业的一个思考,在北京靠近国贸 CBD 这样的区域的小院子里,呈现什么样的建筑和室内效果,才能够和周围密布的连锁咖啡品牌、精品咖啡店竞争,把人不仅吸引来,而且可以待的住,停留下来,并愿意多次消费。所以我们提出了“在北京 CBD 盖大棚”这样一个颇具有行为艺术反差的想法,并将花园引入室内休息区域。
© UK Studio

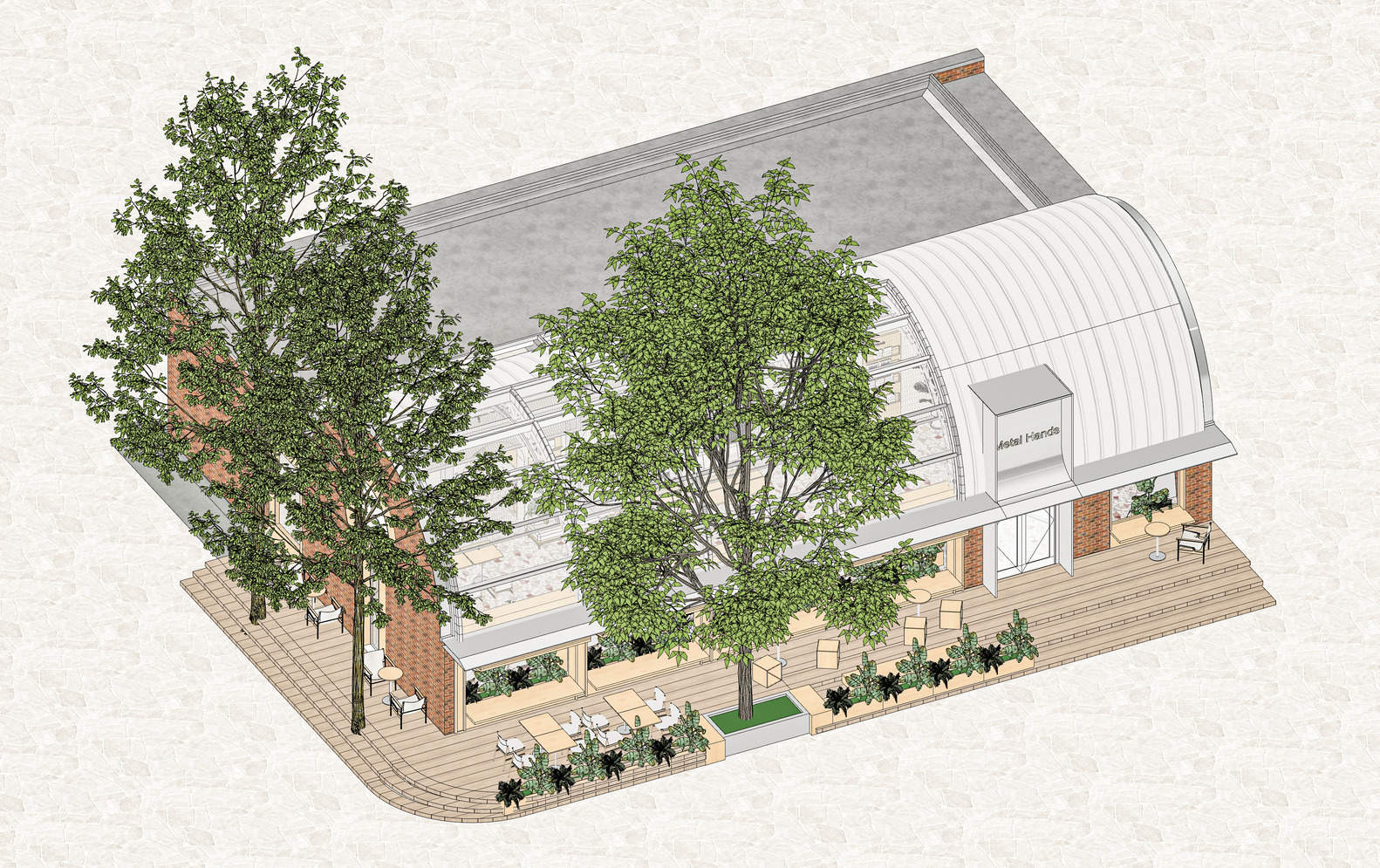

轴测图
© UK Studio

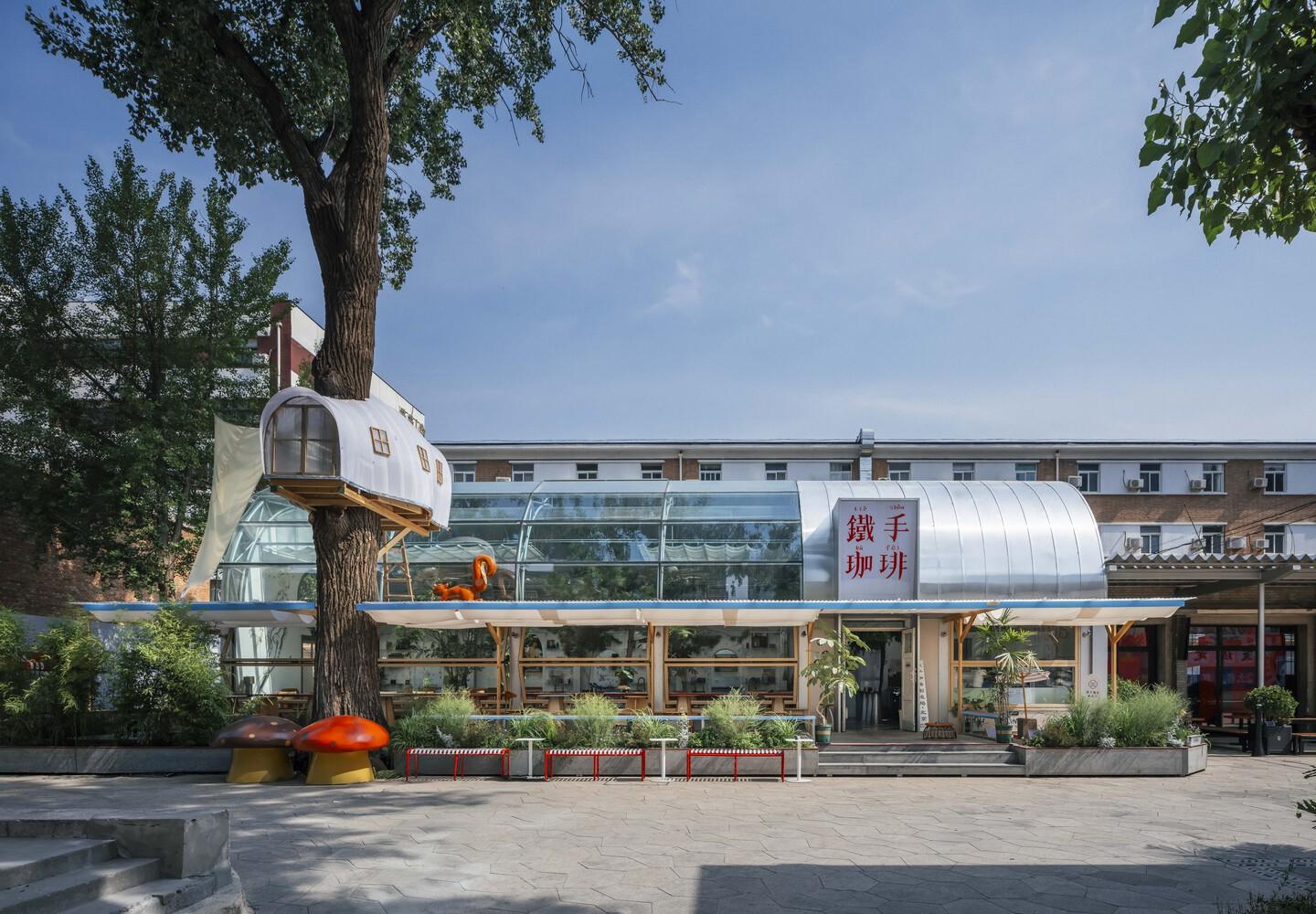

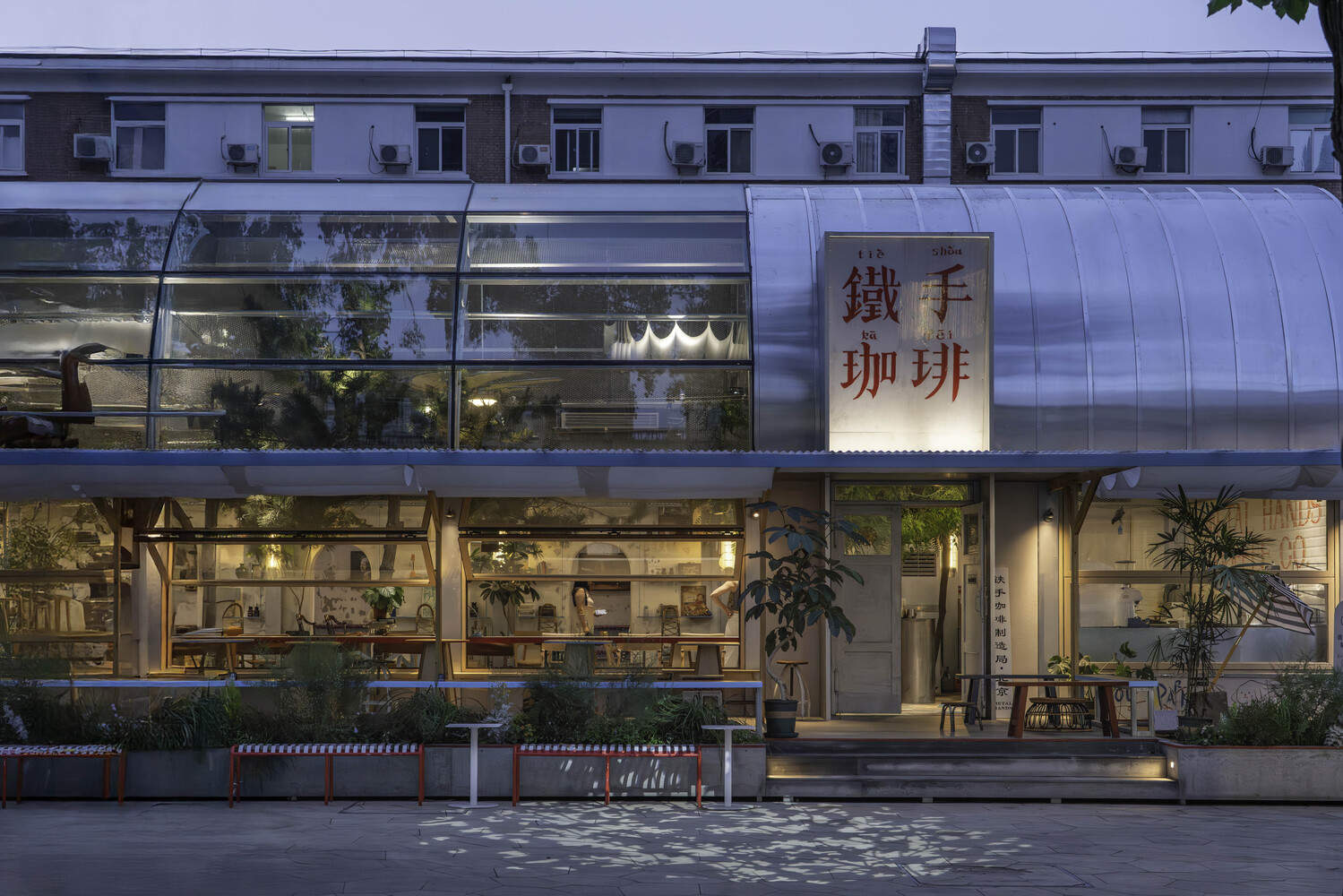

This case is located at No. 17 Jianguomenwai Street, Chaoyang District, Beijing, in the garden of Beijing Friendship Store. It was once an old equipment room of Friendship Store and has been abandoned for a long time. How to transform a poorly maintained equipment building into a trendy coffee shop is extremely challenging.
本案位于北京市朝阳区建国门外大街 17 号,北京友谊商店花园内,曾为友谊商店老设备房,荒废已久。如何从一栋年久失修的缺乏特点的设备用房改造为潮流咖啡店极具挑战。
© UK Studio
© UK Studio

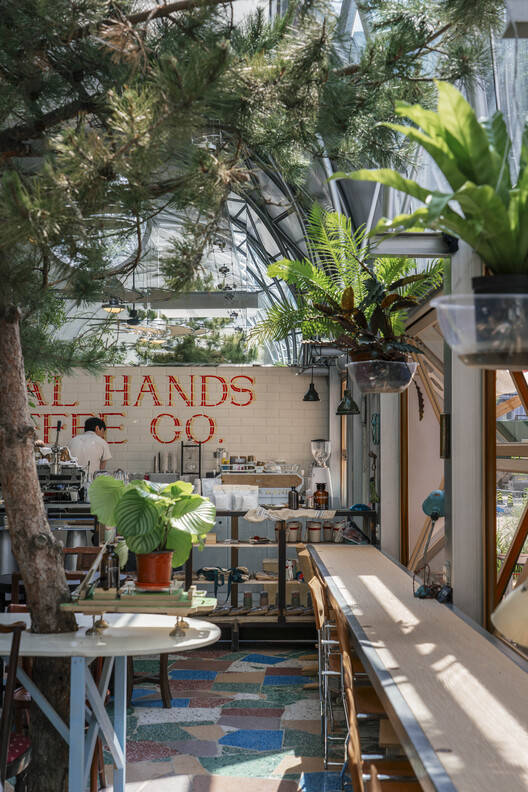

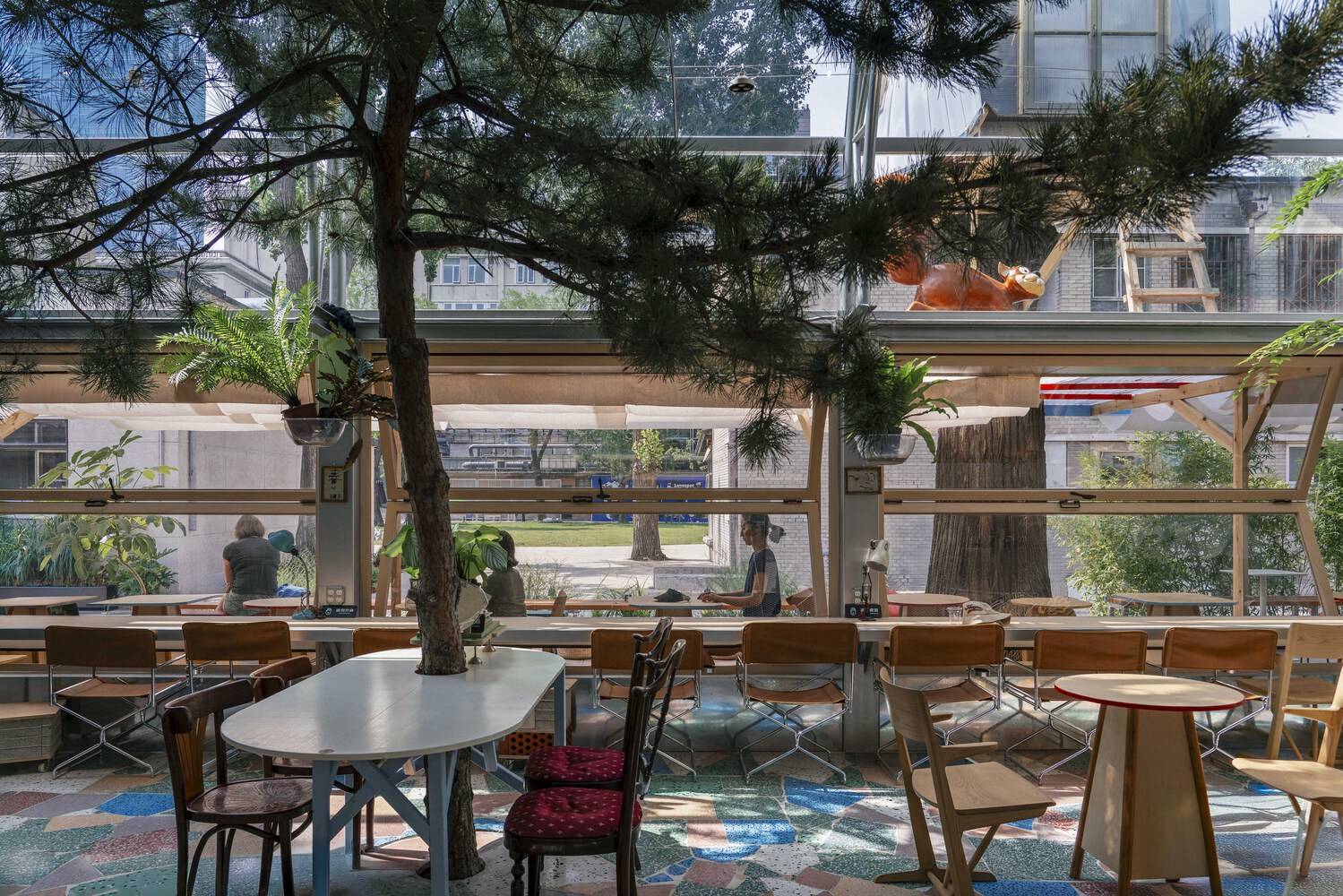

Through multiple deliberations on the space through the model, it was found that opening up the top and sides of the building, introducing sunlight and tree shadows, allows the abandoned building to coexist with the natural environment again. The sunlight scatters through the treetops, forming mottled light and shadow on the ground. Each ray of light falls on the tired soul, presenting a beauty that transcends time and space. Create a unique scene of a coffee shop under the shade of trees.
通过模型对空间的多次推敲发现,打开建筑顶部与侧面,引入阳光与树影,使废弃建筑重新与自然环境共生,阳光透过树梢散落而下,在地面形成斑驳光影,每一道光线都落在疲惫的心灵深处,呈现出一种跨越时空的美感。形成“树荫下的咖啡厅”这一独特场景。
© UK Studio

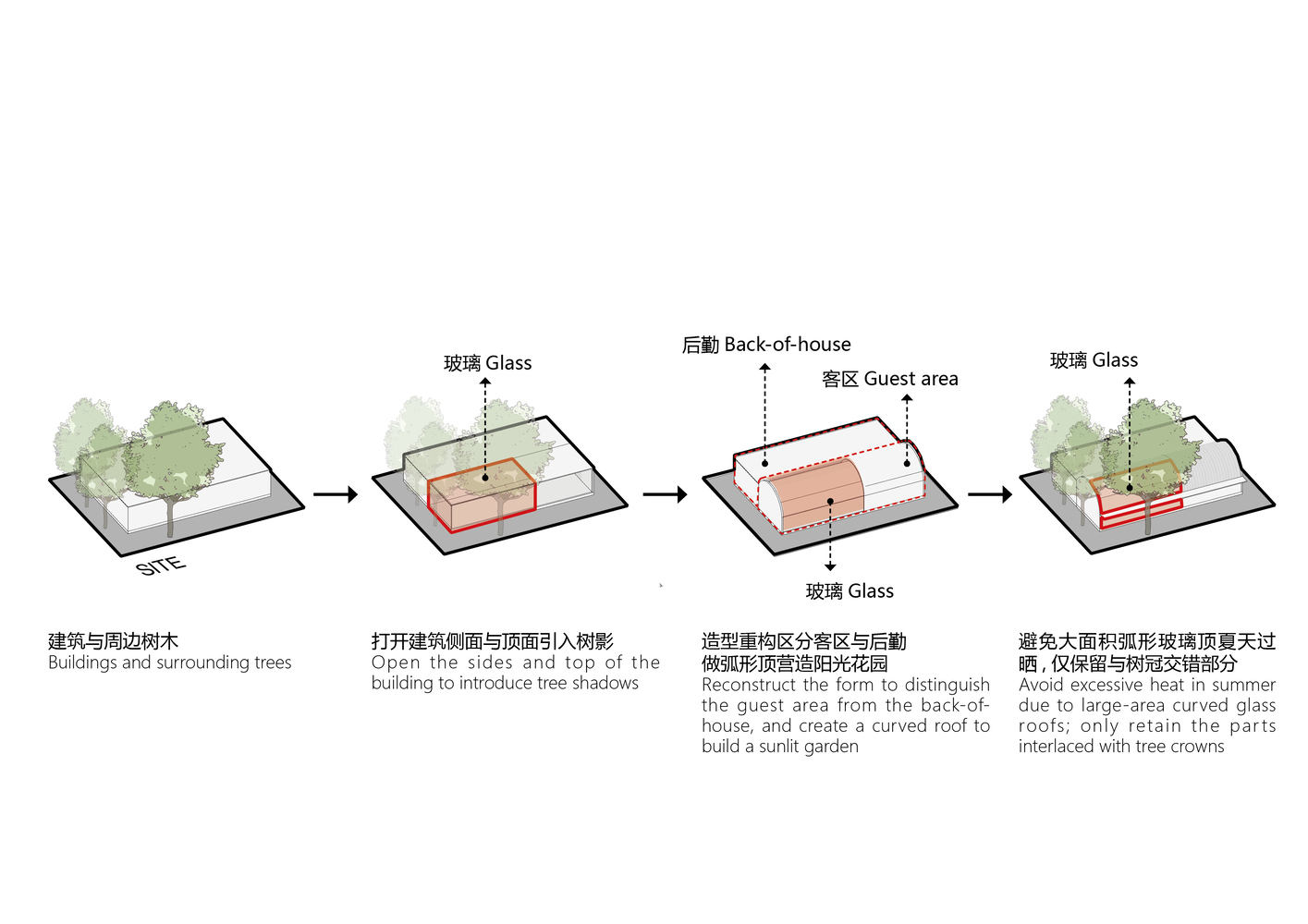

分析图
© UK Studio

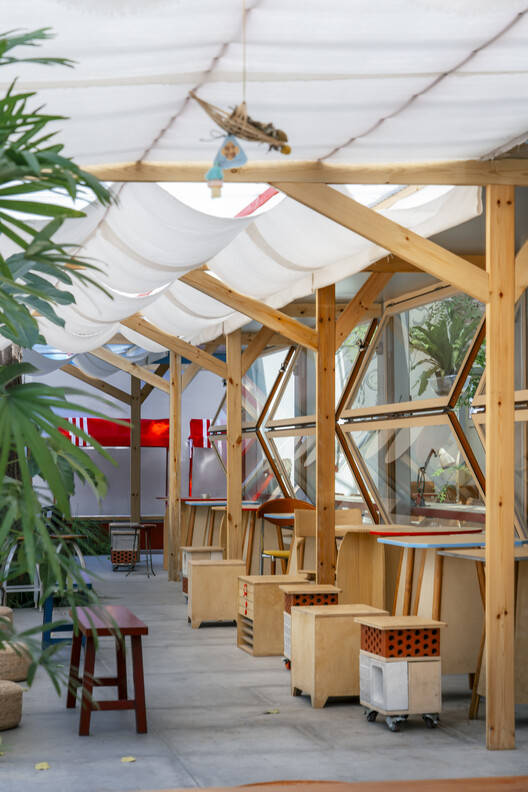

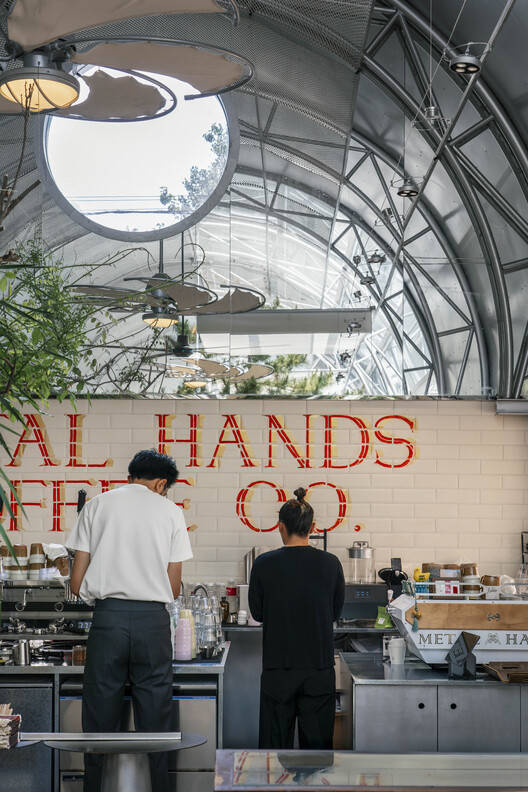

The top side is open with the original building corridor as the boundary, the front is a guest area that is open and bright with modern elements, and the logistics space retains its enclosed features and old brick exterior walls with historical imprints.
The most fatal problem with the curved roof glass "greenhouse" is that it is not suitable for prolonged sitting due to excessive sunlight in summer. The design solves this problem from three aspects: 1) structural shading. Reduce the glass area in terms of design, retaining only the intersecting part with the tree crown.

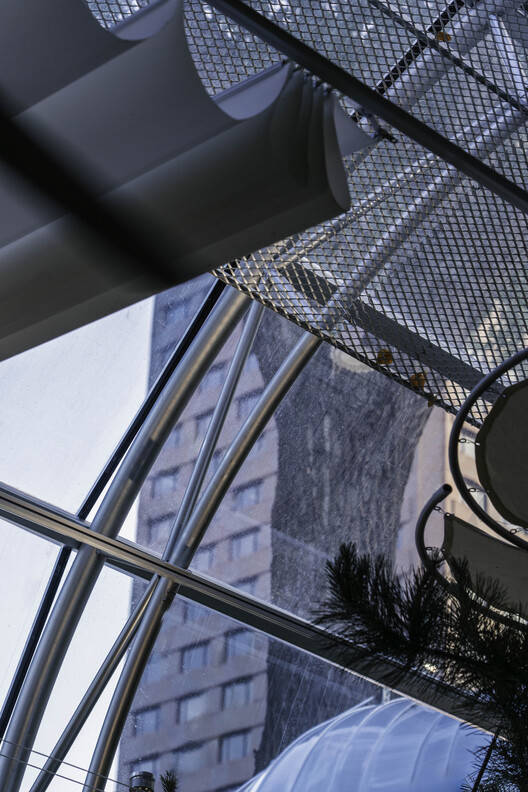

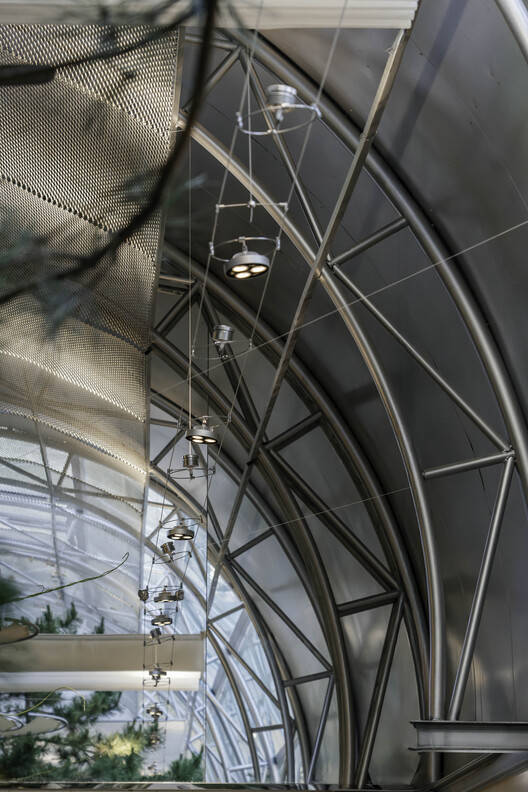

2) Stretch the mesh filter. A layer of aluminum tension mesh is laid along the curved top of the indoor ceiling to soften direct sunlight, which not only provides a certain shading effect but also hides some unsightly structural joints
顶部侧面打开以原建筑走廊为界限,前部为客座区开放明亮融入现代元素,后勤空间则保留其封闭特征保留具有历史印记的旧砖外墙。
弧形顶的玻璃“大棚”最致命的问题是夏天阳光过晒不适于久坐,设计从三个方面解决这个问题:
1)结构性遮阳。造型上缩减玻璃面积,仅保留与树冠交错部分。

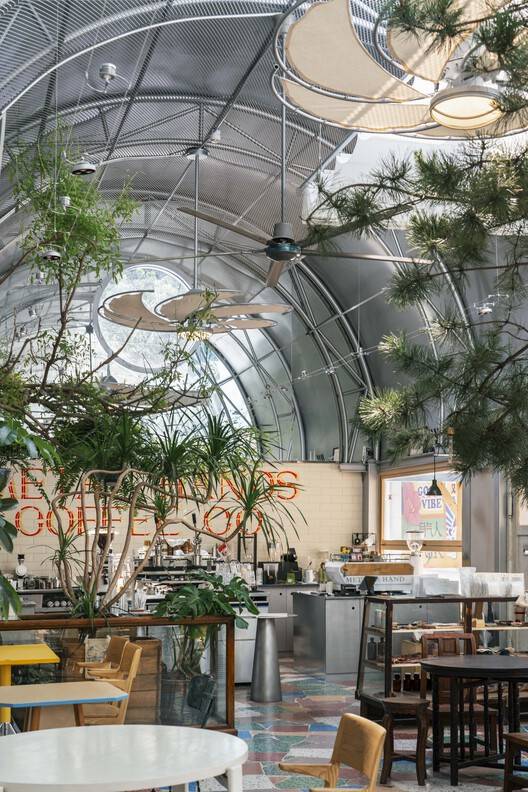

2)张拉网滤光。室内顶部与结构结合沿弧形顶铺设一层铝张拉网,柔化直射光,即起到了一定遮阳作用又可以隐藏部分不美观的结构交接
© UK Studio
© UK Studio

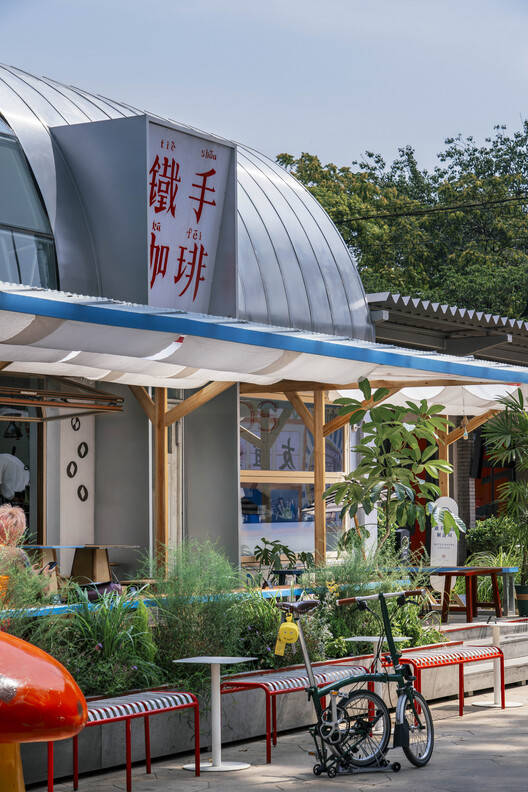

In spatial design, the integration of "historical fragments" is used as a clue, and through selective extraction, modern translation, and scene based recombination of historical relics, historical memories, and cultural symbols, the space becomes a "touchable historical narrative carrier". This approach preserves the warmth of history while avoiding the heaviness of retro design, allowing modern spaces to form a "dialogue" with the past rather than a "replica".
在空间设计中,以 “历史碎片” 为线索进行融合,通过对历史遗存、历史记忆、文化符号的选择性提取、现代转译与场景化重组,让空间成为 “可触摸的历史叙事载体”。这种方式既保留历史的温度,又避免复古设计的沉重感,让现代空间与过去形成 “对话” 而非 “复刻”。
© UK Studio
© UK Studio
