房子+工作室
House + Studio

化解风水难题的巧妙应对： 该项目最引人入胜之处在于其对复杂场地条件的巧妙回应。面对位于教堂和墓地正对面的不利风水位置，设计师并未一味回避，而是巧妙地利用建筑形态来化解负面影响。通过柔和的曲线设计，不仅美化了建筑外观，更在视觉上创造了流动感，分散了视线，从而减轻了风水带来的心理压力。这种设计策略体现了设计师对场地环境的深刻理解，以及在尊重传统文化的同时，运用现代建筑手法解决问题的能力。同时，立面曲线设计也有效阻挡了直接视线，保护了室内空间的私密性。

双户家庭的独立与互通： 项目的另一大亮点在于满足了双户家庭在独立居住需求与日常交流之间的微妙平衡。设计师精心规划了两套独立的公寓，确保了各自的交通流线和生活空间的完整性，满足了不同家庭成员的生活需求。同时，在空间布局上，设计师巧妙地设计了便捷的交流通道，使得两户家庭能够在保持独立性的前提下，方便地进行互动。这种设计体现了设计师对居住者生活方式的深入洞察，以及对空间关系的精准把握。通过合理的布局，实现了居住功能的优化，提升了生活品质。

通风与采光的卓越平衡： 考虑到越南的热带气候，项目在通风和采光方面也展现了卓越的创造力。设计师采用了“风阱”解决方案，通过水平百叶窗和垂直天窗的巧妙结合，在建筑内部创造了良好的空气对流，有效降低了室内温度。这种设计不仅提升了居住舒适度，还体现了可持续设计的理念。此外，设计师还精心布局了绿植，优化了进入室内的空气质量。室内色彩以白色、灰色和木色为主，营造出简约、高效的氛围，并突出了居住者的个性。这种对微气候的关注，以及对自然元素的运用，使该项目成为一个舒适宜居的典范。

/ NAW Studio

建筑师提供的文字描述也许，在房屋设计和建造方面，土地风水一直是越南房主关注的主要问题之一。在House+Studio，其特殊的土地位置是NAW工作室需要解决的最大问题。House+Studio位于岘港市My Thi街的一块180平方米的土地上，面向东北偏东，其位置让房主非常担心，就在该地区一座大教堂和一座墓地的正对面。由于这个位置，这个家庭的日常活动总是面临许多不利因素。

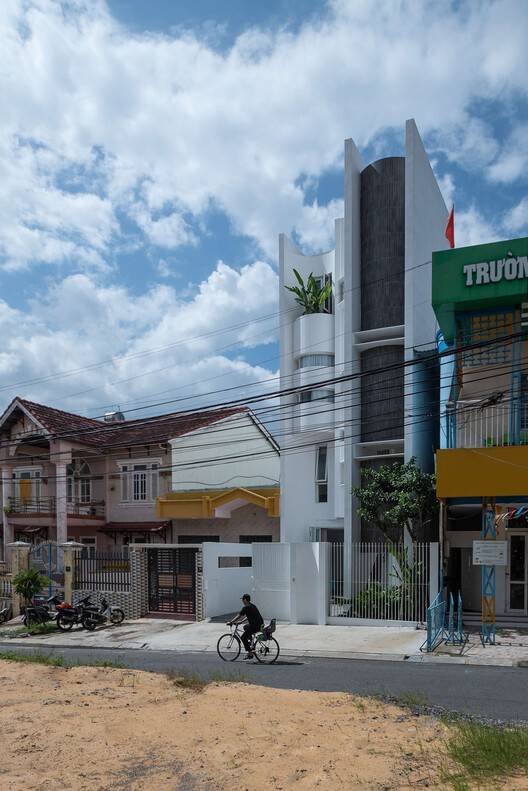

Text description provided by the architects. Perhaps, land feng shui is always one of the major issues that Vietnamese homeowners are always concerned about when it comes to home design and construction. At the House + Studio, its special land position is the biggest problem that NAW studio needs to solve. Located on a 180 square meter plot of land, facing East - Northeast on My Thi Street in Da Nang City, the House + Studio has a location that makes the homeowner worry a lot about, which is directly opposite a large church, and a cemetery in the area. The family's daily activities always face many disadvantages because of this location.

此外，根据房主的要求，房屋设计必须确保居住在里面的两户家庭的生活空间在交通和生活上必须完全独立，但在日常生活中仍然可以方便地相互交流。这意味着设计必须确保在同一栋房子内建造两套完整的公寓。
In addition, according to the homeowner's request, the house design must ensure that the living space of the two households living inside must be completely independent in traffic and living, but can still communicate conveniently with each other in daily life. That means the design must ensure the construction of two complete apartments inside the same house.

顾名思义，House+Studio是从房子的立面到内部布局的柔和曲线的组合。弯曲的建筑可以在房子里创造一种运动和流动的感觉。曲线可以吸引眼球，带来连续感，同时为建筑增添趣味和美学吸引力。从立面开始，曲线以一定的比例排列，使建筑造型最为突出。此外，这种立面形式也是阻挡视线的有效解决方案，限制了室内阳光直射到神社，反之亦然。

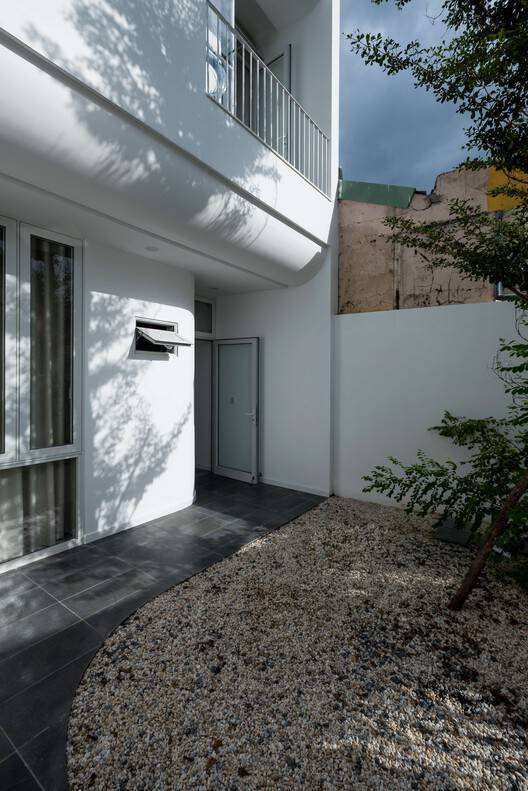

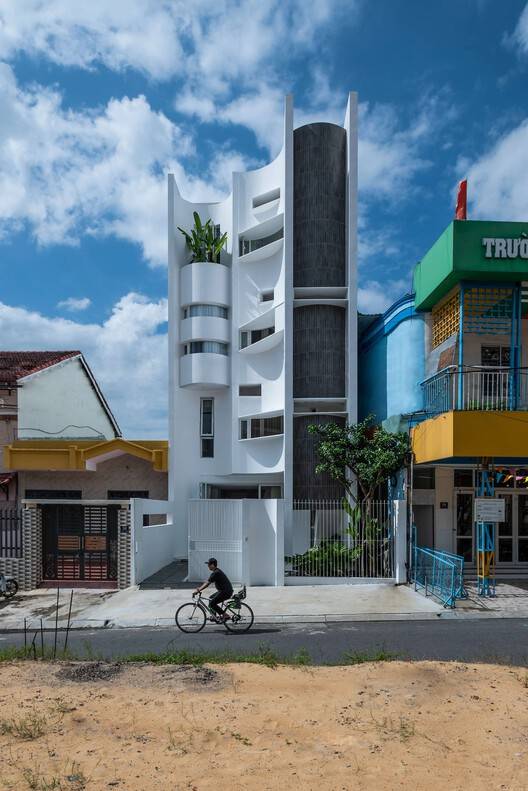

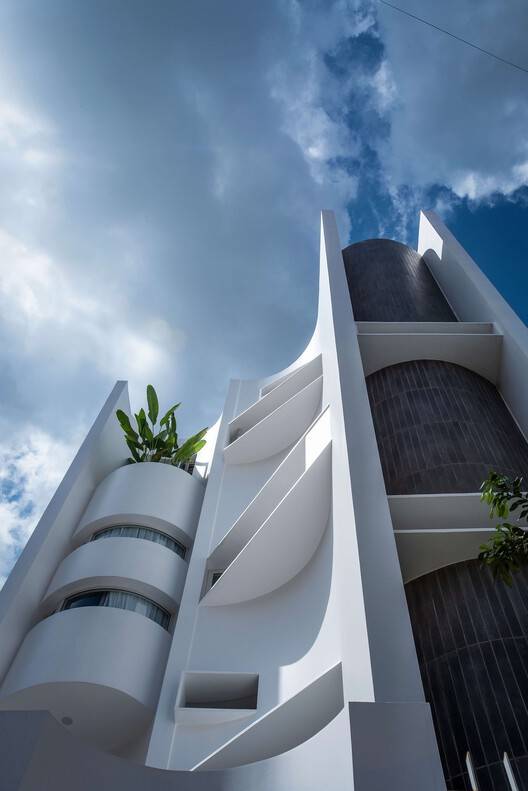

The House + Studio, as its name suggests, is a combination of soft curves from the facade to the interior layout of the house. Curved architecture can create a sense of movement and flow inside the house. Curves can attract the eye and bring a sense of continuity while adding interest and aesthetic appeal to the architecture. Right from the facade, the curves are arranged in a certain ratio so that the architectural shape becomes the most prominent. Besides, this facade form is also an effective solution for blocking the view, limiting direct sunlight from inside the house to the shrine and vice versa.

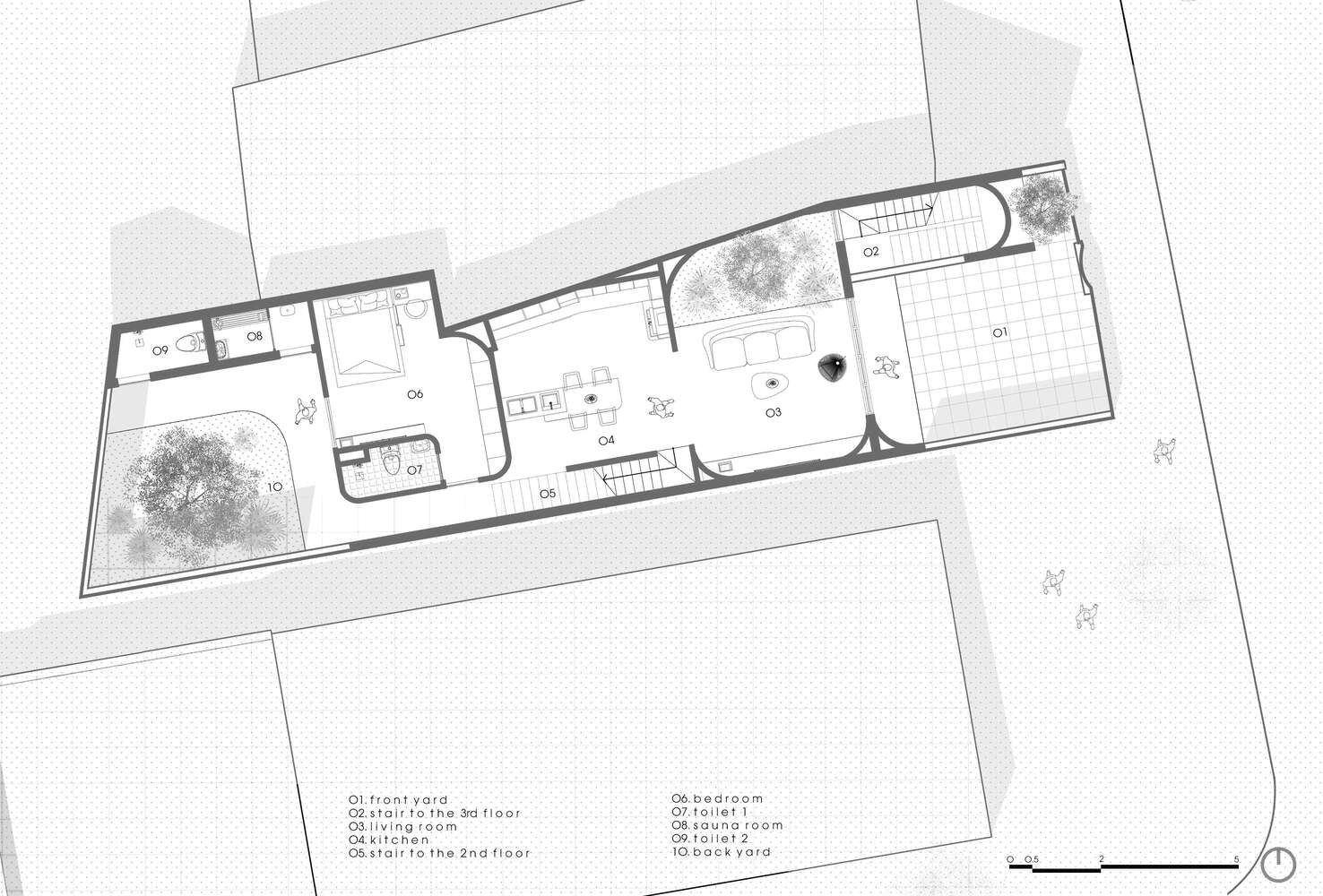

Floor Plan

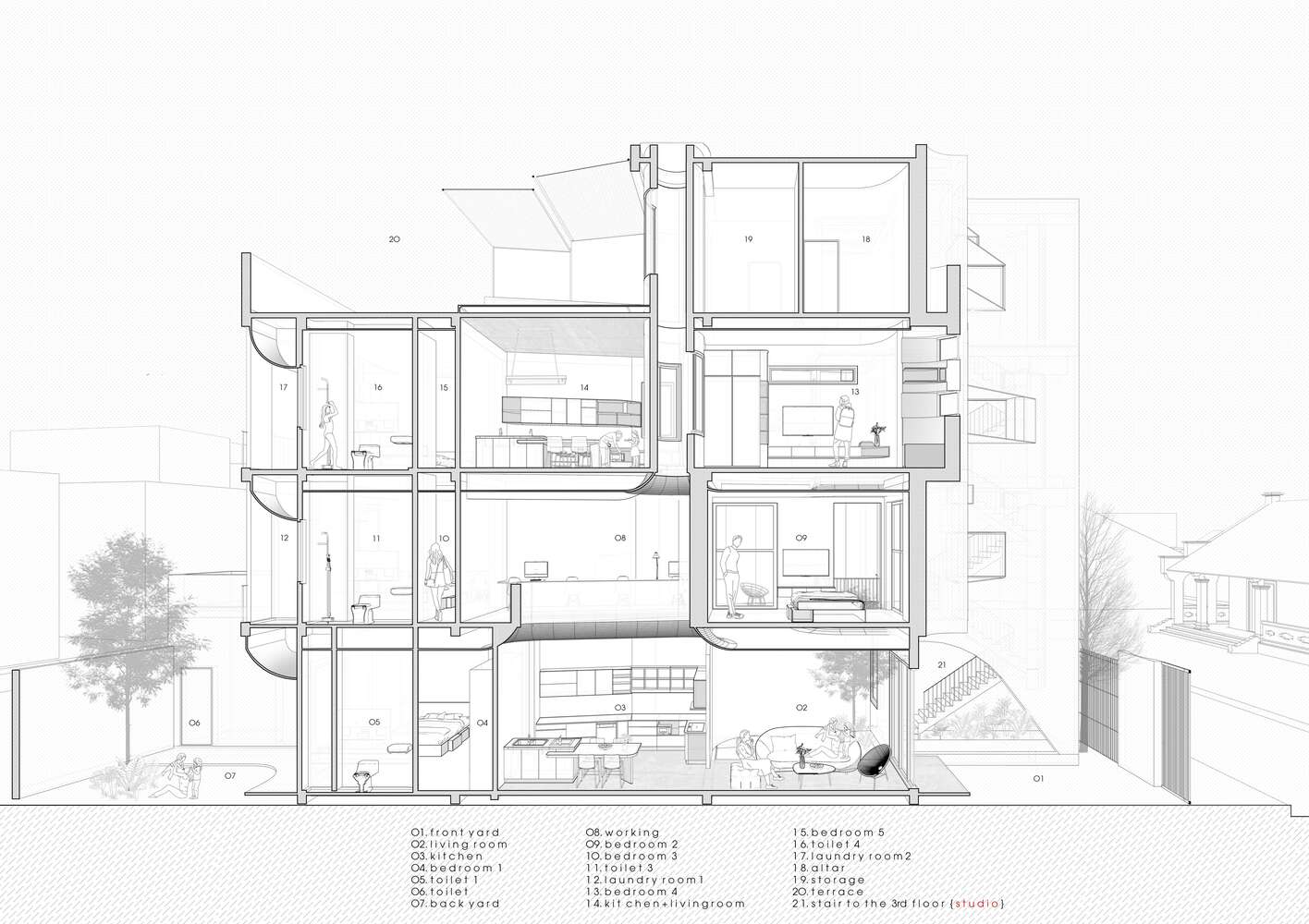

Section

在房子里，仍然有引人注目的曲线被巧妙地分割成几块，在活动中创造了多样化的视野。该房屋由一楼和两楼组成，一楼和二楼属于第一套公寓的业主，三楼是第二套独立公寓。房屋内的交通分为两条主要的垂直交通轴线；房屋内的一楼和二楼楼梯用于公寓1，前楼梯穿过三层，是公寓2的主要入口。

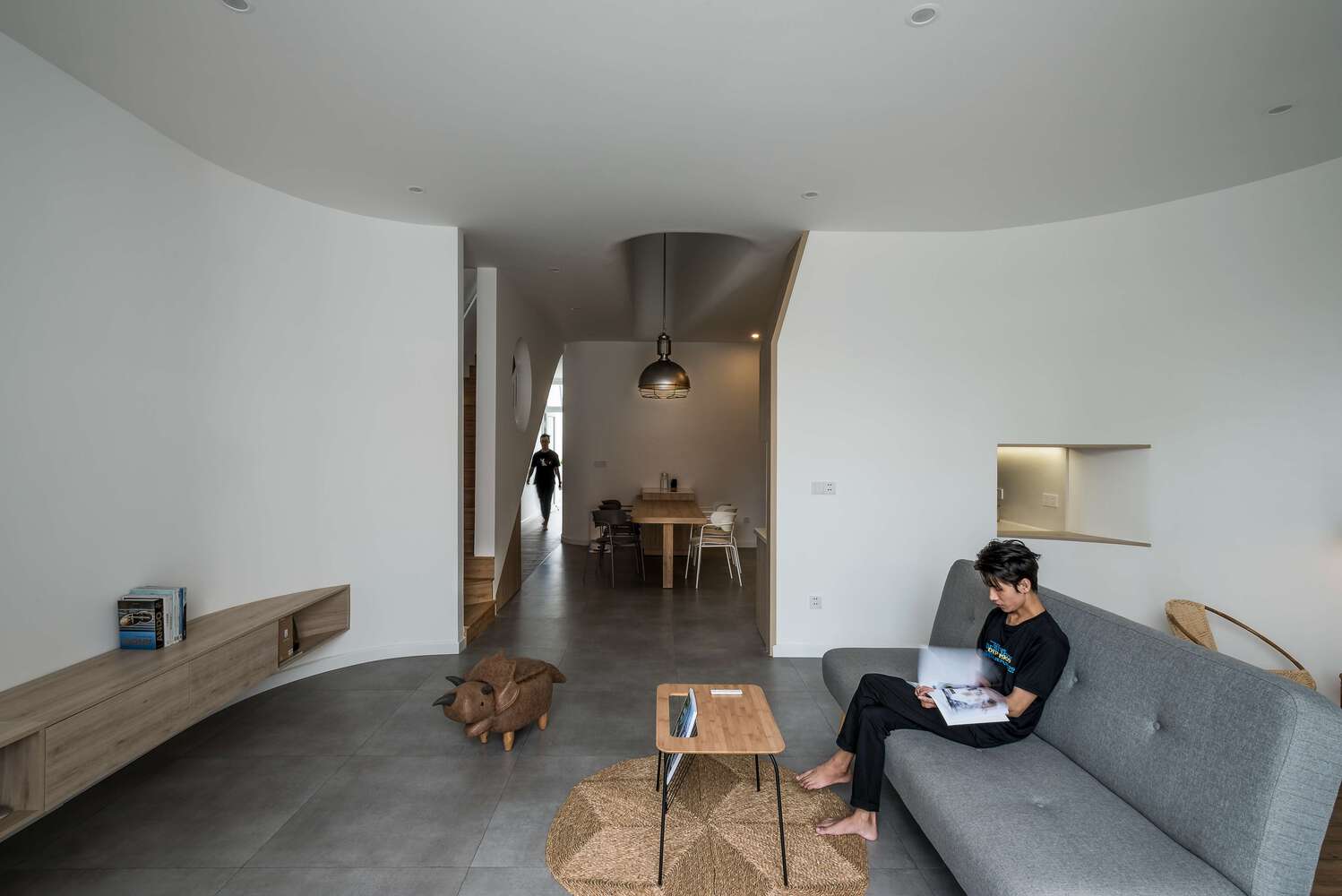

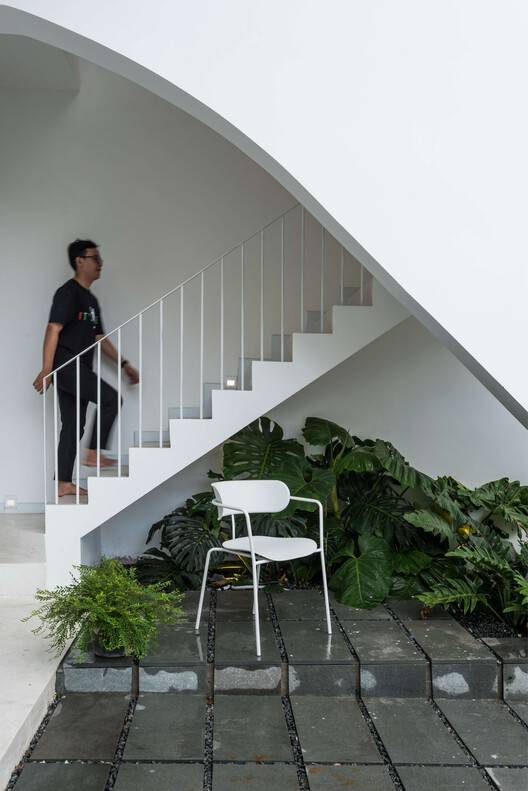

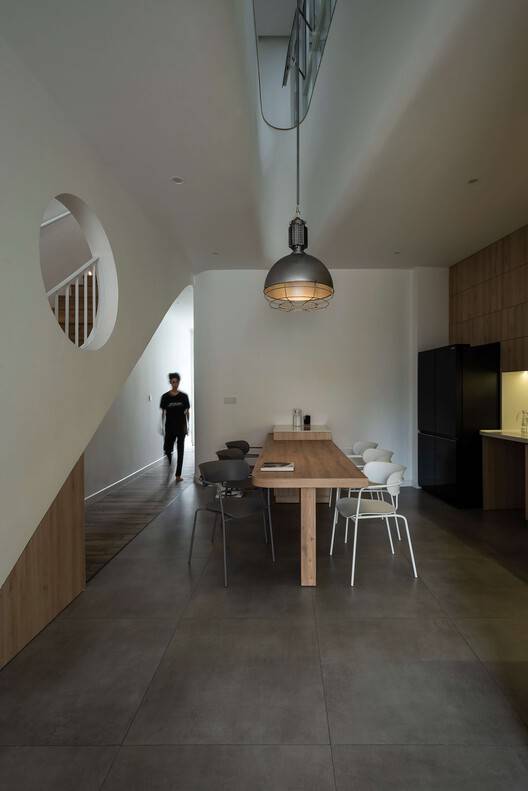

Inside the house, there continue to be eye-catching curves cleverly divided into pieces, creating diverse visual fields during activities. The house consists of 1 ground floor and 2 floors, with the 1st and 2nd floors belonging to the owner of the 1st apartment, and the 3rd floor is a 2nd independent apartment. Traffic in the house is divided into two main vertical traffic axes; the 1st and 2nd floor stairs inside the house are used for apartment 1, and the front staircase runs through three floors and is the main entrance for apartment 2.

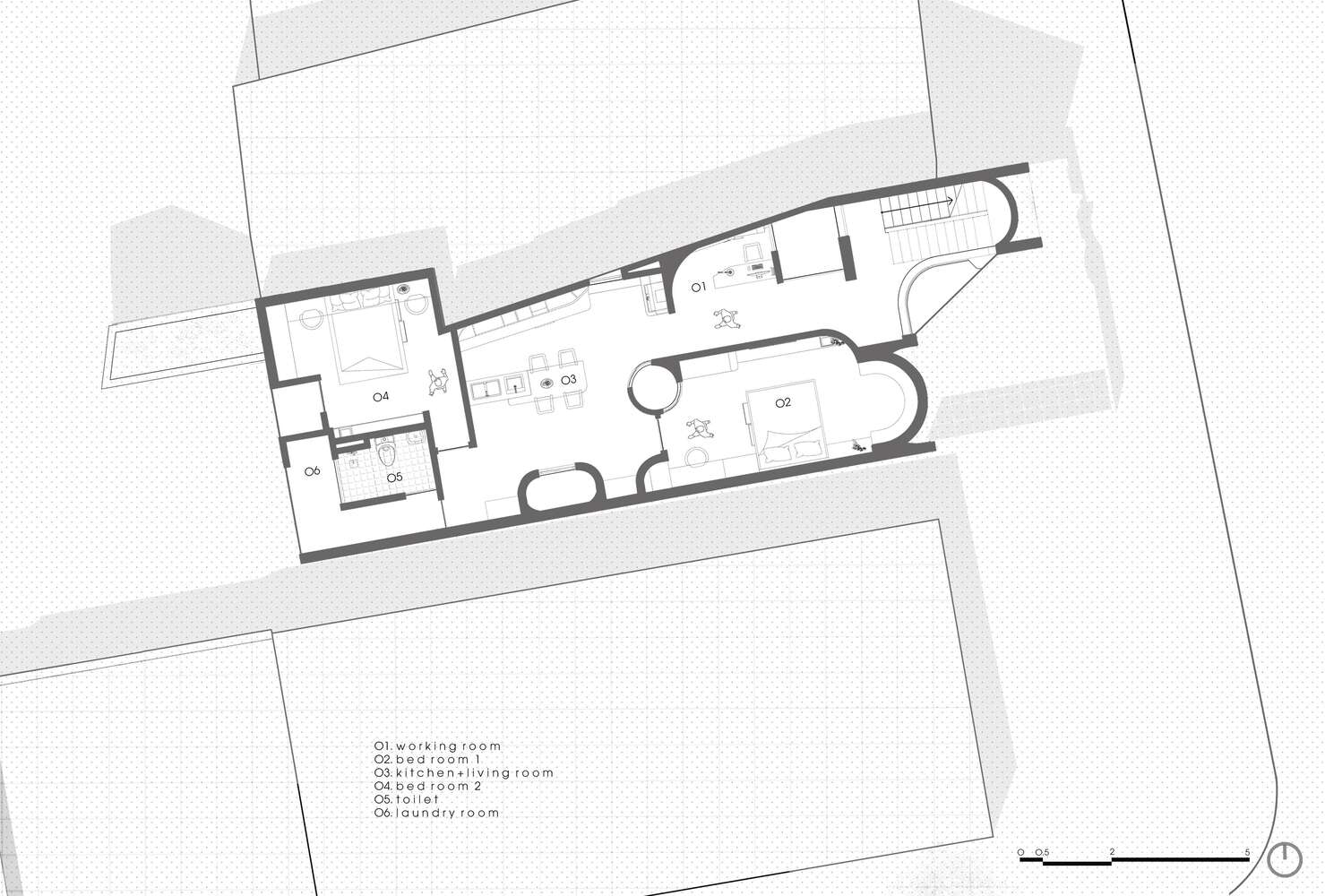

Floor Plan

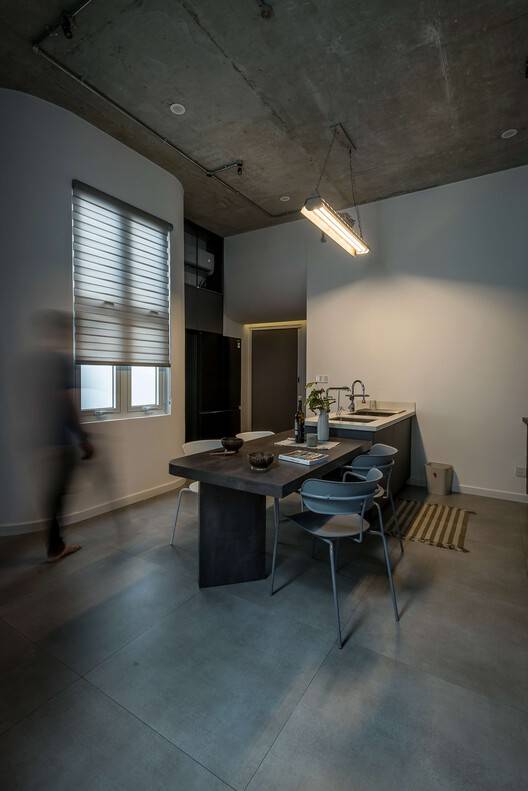

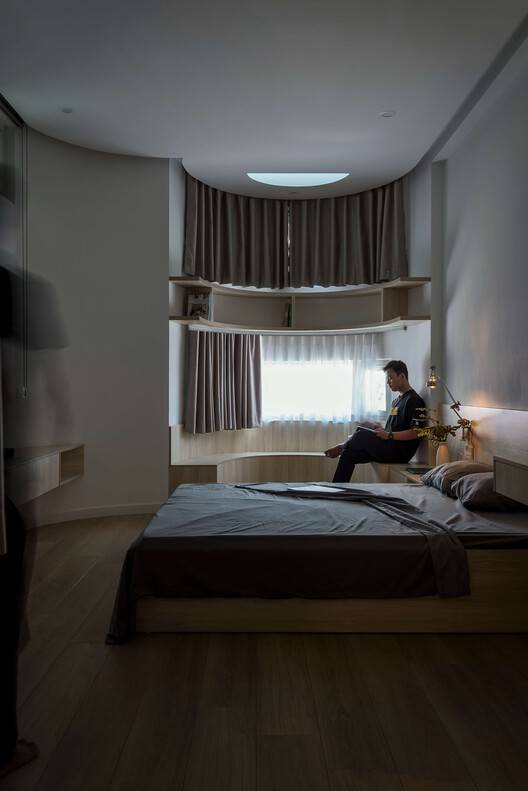

这两套公寓都保证了客厅、厨房、卧室、工作室、辅助室等所有必要的功能，适合全家居住。主要的室内色调仍然是白色、灰色和木质色调的重复，强调设计的简单性和效率，并表达了房主的个性。

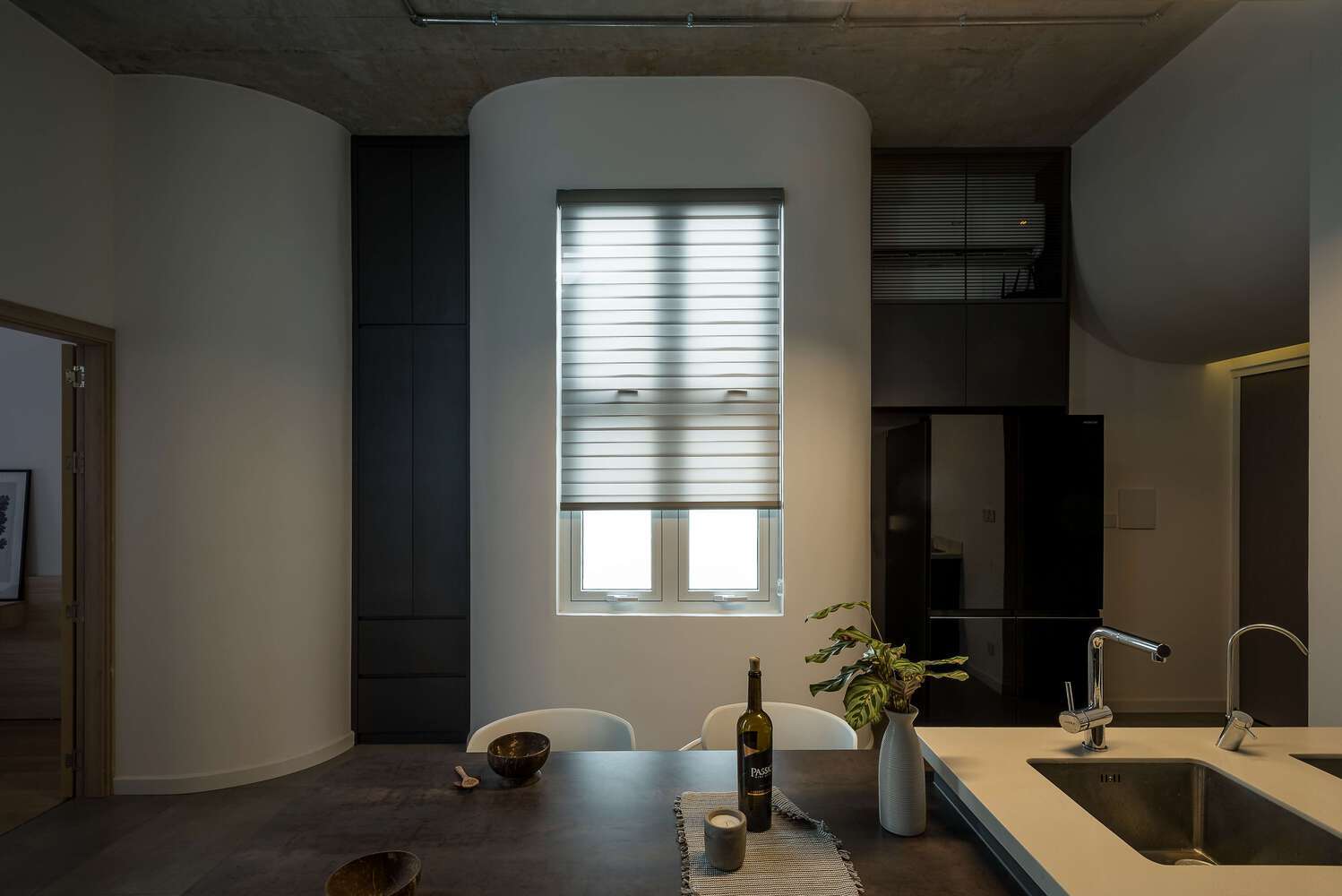

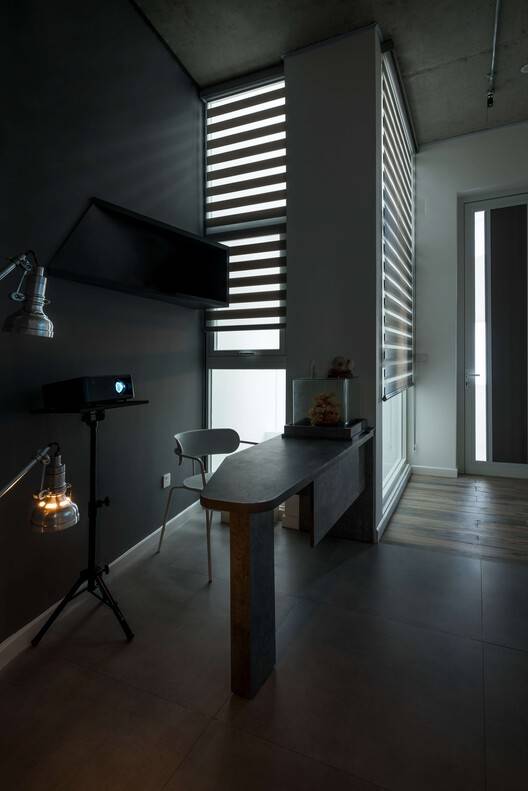

Both apartments ensure all necessary functions of the living room, kitchen, bedroom, working room, auxiliary room, etc., complete for the whole family to live in. The main interior color tone is still a repetition of white, gray, and wood tones that are combined, emphasizing simplicity and efficiency in design, as well as expressing the personality of the homeowner.

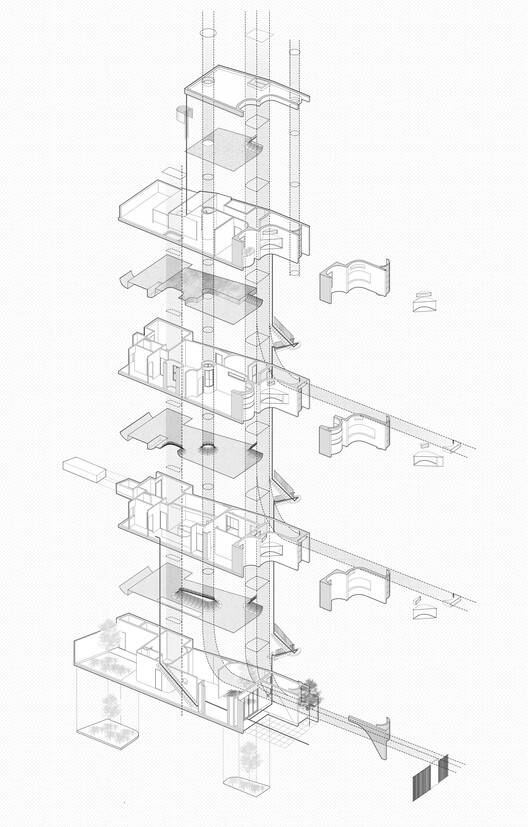

Exploded Axonometric

Naw studio的任何设计中不可或缺的一部分是处理房子本身的内部微气候。NAW工作室这次为House+Studio选择的解决方案是“风阱”解决方案，这在建筑物理学中并不新鲜，但对于这种炎热晴朗的中心天气仍然非常有效。乍一看，你可以看到，由于必须根据房主的意愿处理屏蔽，房子的正面相当闷热，但与此相反，当房子中间有一个大的垂直天窗时，水平百叶窗系统会通过压力差将室外的新鲜空气带入房子。风穿透每个角落，迅速从天窗逃逸到外面，形成持续的空气对流，使房子保持凉爽。NAW工作室还仔细计算了绿树的位置，以优化进入房屋的空气质量，绿色斑块始终位于通风口处。

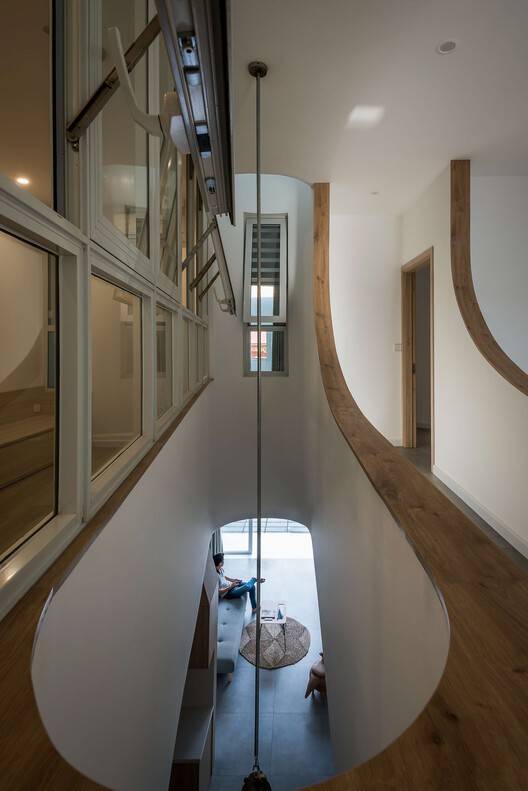

An indispensable part of any design by Naw studio is to handle the internal microclimate in the house itself. The solution that the NAW Studio chose for the House + Studio this time is the "Wind Trap" solution, a solution that is not new in architectural physics but is still very effective for this hot and sunny central weather. At first glance, you can see that the facade of the house is quite stuffy due to having to deal with the shielding according to the homeowner's wishes, but contrary to that outlook, the system of horizontal wind shutters will bring fresh air from outside into the house by the pressure difference created when there is a large vertical skylight right in the middle of the house. The wind penetrates every corner and quickly escapes outside from the skylight, creating continuous air convection to keep the house cool. The placement of green trees is also carefully calculated by the NAW Studio to optimize the quality of air brought into the house, with green patches always located at the air vents.
