奥贝德零售综合体 / nunc Architecture and Design

Obeid Retail Complex/nunc Architecture and Design
奥贝德零售综合体 / nunc Architecture and Design

设计理念与文化语境： 项目最引人注目的地方在于其大胆的设计理念，它试图在黎巴嫩山区的传统建筑语境中“投下一枚异质元素”。这种策略并非简单的风格对抗，而是通过自信的建筑姿态，打破了周边既定的视觉模式，从而成为区域内的新地标。悬挑的体量不仅增强了建筑在街道上的存在感，也创造了具有保护性的入口空间，体现了建筑师对公共空间的关注。这种设计手法将商业功能与社会空间巧妙融合，在满足商业需求的同时，提升了社区活力，这在当地的文化背景下尤其具有意义。

空间布局与功能组织： 建筑内部的空间布局体现了高效的功能组织。垂直的立体空间利用，充分考虑了用地限制。从三层超市到美食广场、办公区域和零售商铺，清晰的动线设计确保了人流的顺畅，提升了整体的用户体验。大跨度的结构设计，配合悬挑楼板，在视觉上提供了开放感，同时也增加了建筑的现代感。这种对功能性和美观性的双重追求，使得项目不仅是一个商业中心，更是一个可以激发社区活力的场所。精心规划的设计理念，让商业活动与社交互动完美结合，提升了整体价值。

材料运用与可持续策略： 项目的材料运用是其另一大亮点。粗犷的混凝土与精致的白色金属外墙形成了鲜明对比，这种对比张力赋予了建筑独特的个性。几何形白色铝板表皮的设计，在建筑的外部创造了引人注目的视觉效果，并且实现了隐私保护、遮阳与通风的平衡。双层表皮立面融入了可持续的设计理念，通过隔热、通风、遮阳等技术，减少了能源消耗，体现了对环境的尊重。这种对材料的巧妙运用和对可持续发展的关注，使得建筑在视觉上具有现代感，在功能上具有实用性，也响应了时代对环保建筑的要求。

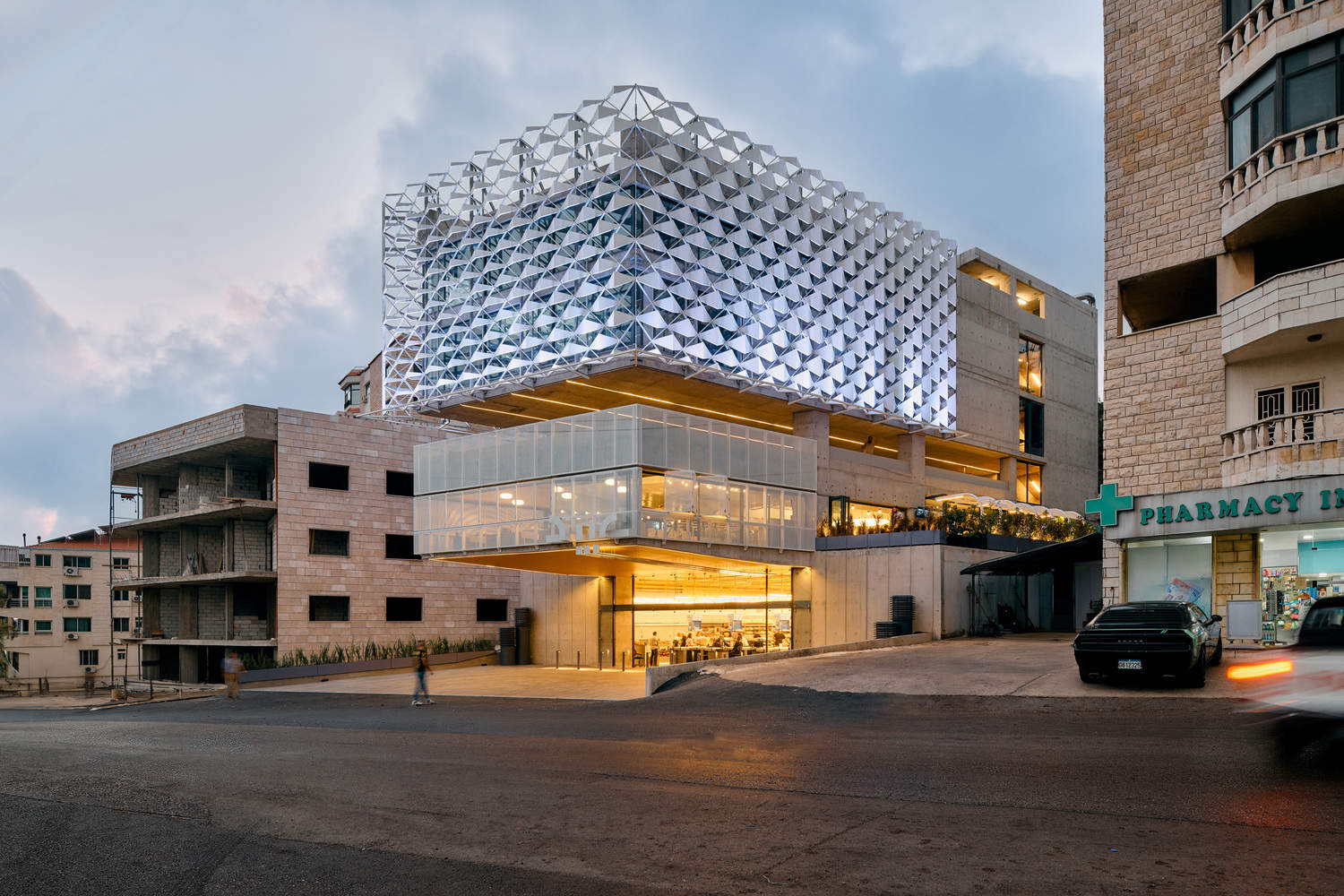

The Obeid Retail Complex is a modern commercial center located in the mountainous region of Lebanon, which houses a large local chain supermarket and effectively enhances the supermarket's public exposure and market coverage. The project adopts non-traditional architectural techniques and redefines the local retail experience. Since its opening, it has attracted numerous well-known brands to settle in, making the center an emerging commercial destination.
奥贝德零售综合体是黎巴嫩山区的一座现代商业中心，内设当地一家大型连锁超市，有效提升了该超市的公众曝光度与市场覆盖范围。该项目采用非传统建筑手法，重新定义了当地的零售体验，自开业以来已吸引众多知名品牌入驻，使该中心成为新兴的商业目的地。

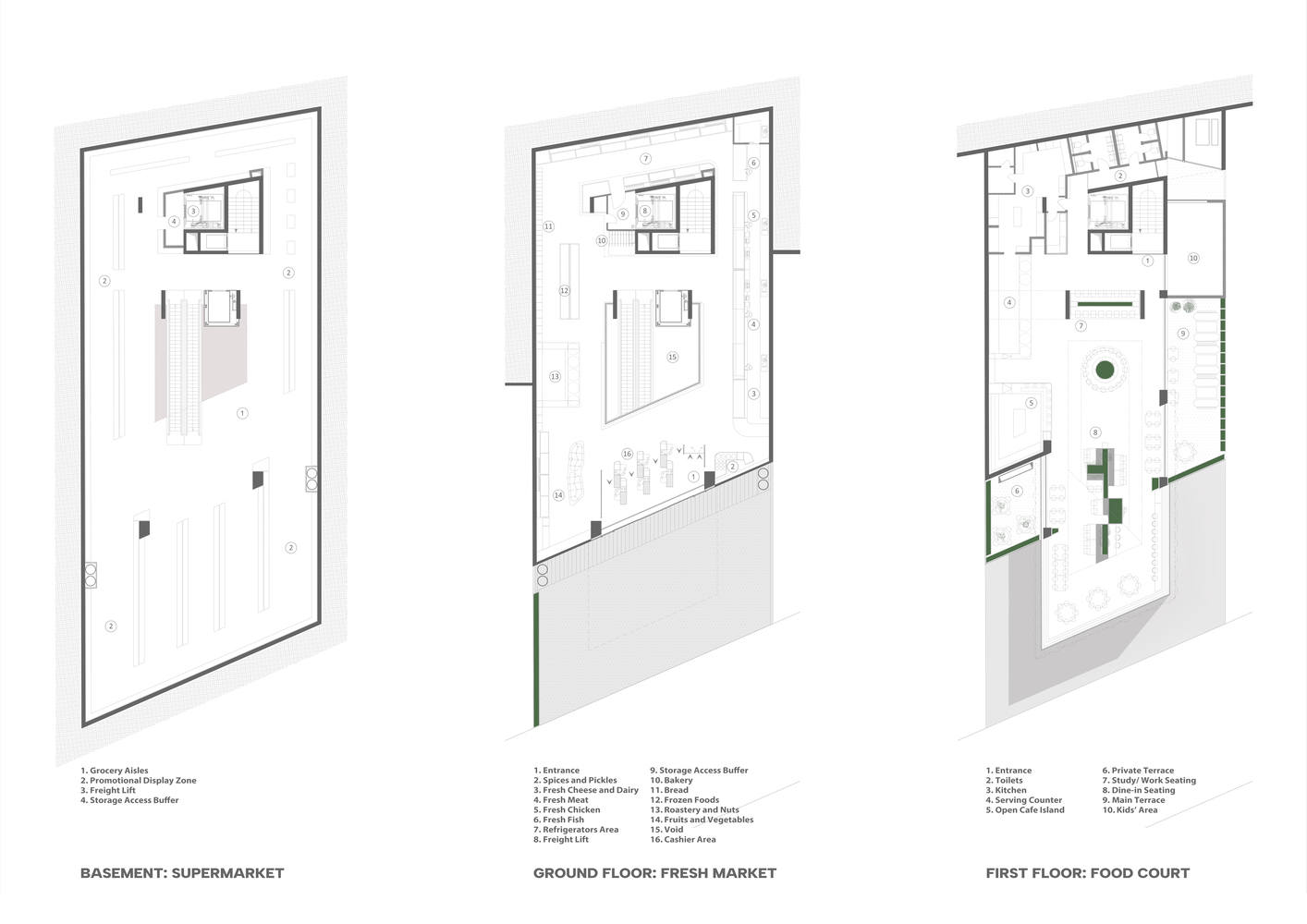

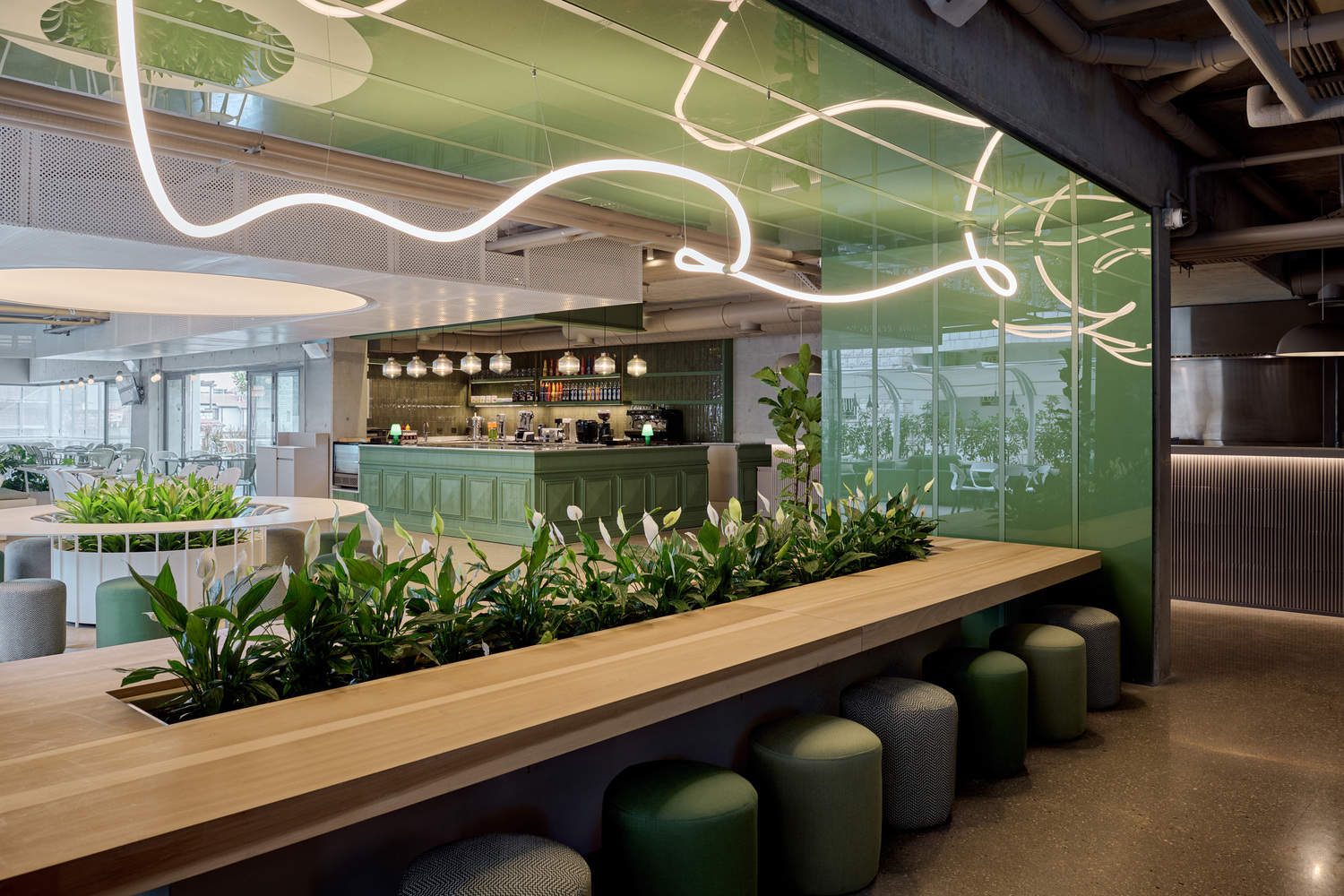

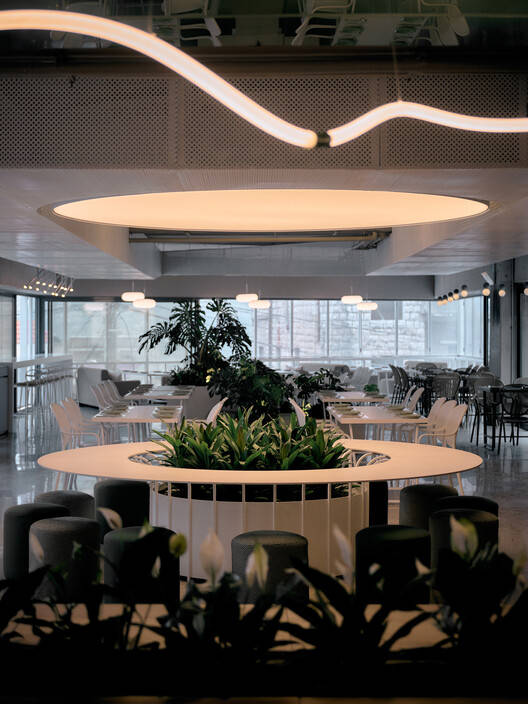

This project integrates commercial and social spaces, featuring a three story supermarket, food court, and outdoor parking lot. The upper level is arranged with office areas and retail shops. Through careful planning, the smooth flow of people and unobstructed operation have been ensured, comprehensively enhancing functionality and overall experience. Clear and intuitive flow design allows users to navigate freely without any obstacles.
该项目融合了商业空间与社会空间，内设一座三层超市、美食广场及露天停车场。上层则布局办公区域与零售商铺。通过精心规划，确保了人流动线顺畅与运营无阻，全面提升了功能性与整体体验感。清晰直观的动线设计，让用户能够毫无阻碍地自如穿行。

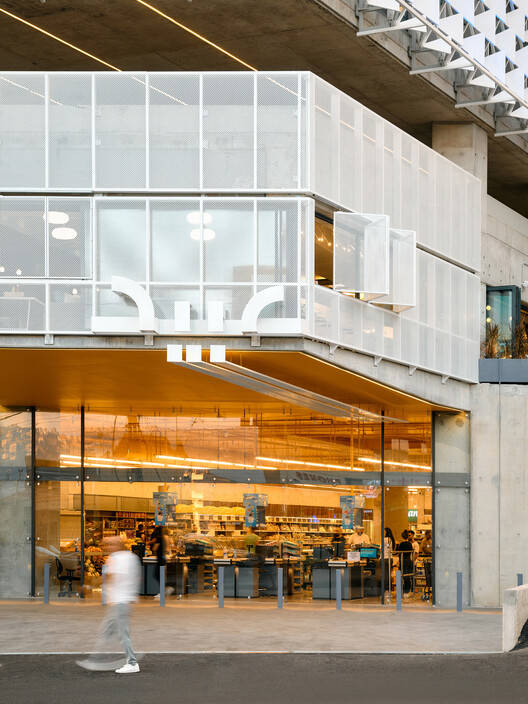

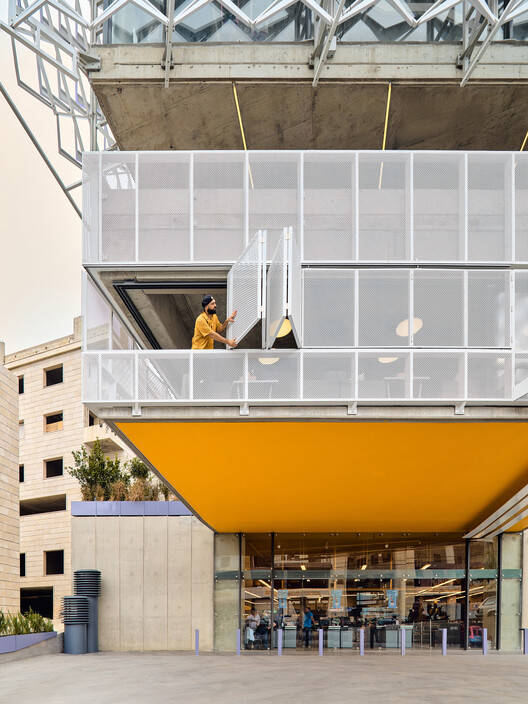

The origin of this design concept stems from the idea of "casting a heterogeneous element" - to break the inherent pattern of the surrounding traditional regional style with a confident and clear architectural posture. The overhanging upper building protrudes forward, occupying a dominant position in the street landscape, while forming a sheltered entrance, creating a friendly and protected public space.
这一设计概念的起源源于“投下一枚异质元素”的构想 —— 以一种自信且明晰的建筑姿态，打破周边传统地域风貌的固有格局。悬挑而出的上层楼体向前突伸，在街道景观中占据主导地位，同时形成一处有遮蔽的入口，营造出友好且受保护的公共空间。

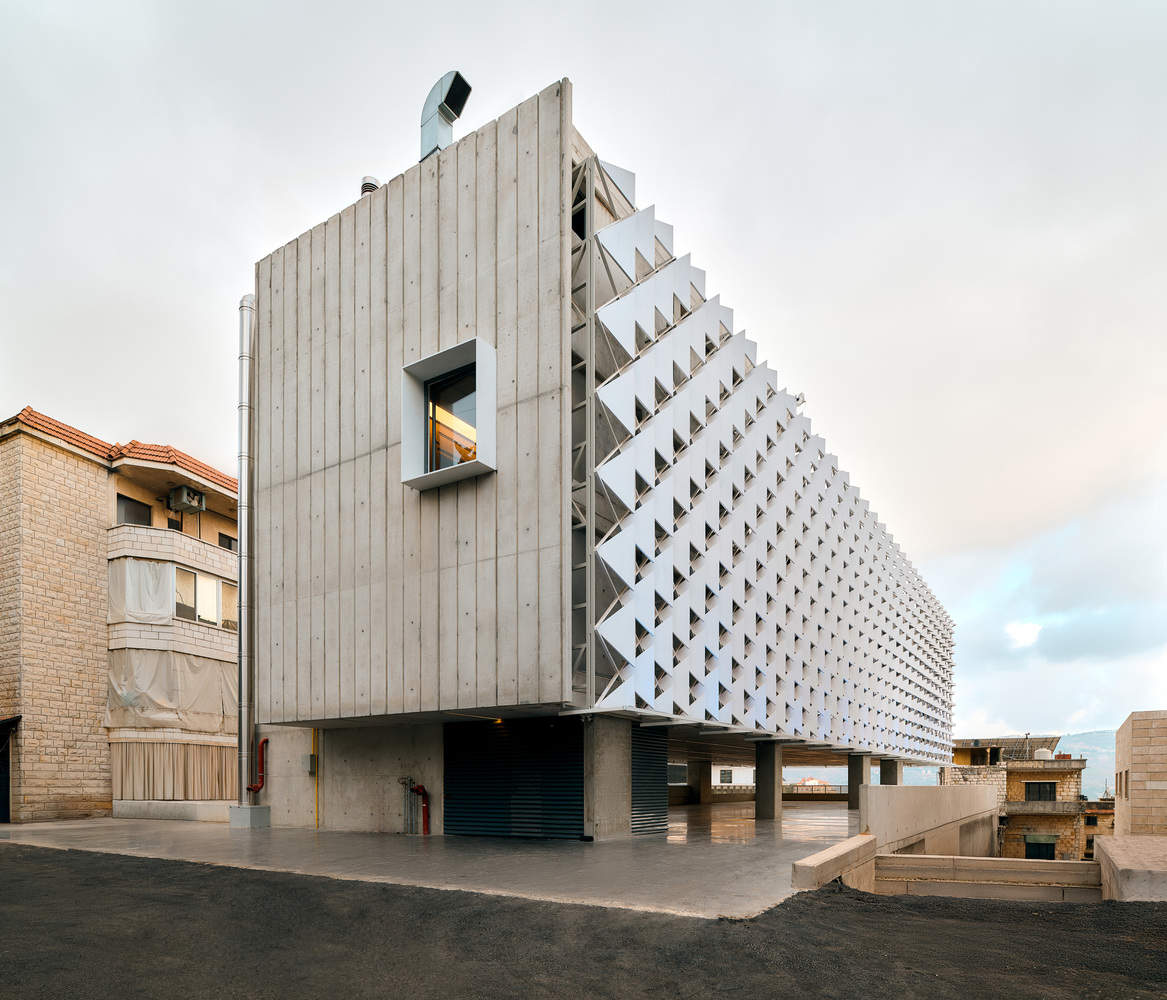

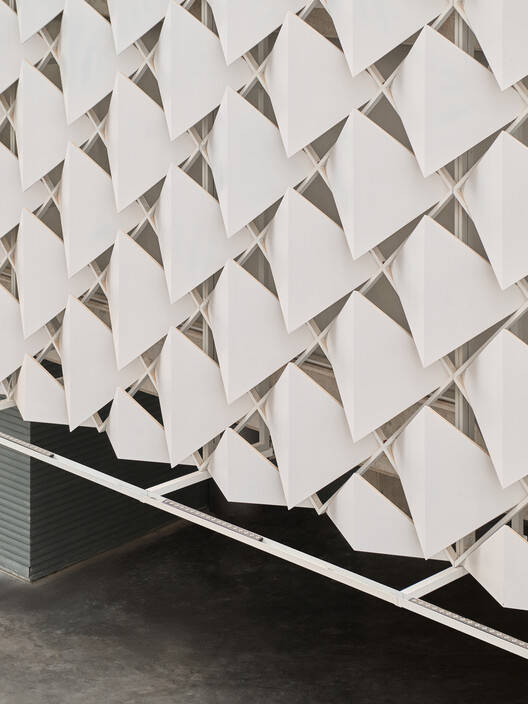

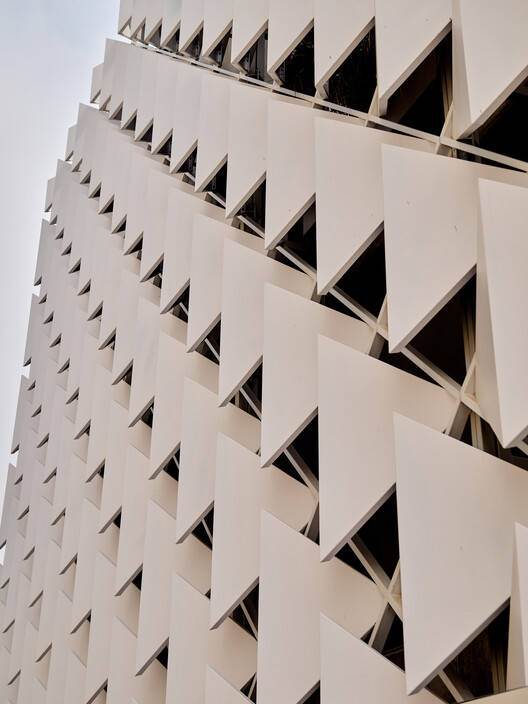

The exterior of the building cleverly balances the rugged industrial style with the delicate and refined texture. The geometric shape of the white aluminum plate skin, shaped by algorithmic logic, wraps around the building in a layered pattern, with alternating presentation of the solid and transparent parts. This dynamic facade design cleverly conceals the irregular functional layout inside, while subtly showcasing the vitality of the building's interior, achieving a perfect balance between privacy protection, shading, and ventilation.
建筑外立面巧妙地平衡了工业风格的粗犷与精致考究的细腻质感。由算法逻辑塑造的几何形白色铝板表皮，以层层叠叠的图案包裹建筑，实面与透空部分交替呈现。这一充满动感的立面设计，既巧妙隐藏了内部不规则的功能布局，又若隐若现地展现出建筑内部的生命力，在隐私保护、遮阳与通风之间实现了完美平衡。

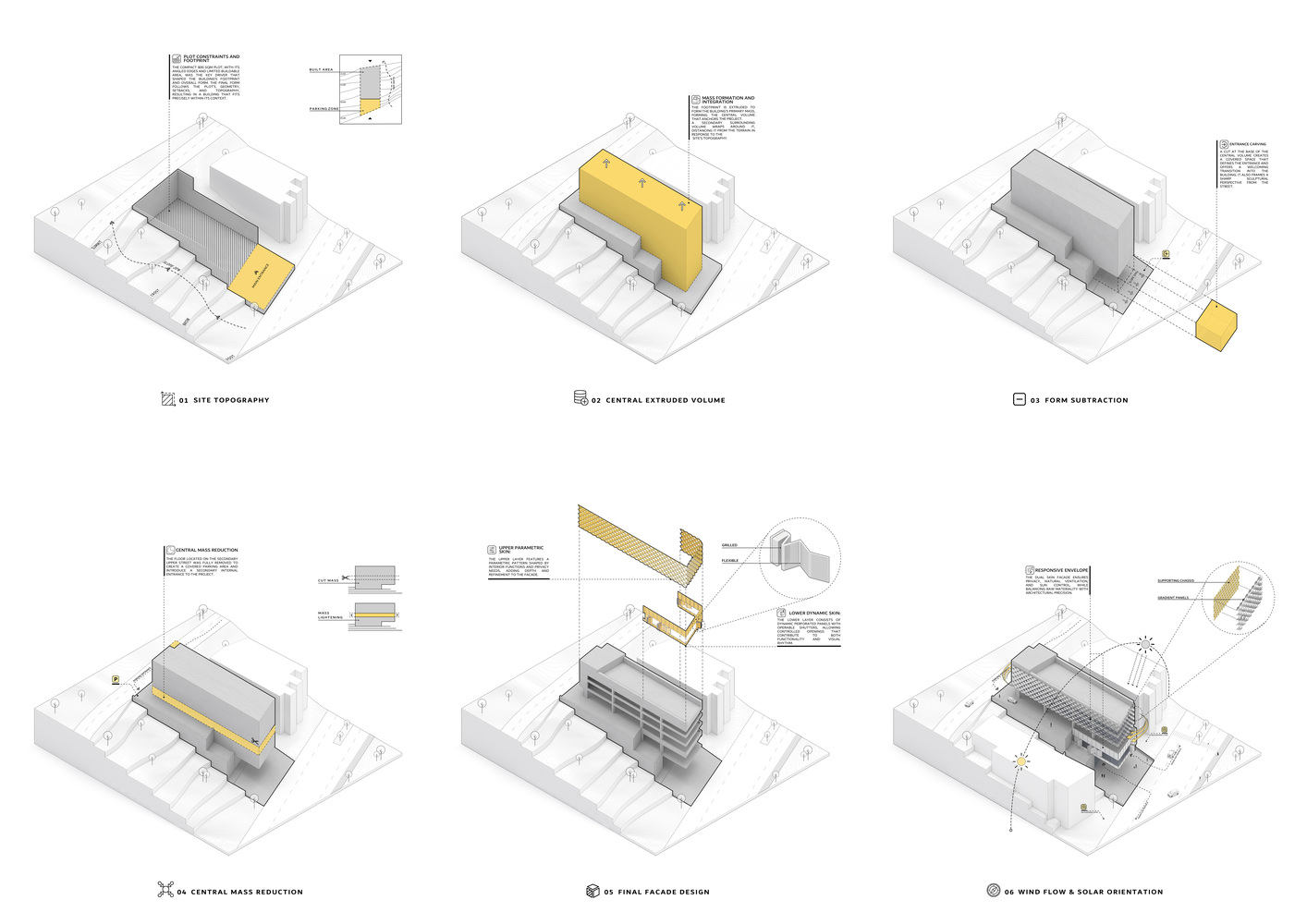

分析图

总平面图

The design and construction challenges of this project have had a profound impact on the presentation of the final results. The compact land use and narrow street interface prompted architects to adopt a vertical spatial layout and introduce cantilevered blocks to enhance the street's presence. In terms of structure, in order to reduce the number of columns in the hall, it is necessary to achieve large-span and cantilever floor design, which requires the use of advanced engineering technology - the use of special tensioning cables and high-precision concrete technology, breaking through the conventional boundaries of local construction.
该项目的设计与施工挑战深刻影响了最终成果的呈现。用地紧凑且街道临界面狭窄，促使建筑师采用垂直空间布局，并引入悬挑体块以强化街道存在感。结构方面，为减少大厅内立柱数量，需实现大跨度与悬挑楼板设计，这要求采用先进的工程技术 —— 运用特种张拉缆索与高精度混凝土工艺，突破了当地建筑施工的常规界限。

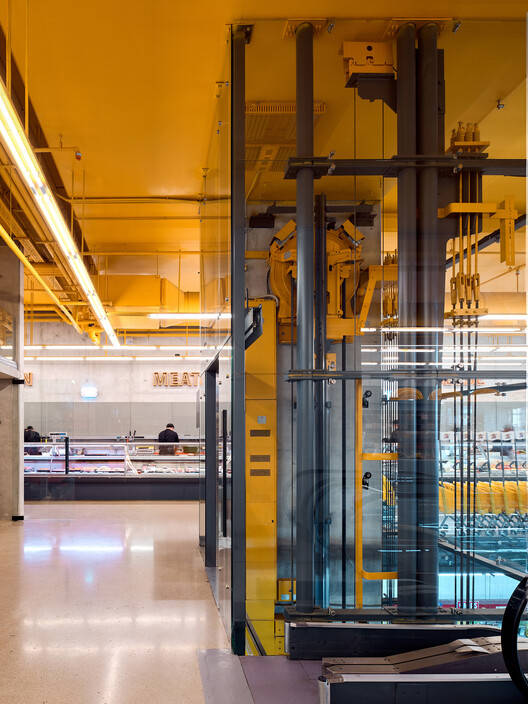

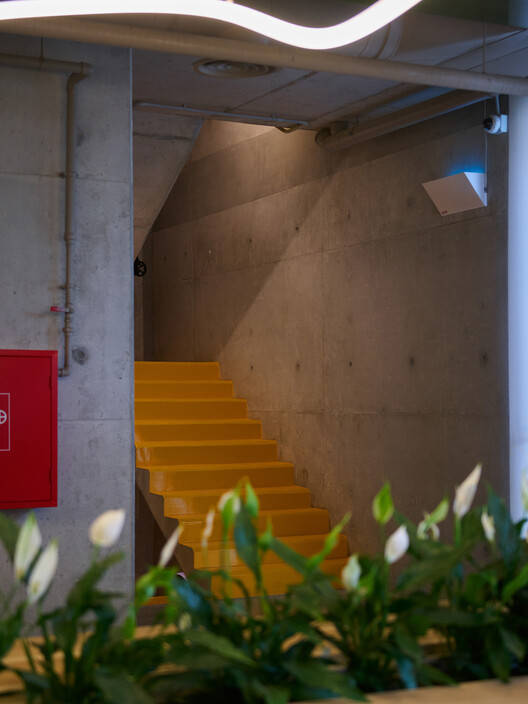

The use of materials highlights the contrast tension: the exposed concrete and mechanical system form a sharp confrontation with the smooth white metal exterior wall, interpreting a dialogue between rough practicality and exquisite carving. This sense of contradiction establishes the dual characteristics of architecture - both rooted in reality and full of enterprising spirit.
材料运用凸显对比张力：裸露的混凝土与机械系统，与光洁的白色金属外墙形成鲜明对峙，演绎出粗犷实用与精致雕琢之间的对话。这种矛盾感奠定了建筑双重特质 —— 既扎根现实，又充满进取精神。

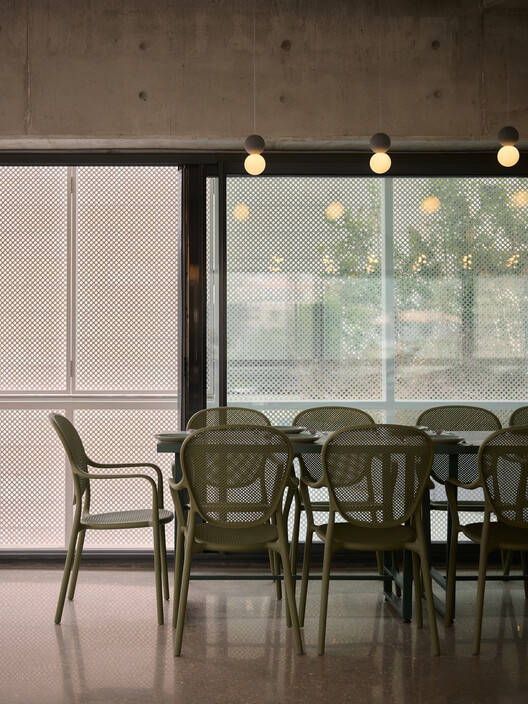

The double layered facade incorporates sustainable concepts through designs such as insulation, ventilation, sun shading, and privacy protection. The cavity between the two layers stores heat and insulation in winter, promotes air circulation in summer, effectively reduces energy consumption, and decreases dependence on mechanical systems. The outer curtain wall can soften sunlight, reduce glare, and introduce natural light, ensuring indoor comfort and privacy while providing users with a framed view that complements the external landscape.
双层表皮立面通过隔热、通风、遮阳与隐私保护等设计，融入可持续理念。两层之间的空腔在冬季蓄热保温，夏季促进空气流通，有效降低能耗并减少对机械系统的依赖。外层幕墙既能柔化阳光、减少眩光，又可引入自然光线，在确保室内舒适度与私密性的同时，为使用者提供与外部景观相映成趣的框景视野。

Against the backdrop of traditional low rise buildings, this building stands out with a bold and innovative posture, becoming a brand new landmark. It not only enhances the brand recognition of the supermarket, but also reshapes the plot into a core hub that combines foresight and commercial vitality in the region. The Obeid retail complex showcases the transformative power of architectural design - creating impactful spatial presence under limited conditions, while writing a new chapter in the evolution of Lebanon's architectural environment.
在以传统低层建筑为主的背景中，这座建筑以大胆新颖的姿态脱颖而出，成为全新地标。它不仅强化了超市的品牌辨识度，更将该地块重塑为区域内兼具前瞻性与商业活力的核心枢纽。奥贝德零售综合体展现了建筑设计的变革力量 —— 在有限条件下创造出震撼人心的空间存在，同时为黎巴嫩建筑环境的演进谱写新篇章。
