Folly at Fair Hill / Rever & Drage Architects

项目概念与功能性的巧妙结合： 这座“愚蠢”建筑并非纯粹的装饰，而巧妙地融合了功能与美学。它扮演着连接日常喧嚣与田园宁静的桥梁，在花园中创造了一个过渡性的空间。东侧的门廊象征着日常生活的结束，而西侧则通向一个更宁静的环境。这种设计手法展现了建筑师对场地环境的深刻理解，将建筑与周围的自然景观融为一体，同时赋予了建筑多重的使用功能。内部空间设计精致，包括餐厅、厨房、浴室、桑拿室、以及带有玻璃屋顶的休息室，满足了使用者对舒适性和私密性的需求，体现了建筑师对细节的关注。

材料运用与建筑语言的对比： 项目的亮点之一在于材料的巧妙运用和不同建筑语言的对比。建筑师将细长光滑的橡木面板与坚固粗犷的原木结构并置，创造出视觉上的冲击力。这种对比既体现在外观上，也体现在建筑的构造和功能上。比如，橡木面板呈现出优雅的女性轮廓，而原木结构则带来厚重感和历史感。这种材料的组合和不同建筑语言的对话，赋予了建筑独特的个性和魅力。此外，建筑师还充分利用了自然光线，通过玻璃幕墙、高窗和木制舱口的设计，营造出明亮而私密的空间，提升了整体的设计品质。

对场所精神的深刻解读与回应： 该项目体现了建筑师对场地精神的深刻解读与回应。建筑选址于一棵古老橡树旁，并以这座橡树为中心，将建筑与周围环境紧密结合。通过建筑的形态和功能，强化了场地原有的特质。建筑的东立面构成了一扇“门”，象征着从日常到宁静的过渡，而西立面则呈现出温暖的拥抱姿态，创造了一个舒适的休憩空间。这种设计策略体现了建筑师对场所情感的关注，并试图通过建筑来营造一种独特的氛围，为使用者提供精神上的慰藉。建筑的设计不仅注重外观，更注重空间体验，营造出一种与自然和谐共生的感觉，实现了建筑与自然的完美融合。

建筑师提供的文字描述。主要用于装饰的建筑并不总是受到最高尊重。然而，这种愚蠢的行为，至少是有意设计的愚蠢行为，在改善世界各地的花园方面有着丰富的历史。Solliveien的愚蠢建筑坐落在一个细长的花园中间，旁边是一棵又大又老的橡树。它标志着从地块东端住宅楼周围的日常喧嚣过渡到西端田园的宁静。因此，这座建筑还将一扇真正的大门作为东墙的一部分。跨过门槛，你会进入一个更宁静的环境。
Text description provided by the architects. Buildings constructed primarily for decoration have not always been held in the highest esteem. Yet the folly, at least the kind designed with intention, has a rich history of enhancing garden grounds around the world. The folly in Solliveien stands in the middle of an elongated garden, adjacent to a large, old oak tree. It marks the transition from the everyday hustle and bustle surrounding the residential building at the eastern end of the plot to the tranquility of the pastoral western end. As such, the building also encapsulates a literal gate as part of its eastern wall. Stepping across the threshold leads you into a more serene setting.

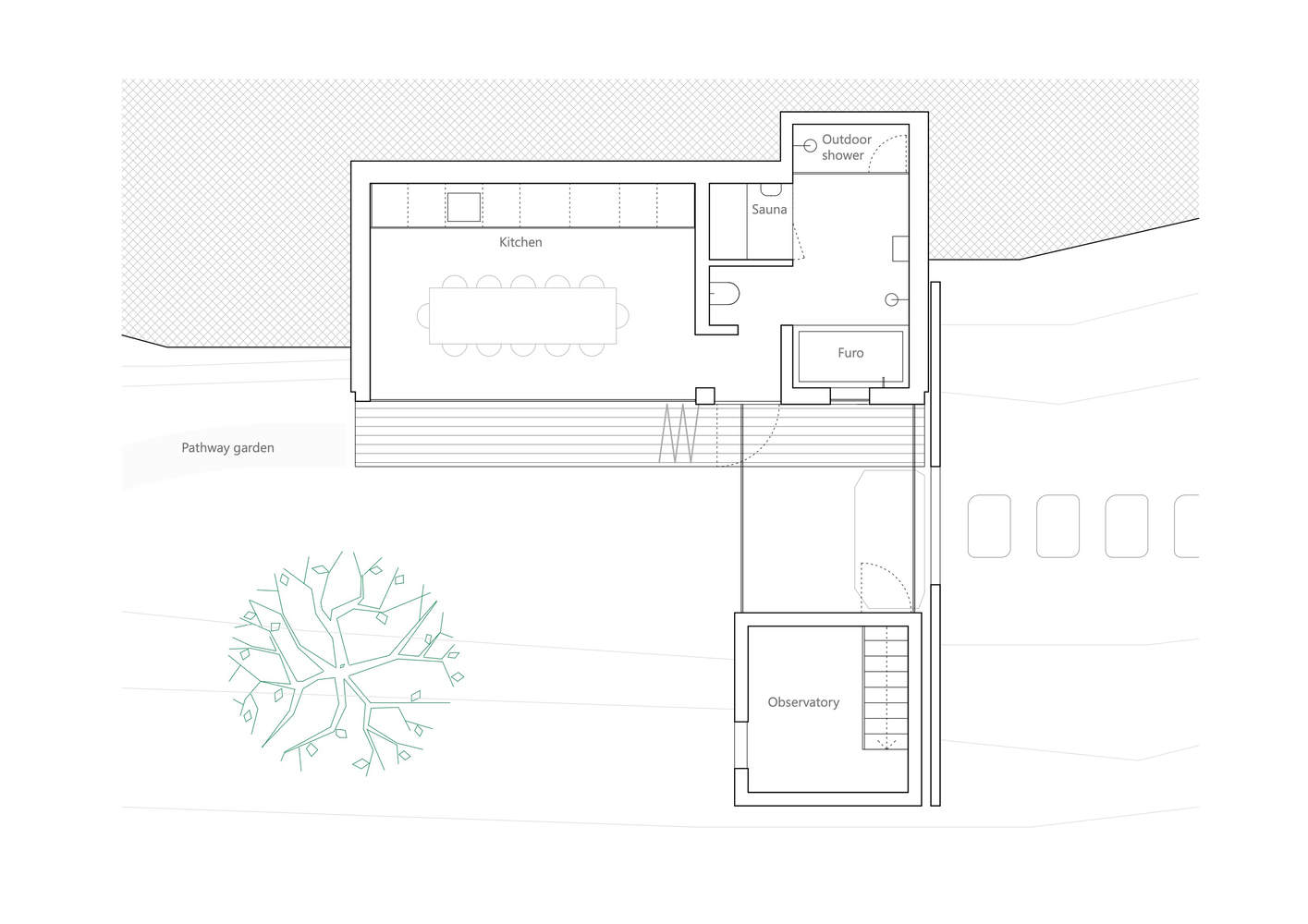

Plan

这座建筑不是纯粹的装饰性建筑，也不是完全没有功能的。虽然它的外观肯定超越了它的实际用途，超出了传统花园结构的范围，因此被归类为愚蠢的建筑，但主体仍然拥有功能空间。其中包括一间带相邻厨房和浴室的餐厅。浴室设有桑拿浴室、郁郁葱葱的浴缸和室外淋浴。主体量对面较小的倾斜结构包含一个带玻璃屋顶的小休息室，游客可以仰望橡树蔓延的树枝。这个幽静、安静的空间唤起了童年树屋和秘密藏身之处的魅力。通过固定的玻璃屋顶板实现隐蔽，以获得日光和视野，而木制舱口则提供通风并作为紧急出口。

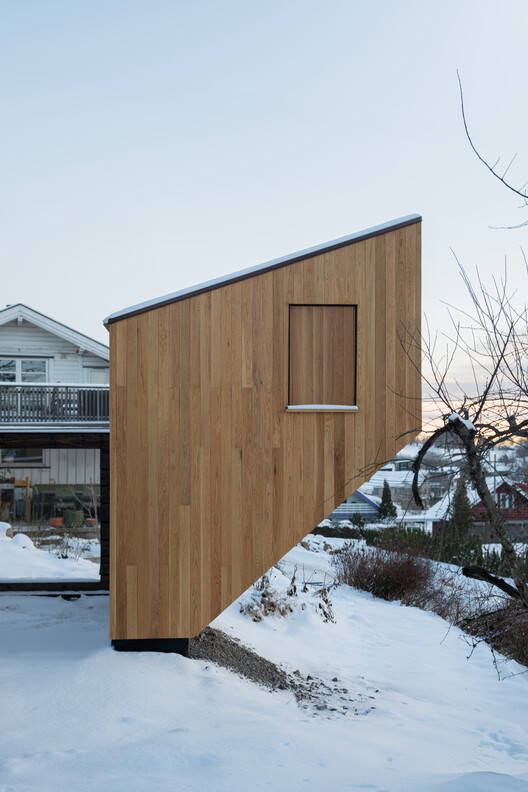

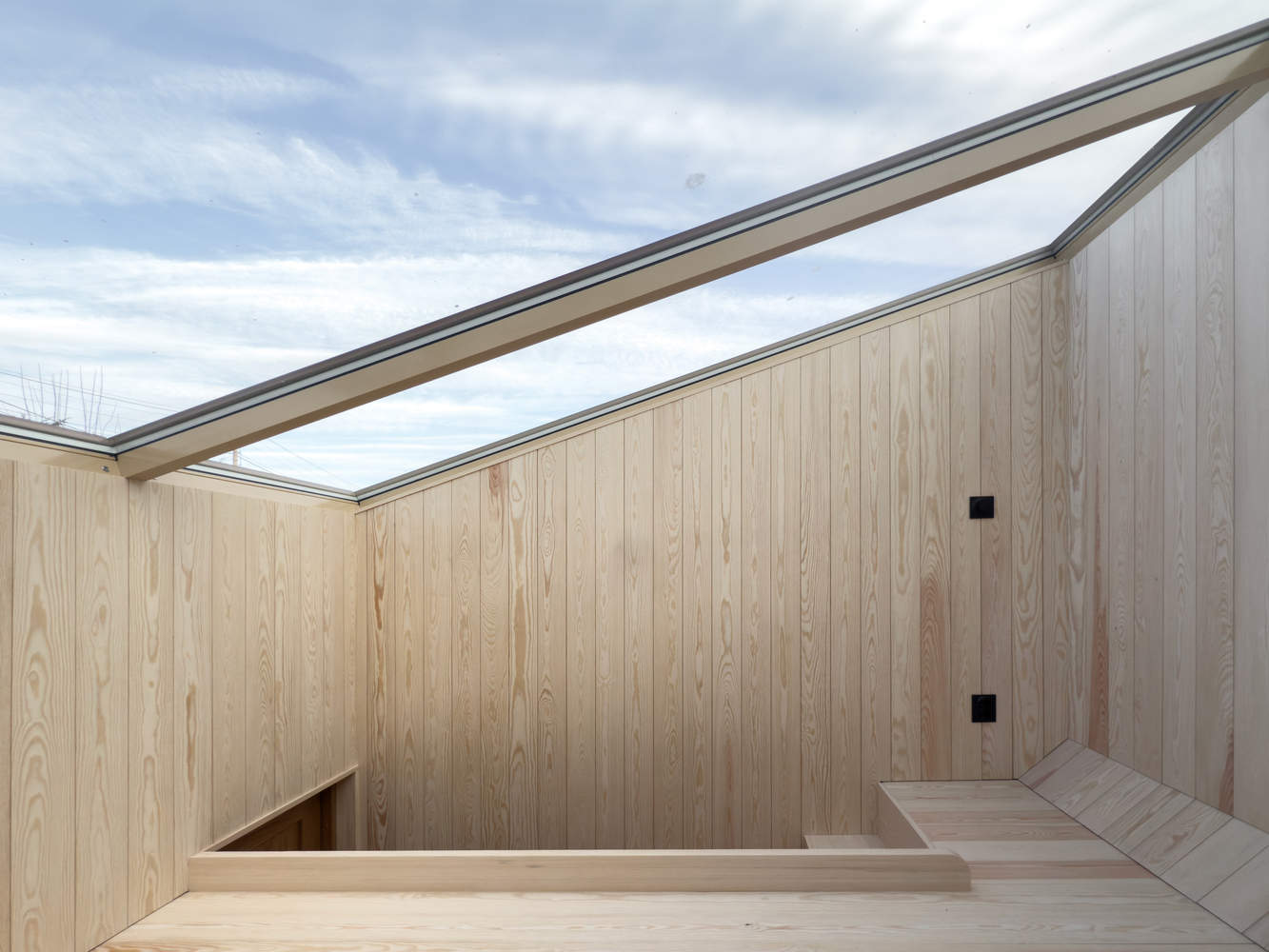

This building is not purely decorative or entirely nonfunctional. While its appearance certainly transcends its practical purpose and exceeds the scope of conventional garden structures, thus earning its classification as a folly, the main volume still houses functional spaces. These include a dining room with an adjoining kitchen and a bathroom. The bathroom features a sauna, a lush bathtub, and an outdoor shower. The smaller, leaning structure opposite the main volume contains a small lounge with a glass roof, allowing visitors to gaze up at the sprawling branches of the oak tree. This secluded, quiet space evokes the charm of childhood treehouses and secret hideaways. Seclusion is achieved through fixed glass roof panels for daylight and views, while a wooden hatch provides ventilation and serves as an emergency exit.

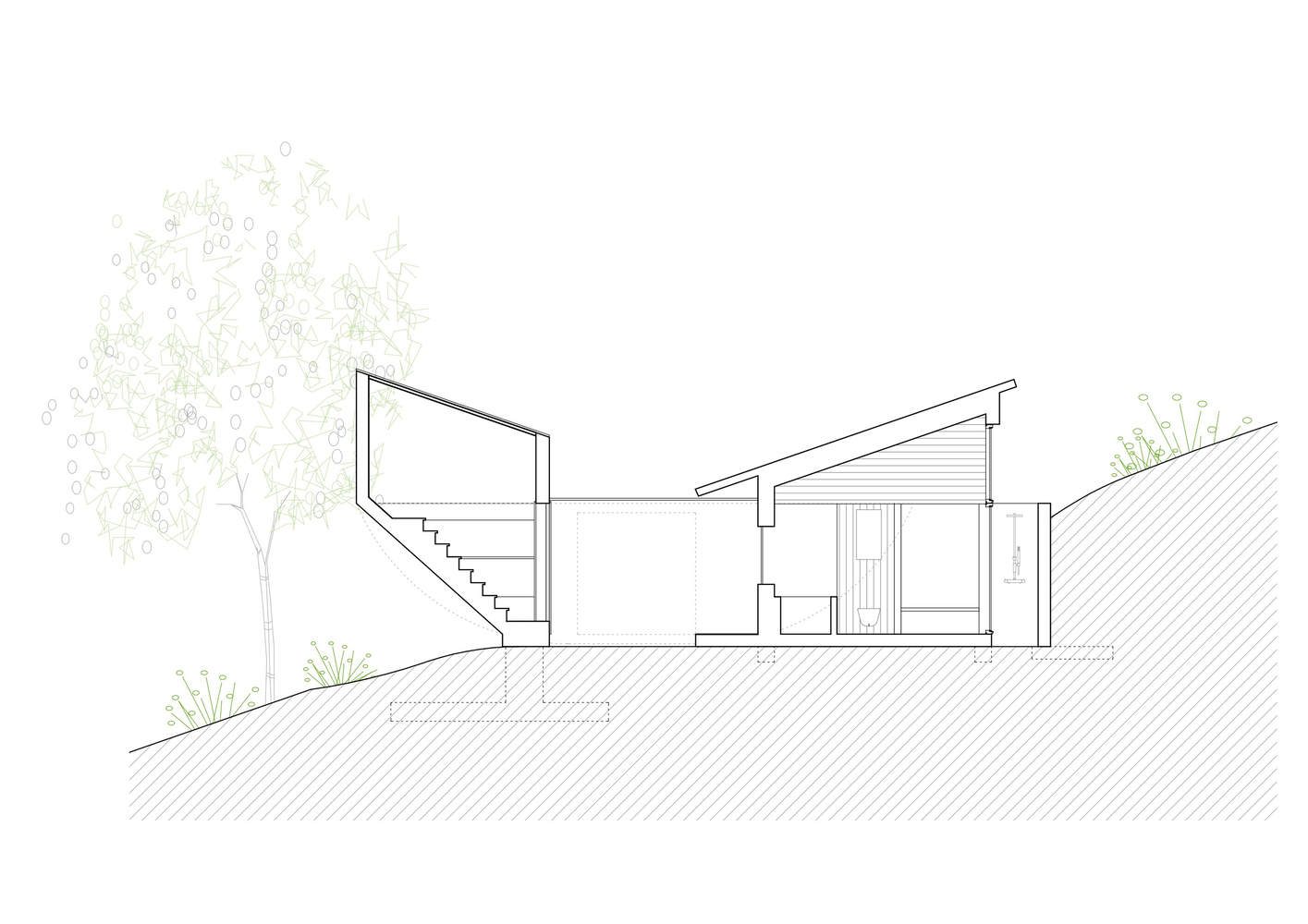

Section

主楼的浴室还设有一个木制舱口和高窗，确保隐私，同时让充足的日光进入，尽管是通过更普通的方式。相比之下，厨房的南墙完全向花园敞开，可以欣赏到远处的风景。冬日的阳光透过玻璃幕墙照射进来，将温暖储存在餐厅的现浇混凝土墙上。在建筑方面，该建筑将两个部分的标准2x6英寸云杉框架与传统的6英寸松木结构相结合，形成了大门。倾斜结构由锚定在主体结构基础上的25mm圆形不锈钢棒支撑。它可以稍微扭动一下，但不会掉下来。

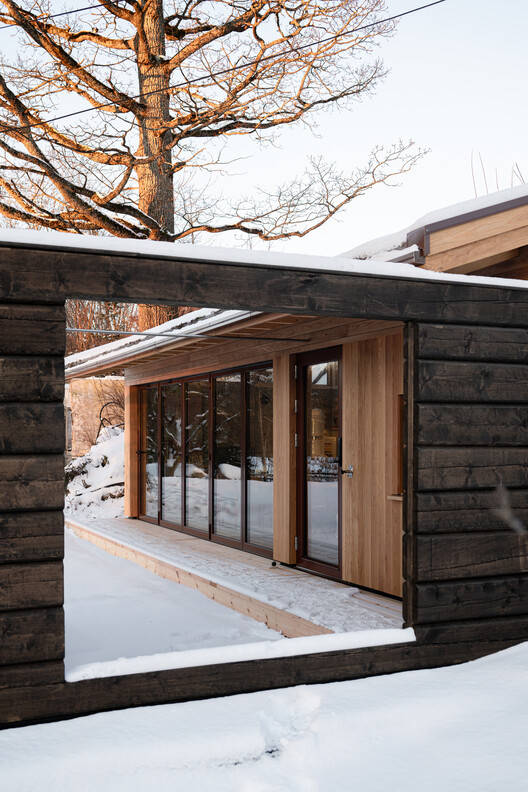

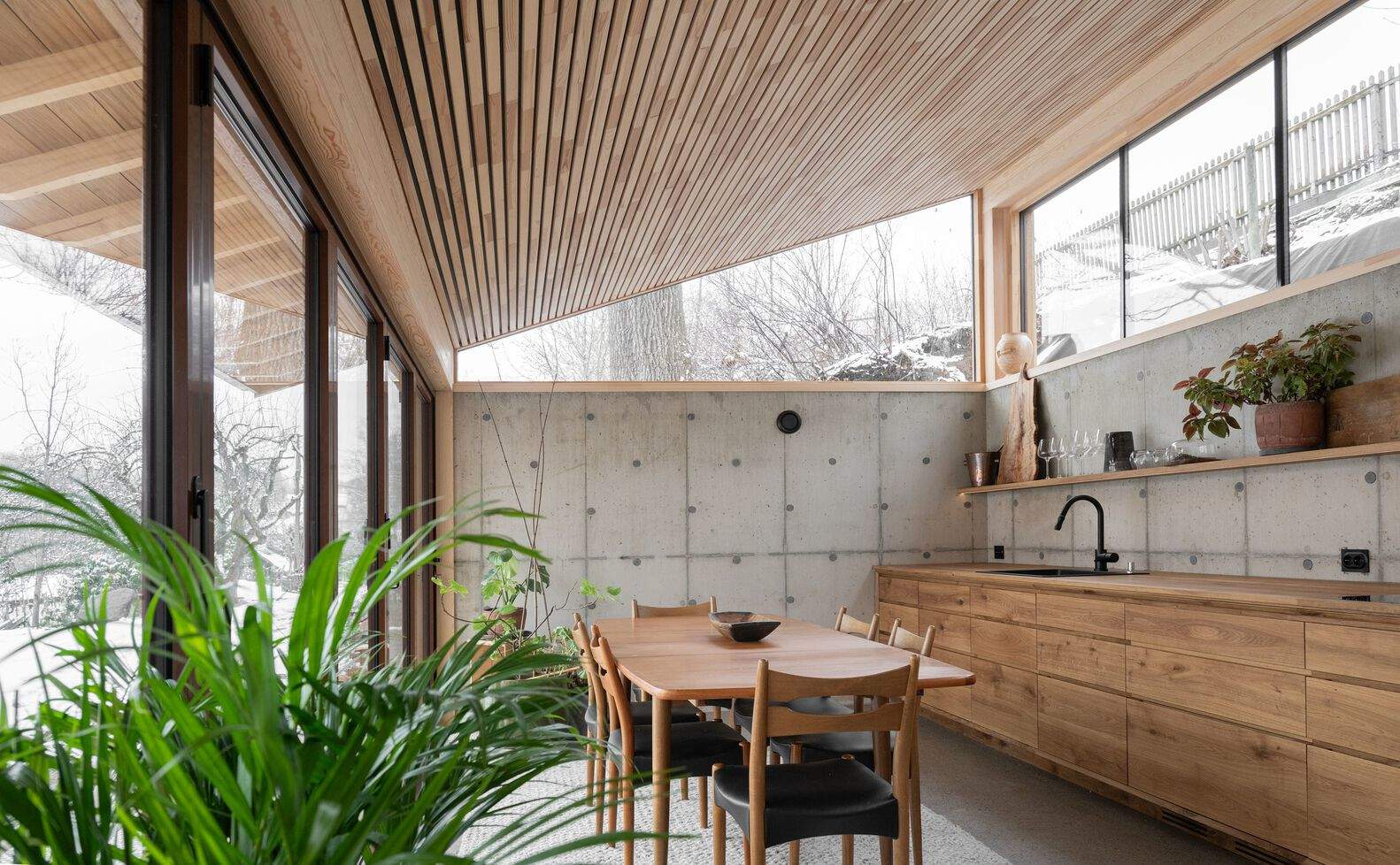

The bathroom in the main volume also features a wooden hatch paired with high windows, ensuring privacy while letting in ample daylight, although by more ordinary means. In contrast, the kitchen fully opens its southern wall to the garden, offering a view of the scenery beyond. The low winter sun streams through the glass façade, storing its warmth in the cast-in-place concrete wall of the dining room. Construction-wise, the building combines a standard 2x6" spruce framework clad in oak for its two sections, with a traditional 6" pine log construction forming the gate. The leaning structure is supported by 25mm round stainless steel bars anchored to the main structure's foundation. It will be able to wriggle a little but not fall.

从东方的角度来看，这座愚蠢的建筑呈现出优雅的女性轮廓，与原木建筑的坚实材料和历史内涵形成鲜明对比。细长光滑的橡木面板与结实粗糙的原木并置。这些体量同时汇聚在大门上，并从大门向外延伸，通向主宰整个场景的令人印象深刻的橡树。从田园般的西部，这座建筑呈现出温暖的拥抱外观，为舒适的下午创造了一个阳光明媚的角落。因此，在你跨过门槛回到日常生活的挑战之前，提供一个喘息的时刻。

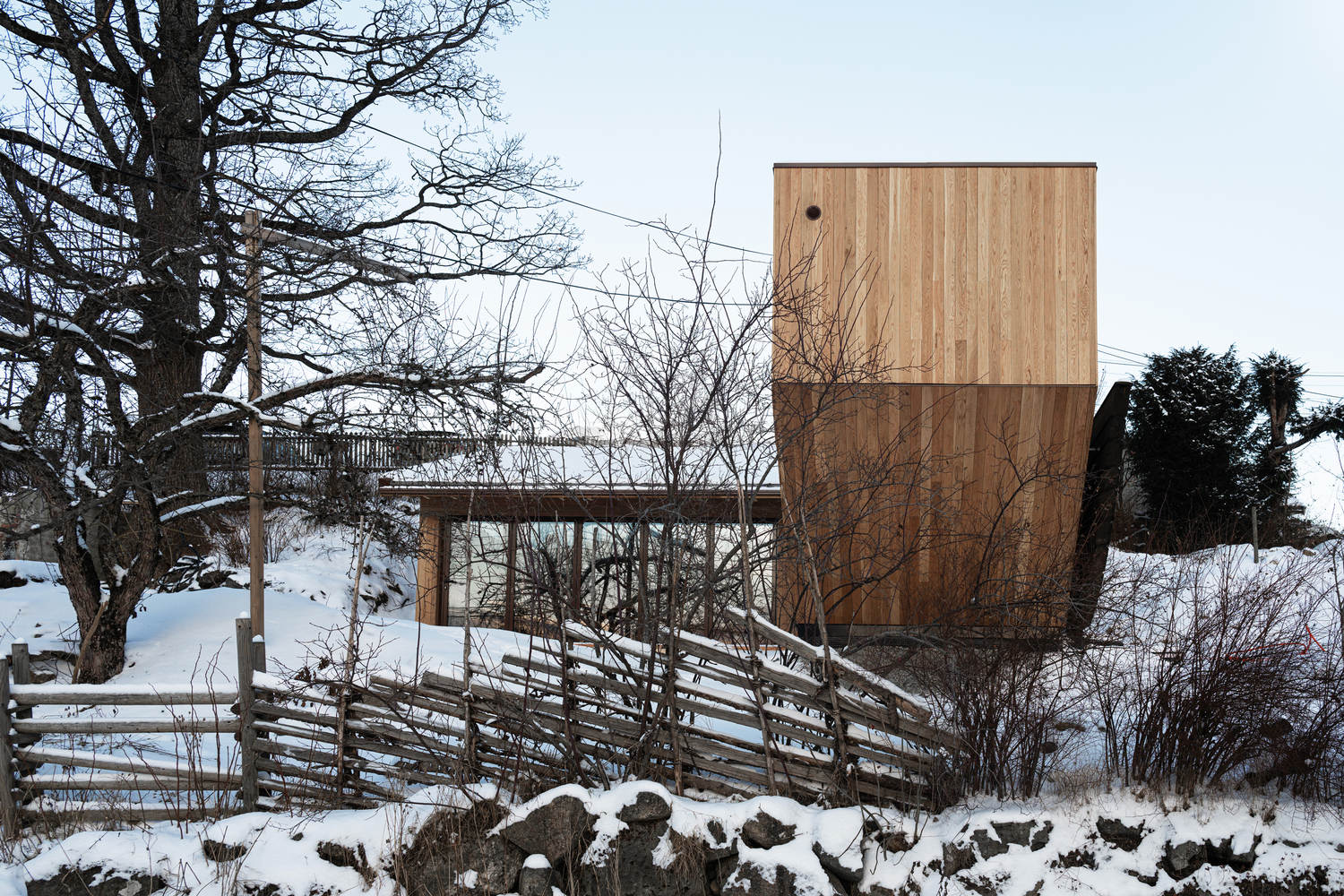

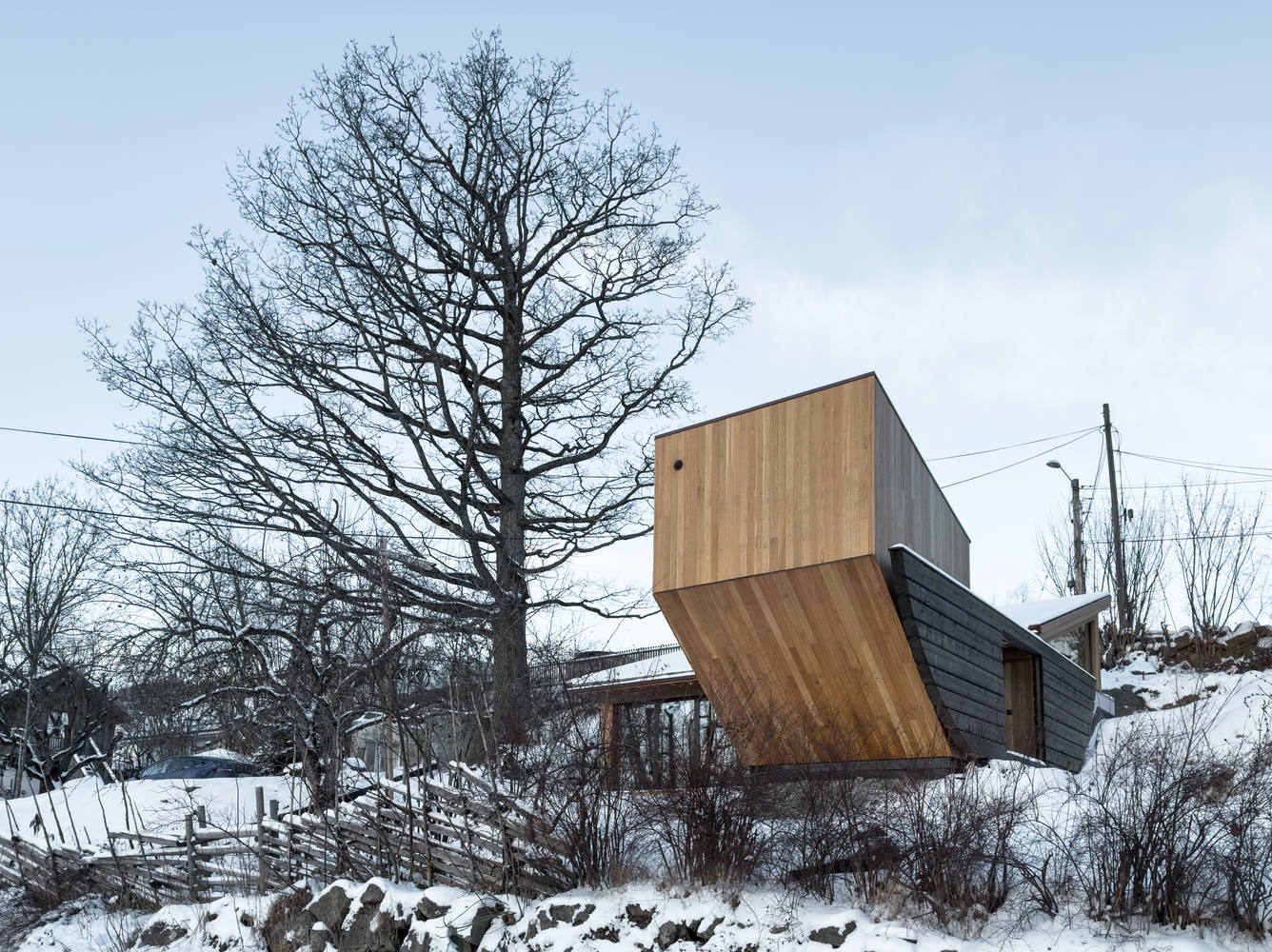

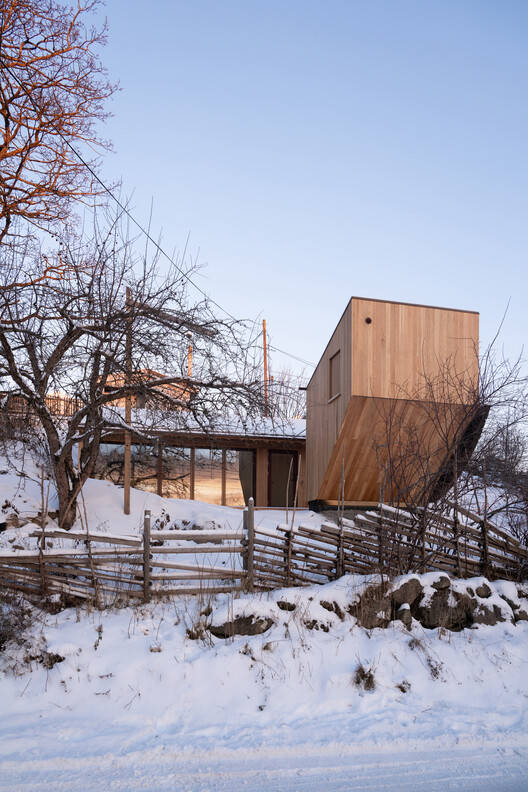

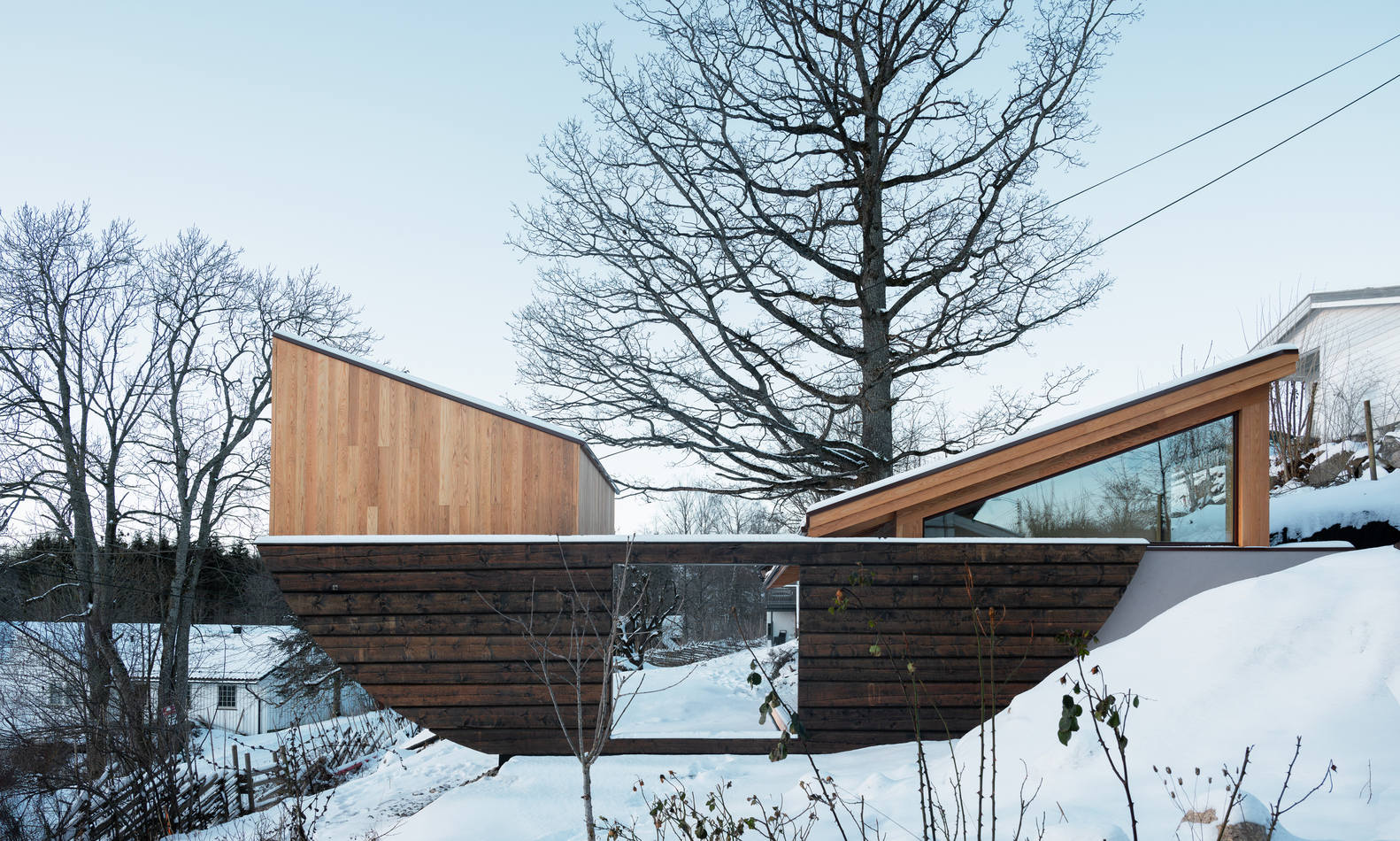

From the eastern approach, the folly presents an elegant, feminine silhouette, which contrasts with the solid materials and historical connotations of the log construction. The slim, smooth oak panels juxtapose the stout, rough logs. The volumes simultaneously converge on the gate and stretch away from it, opening up to the impressive oak that dominates the scene. From the pastoral west, the building takes on the appearance of a warm embrace, creating a sunny nook for cozy afternoons. Thus, offering a moment of respite before you cross the threshold back into the challenges of everyday life.
