Sagehaus办公花园/RAD+ar（研究艺术设计+建筑）

Sagehaus办公花园/RAD+ar（研究艺术设计+建筑）
Sagehaus Office Garden / RAD+ar (Research Artistic Design + architecture)

亮点一：巧妙的空间组织与可持续设计：Sagehaus办公花园项目最令人印象深刻的是其对空间组织和可持续设计的巧妙结合。设计师巧妙地将公共空间、办公区域和屋顶花园进行分层，并通过视觉上的连接增强了互动性，同时满足了灵活、创造性和安全高效的工作需求。更重要的是，该项目在热带气候下，通过“风之圆顶”设计，有效地引导和利用自然风，结合雕刻立面、凹进开口等策略，最大限度地利用自然光和通风，减少能源消耗，体现了可持续建筑理念的深刻理解和实践。这种设计不仅提升了建筑的舒适度，也展现了对环境的尊重。

亮点二：以人为本的设计理念与功能性布局：该项目突出了以人为本的设计理念，从用户体验出发，构建了多样化的活动场所。混合用途的设计，将高安全性的文件室与开放式工作空间、会议室、休闲区有机结合，促进了员工之间的交流与互动。楼层内部的短距离连接和便捷的交通流线，更增强了建筑的实用性。此外，将服务设施设置在独立翼楼，并设计成花园厕所，在热带环境中提供最佳舒适度的同时，也强调了对使用者健康和舒适度的关注。这种对细节的关注，使得建筑更具人性化，并能有效提升使用者的工作体验。

亮点三：创新性的立面设计与对环境的响应：Sagehaus办公花园的立面设计是其另一大亮点。通过“切片和穿孔”的处理手法，设计师在减少太阳直接热量的同时，保证了充足的自然光线，并避免了温室效应。这种设计不仅赋予了建筑独特的视觉美感，更体现了对雅加达热带气候的深刻理解和积极应对。此外，该设计将场地核心的公共空间视为雕刻的巨石，并通过楼梯的设计鼓励使用，从而实现了建筑的能源效率和特色塑造之间的平衡。这种创新性的设计手法，充分展现了建筑师在可持续建筑方面的专业素养和创造力。

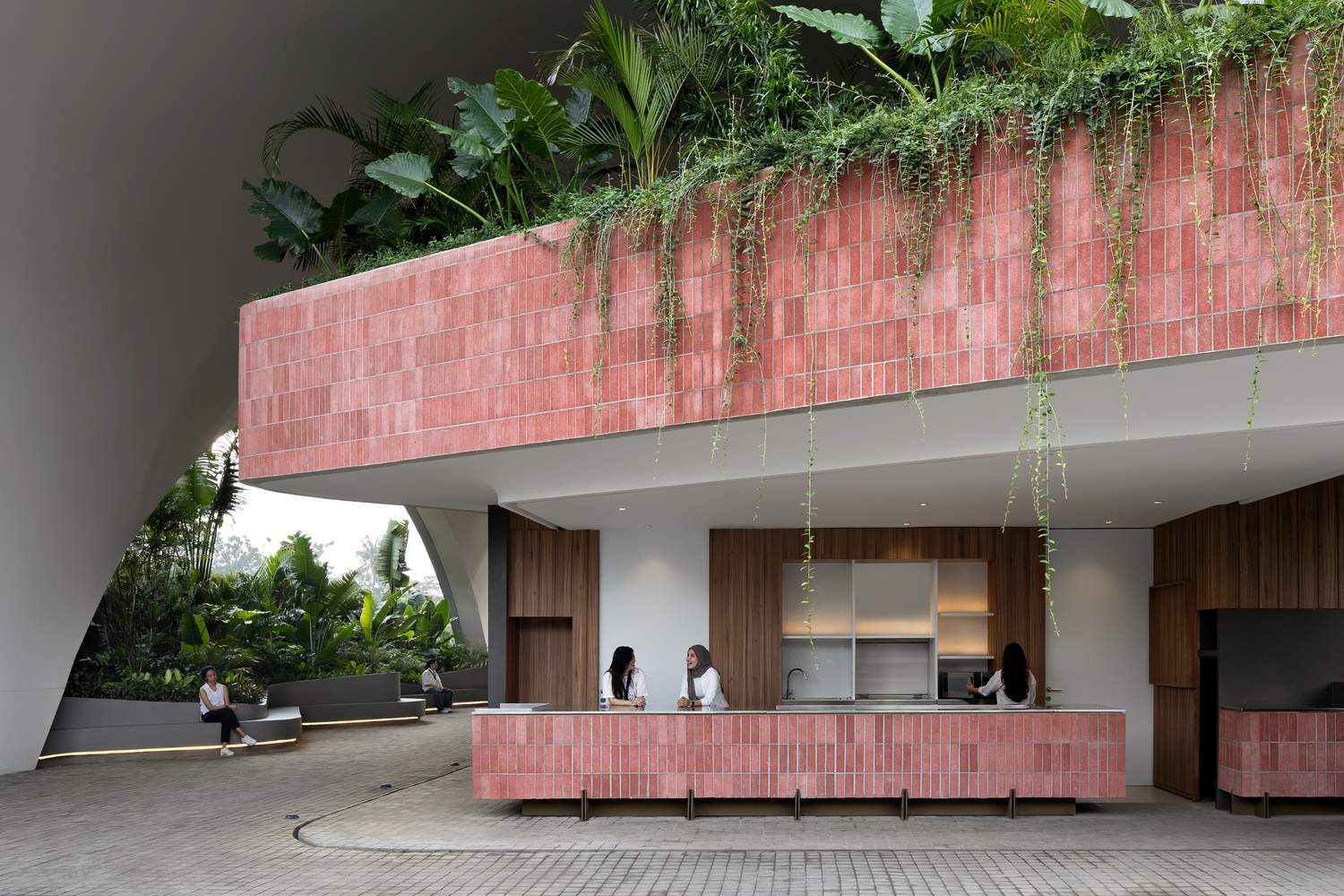

建筑师提供的文字描述。该项目旨在解决平衡两个目标的悖论：一方面保持灵活和创造性的空白可能性画布，另一方面提供安全高效的学习和工作环境。设计策略创造了三个视觉上相连的水平区域：下面是一个用于创意和社交活动的公共空间，中间是有效和可控的办公环境，上面是屋顶上灵活的公共花园活动。
Text description provided by the architects. This project aimed to resolve the paradox of balancing two objectives: maintaining a flexible and creative blank canvas of possibilities on one hand, and providing a secure and efficient learning and working environment on the other. The design strategy creates three visually connected horizontal zones: a public space for combined creative and social activities below, effective and controlled office environments in the middle, and a flexible public garden activity on the rooftop above.

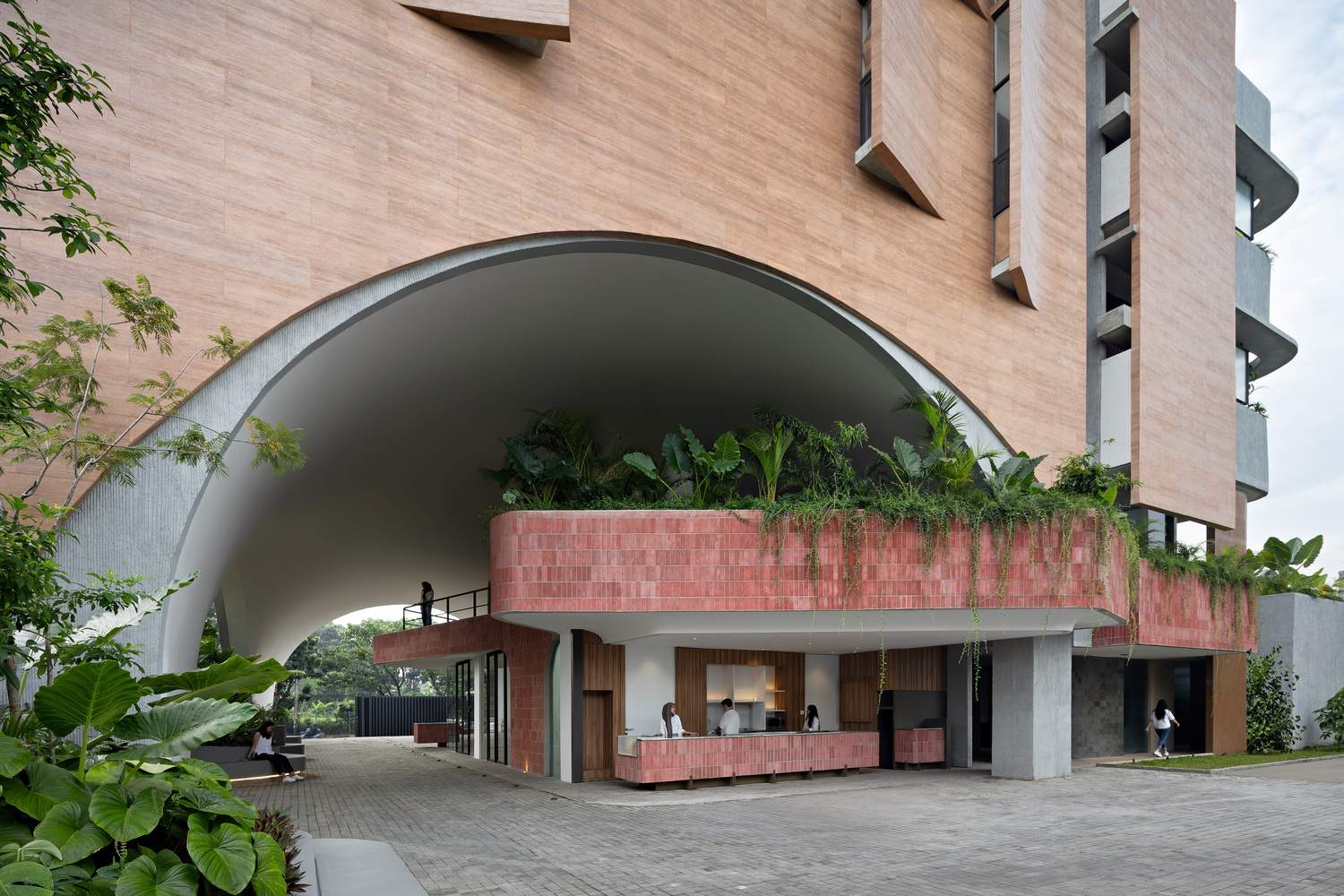

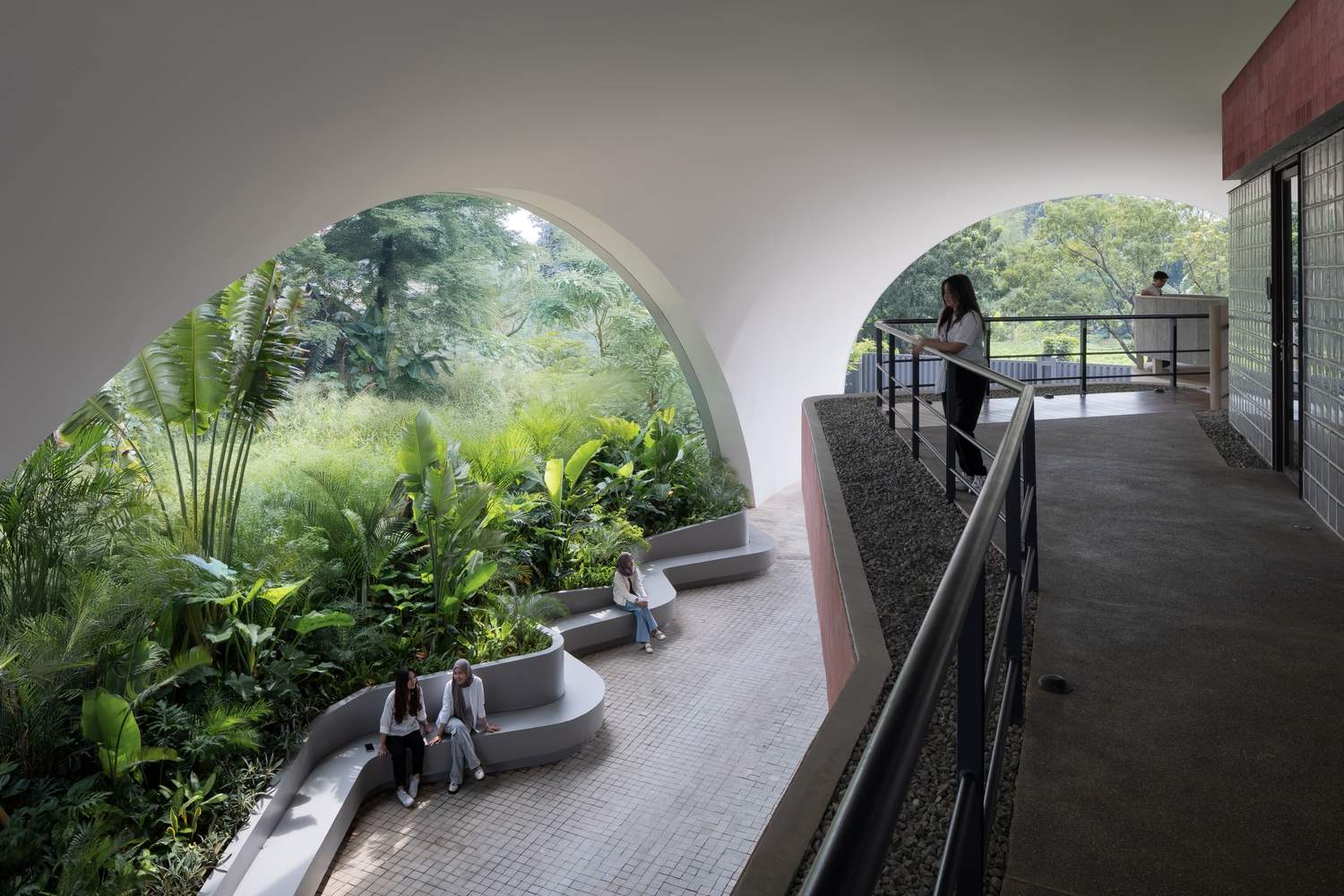

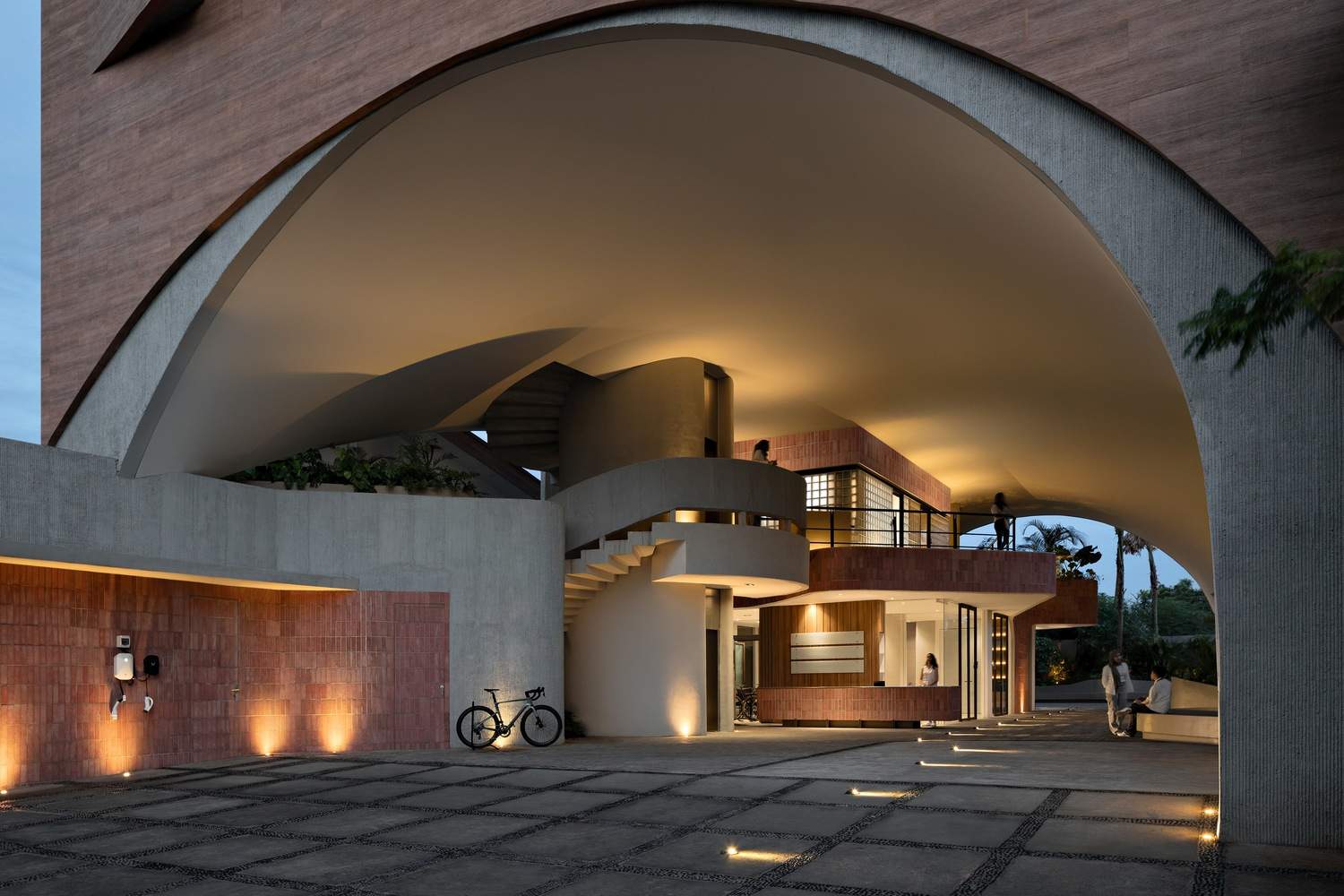

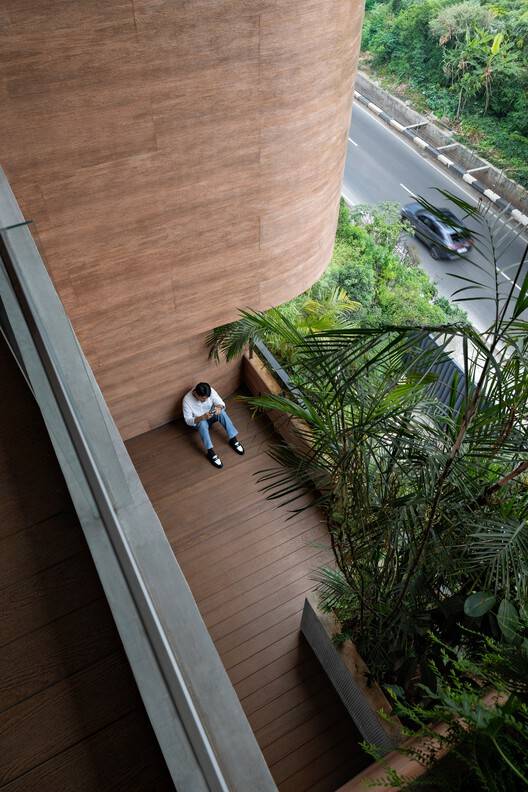

Sagehaus办公室是一个“风之圆顶”，一个反向雕刻的空间，旨在通过阴凉、有遮蔽的聚会和社交空间引导和加强雅加达的微风，为所有员工的活动创造一个愉快和安全的环境。街区之间的封闭式通风道旨在提供最大的舒适度和互动性，为各种规模的团体提供参与和放松的空间。这种风向设计已被证明是成功的，而且非常舒适，尽管雅加达湿度很高，但仍能提供持续的凉爽微风。同时，屋顶被设计成一个大型的休闲绿色屋顶和办公健身房。

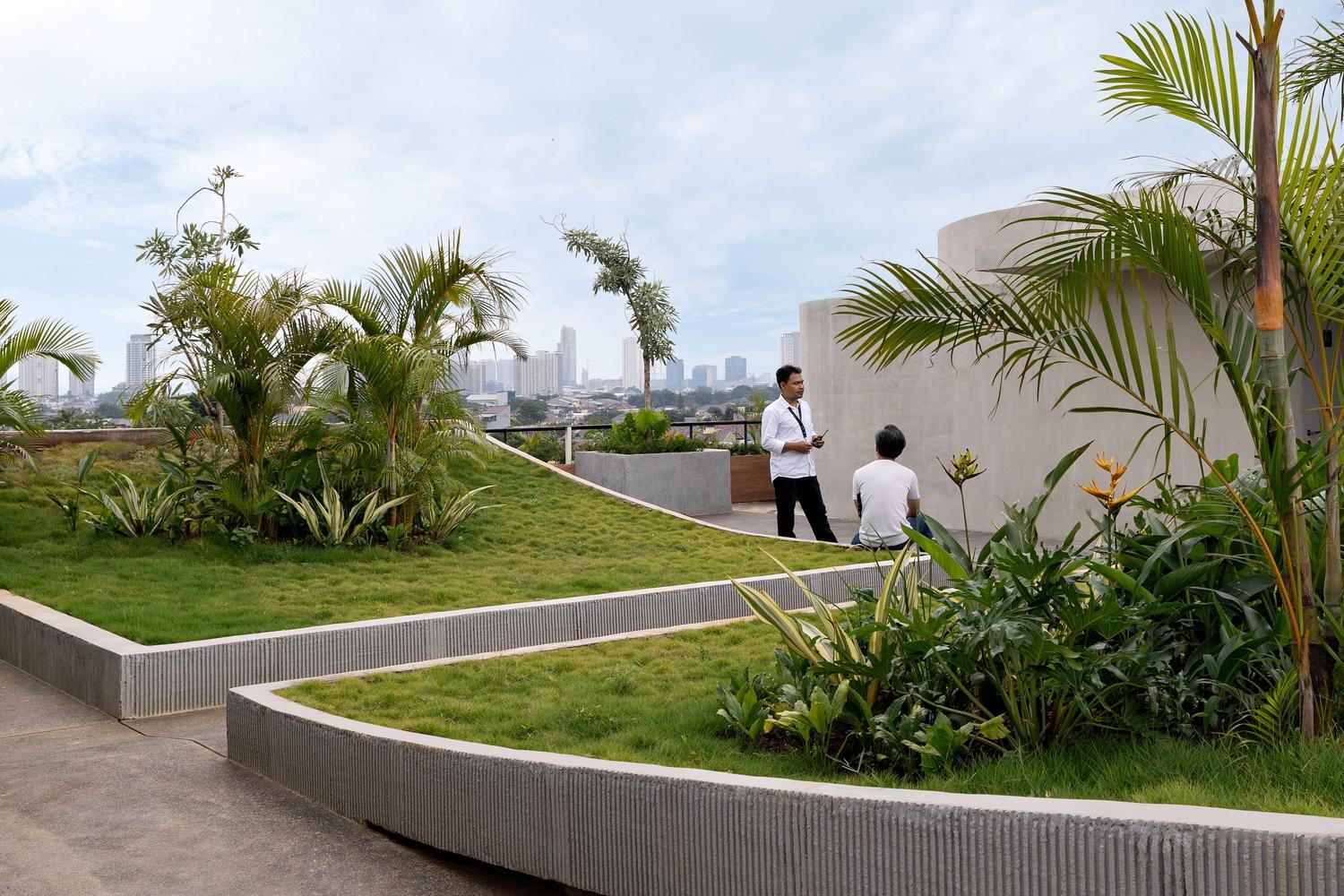

Sagehaus Office is a "Dome for Wind," a reversed carved space designed to channel and intensify Jakarta's gentle breezes through shaded, sheltered gathering and social spaces, creating a pleasant and safe environment for all staff activities. The enclosed breezeways between the blocks are designed for maximum comfort and interaction, offering spaces for groups of various sizes to engage and relax. This wind-directing design has proven to be both successful and extremely comfortable, providing constant cooling breezes despite Jakarta's high humidity. Meanwhile, the rooftop is designed as a large recreational green roof and office gym.

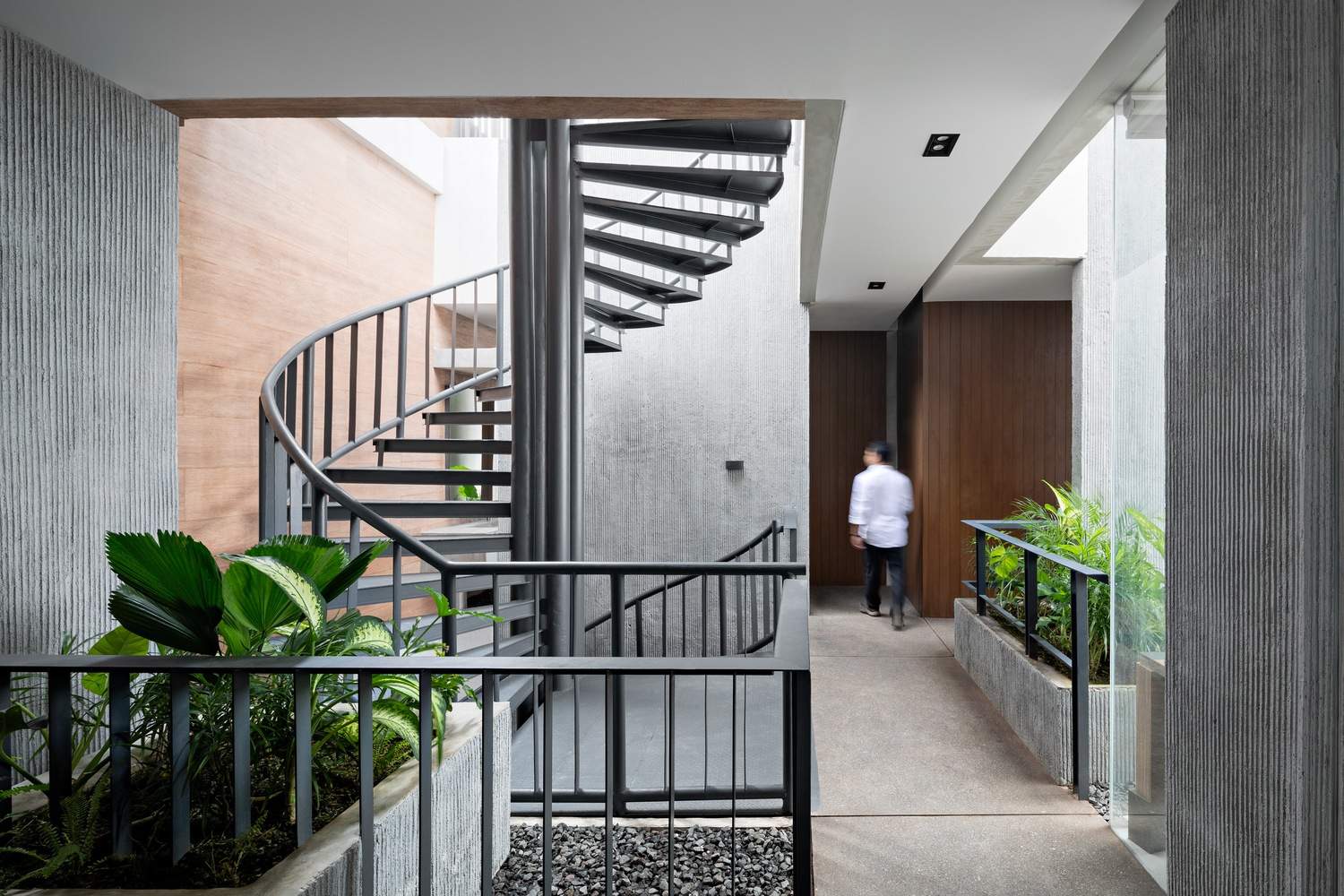

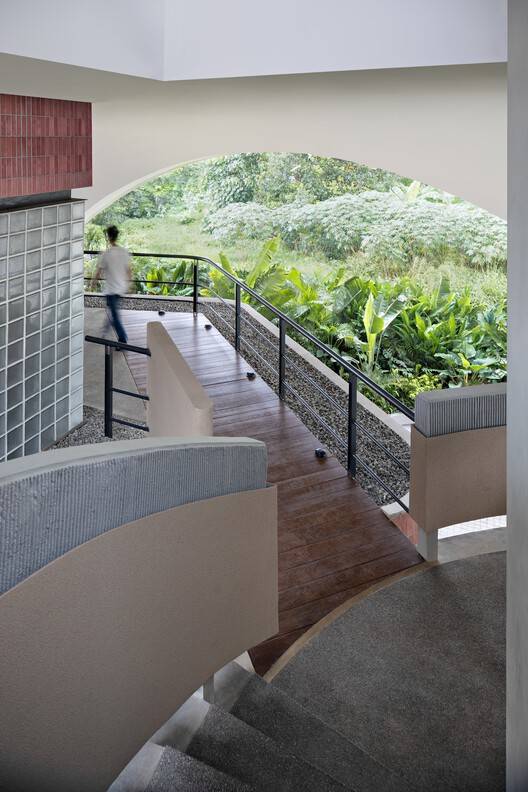

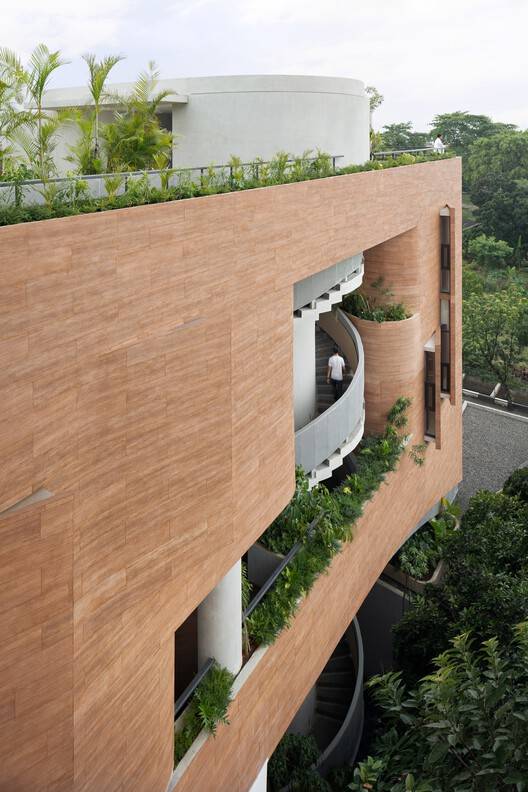

该设计试图整合建筑策略，确保高效的能源性能，同时确立建筑的特色。场地核心的公共空间被视为一块雕刻的巨石，以提供足够的热量。同时，楼梯的设计也是一个焦点，鼓励使用，并为电梯提供了一种可行的替代方案。
The design sought to integrate architectural strategies that ensure efficient energy performance while establishing the building's character. The public space at the core of the site was treated as a carved monolith to provide sufficient thermal mass. Simultaneously, the design of the staircases serves as a focal point, encouraging use and providing a viable alternative to elevators.

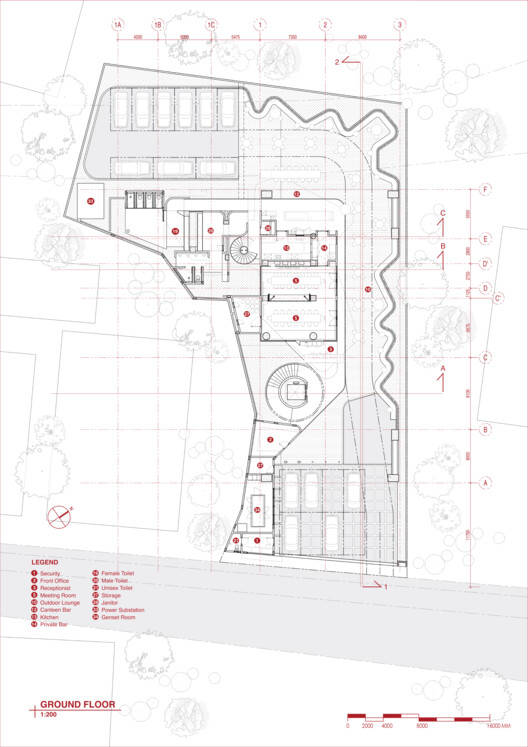

Ground Floor Plan

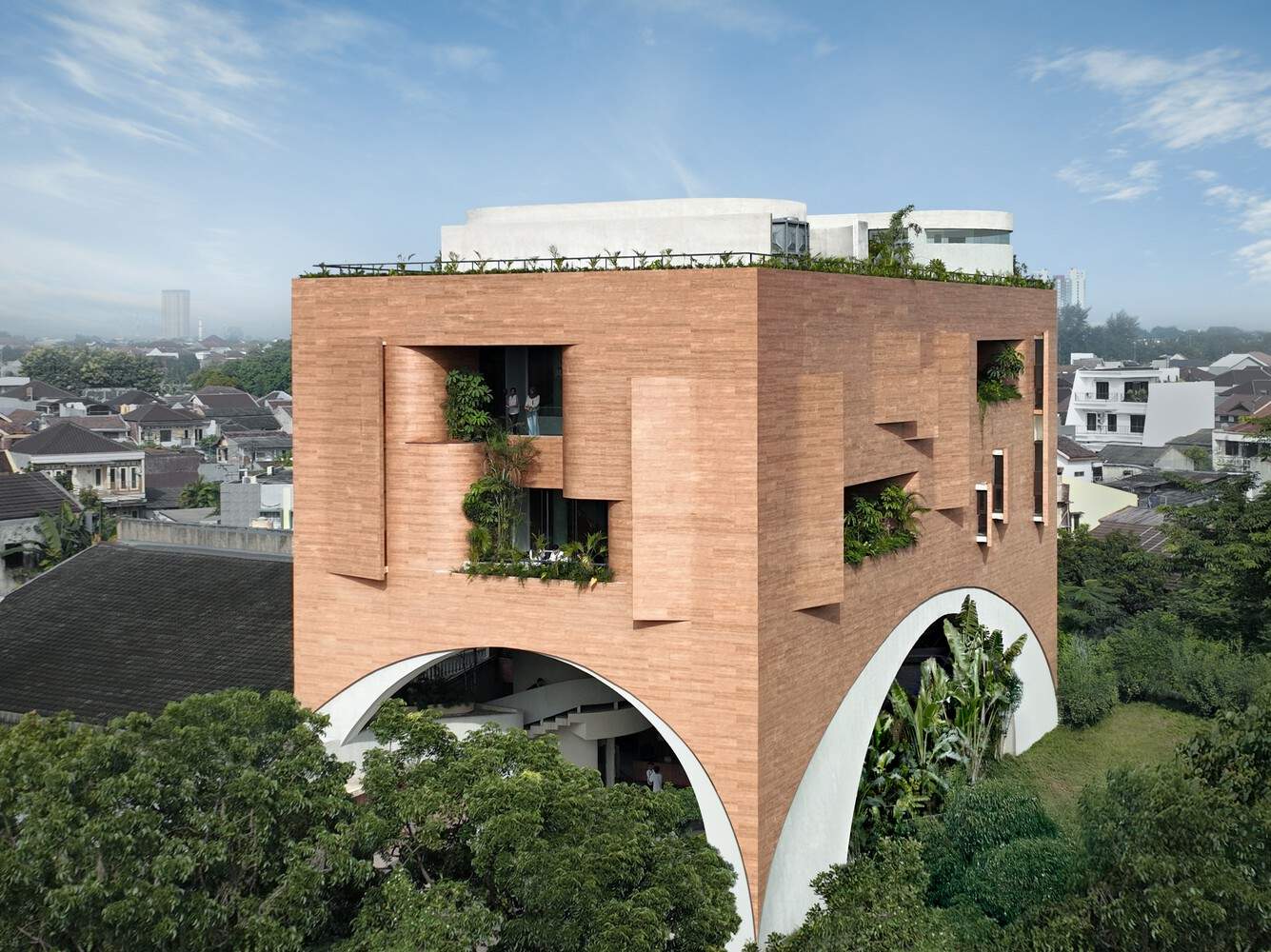

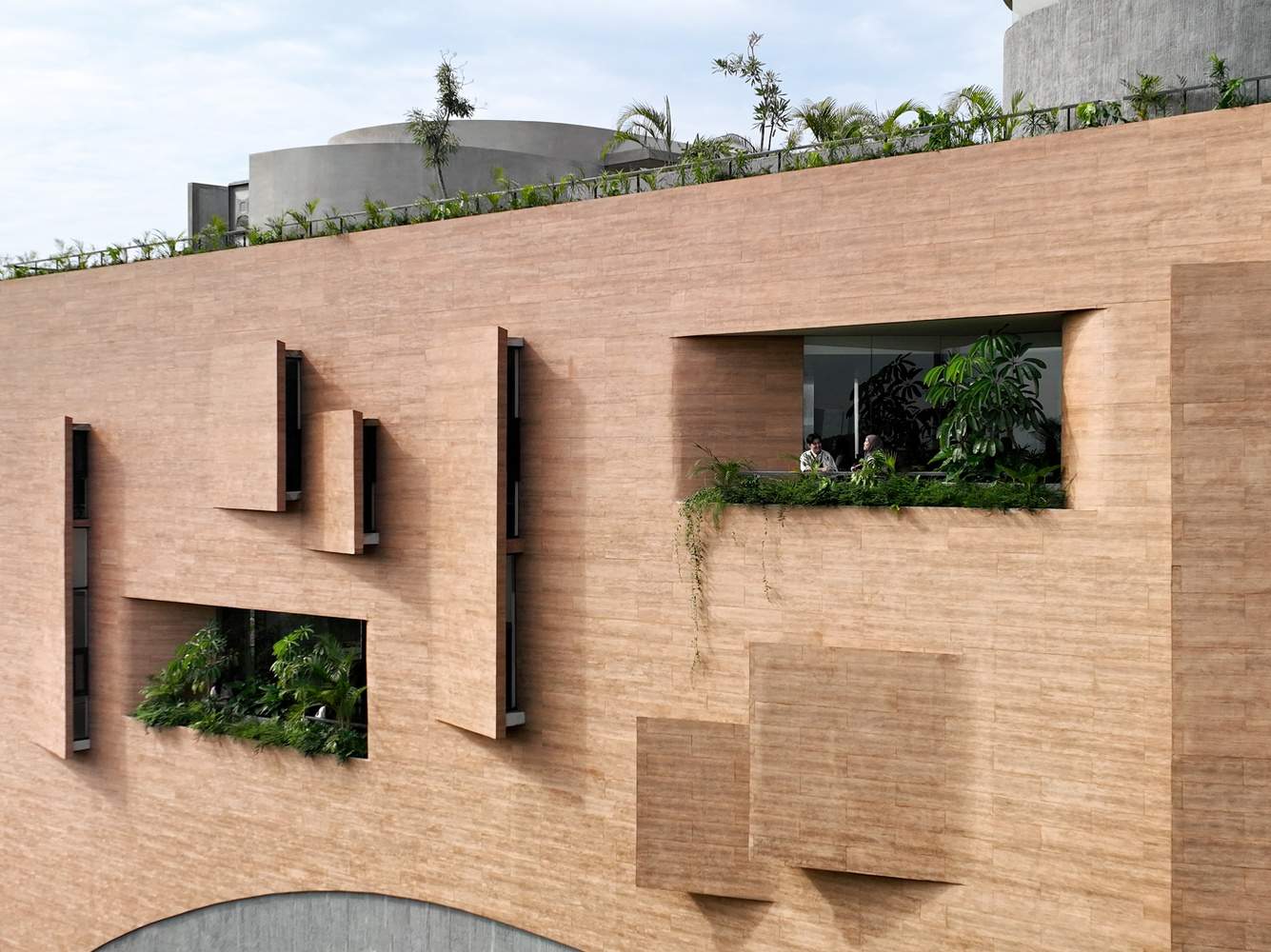

就立面而言，雕刻了大开口，以尽量减少太阳的直接热量，同时仍然允许充足的自然光穿过立面的“切片和穿孔”。所有凹进和间接开口都经过精心设计，以避免直接的太阳辐射，从而避免温室效应。
In terms of the facades, large openings were carved to minimize direct heat from the sun while still allowing ample natural light through the "slices and punctures" of the facade. All recessed and indirect openings were carefully designed to avoid direct solar radiation and, consequently, the greenhouse effect.

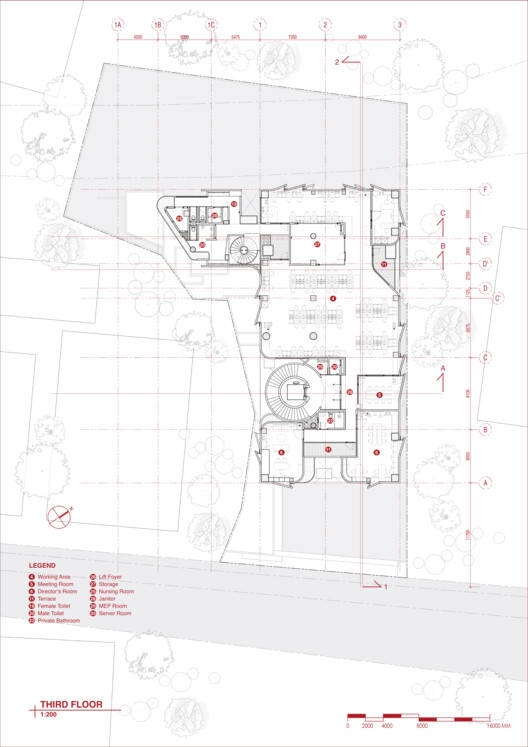

Third Floor Plan

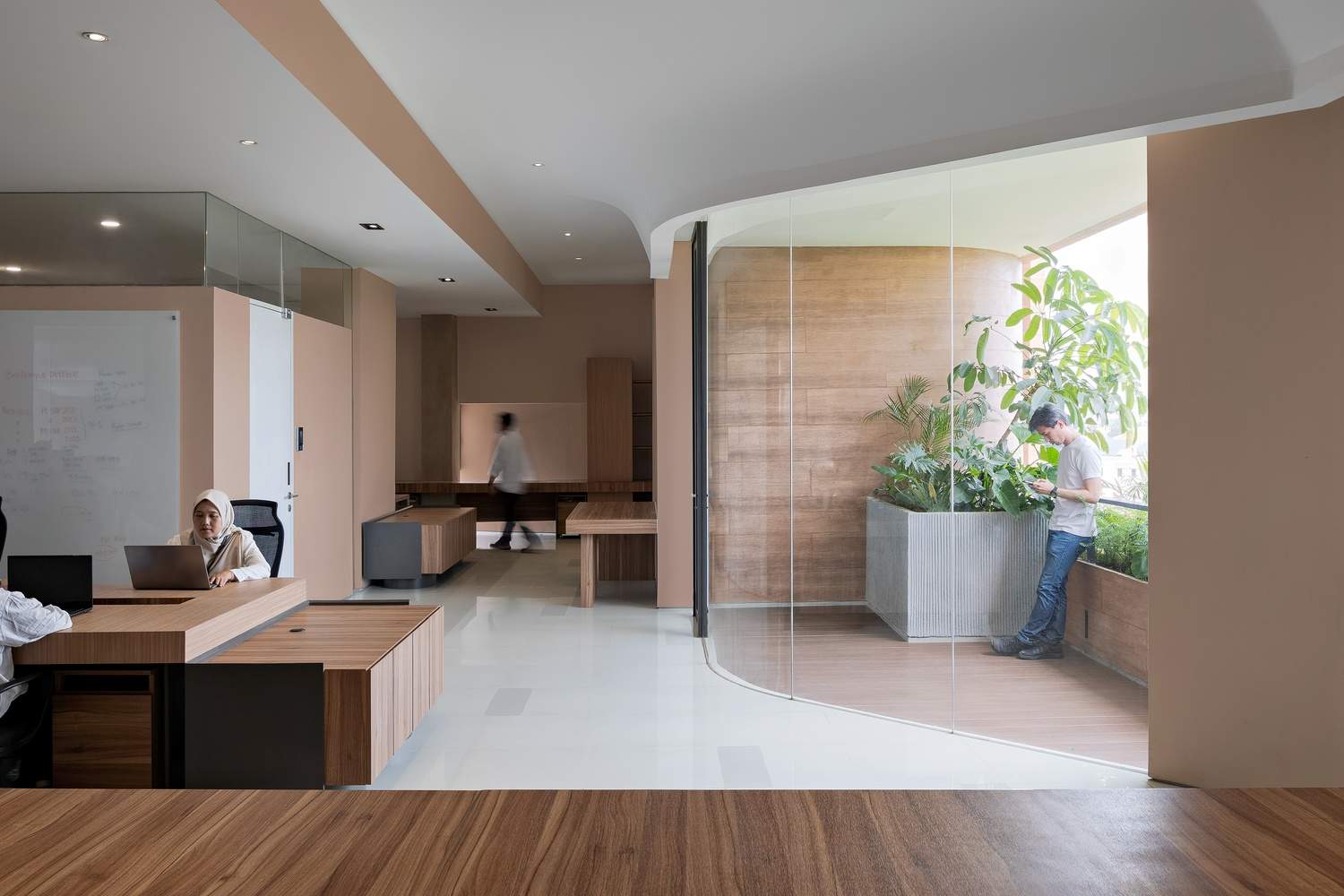

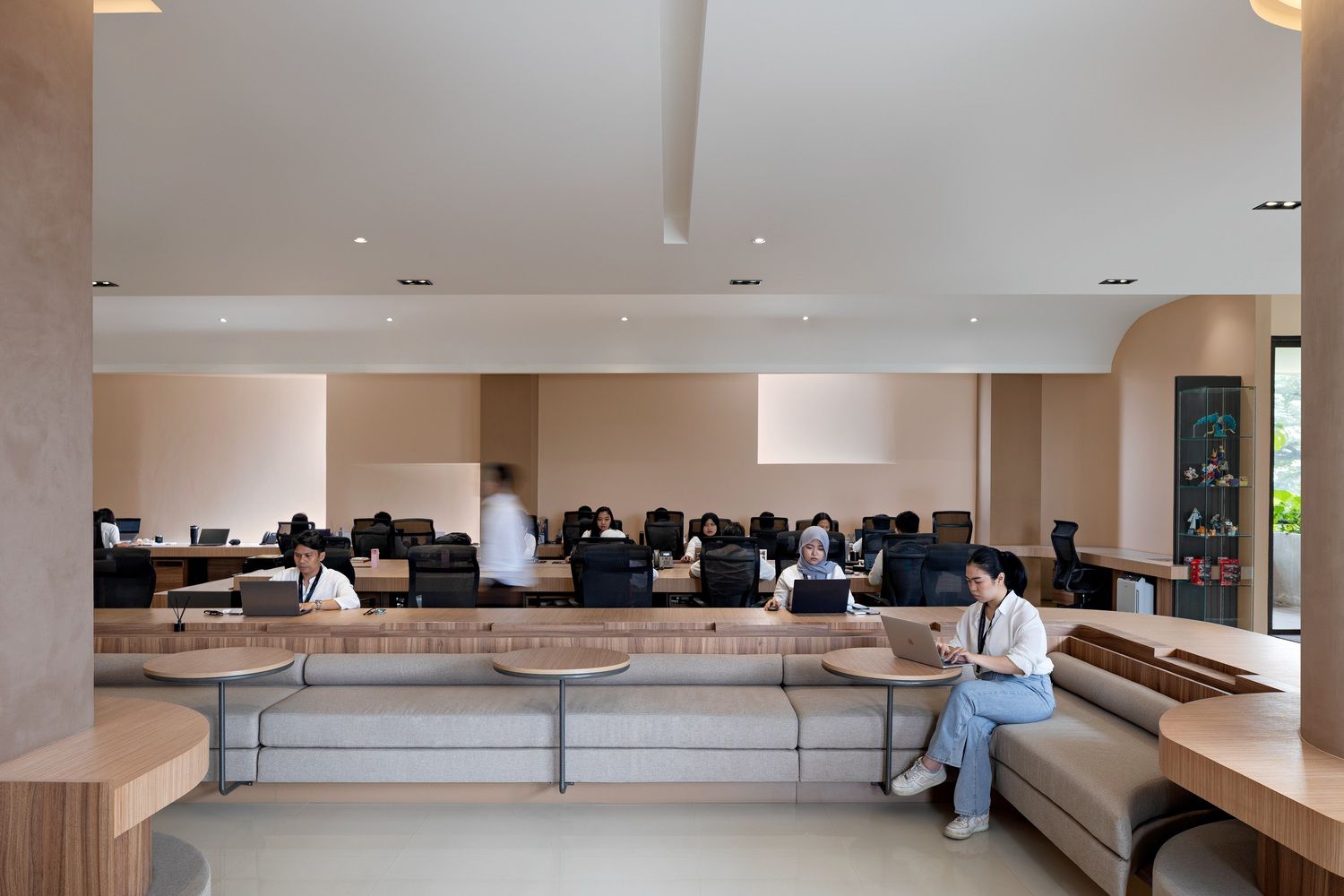

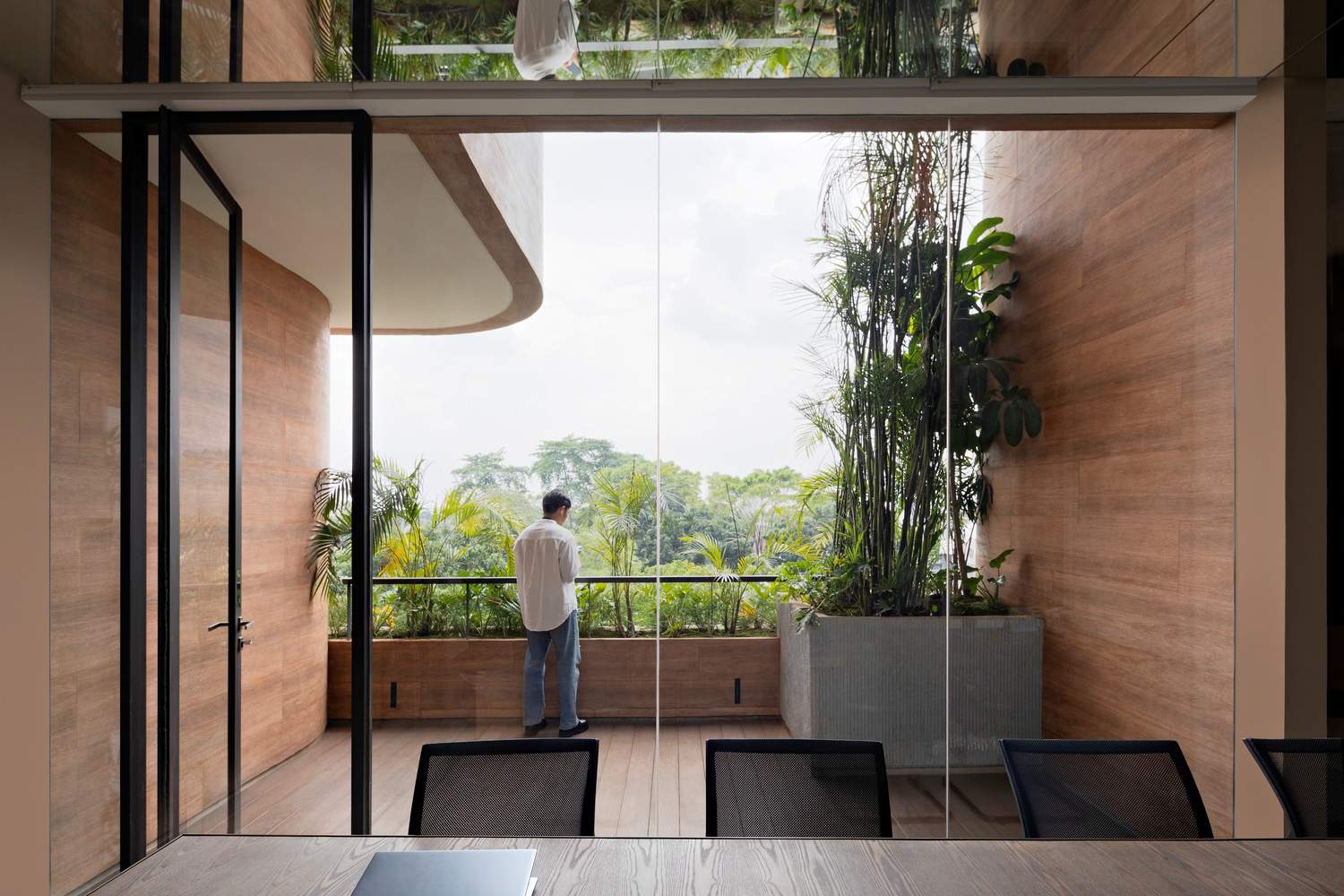

从用户功能的角度来看，混合用途设计在深处隐藏了一个高安全性的文件室，周围是灵活的开放式工作空间，两侧是一系列小型到大型的会议室，中间有一个门厅口袋花园和休闲空间。这种布局促进了每层楼的短连接，方便了从传统办公桌到建筑内的会议室、休息室和休闲空间的移动，所有这些都设计有民主的通道和不同楼层的微妙变化。所有楼层的一个一致特征是，服务和卫生间位于单独的翼楼，设计为花园厕所，以确保在热带环境中获得最佳舒适度，同时最大限度地减少能耗。
From a user functionality perspective, the mixed-use design conceals a high-security file room at the deep center, surrounded by flexible open-plan workspaces, and flanked by a series of mini to large meeting rooms, with a foyer pocket garden and casual spaces in between. This layout fosters short connections within each floor, facilitating movement from conventional desks to meeting rooms, lounges, and leisure spaces within the building, all designed with democratic access and subtle variations across different levels. A consistent feature throughout all floors is that services and restrooms are located in separate wings, designed as garden toilets to ensure optimal comfort in a tropical context while minimizing energy consumption.

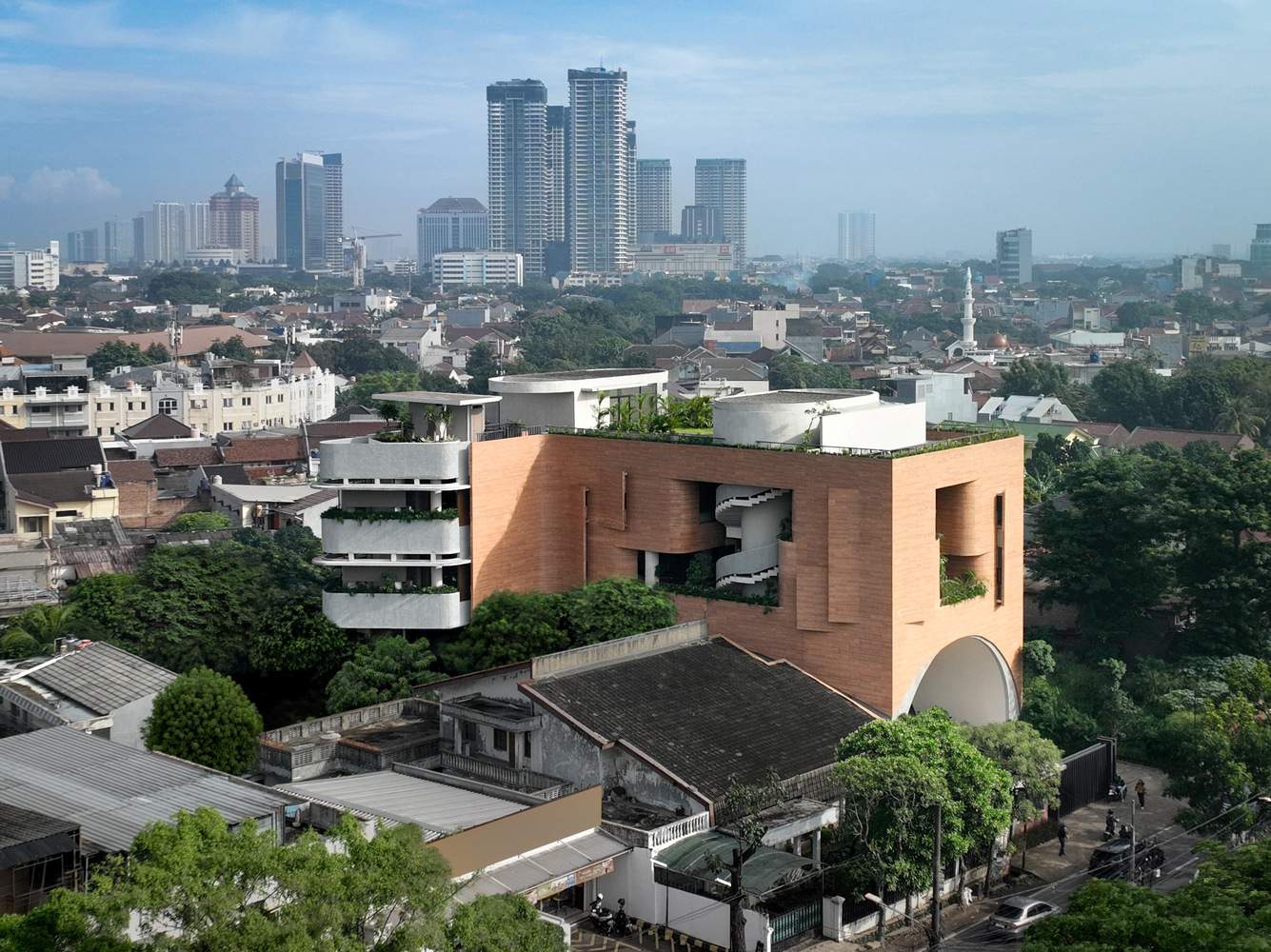

Sagehaus Office Garden是位于雅加达西部的一家专门销售运动服产品的办公室。该办公室将高密度的工作空间与各种各样的活动场所相结合。该设计为热带气候下的可持续办公室引入了一种新的范式，呈现了一个大型、密集、穿孔的城市结构，尽管其尺寸很大，但在所有区域都实现了自然光和通风。
Sagehaus Office Garden is a specialized office for athletic sportswear products located in West Jakarta. The office combines high-density workspaces with a diverse array of activity venues. The design introduces a new paradigm for sustainable offices in tropical climates, presenting a large, dense, perforated urban structure that achieves natural light and ventilation throughout all areas, despite its substantial dimensions.
