阿吉亚尔社会中心/Pereira Miguel Arquitectos
Aguiar Social Center / Pereira Miguel Arquitectos
空间组织与功能融合:该项目最显著的亮点在于其对空间组织的巧妙运用,体现了建筑师对多功能性需求的深刻理解。建筑方案通过两个不同体量的设计,在满足社交、文化和体育活动多样化需求的同时,也塑造了富有层次的空间体验。较低体量面向街道,与外界建立联系,形成开放、友好的姿态;较高体量则相对封闭,保障了体育赛事和大型活动的私密性。这种内外空间的互动,以及对不同功能区域的明确划分,使得这座社会中心能够高效地服务于当地居民。中央庭院作为连接两部分的纽带,既是入口,也是重要的社交场所,体现了建筑师对公共空间的精心营造。
材质与美学的对比与统一:建筑师在材料的选择和运用上展现出独特的审美视角。两种不同体量的外立面采用了不同的材料,形成了鲜明的对比,同时也体现了功能上的差异。较低体量采用白色石膏包层,搭配黑色阳极氧化框架,呈现出简洁、现代的风格;较高体量则采用波纹状白色金属板,营造出一种实用而富有力量感的视觉效果。这种对比不仅丰富了建筑的视觉语言,也增强了建筑的辨识度。同时,建筑师通过对开口的巧妙设计,让光线、景观与建筑融为一体,营造出舒适宜人的内部空间。这种对材料和美学的精妙掌控,赋予了建筑独特的魅力。
场地适应与可持续理念:该项目充分考虑了场地特性,体现了建筑师对可持续发展的关注。建筑师巧妙地利用了场地的高差,将较高体量设置在北侧,既保证了内部空间的完整性,又降低了建筑对周围环境的视觉影响。这种设计不仅节约了建筑成本,也减少了对自然环境的干扰。此外,建筑师还注重建筑与周边环境的融合,通过开放的南立面和面向花园的设计,将建筑与周围的绿地联系起来,为居民提供了舒适的休闲空间。这种对场地适应性、对环境的尊重,以及对可持续发展的考量,使得这座社会中心成为一个具有生命力的公共建筑。
建筑师提供的文字描述。该项目包括在Vila de Aguiar中心,更确切地说是在Rua Pedras do Lagar建造一个社会、文化和体育设施。这个多功能展馆的目的是为该地区提供一个社交中心,能够将当地和邻近居民聚集在一个空间内,进行社交和文化服务。
Text description provided by the architects. The project consisted of creating a social, cultural and sports facility in the center of Vila de Aguiar, more precisely in Rua Pedras do Lagar. The aim of this multipurpose pavilion is to provide the area with a social center, capable of bringing together local and neighboring inhabitants in a single space for socializing and cultural services.
该地点位于市区内,靠近学校,旁边有一个小花园。它交通便利,无论是开车还是步行,都是人们使用的好地方。
The site is well located within the municipality, close to the school and next to a small garden. It is well accessible, both by car and on foot, making it a good place for people to use.
建筑方案的特点是设计了两个不同的体积,在地块中间、入口区域和西侧人行道相交。较低的体量面向街道,南立面俯瞰花园和与主干道的交叉口。这容纳了最多样化的节目和地区之间的联系。它具有简单、干净的美学,朝南有一个大开口,中央庭院有宽敞的入口。其更为镂空的外观和更为内敛的高度降低了体育馆的规模,体育馆距离门槛8.5米高。第二个体积具有更刚性的性质,占据了较大的植入面积。鉴于其规模,可以举办体育赛事以及派对和活动,其位置被确定在最北端。在那里,由于土地的坡度,可以与边缘保持一定距离并降低外部高度。
The architectural proposal is characterized by the design of two different volumes that intersect in the middle of the plot, in the entrance area, on the west sidewalk. The lower volume fronts the street and the south façade overlooks the garden and the intersection with the main road. This houses the most varied program and the connections between areas. It has a simple, clean aesthetic with a large opening to the south and generous entrances in the central courtyard. Its more cut-out appearance and more restrained height reduce the scale of the sports hall, which is 8.5m high from the threshold. This second volume, of a more rigid nature, occupies a large implantation area. Given its volume, which will allow sports events to be held, as well as parties and events, its location was defined in the northernmost area. There, it is possible to keep a distance from the edges and reduce the height outside, due to the slope of the land.

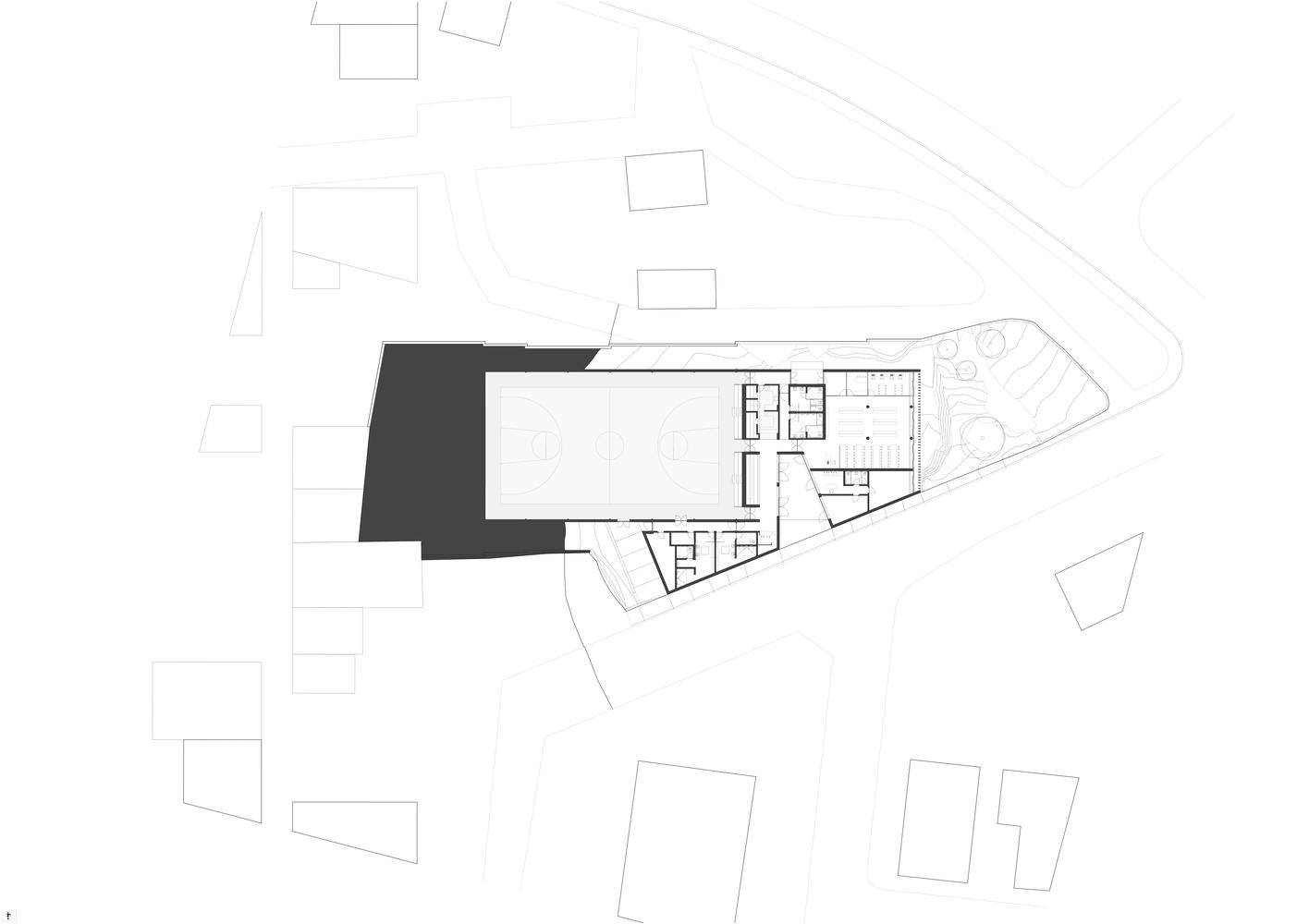

Planta - Térreo

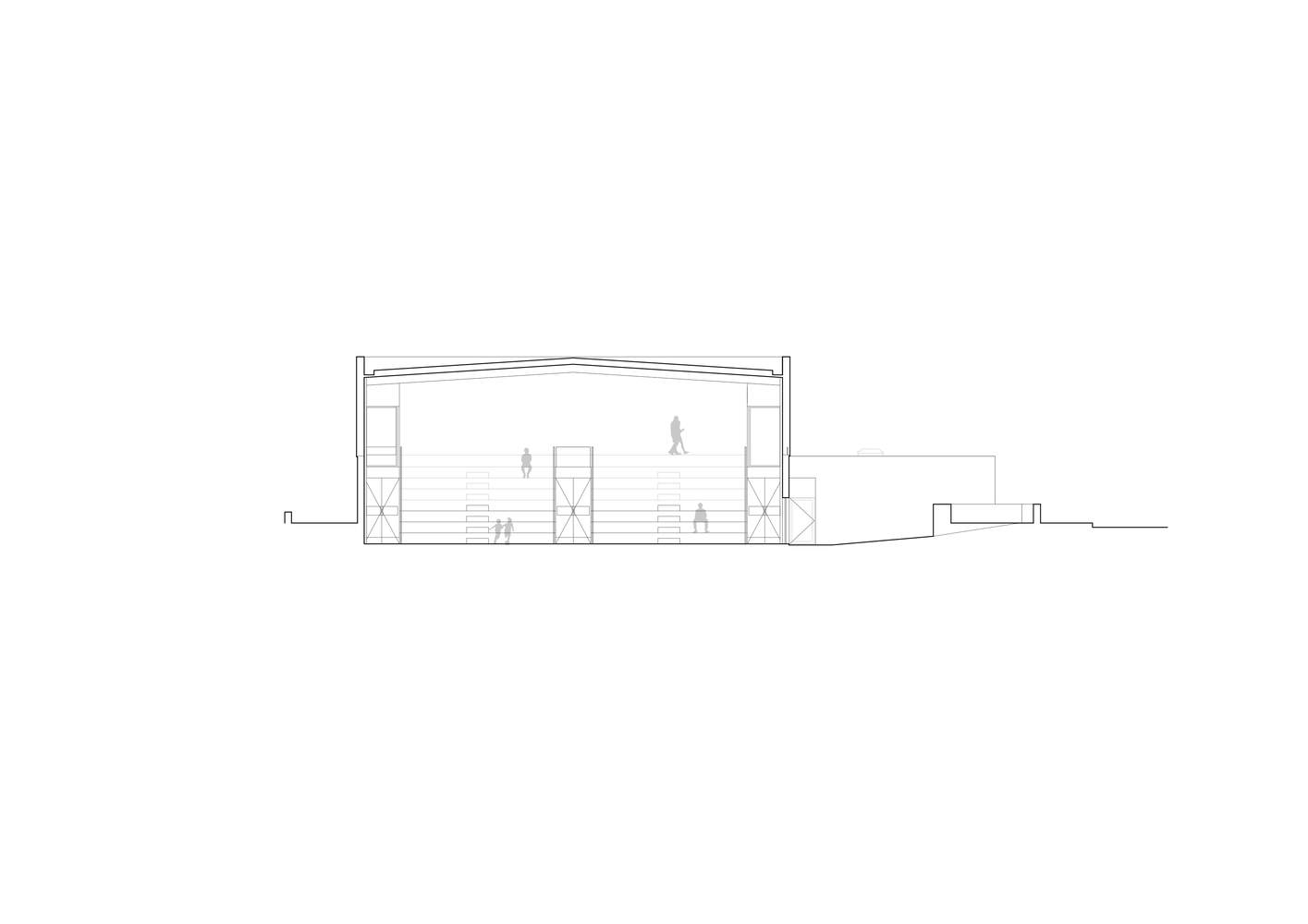

Cortes

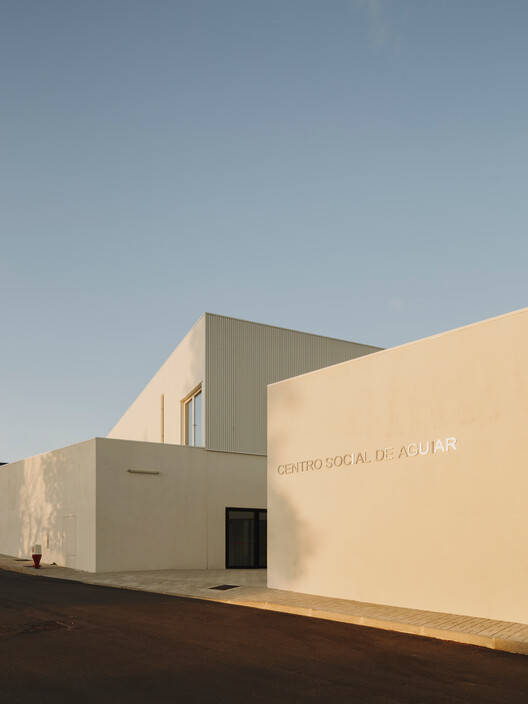

由于两卷的程序和尺寸不同,它们的构造方法和外部美学也不同。下部有一个白色的石膏包层,有一个平屋顶和由黑色阳极氧化框架标记的开口。最上面的部分几乎是“盲”的,只有很少的开口(只有北面),内部长凳旁边有两个阳台。从4米的高度开始,它被波纹状的白色金属板覆盖,使其具有更实用的美感。
As the two volumes have different programs and dimensions, their construction methods and exterior aesthetics are also different. The lower part has a white plaster cladding, with a flat roof and openings marked by black anodized frames. The uppermost volume is practically "blind", with few openings (only to the north) and two balconies next to the interior benches. From a height of 4m, it is clad in corrugated white sheet metal, giving it a more functional aesthetic.
