School of Public Health / Allies and Morrison

空间布局的协作性与灵活性：该项目最令人印象深刻的亮点在于其对协作和灵活性的深刻理解。建筑师在设计中充分考虑了公共卫生学院的需求，将空间设计成可以根据不同功能、工作方式和研究小组进行灵活调整的模式。7.8m x 7.8m的标准单元模块化设计，使内部布局极具弹性，能够适应从大型开放空间到小型办公室的各种需求。此外，建筑核心向南推进的设计，最大限度地利用了自然采光，减少了眩光，为使用者创造了舒适的工作环境。这些设计决策都体现了建筑师对未来使用的深思熟虑，确保了空间能适应不断变化的需求，促进跨学科的交流与合作。

城市文脉的巧妙回应与平衡：该项目在城市文脉的应对上展现出巧妙的平衡。建筑师充分考虑了项目所处的位置，以及与周围环境的关系。建筑在伍德巷的维多利亚式露台和南侧的高层住宅楼之间，在高度上做了精妙的协调，避免了突兀感，融入了周边环境。北立面开放透明，面向城市，而南立面则采用了阶梯式设计，保护了使用者隐私。建筑入口位于横跨北立面的柱廊中心，并面向校园中心的小广场，清晰地定义了入口，展现了对来访者的尊重。这种设计策略使建筑既融入了城市肌理，又强调了自身的存在感，体现了建筑师对城市设计的深刻理解。

材料运用与色彩的和谐统一：在材料运用和色彩搭配方面，该项目也展现了卓越的设计理念。建筑外立面采用了淡赤陶色金属覆层与白色预制混凝土面板的组合，赋予了建筑独特的视觉魅力。室内则运用现浇清水混凝土和道格拉斯冷杉，营造出简洁、现代的氛围。深红色的隔音板、涂漆门、瓷砖等细节，与建筑的整体色调保持和谐统一，形成了一种富有层次感和品质感的视觉体验。这种对材料和色彩的精心选择与搭配，不仅提升了建筑的美观性，也强调了建筑的实用性，营造了舒适宜人的工作和学习环境。

建筑师提供的文字描述。帝国理工大学新的公共卫生学院位于该大学白城校区的一个关键地点。该建筑专为学者、研究人员、学生和公共卫生专业人员而设计，为学校在医疗保健、卫生政策和流行病学方面的多学科工作提供了教学、研究和社区外展空间。医学理解的进步源于工作伙伴关系，当从业者和研究人员可以比较和验证数据、测试研究结果并共同开发资源时。因此，公共卫生学院设计的核心是促进与空间的共享和协作，这些空间可以根据一系列功能、工作实践和研究小组进行塑造和重组。
Text description provided by the architects. The new School of Public Health at Imperial occupies a key site on the university's White City campus. Designed for academics, researchers, students and public health professionals, the building provides a mixture of teaching, research and community outreach space for the school's multidisciplinary work in healthcare, health policy and epidemiology. Advances in medical understanding derive from working partnerships, when practitioners and researchers can compare and validate data, test research findings and develop resources together. At the heart of the School of Public Health's design therefore is a drive to facilitate sharing and collaboration with spaces that can be shaped and reorganised to suit a range of functions, working practices and research groups.

学校有十层楼（加上屋顶植物）。目前的配置在3-7层提供3230平方米的办公、研究和社区参与空间，在1层和2层提供教学空间。地下室用于存放自行车和植物。地板围绕标准隔间尺寸设计，便于内部重新布置。每个隔间为7.8m x 7.8m，可以安排提供从大型开放空间到小型蜂窝办公室的一切。通过将建筑的核心向南推进，在每一层典型的楼层上都创造了采光良好、眩光最小的大型灵活空间。每层楼都有提供员工和学生便利设施以及非正式社交空间的区域。为了保护隐私，南立面是阶梯式的，朝东的窗户被隐藏起来，以避开对面的住宅楼。相比之下，朝北的立面是开放透明的。在一楼，从接待区到宽敞的采光楼梯间的景色有助于寻路，并符合公共卫生愿望，鼓励积极流通。同样在一楼，一个灵活且可分割的85平方米的空间用于社区使用和外展，将学校这一重要的工作成果公之于众，从繁忙的Wood Lane街上清晰可见。

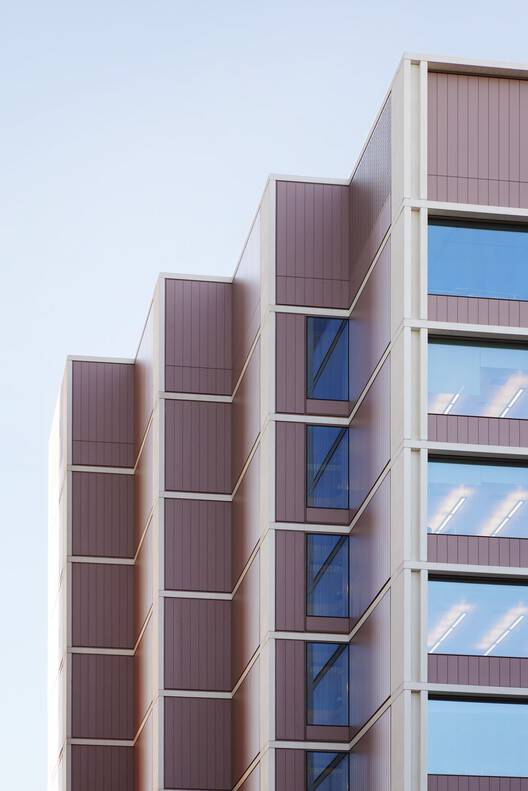

The School is organized over ten floors (plus roof plant). The current configuration provides 3230 sqm of office, research and community engagement space over floors 3-7, with teaching space on floors 1 and 2. A basement accommodates cycle storage and plant. Floor plates are designed around a standard bay size for simple internal rearrangement. Each bay is 7.8m x 7.8m and can be arranged to provide everything from large open space to small cellular offices. By pushing the building's core to the south, large flexible spaces with good daylight and minimal glare have been created on each typical floor. There are also areas on each floor providing staff and student amenity and informal social space. For privacy, the south facade is stepped, with east-facing windows concealed to turn away from the residential building opposite. The north-facing facade by contrast is open and transparent. On the ground floor, views through from the reception area to the generous daylit stairwell aid wayfinding and, in line with public health aspirations, encourage active circulation. Also on the ground floor, a flexible and divisible 85 sqm space for community uses and outreach puts this important strand of the School's work on public display, clearly visible from and addressing the busy Wood Lane street.

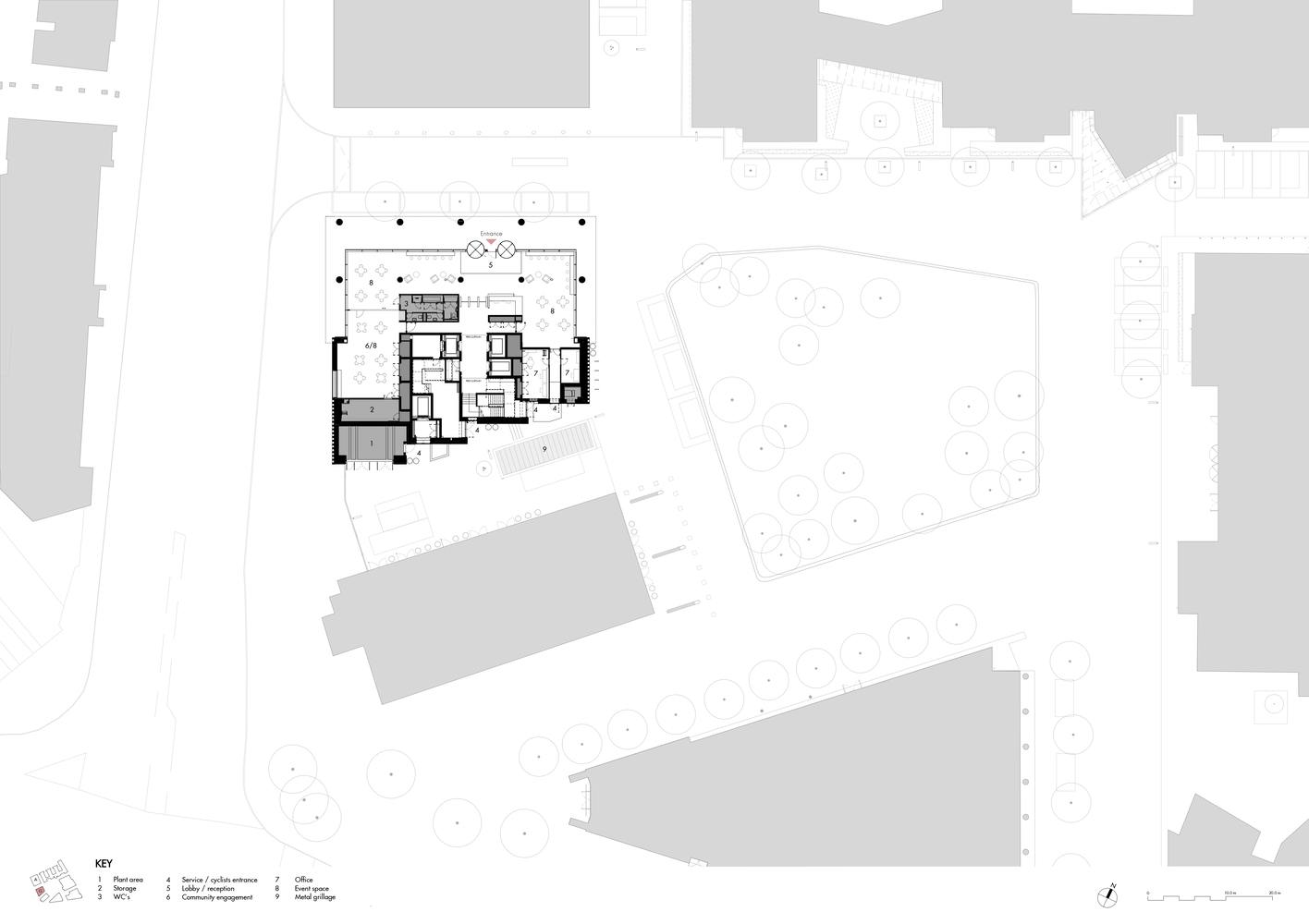

Ground Floor Plan

位置和校园角色-公共卫生学院距离哈默史密斯医院校园仅8分钟步行路程，该建筑在城市中扮演着重要角色，为从北方来的游客提供服务，并标志着他们抵达帝国白城北校区。建筑入口位于横跨北立面的柱廊中心，而在其东侧，它面向校园中心的小广场。学校的高度为10层，介于伍德巷维多利亚式露台的规模和南面伍德巷88号的高层住宅楼之间。

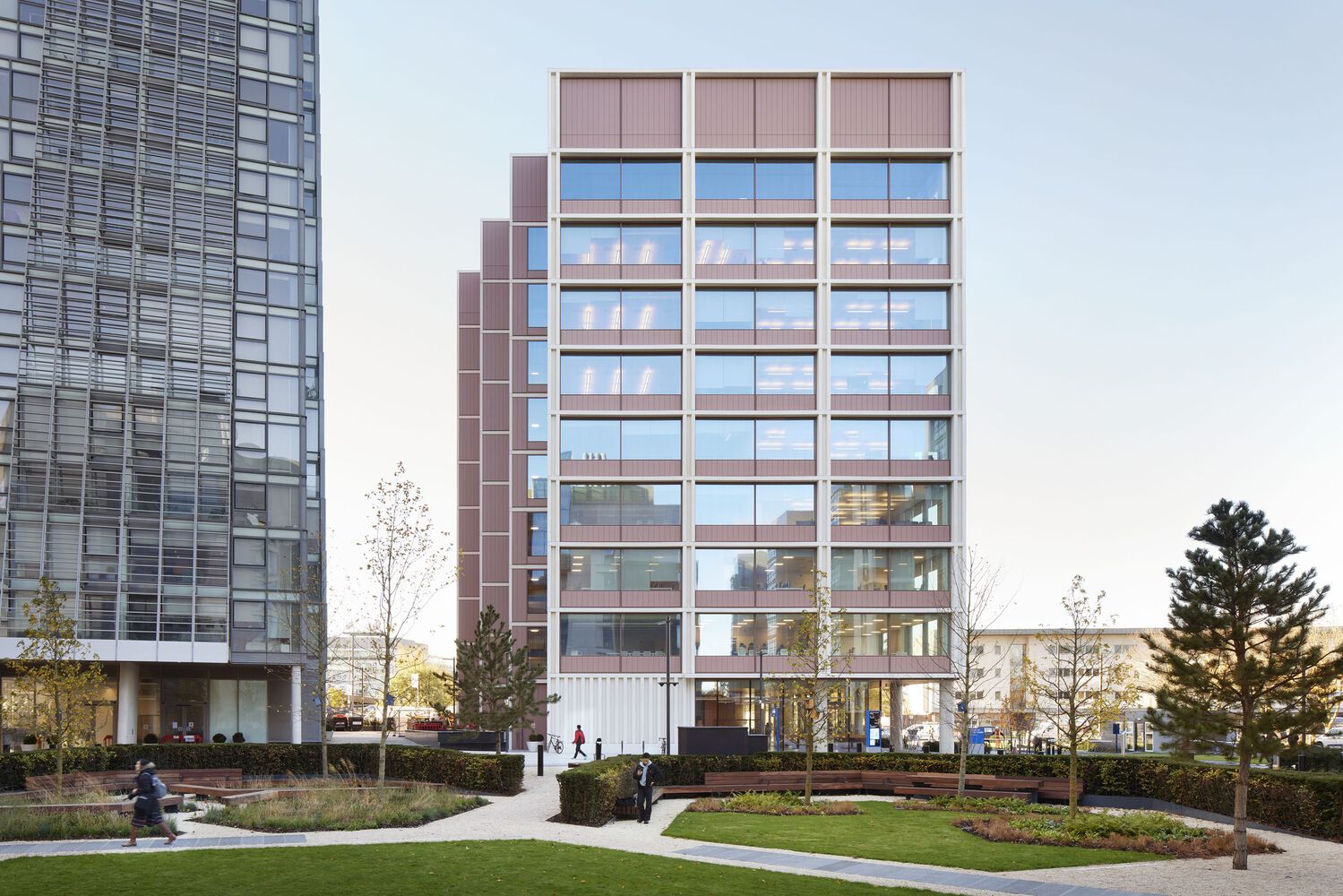

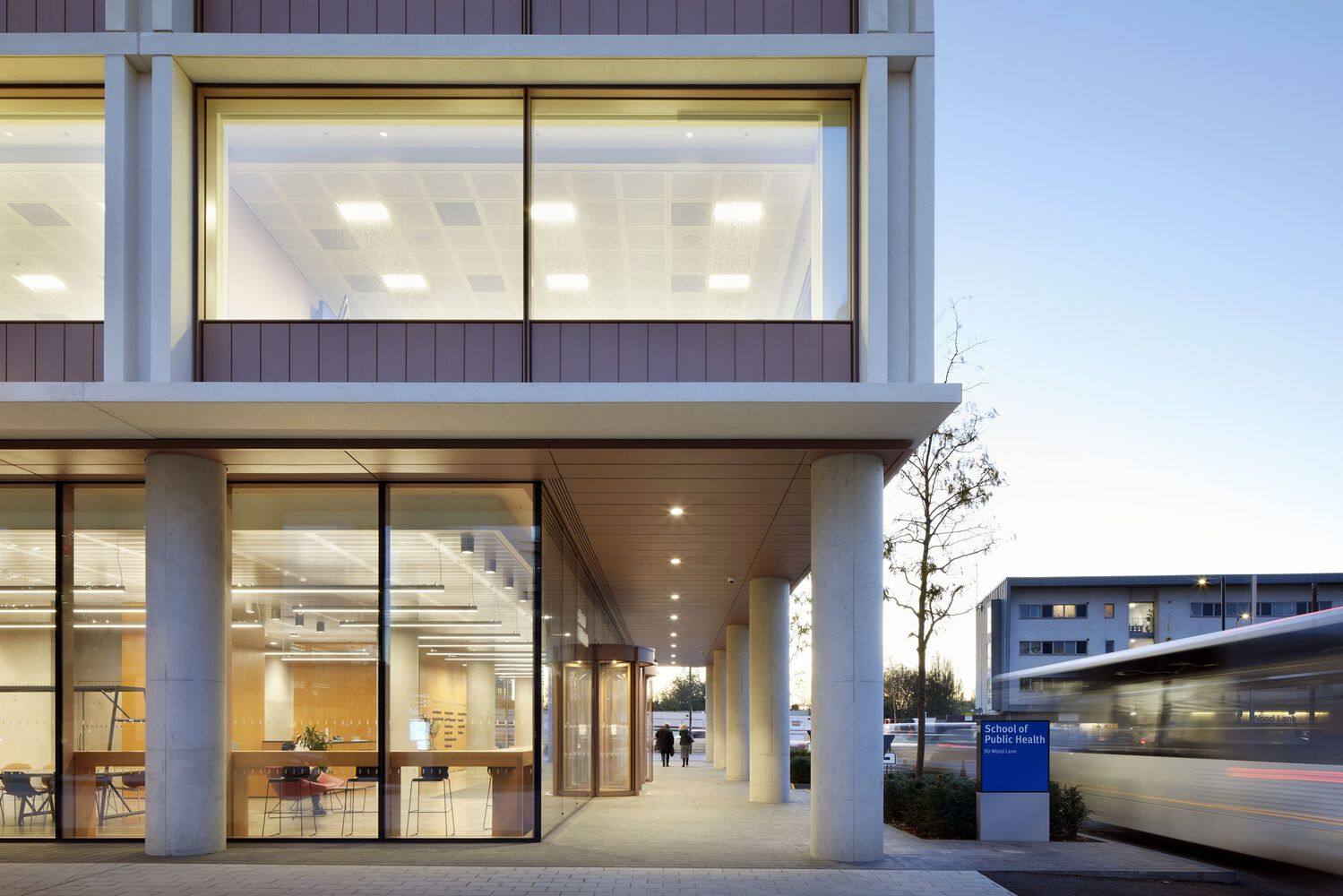

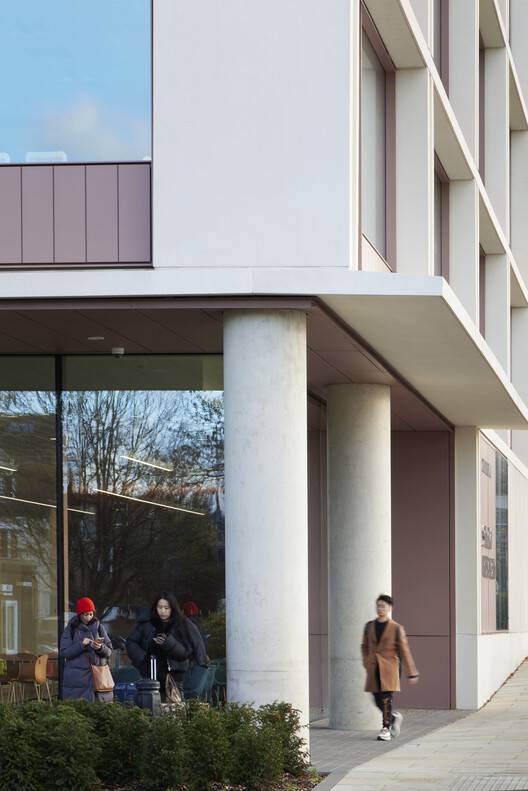

Location and Campus Role - The School of Public Health is only an eight minute walk from Hammersmith Hospital Campus, and the building plays an important urban role, addressing visitors approaching from the north and marking arrival at the Imperial White City North Campus. The building entrance is located at the centre of a colonnade spanning the north elevation, while on its eastern side it addresses the small square at the heart of the campus. At 10-storeys, the School's height mediates between the scale of Victorian terraces on Wood Lane and the high-rise residential tower of 88 Wood Lane to the south.

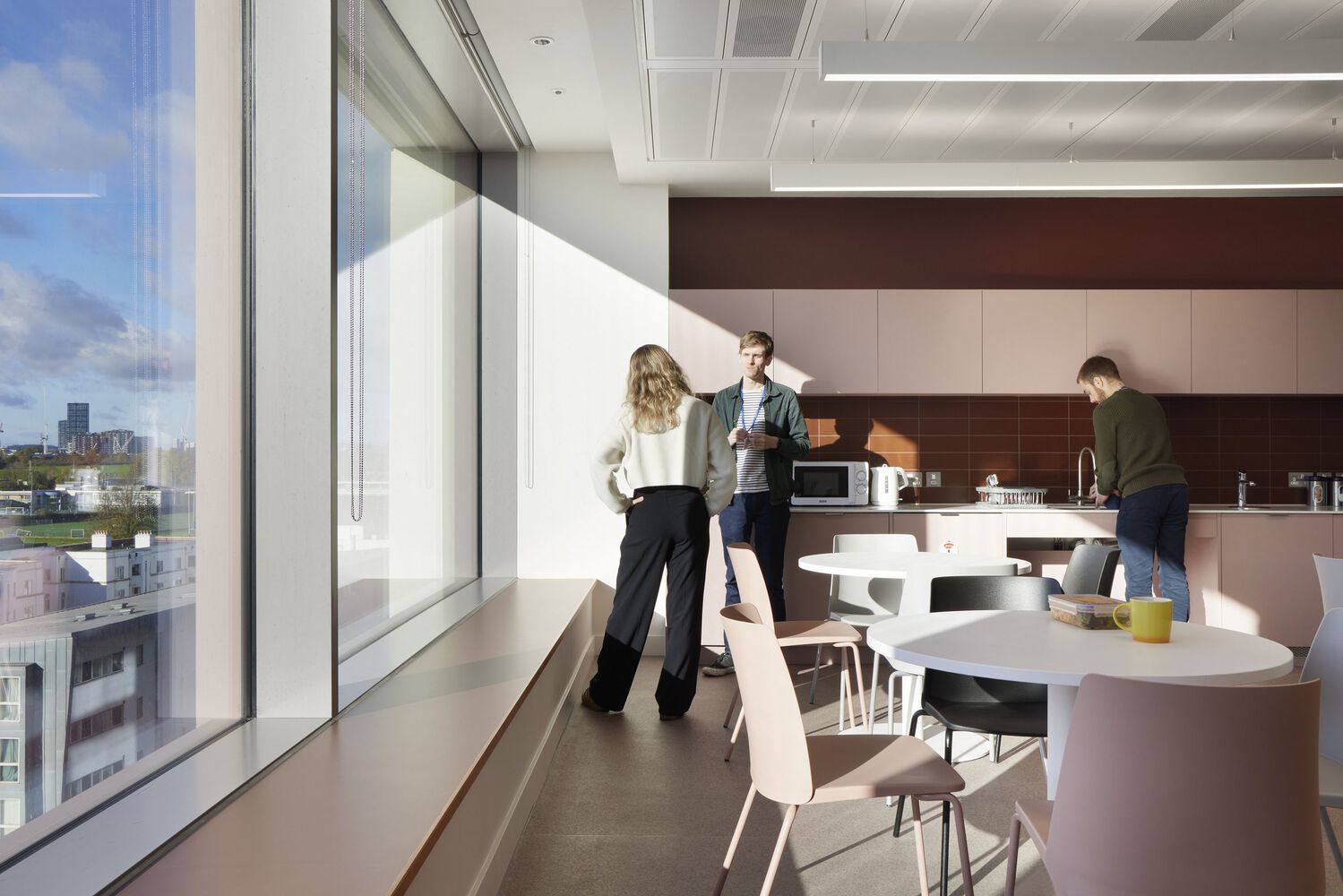

材料调色板-该建筑采用坚固的外露饰面和一系列颜色。建筑外部采用淡赤陶色金属覆层，带有砂纹饰面，与白色预制混凝土立面面板一起使用。内部采用现浇清水混凝土和道格拉斯冷杉，是接待区和主流通楼梯的特色。深红色的隔音板和涂漆门，以及小厨房和流通空间、卫生间和淋浴间的瓷砖和其他饰面，都体现了这一色彩主题。

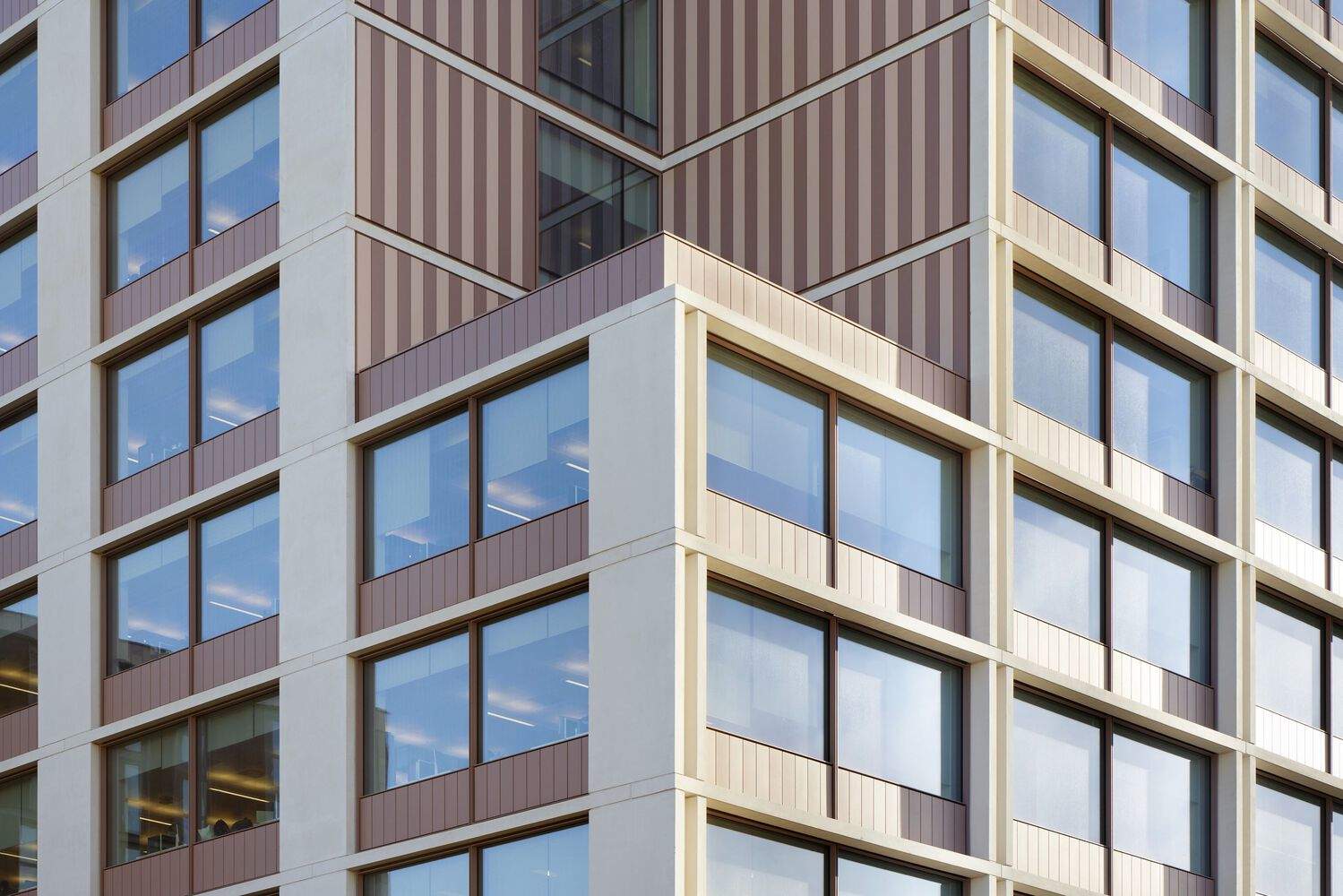

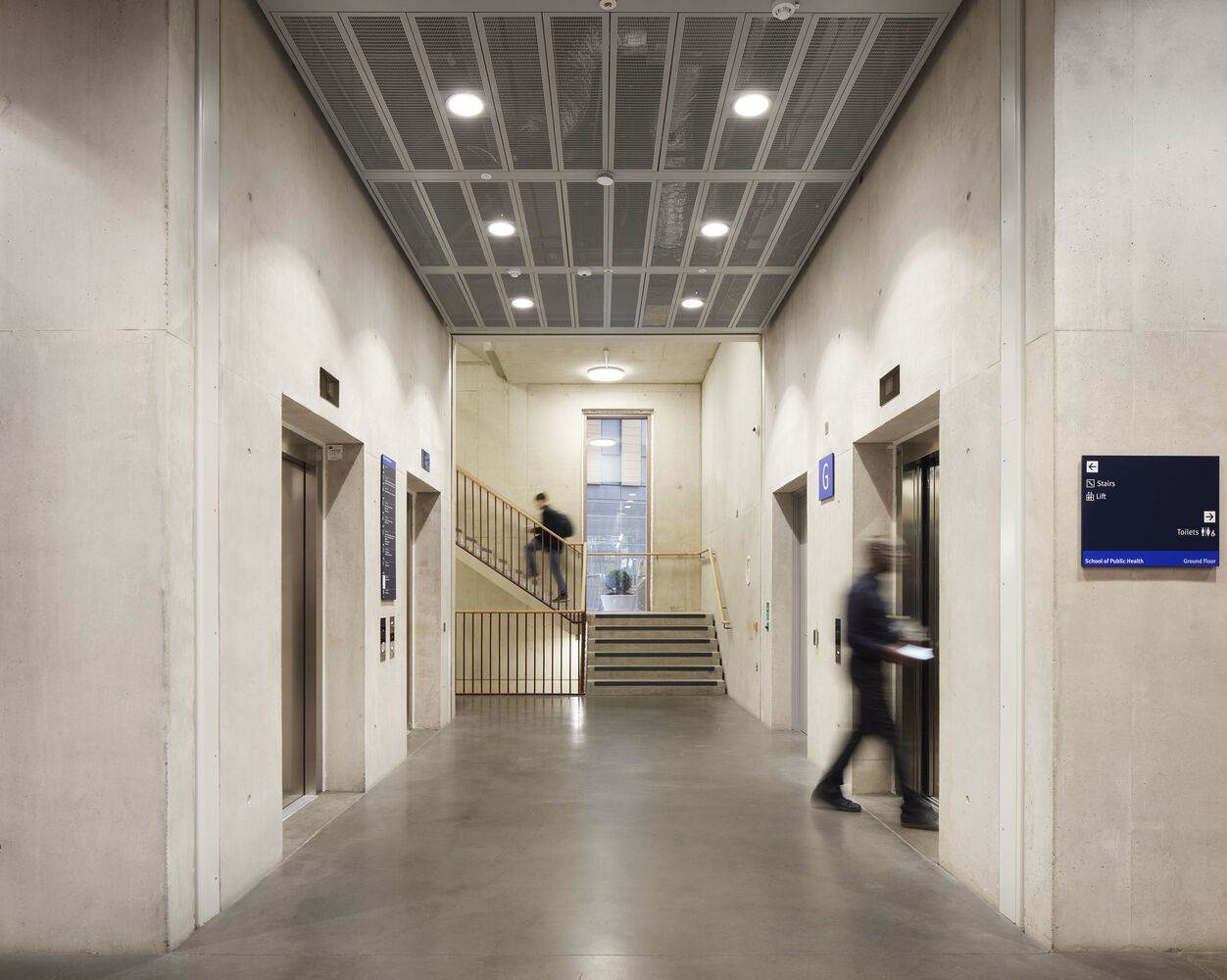

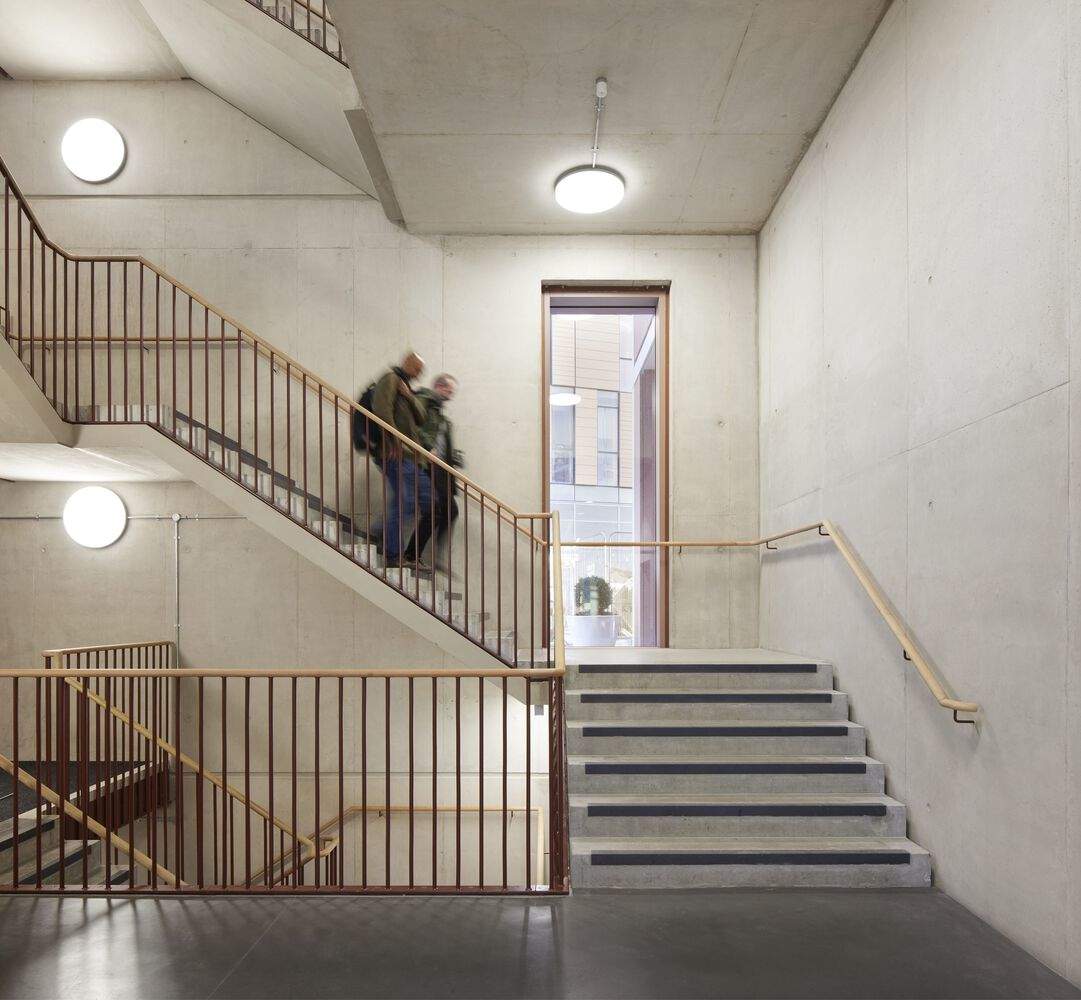

Material Palette - The architecture employs robust exposed finishes and a family of colours. Pale terracotta-coloured metal cladding with a sand-textured finish is used on the building's exterior alongside white pre-cast concrete facade panels. Inside, fair-faced concrete, cast in-situ, and Douglas fir, characterise the reception area and main circulation stair. Deep red acoustic panels and painted doors, as well as tiling and other finishes in kitchenettes and circulation spaces, WCs, and shower rooms pick up the colour theme.

与白城校区的帝国学院合作-公共卫生学院是Allies和Morrison为白城校区帝国学院完成的第二座新建筑。Michael Uren爵士中心于2019年完工。这两座建筑的南面是帝国大学白城校区开发的下一阶段。它将为学术界和企业提供新的教学、研究和创新空间。这将支持帝国理工学院在数学、数据和计算机科学、人工智能和机器学习以及商业领域的持续扩张。我们对该地块的总体规划于2021年获得规划许可。
Working with Imperial at White City Campus - The School of Public Health is the second new building that Allies and Morrison has completed for Imperial at White City Campus. The Sir Michael Uren Hub was completed in 2019. Immediately to the south of these two buildings is the next phase of Imperial's White City Campus development. It will deliver new teaching, research and innovation space for academics and businesses. This will support Imperial's continued expansion in mathematics, data and computer sciences, AI and machine learning and business. Our masterplan for this site gained planning consent in 2021.
