梁溪医疗器械产业园/UDG关于工作室

梁溪医疗器械产业园/UDG关于工作室
Liangxi Medical Equipment Industrial Park / UDG About Studio

创新交通流线与垂直整合：梁溪医疗器械产业园项目在有限的基地内，巧妙地规划了两座功能互补的工厂，并通过创新的交通流线实现了高效的垂直整合。设计师突破了传统垂直运输的局限，引入旋转坡道，使中型卡车能够直接将货物送达各楼层，极大提高了可达性，避免了高层建筑常见的价值损耗。同时，将汽车停放于屋顶，减少了地下室的开挖，加速了施工进程。这种设计不仅优化了物流效率，也提升了建筑的空间利用率，体现了对工业生产流程的深刻理解和创新思维。

工业美学的现代演绎：该项目成功地将工业建筑的独特美学融入现代设计语言中。设计团队运用几何对比和材料对比的手法，追求结构与构造的真实表达，营造出干净、通透的现代气质。建筑外立面的坡度变化创造了丰富的光影效果，赋予了建筑生动的生命力。运河窗采用T形精钢柱，水平无梁的设计，强化了通透感。项目在细节上对工业元素进行提炼与升华，例如货运通道的色彩处理，提升了可识别性，这些都体现了设计师对工业美学的深刻理解与独到见解。

公共空间与城市融合：除了满足产业园的功能需求，该项目还注重与城市的融合，为周边居民提供了优质的公共空间。开放式的设计消除了围墙的隔阂，面向城市的一侧设置了休闲楼梯，营造了友好的社区氛围。屋顶停车场和活动平台提供了运河的开阔视野，打造了轻松愉悦的户外活动空间。夜景照明设计与吊顶的巧妙结合，更是创造了独特的“第六立面”，展现了科技感与未来感。这种设计理念体现了设计师对城市整体环境的关注，以及对建筑与社区共生的积极探索。

1.背景

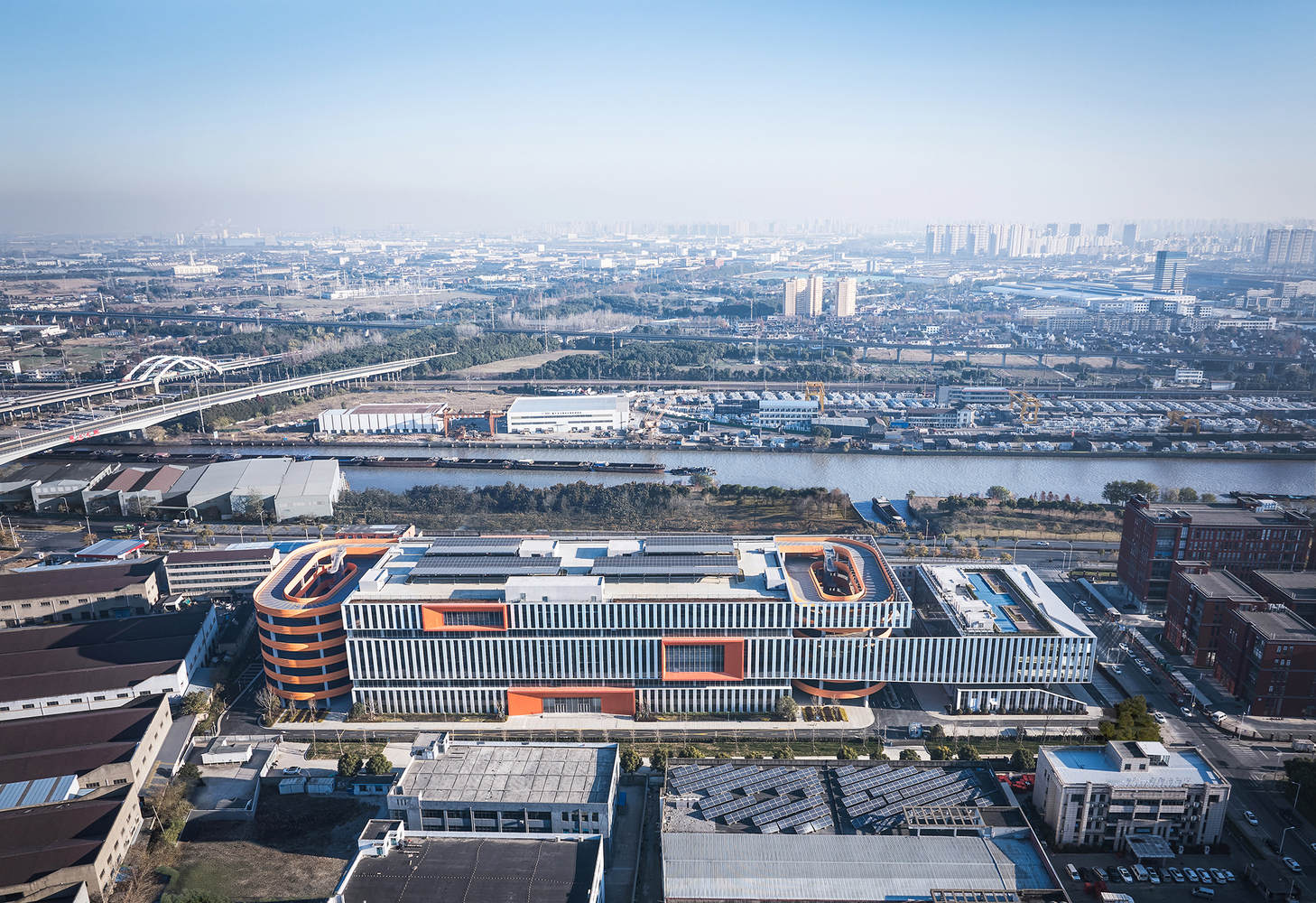

梁溪医药产业园位于大运河畔，定位为集制造、加工、研发、展览于一体的综合性医疗器械产业园。建成后，将促进相关产业集群的发展，助力无锡打造“工业城市核心”和高质量发展。作为工业区的第一个工业高层项目，设计师希望新建筑不仅能满足基本功能，还能呈现时代风格，促进该地区的升级。
1.Background
Liangxi Medical Industrial Park is located on the banks of the Grand Canal, positioning itself as a comprehensive medical device industrial park that integrates manufacturing, processing, research and development, and exhibition. After completion, it will promote the development of related industrial clusters and assist Wuxi in forging an "industrial city core" and high-quality development. As the first industrial high-rise project in an industrial area, designers hope that the new building can not only meet basic functions, but also present the style of the times, promoting the upgrading of the area.

2。模式创新

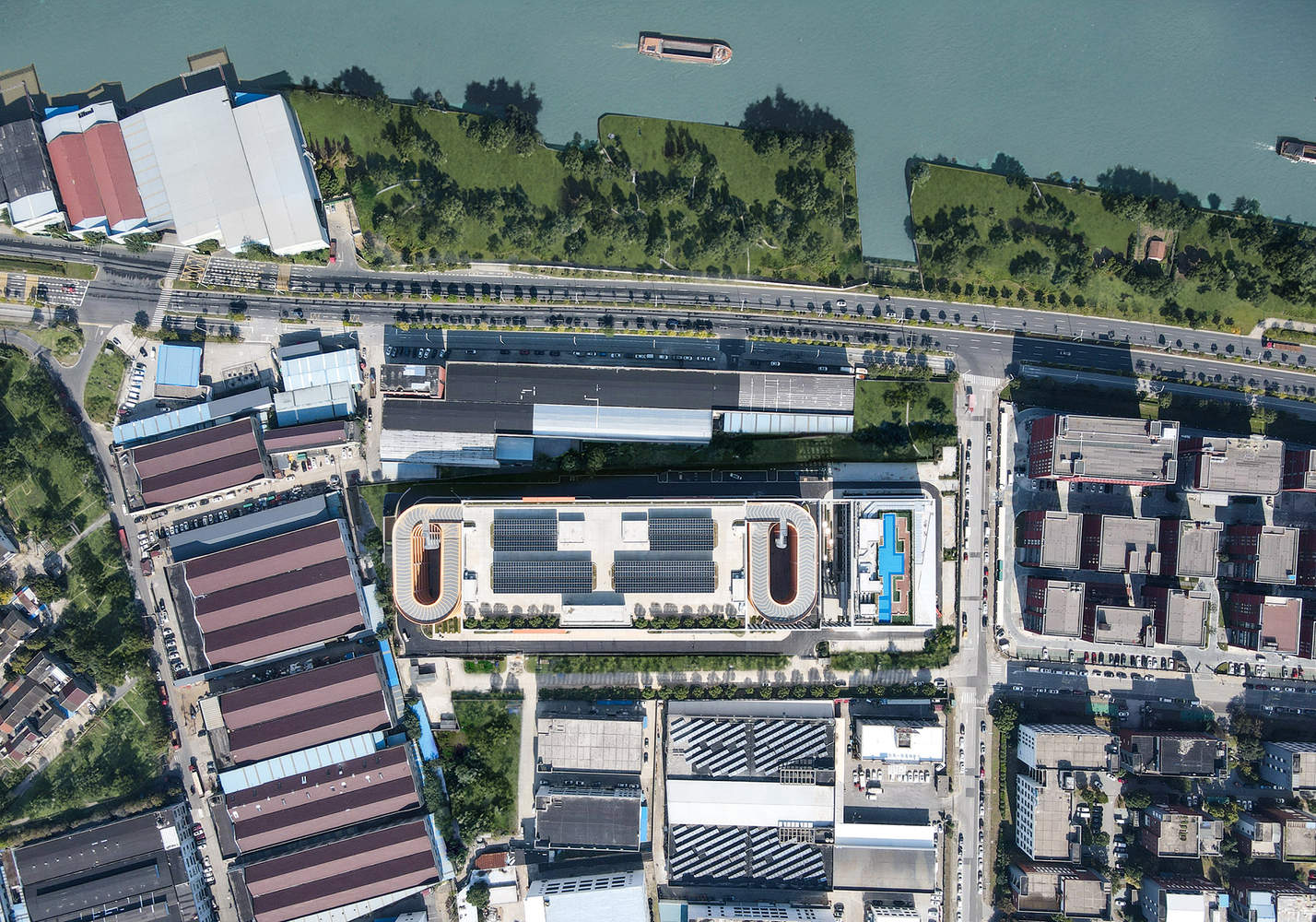

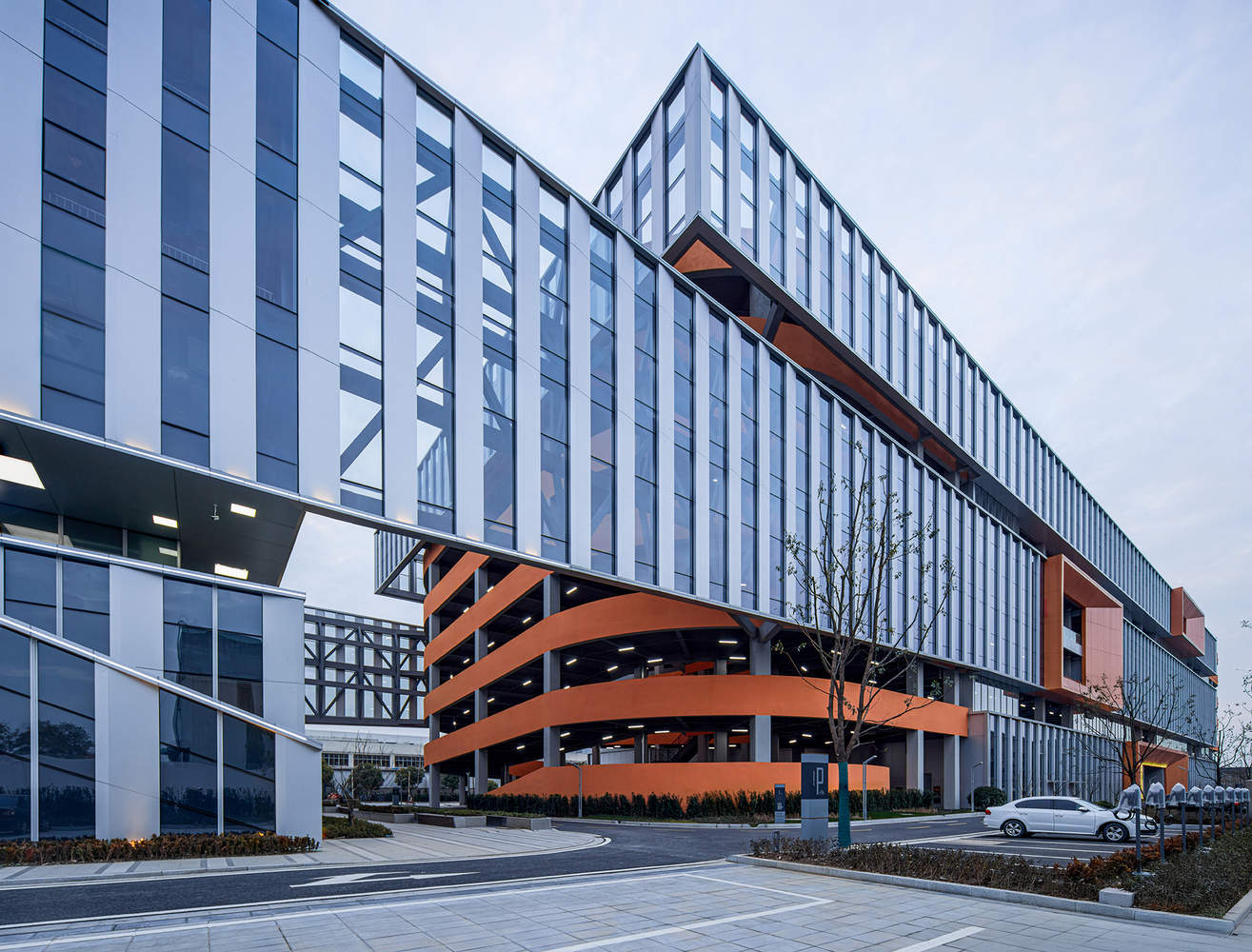

项目秉承“高效发展、创新模式”的理念，对交通路线进行了创新。计划在一个狭窄的基地内建造两座工厂，一座专注于生产和制造，另一座则支持研发。两者通过外墙连接，呈现出机械化的整体形式。厂房两侧有旋转坡道，可供中型卡车直接将货物运送到每层楼。与仅使用货运电梯的传统垂直运输方式相比，它提高了每层楼的可达性，避免了高层建筑造成的价值损失。汽车也使用这个坡道停在屋顶上，减少地下室开挖，加快施工进度。
2. Innovation of Pattern
Adhering to the concept of "efficient development and innovative modes", the project has innovated the transportation routes. Two factories are planned in a narrow base, one focusing on production and manufacturing, and the other on supporting research and development. The two are connected by exterior walls, presenting a mechanical overall form. There are rotating ramps on both sides of the factory building, which can be used for medium-sized trucks to directly transport goods to each floor. Compared with the traditional vertical transportation method that only uses freight elevators, it improves the accessibility of each floor and avoids the value loss caused by high-rise buildings. Cars also use this ramp to park on the roof, reducing basement excavation and accelerating construction progress.

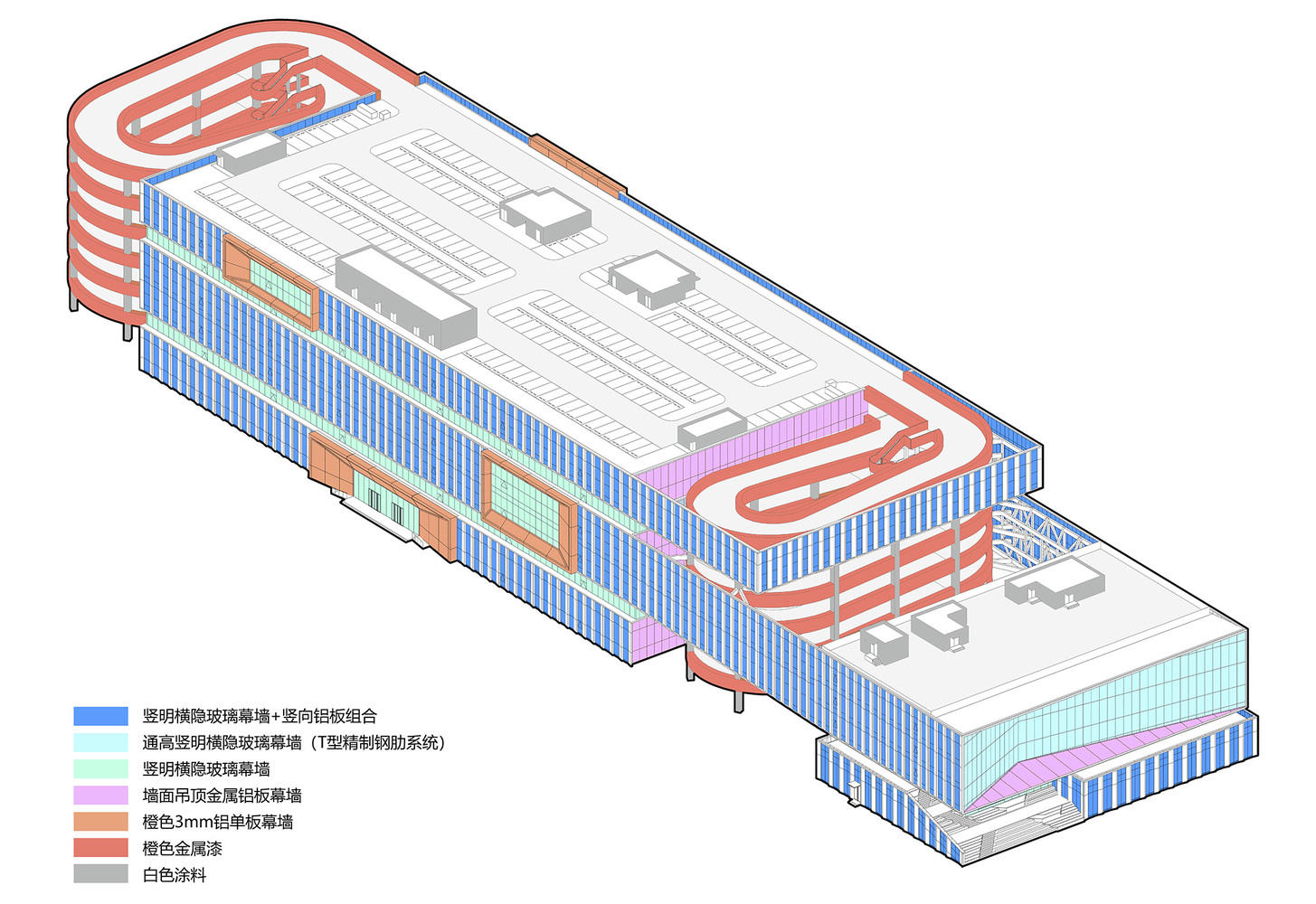

Diagram

3。工业之美

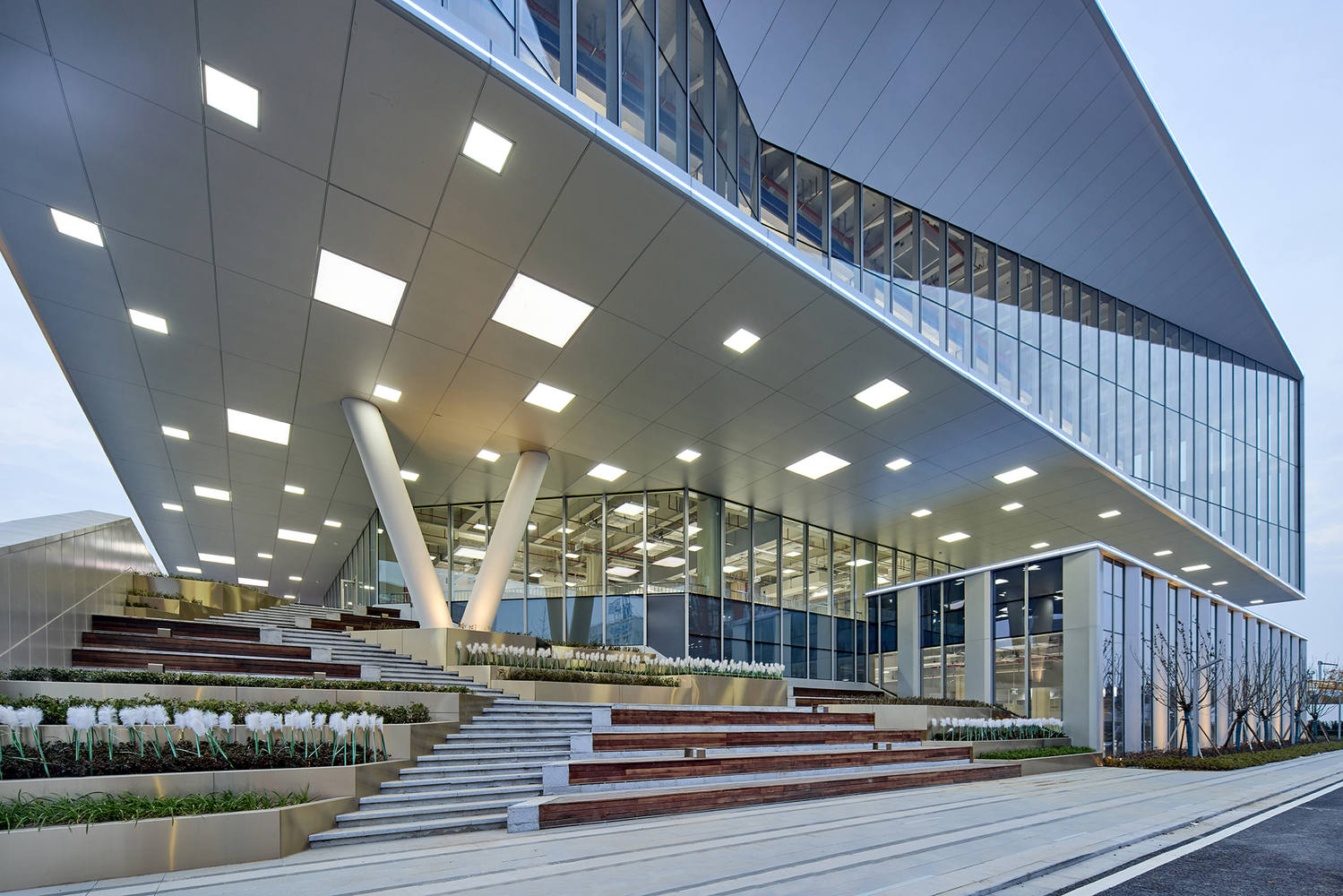

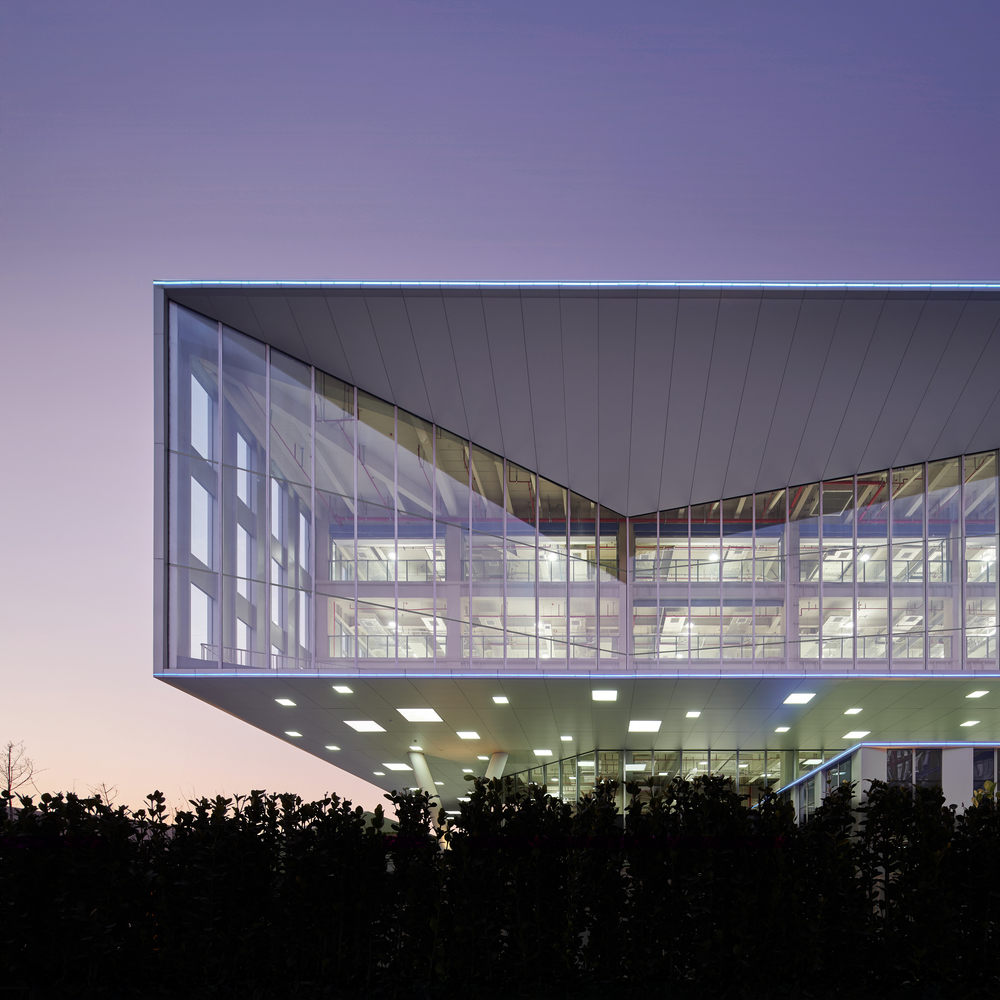

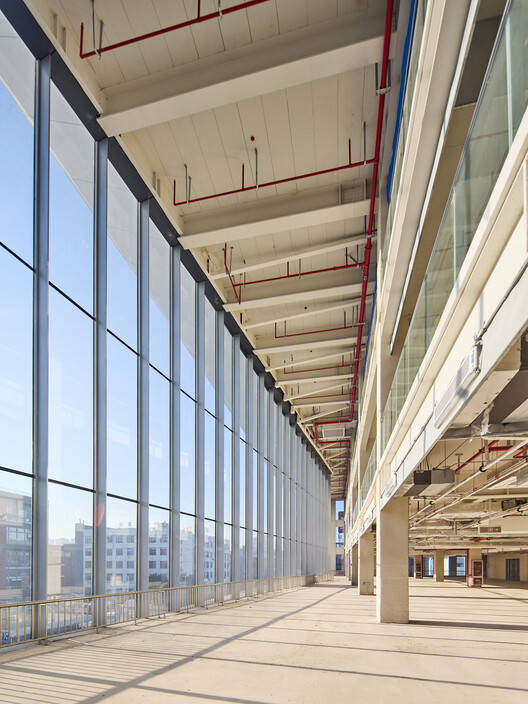

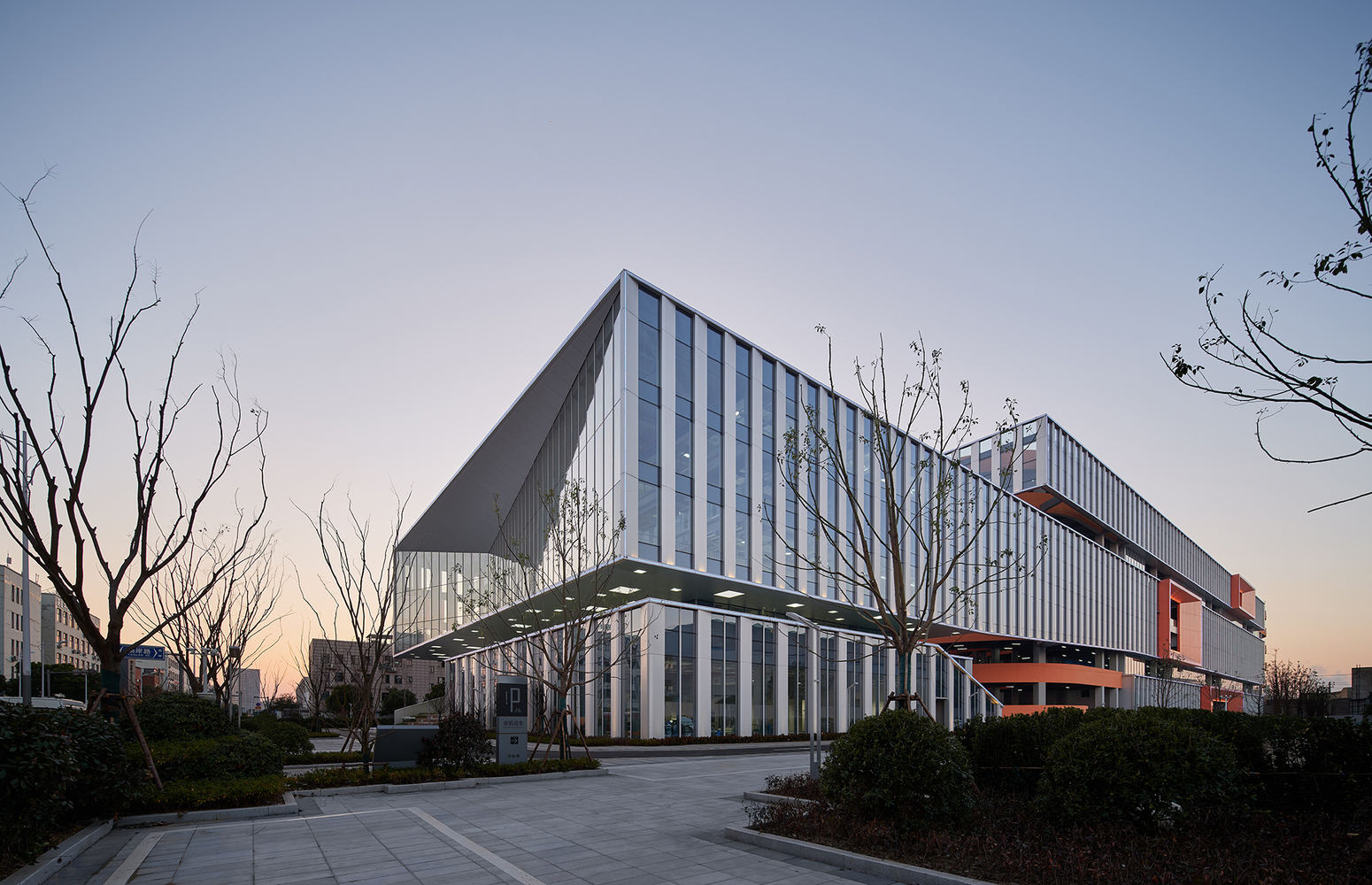

建筑旨在体现工业的独特之美，呈现干净透明的现代气质。设计采用几何比较和材料比较的技术，追求结构和构造的真实表达。坡度随着时间的推移而变化，创造出丰富多样的光影阵列。运河窗采用T形精钢柱，水平无梁，突出透明明亮的效果。公园没有围墙，在面向城市的一侧设置了一个休闲楼梯，为该地区提供了良好的公共空间。屋顶停车场和活动平台可欣赏到运河的全景，为用户创造了一个轻松愉快的户外活动空间。夜景和吊顶设计的结合创造了一个“第六立面”，突出了技术和未来主义的感觉。每层楼的升降平台与立面框架一起设置。货运通道被涂上了不同的颜色，有效地提高了其可识别性。
3. The Beauty of Industry
Architecture aims to embody the unique beauty of industry and present a clean and transparent modern temperament. The design adopts the techniques of geometric comparison and material comparison, pursuing the true expression of structure and construction. The slope changes with the passage of time, creating a rich and diverse array of light and shadow. The Canal Window adopts T-shaped refined steel columns without beams horizontally, highlighting the transparent and bright effect. The park does not have walls, and a leisure staircase is set up on the side facing the city to provide a good public space for the area. The rooftop parking lot and activity platform offer a panoramic view of the canal, creating a relaxed and enjoyable outdoor activity space for users. The combination of night view and suspended ceiling design creates a "sixth facade" that highlights a sense of technology and futurism. The lifting platforms on each floor are set up in conjunction with the facade frame. The freight channel is painted in different colors, effectively enhancing its recognizability.
