Hangzhou Riverfront Public Space - the Yinxing Station & the Daqiao Station / TJAD Original Design Studio

整体设计概念的卓越性：项目的核心亮点在于其对场地文脉的深刻理解和巧妙运用。银星站的设计灵感源自场地内的银杏树，通过对银杏叶形态的提炼和抽象，创造出独特的“一凸两凹”几何原型，并将其融入建筑的整体形态中。这种设计手法不仅回应了场地的自然特征，也赋予了建筑独特的视觉标识和文化内涵。同时，大桥站的设计灵感来源于钱塘江大桥，将桥梁的结构元素巧妙地融入建筑中，实现建筑与周围环境的对话，体现了设计师对当地环境的尊重和对历史文脉的传承。

空间设计的创新与实用性：银星站的空间设计具有显著的创新性和实用性。通过地面略微倾斜，三片“银杏叶”上翻，创造出多层次的景观绿地，不仅美观，更提供了丰富的活动空间，满足了公众登高远眺的需求。此外，将较低的室内空间用于社区服务设施，体现了对社区需求的关注。大桥站同样在空间设计上有所创新，将观景平台设置在二层，让人们能够俯瞰周围景观，包括对岸的六合塔，创造了观景的绝佳视野，体现了设计师对人与环境关系的深刻思考。

材料与细节的精致呈现：项目在材料的选择和细节的处理上展现了设计师对品质的极致追求。银星站与临桥乡体育公园的衔接流畅，色彩搭配和谐，给人以舒适的视觉感受。大桥站的立面采用聚酯板材料，利用其特性减少立面接缝，呈现出简洁现代的风格。而扣盖和T型钢龙骨的巧妙运用，更体现了设计师对细节的关注和对工艺的精湛把握。这些精致的细节处理，共同构成了项目的高品质感，也反映了设计师对建筑美学的深刻理解和对技术的熟练运用。

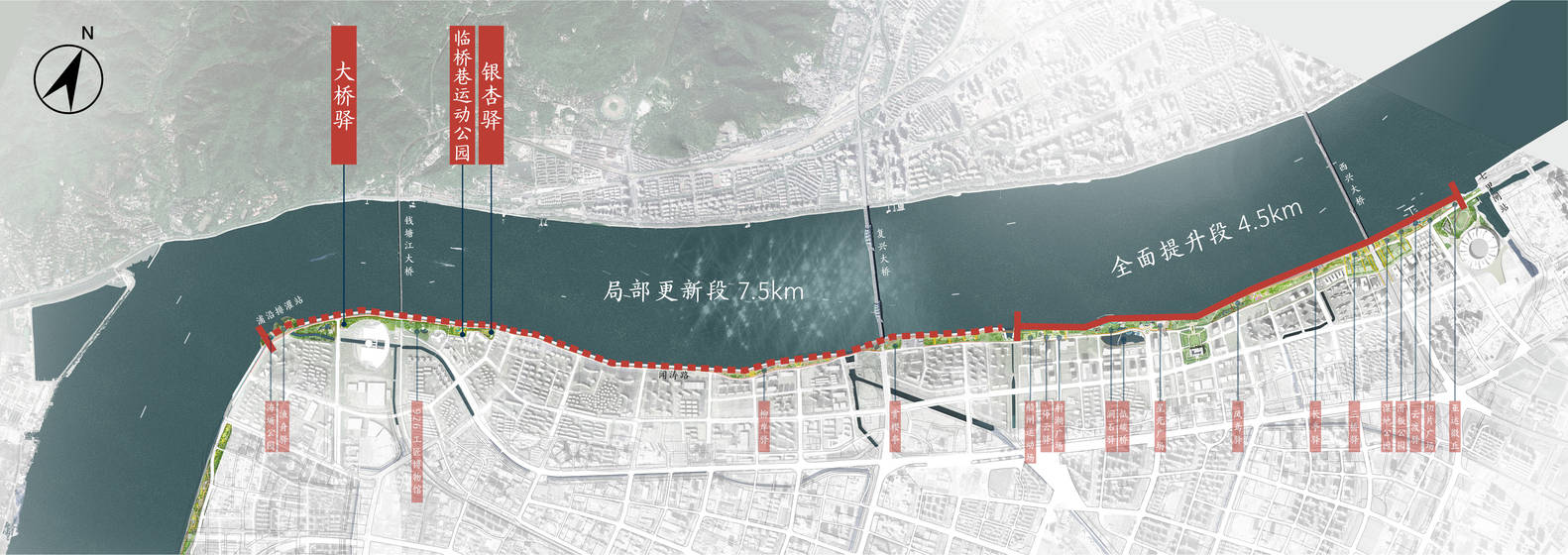

建筑师提供的文字描述Text description provided by the architects. The Yinxing Station and the Daqiao Station are located on the south bank of the Qiantang River. It's a part of the 12-kilometer waterfront public space renovation project in Binjiang District of Hangzhou, undertaken by the Original Design Studio of TJAD.

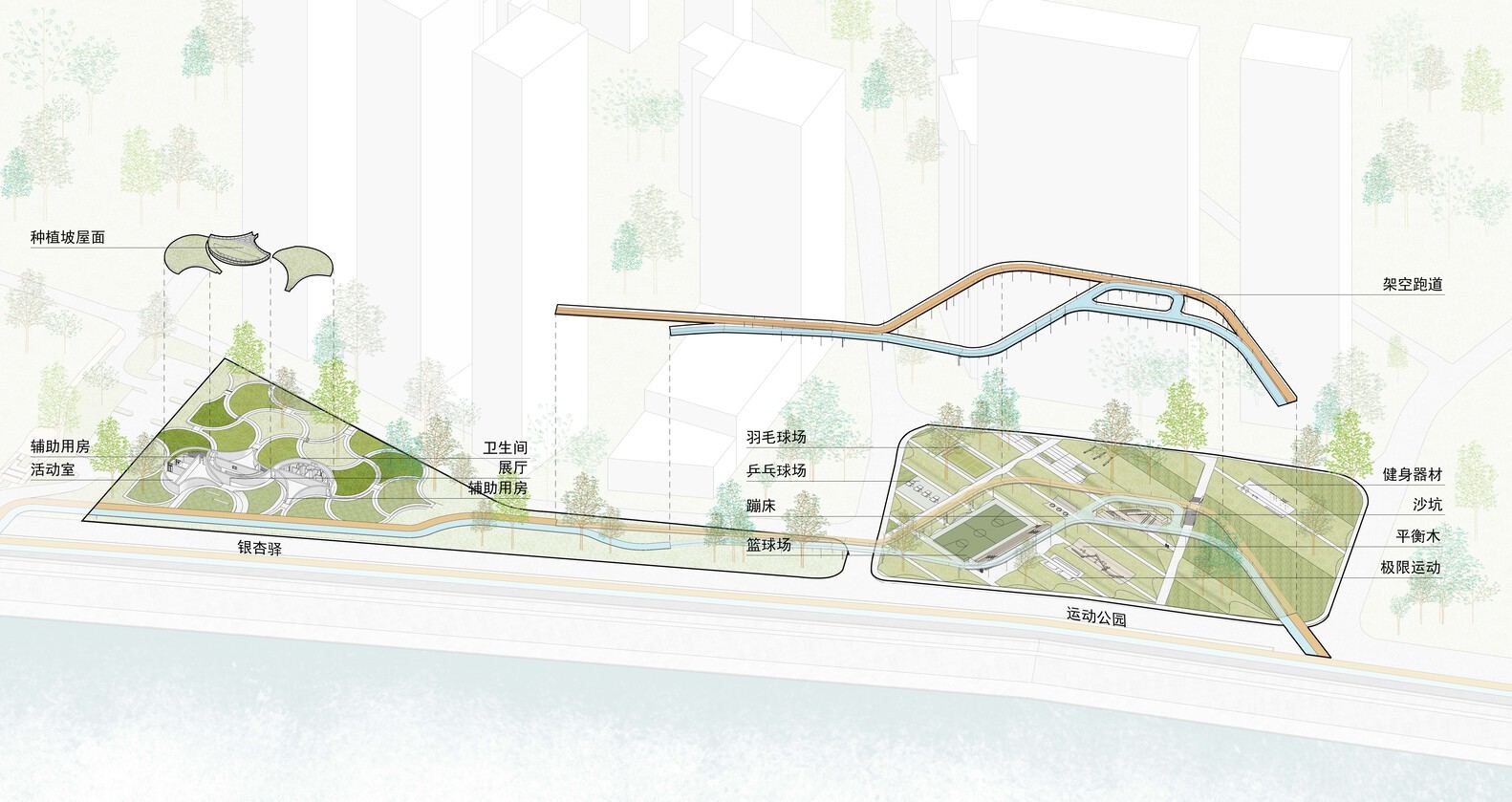

Axonometric Drawing

© Yong Zhang

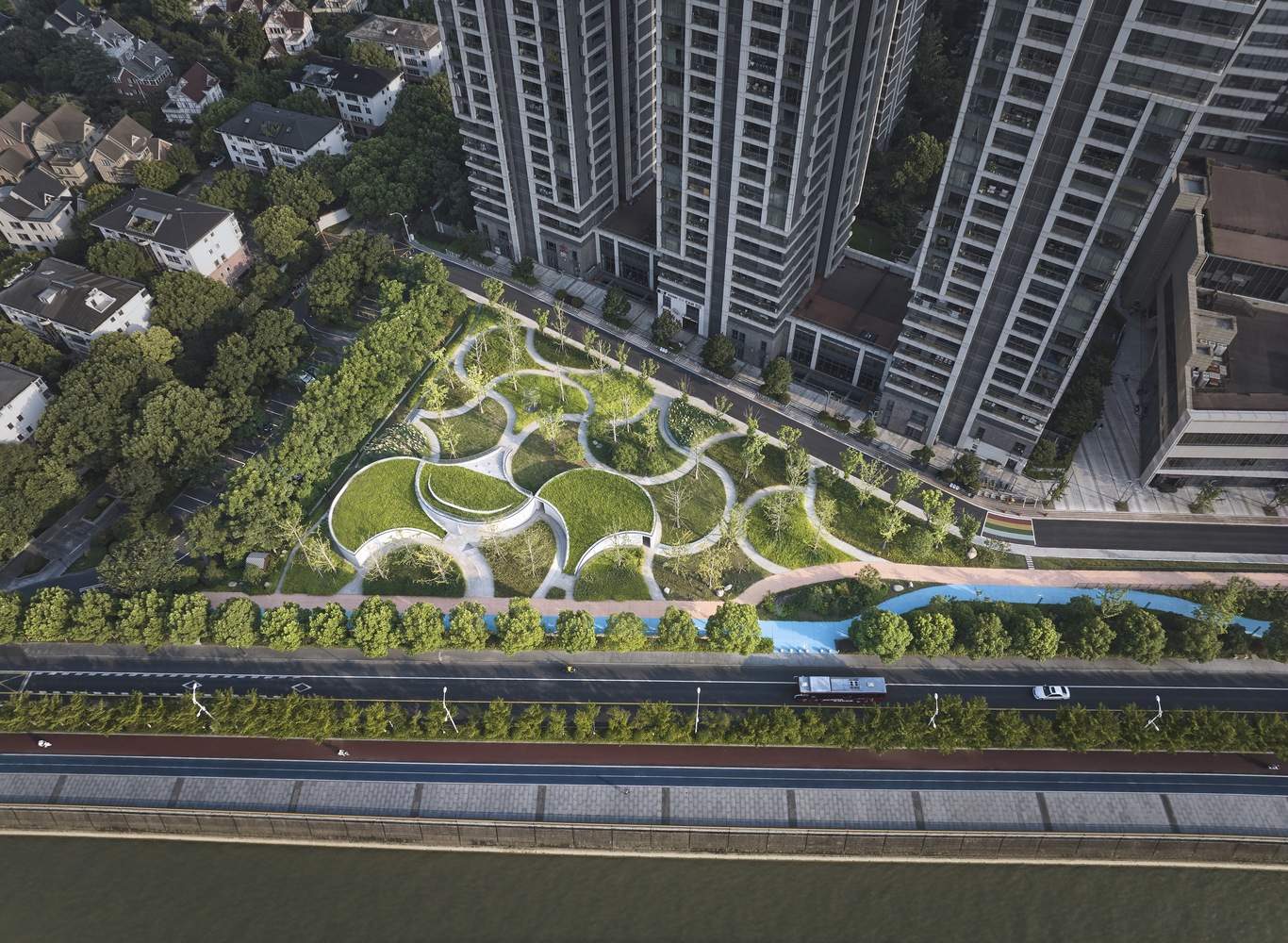

该地块呈三角形，位于住宅区和钱塘江之间。遗址上有许多银杏树，每年深秋，散落的银杏叶都会覆盖大地。从远处看，地面看起来是金色的，但近距离看，人们可以注意到层次分明、环环相扣的叶子的理性之美。我们保留了现场的银杏树，并从银杏叶的重叠关系中提取了设计原型——“一个凸弧和两个凹弧”。基于此，我们旋转并复制了它们，彼此嵌套，并由此得出了正方形的整体形状。
The site is triangular in shape and located between the residential area and the Qiantang River. There weremany ginkgo trees on the site, and every late autumn, scattered ginkgo leaves coveredthe ground. From a distance, the ground appears golden, but up close, one can notice the rational beauty of the layered and interlocking leaves.We preserved the ginkgo trees in the site and extracted the design prototype from the overlapping relationship of ginkgo leaves - "one convex arc and two concave arcs". Based on this, we rotated and replicated them, nested with each other, and the overall shape of the square was derived from it.

© Yong Zhang

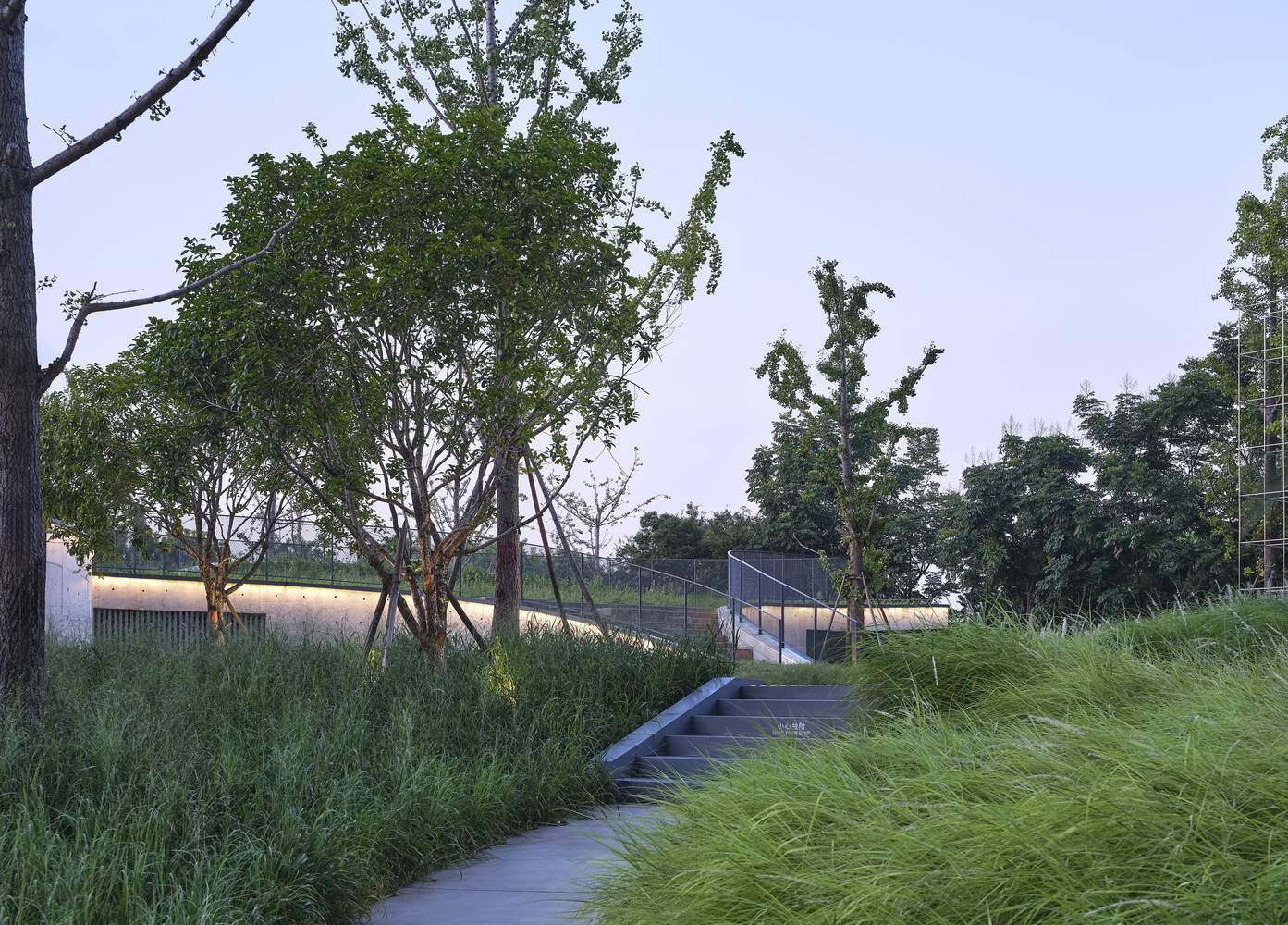

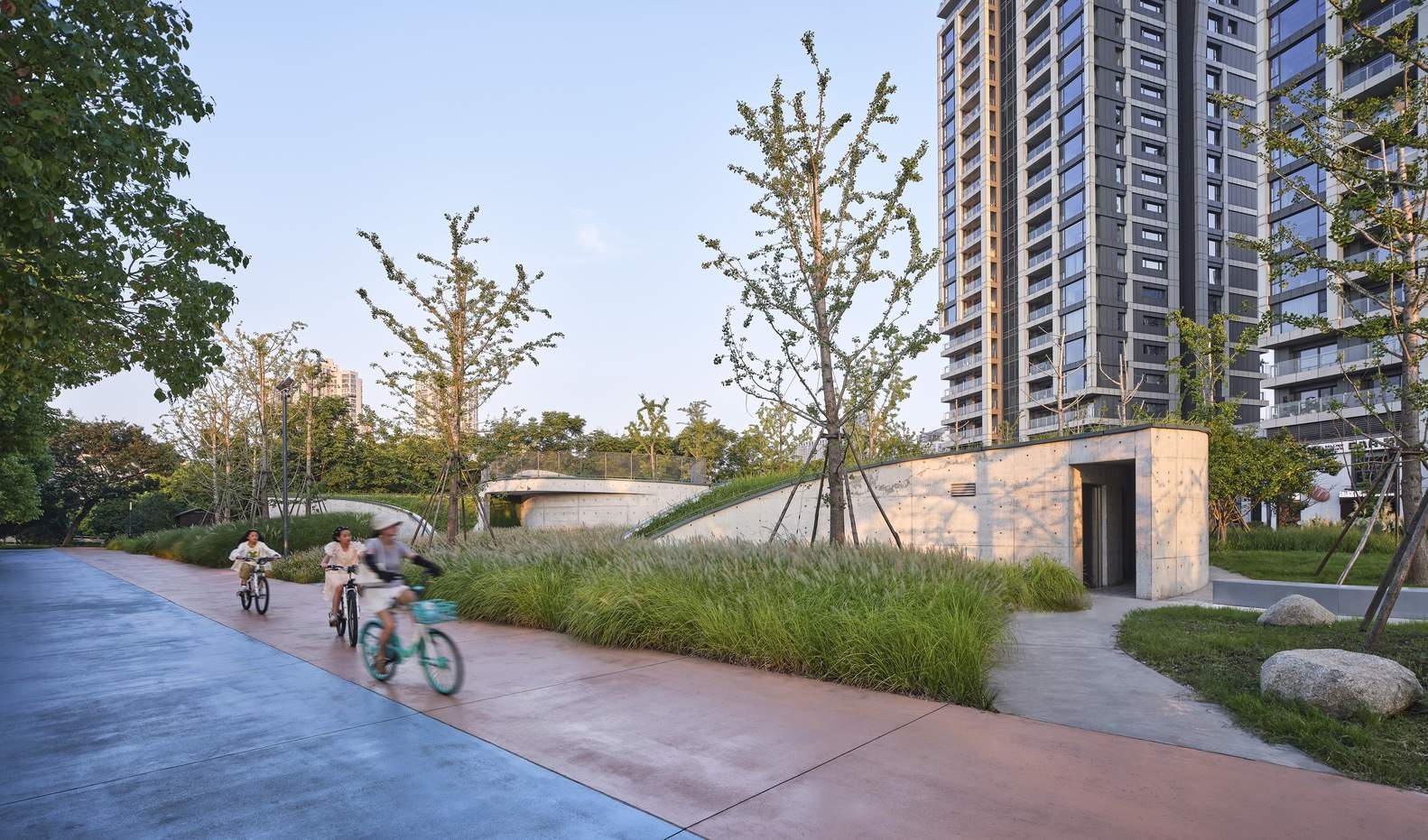

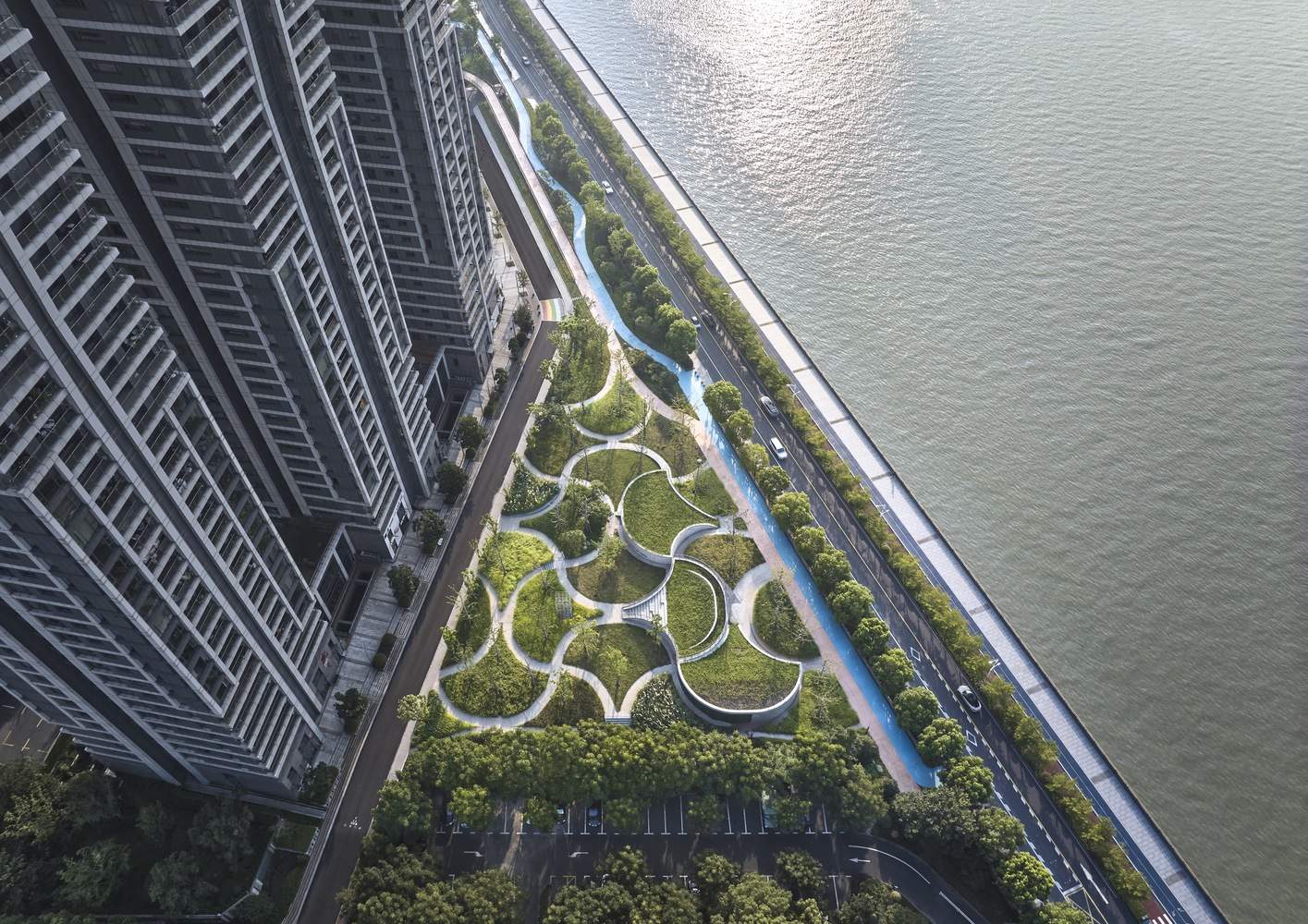

地面略微倾斜，三片相邻的“银杏叶”向上翻转，形成景观绿地，为周围社区创造了一个多层次的活动空间。这也符合公众登高远眺钱塘江的心理趋势。较低的室内空间也为社区服务设施提供了空间。
The ground slopes slightly, with three adjacent "ginkgo leaves" flipping up to form a landscape green space, creating a multi-level activity space for the surrounding community. This also conforms to the psychological trend of the public to climb high and overlook the Qiantang River. The lower indoor space also provides space for community service facilities.

© Yong Zhang

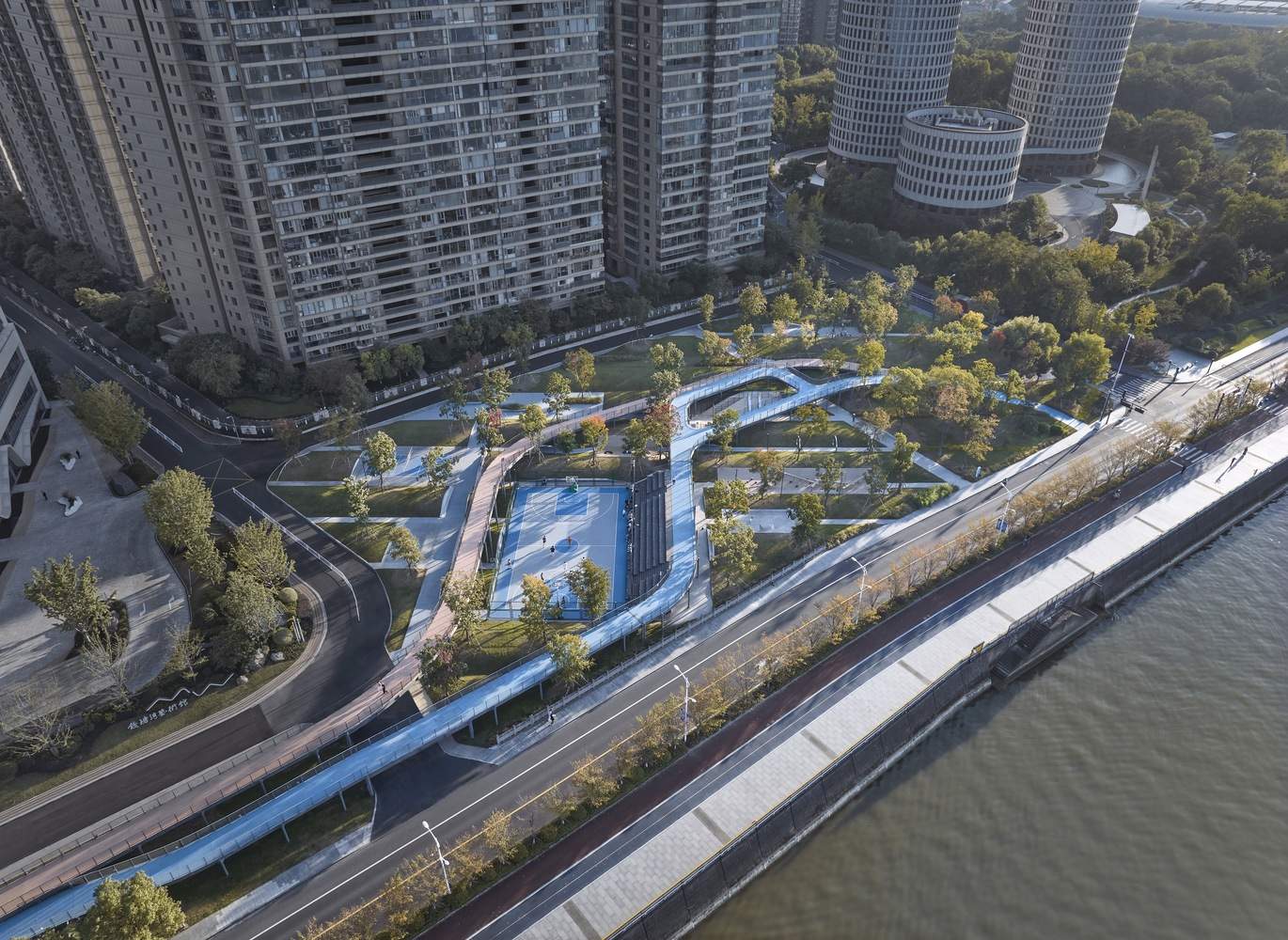

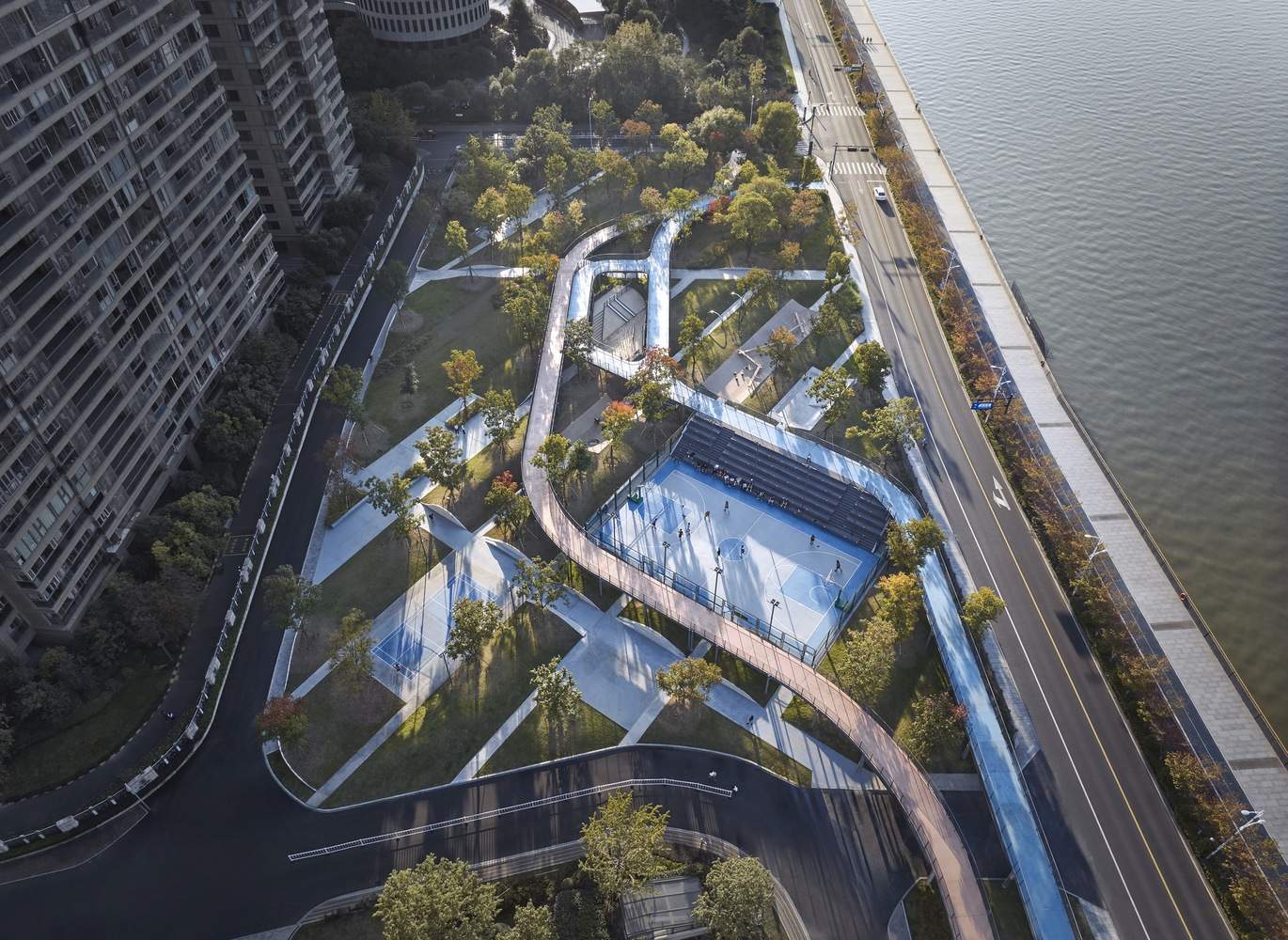

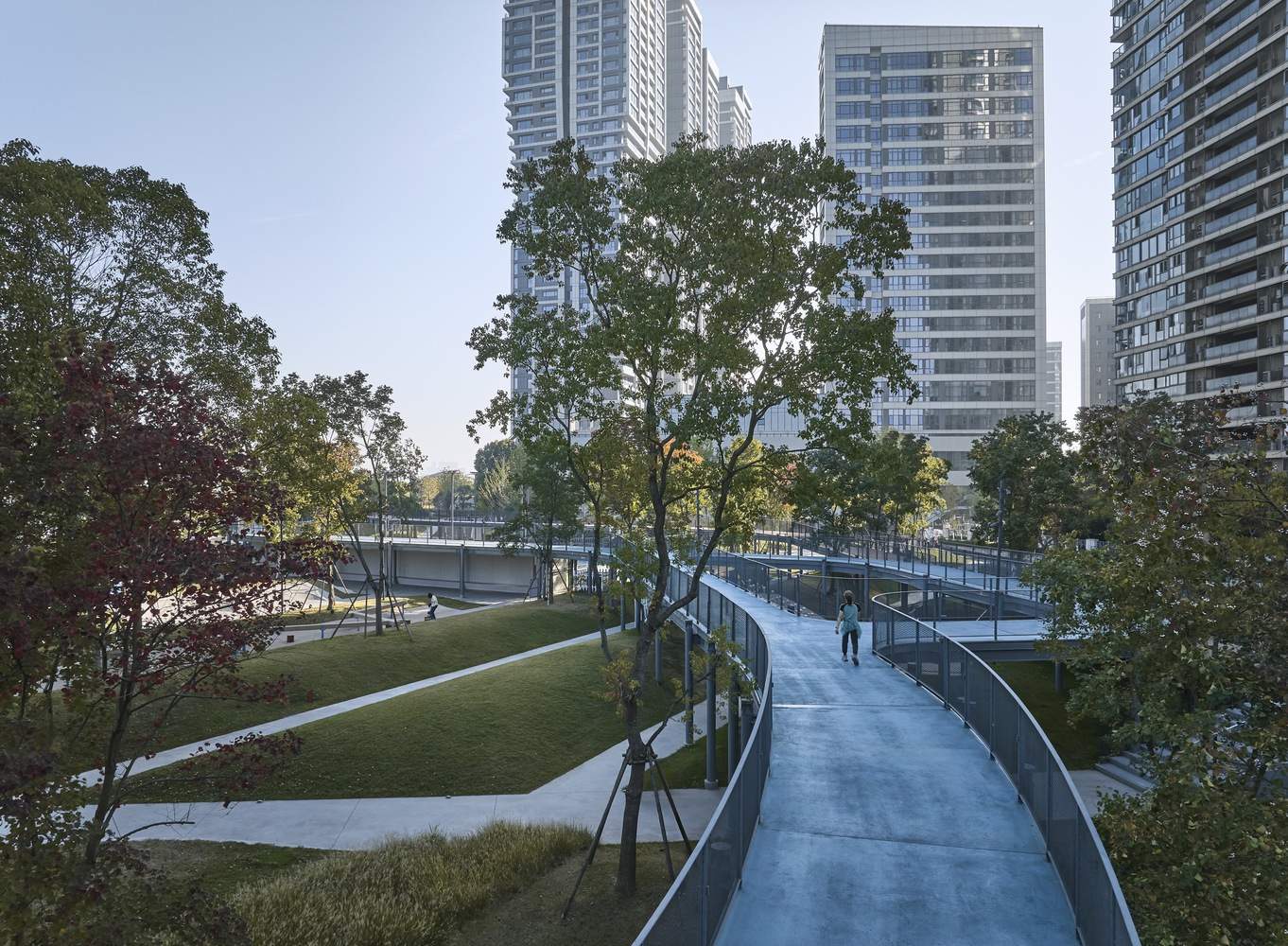

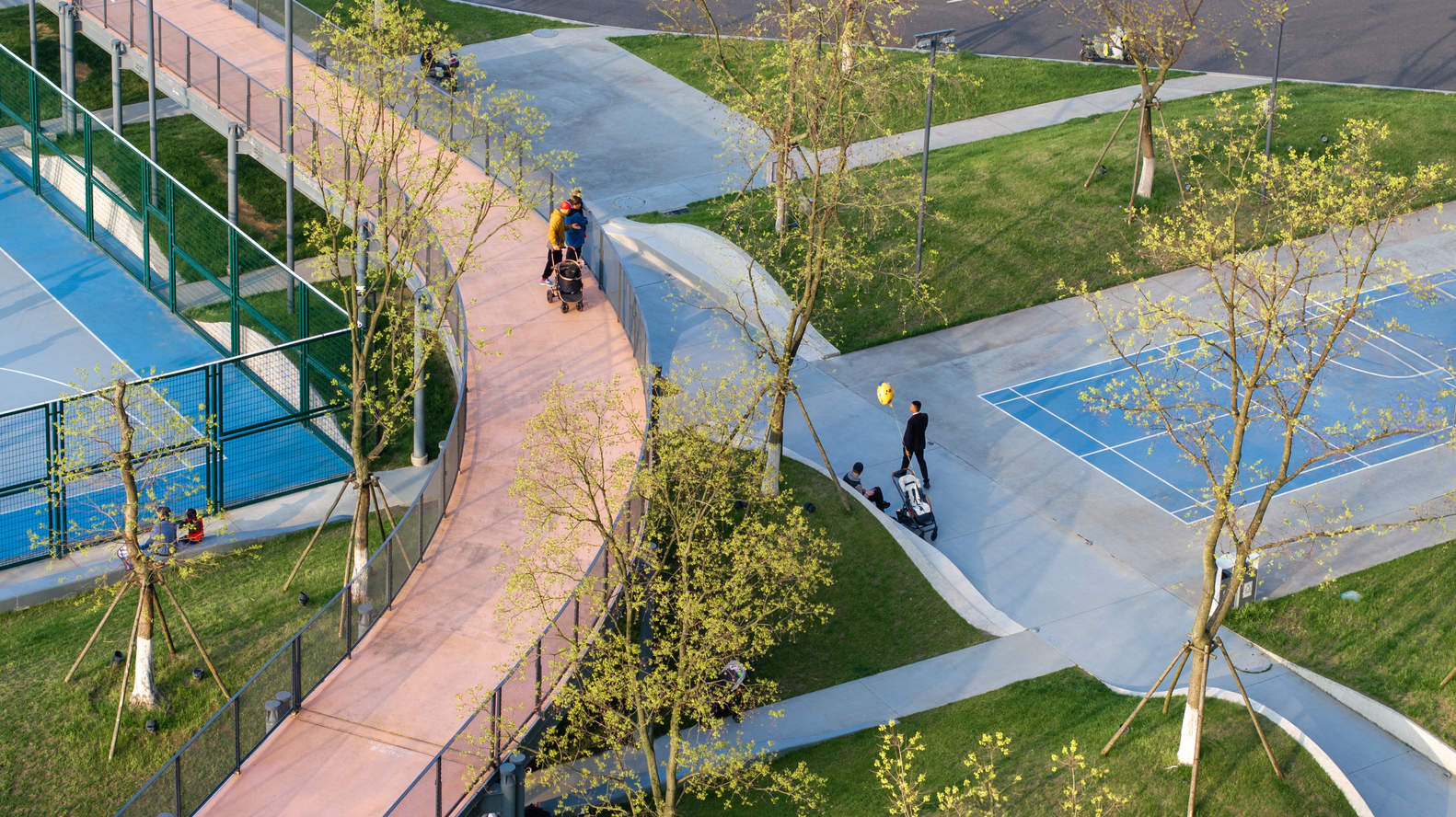

临桥乡体育公园毗邻银星站。受钱塘江波浪的启发，体育公园的景观也上下起伏。蓝色跑道和橙色自行车道在空中分叉，上下环绕公园，提供了一个垂直的公共空间。这不仅提高了公园的可达性和路人探索、锻炼和休息的意愿，也丰富了公园的漫游体验。
The LinqiaoxiangSports Park is adjacent to the YinxingStation.Inspired by the waves of the Qiantang River, the landscape of the sports park also fluctuates up and down.The blue running track and orange cycling track diverge in the air, surrounding the park up and down, providing a vertical dimension of public space.This not only enhances the accessibility of the park and the willingness of passersby to explore, exercise, and rest inside, but also enriches the roaming experience of the park.

© Yong Zhang

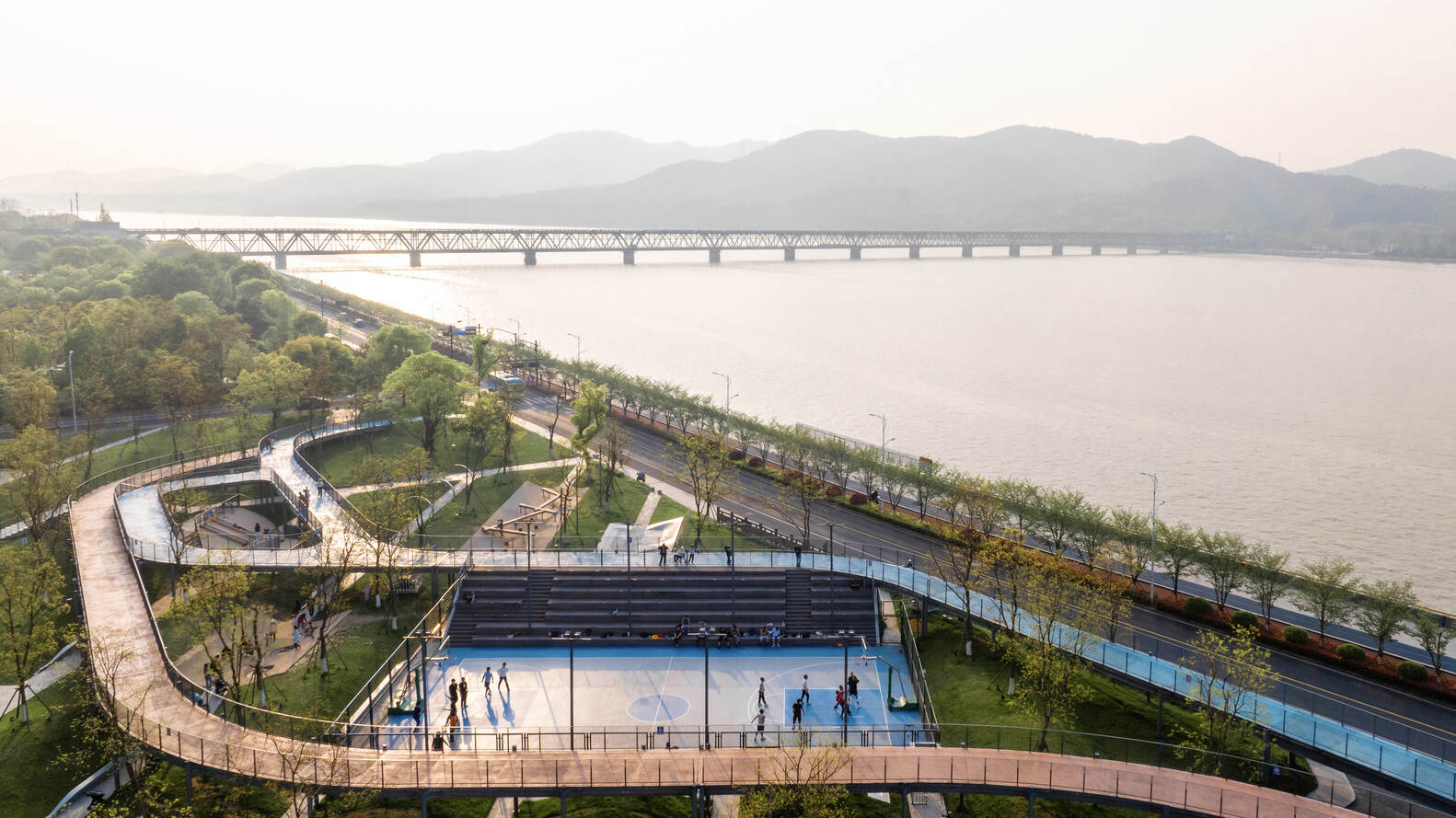

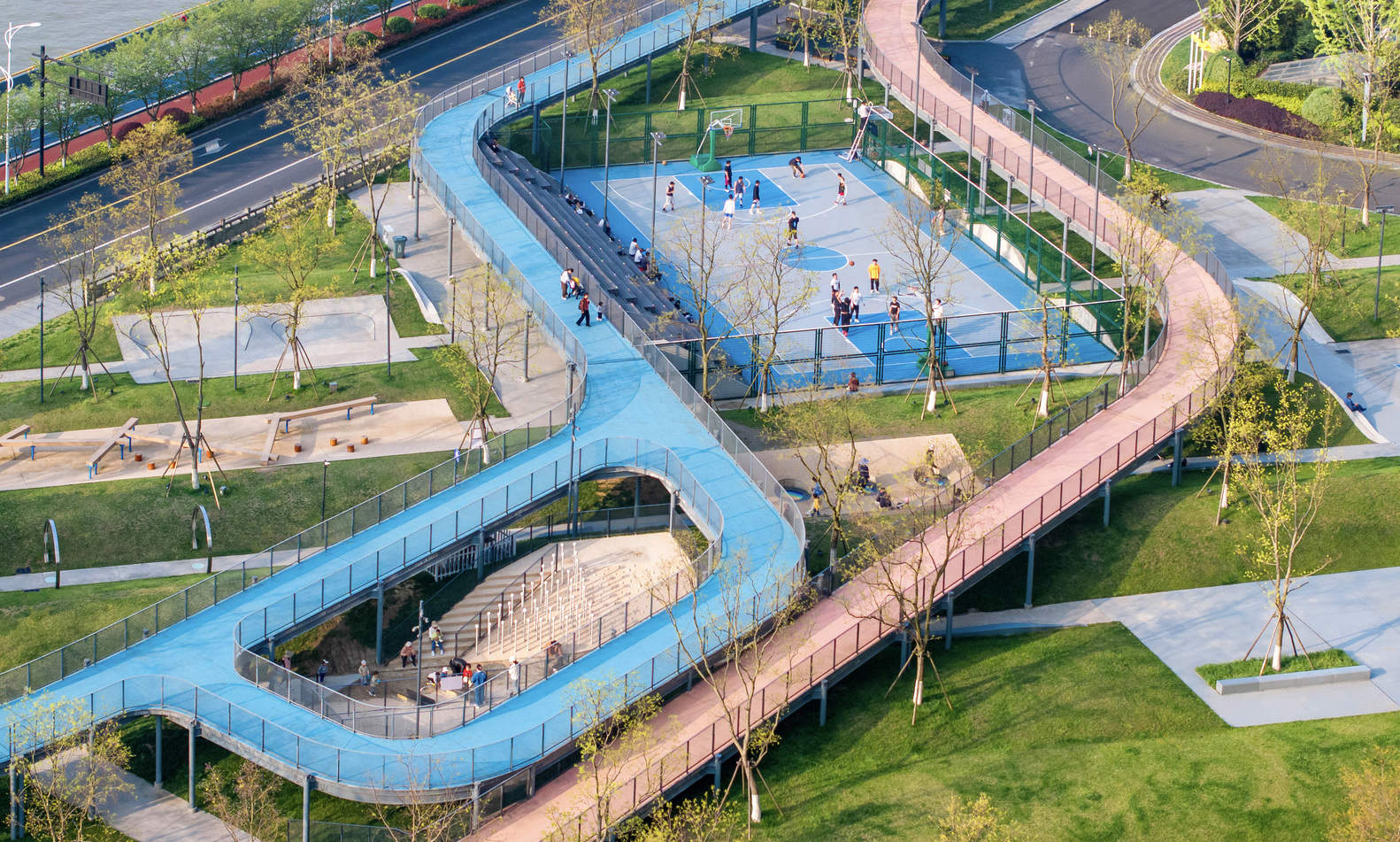

公园内设有羽毛球场、篮球场、滑梯、平衡木和健身器材区，以满足公众的户外活动需求。篮球场位于Orange和Blue Trail之间。球场的台阶与天蓝色的车道相连，这不仅满足了篮球场看台的功能要求，还改善了连接高架人行道和地面的流线。同时，看台的下部空间在公园内形成了一个阴凉遮蔽的休息场所。
The park is equipped with badminton courts, basketball courts, slides, balance beams,and fitness equipment areas to meet the outdoor activities needs of the public.The basketball court is located between the Orange and Blue Trail. The steps of the court are connected to the sky blue lane, which not only meets the functional requirements of the basketball court stands, but also improves the flow line connecting the elevated walkway and the ground.At the same time, the lower space of the grandstand forms a shaded and sheltered resting place in the park.

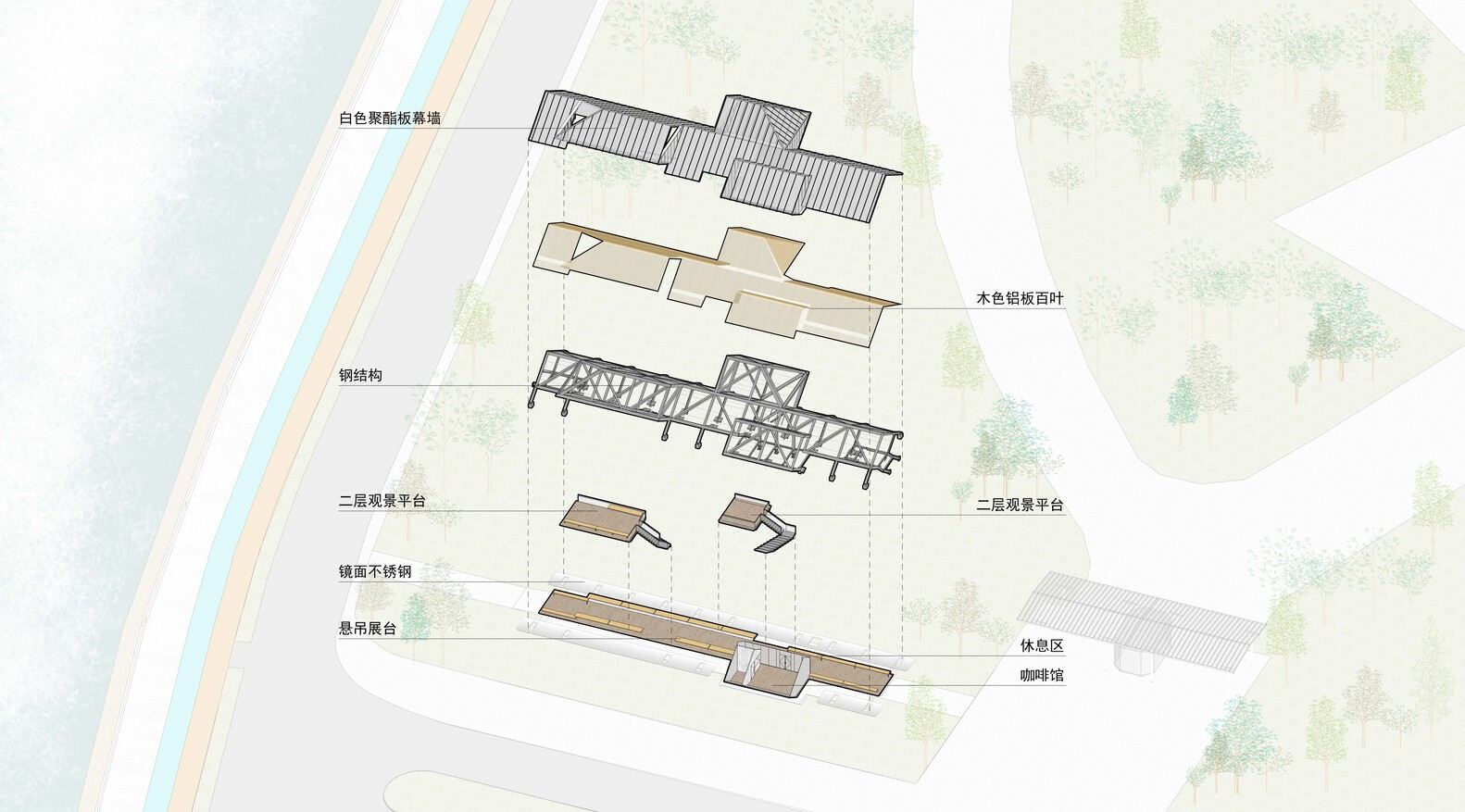

Axonometric Drawing

© Yong Zhang

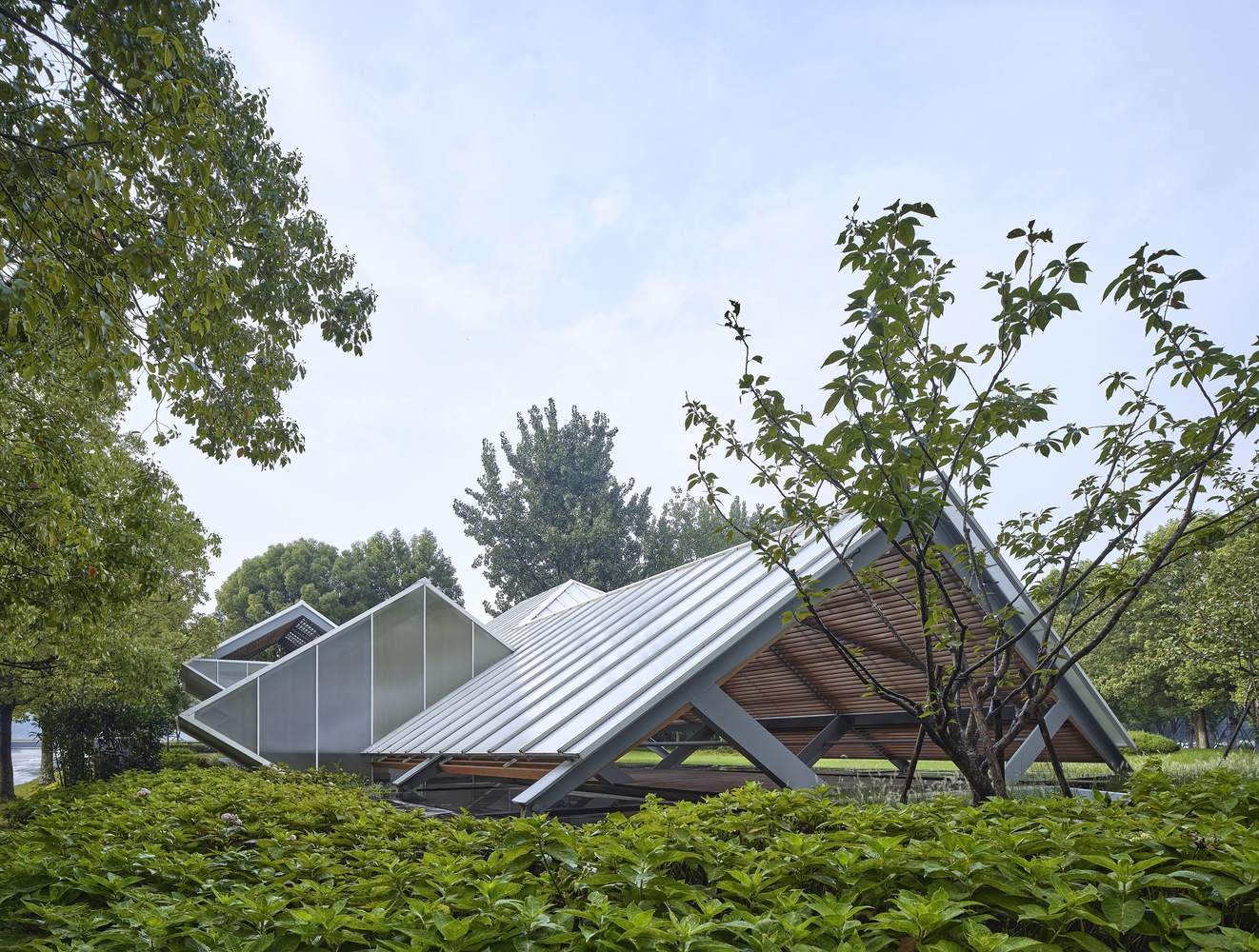

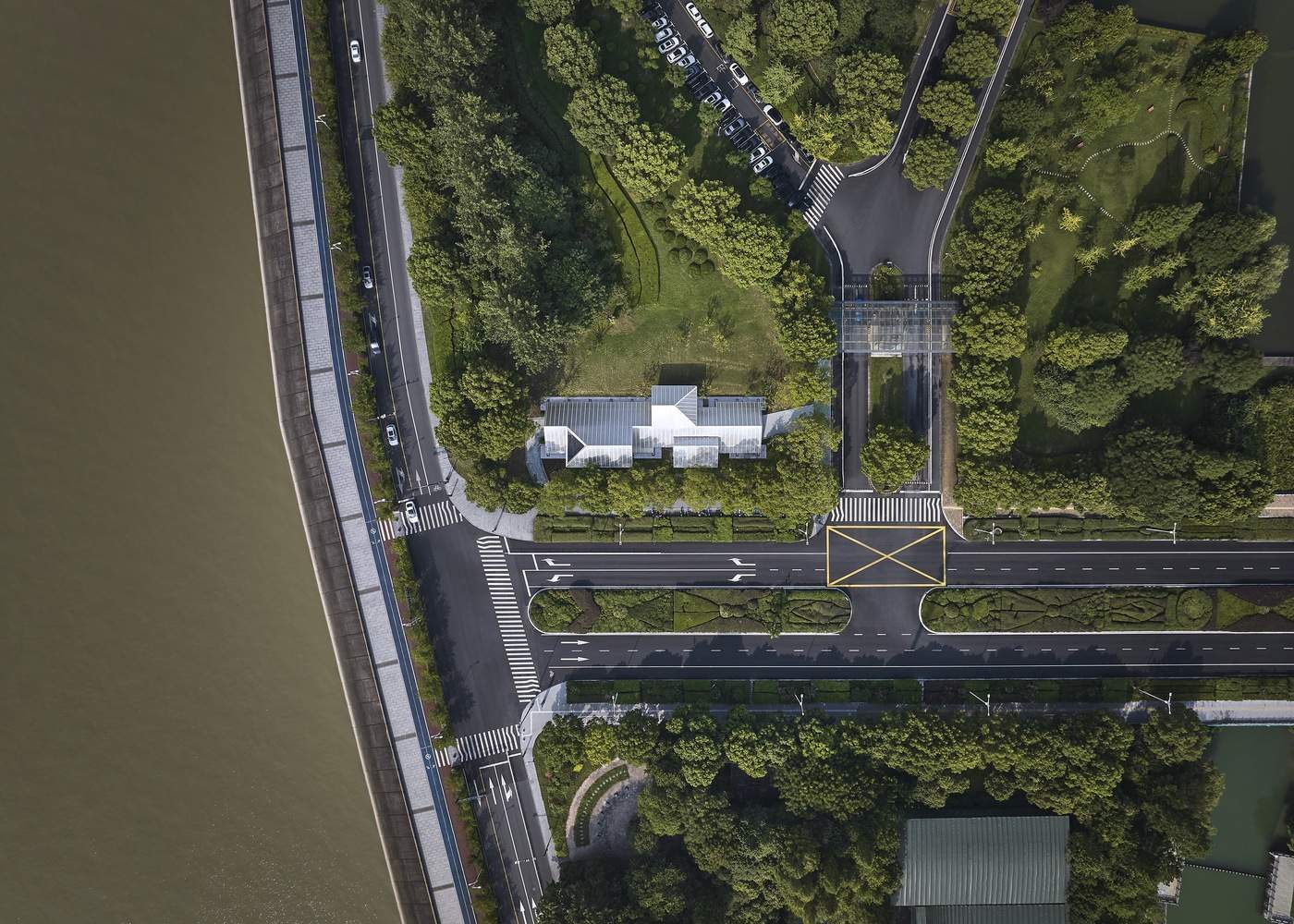

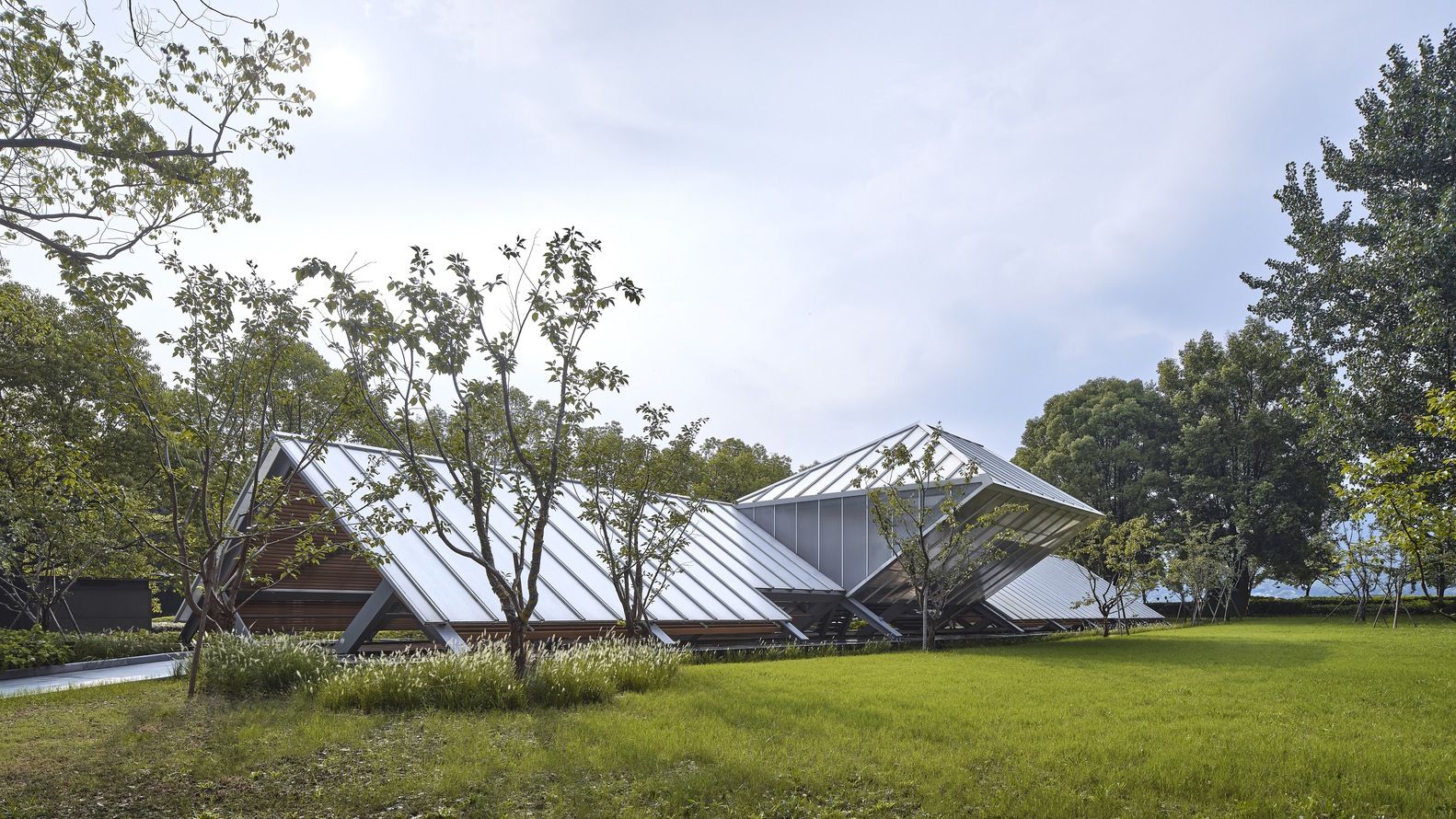

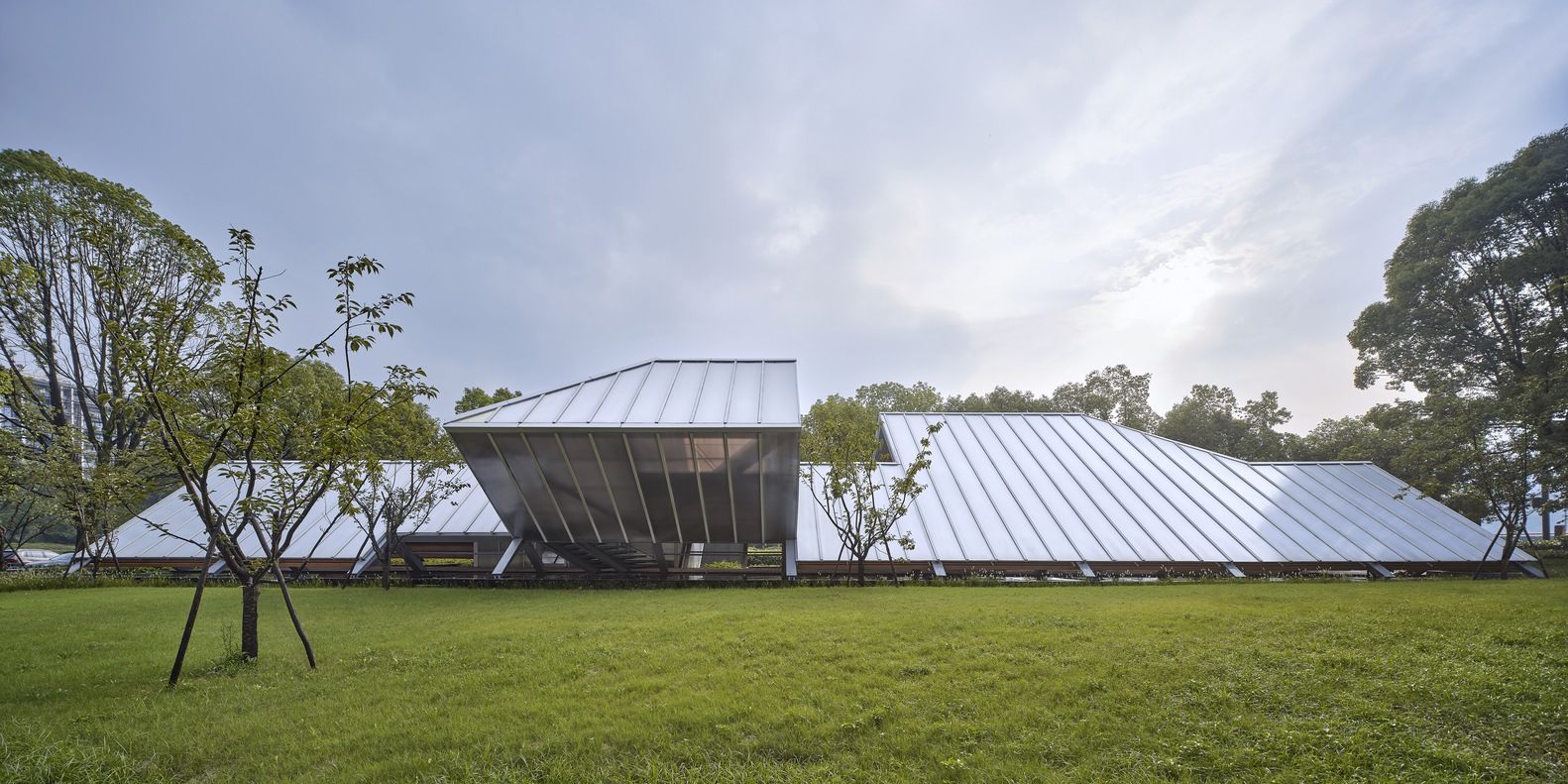

大桥站位于六合路与文涛路的交汇处。受钱塘江大桥结构形式的启发，我们将大桥的主钢特拉斯结构旋转了45度。上部的屋顶呈三角形，与河对岸的六合塔的三角尖顶相呼应；下部将结构组件作为建筑表达元素，以规则有序的方式排列。
The Daqiaostation is located at the intersection of Liuhe Road and Wentao Road. Inspired by the structural form of the Qiantang River Bridge, we have rotated the main steel truss structure of the bridge by 45 degrees.The roof of the upper part is triangular in shape, echoing the triangular spire of the Liuhe Pagoda across the river; The lower part exposes structural components as architectural expression elements, arranged in a regular and orderly manner.

© Yong Zhang

Courtesy of Original Design Studio of TJAD

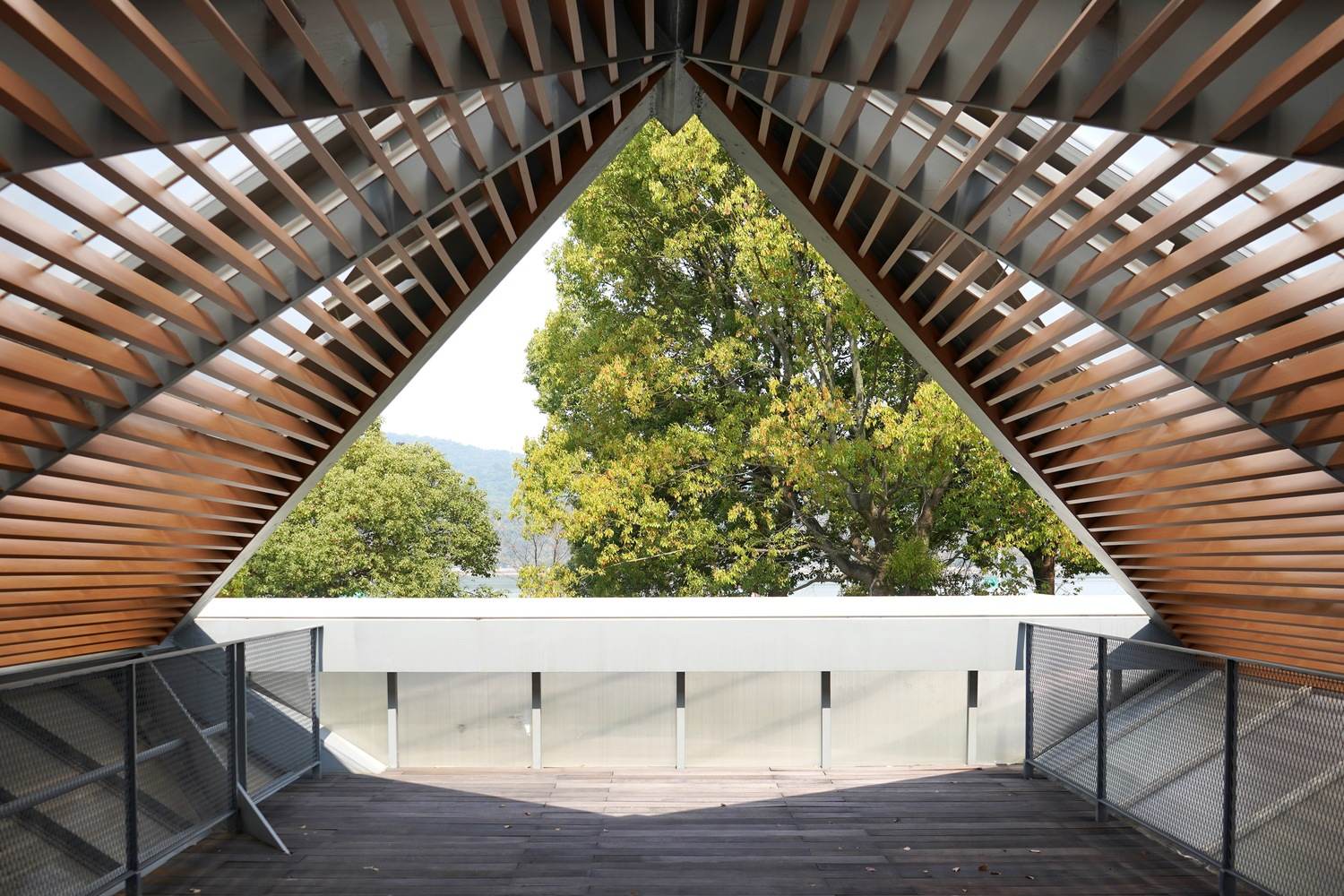

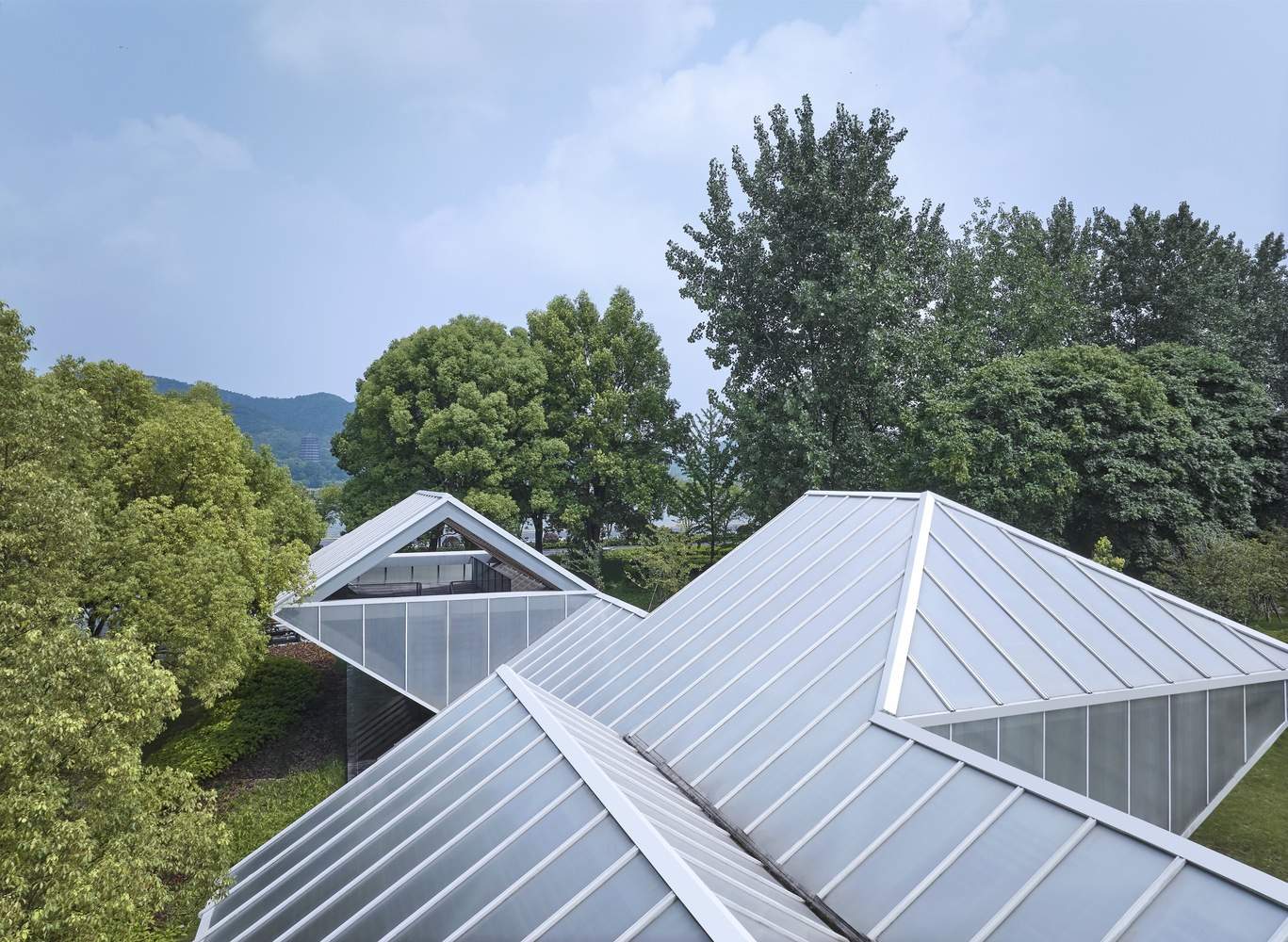

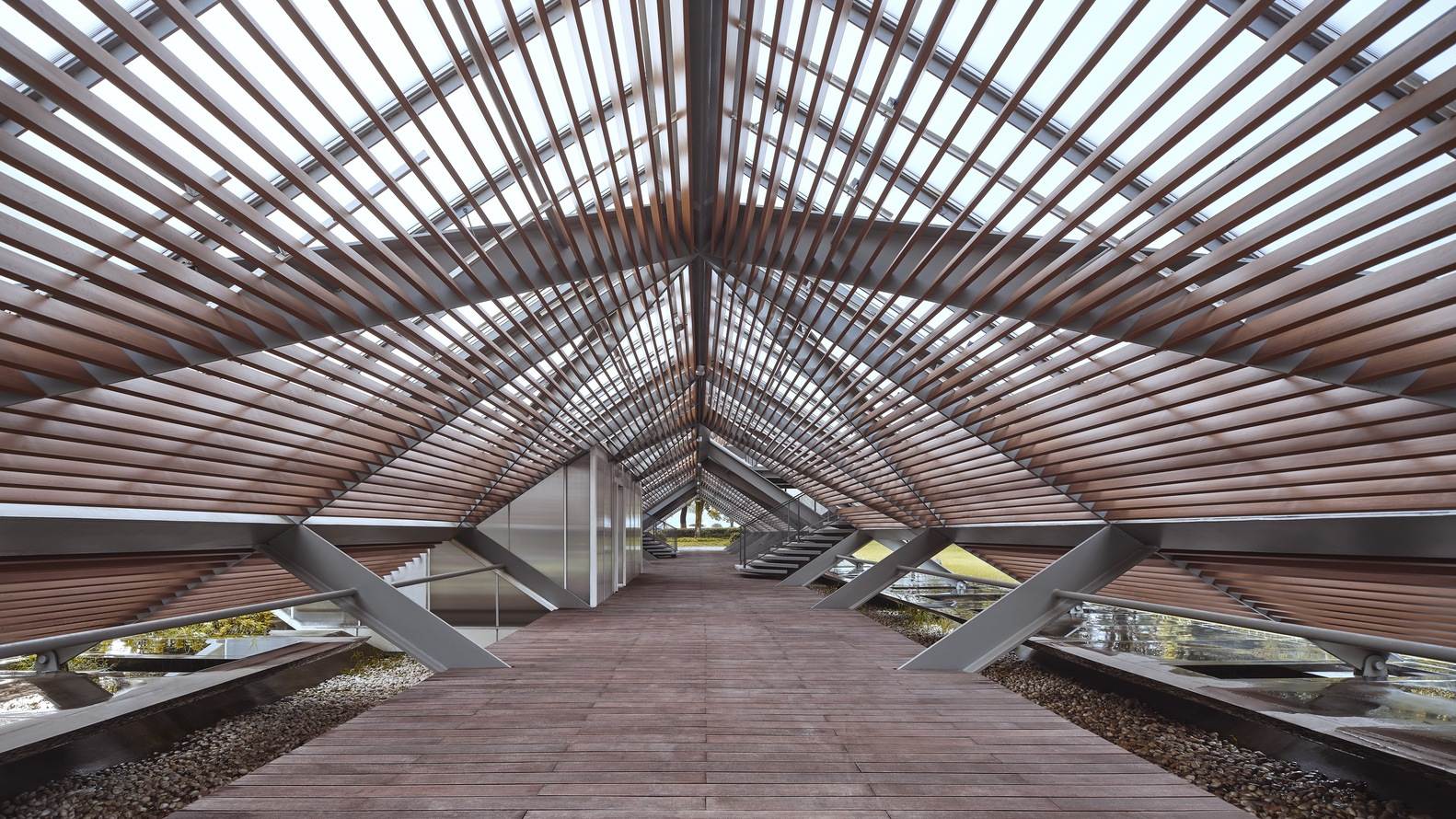

立面由聚酯板材料制成，利用其不受限制的单面尺寸来减少立面接缝。扣盖采用凹形，配套的钢龙骨为T型钢，简单精致。大桥站为公众提供了一个休息、驻足和凝视的地方。一楼设有一间咖啡厅，同时也是周边社区的临时展览场所。二楼是观景平台空间，公众可以俯瞰周围的风景，看到钱塘江对岸的六合塔，为古今对话创造了机会。
The facade is made of polyester board material, utilizing its unrestricted single-sided size to reduce facade joints.The buckle cover adopts a concave shape, and the matching steel keel is T-shaped steel, which is simple and exquisite.DaqiaoStationprovides a place for the public to rest, stop and gaze. The first floor is equipped with a caf é, which also serves as a temporary exhibition for the surrounding community. The second floor is a viewing platform space, where the public can overlook the surrounding scenery and see the Liuhe Pagoda on the other side of the Qiantang River, creating an opportunity for dialogue between ancient and modern times.
