Kaarestan Event Space / Persian Garden Studio

历史建筑的新生：Kaarestan 活动空间项目将一座有着 80 年历史的废弃建筑成功改造为充满活力的私人活动空间。其独特的地理位置使其成为城市节点，与周边复兴计划相连接。通过将南部建筑设计为咖啡馆，建立了与街道的视觉联系，向社区开放。加固后的主楼保留了原始形状，重新设计出各种功能空间，庭院地下室成为表演区和音乐室，玻璃池塘强化了不同层之间的视觉联系。屋顶层的设计更是受历史建筑启发，为游客提供独特景色和聚会场所。

文化传承与创新融合：该项目在设计过程中充分研究了伊朗的历史文化建筑，从伊斯法罕皇宫阿里·卡普中汲取灵感。将历史概念融入现代设计，如创建开口和框架视图的设计在不同楼层重复，既保护了历史建筑，又赋予其新的功能和意义。这个活动空间不仅是一个建筑项目，更是文化传承与创新的典范，为年轻人才提供了聚集、表演和创作艺术的场所，同时也为社区带来了归属感和文化活力，成为德黑兰城市生活中的一颗璀璨明珠。

建筑师提供的文字描述Text description provided by the architects. Kaarestan Event Space, located in Tehran's historic and cultural district, is an 80-year-old historic building that was left abandoned after the death of its owners Alireza Afzalipour, a philanthropist, and his wife Fekhere Saba a famous opera singer. The building originally consisted of three residential floors in the main northern building, a one-story southern structure, and a courtyard in between the two. The building was purchased by a well-known startup company, as part of their social responsibility plan, to be reused as a private event space and provide a place for young talents to gather, perform and create art.

© Deed Studio, blupix

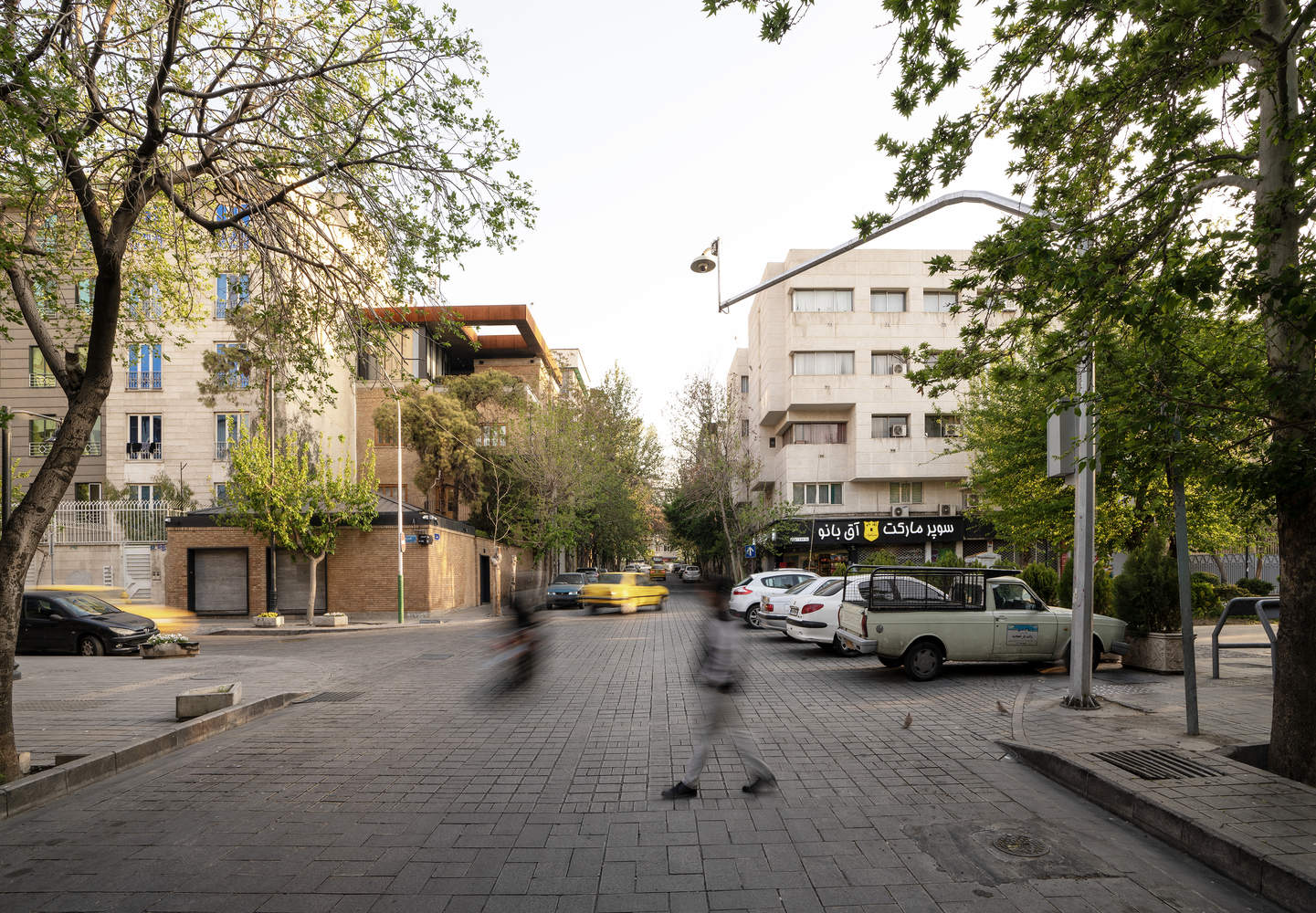

该项目位于德黑兰文化区的独特地理位置引领了设计方法，通过邀请公众庆祝表演艺术，将该项目作为城市节点与该地区现有的复兴计划联系起来。表演艺术也为当地表演者和艺术家带来了社区感和归属感。为了将建筑向社区开放，这是空间体验的起点，南部建筑被设计成一个有透明开口的咖啡馆，在主楼和街道之间建立了视觉联系。

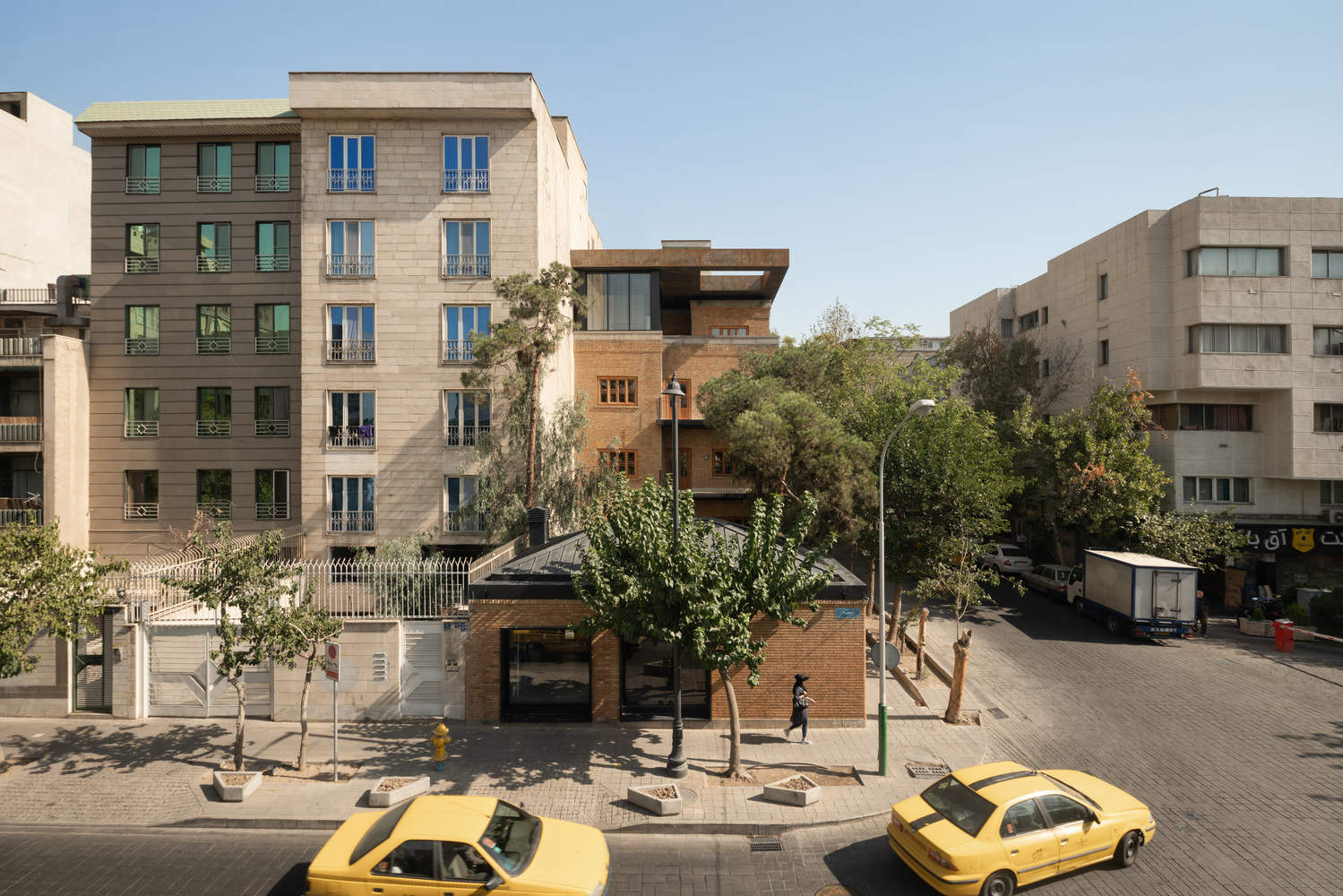

The project's unique geographical location in Tehran's cultural zone led the design approach towards focusing on creating a connection between this project as an urban node to the existing revitalization plan in the area by inviting the public to celebrate the art of performance also experience a sense of community and belonging for local performers and artists. To open the building to the neighborhood, the starting point of the spatial experience, the southern building was designed as a café with transparent openings, creating a visual connection between the main building and the street.

© Deed Studio, blupix

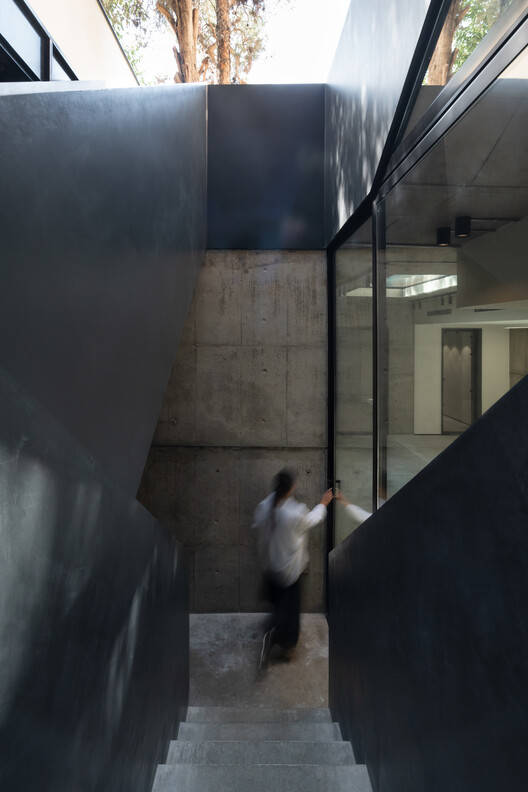

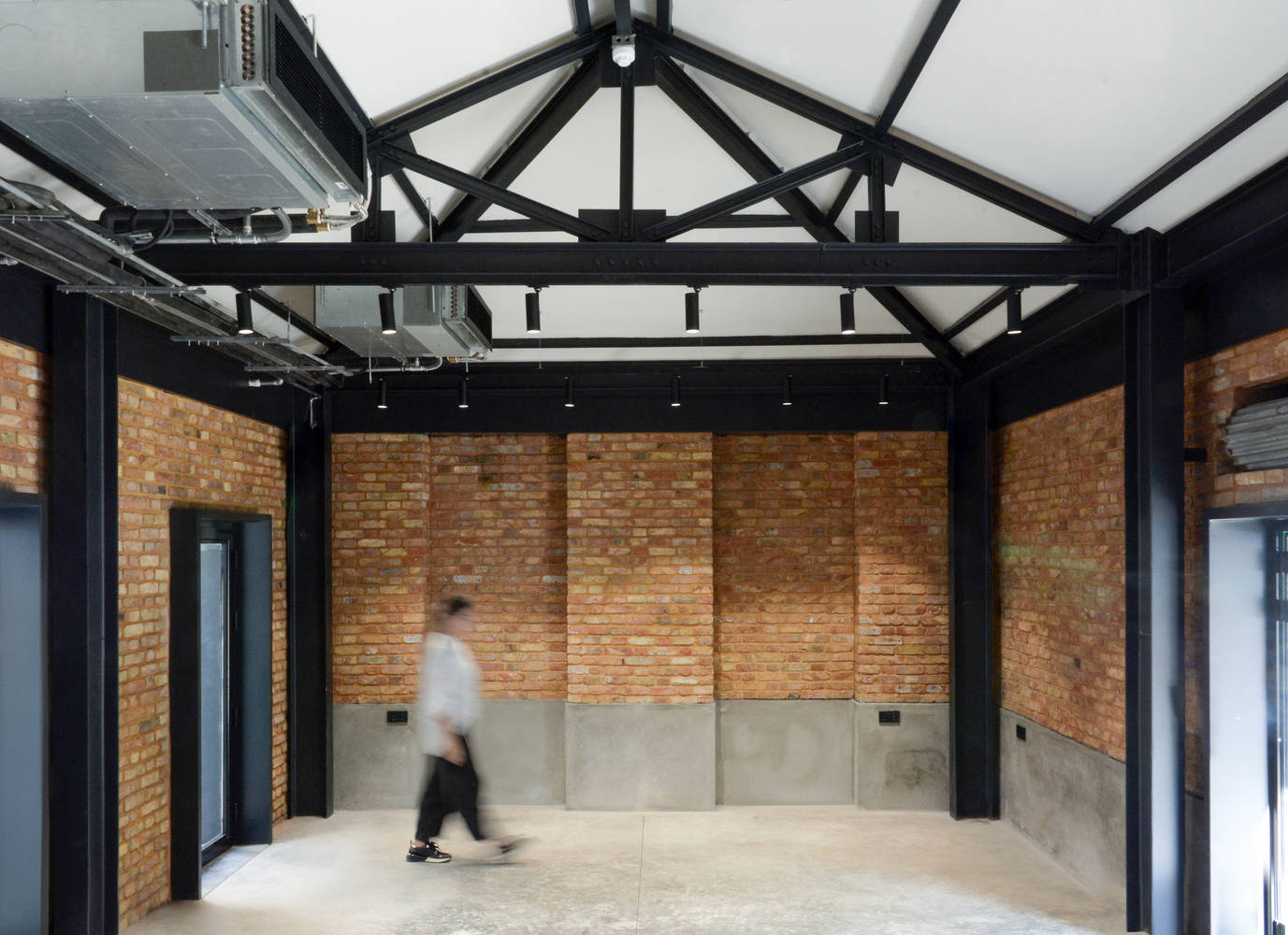

在加固过程中，主楼通过实施13米深的桩、条形基础、喷射混凝土墙和金属网地板等方法进行了加固。保持每层楼房间和空间的原始形状，并对其进行重新设计，以创建共享会议室、演示区、焦点室、游戏室和共享办公隔间。庭院被挖掘出来，形成了一个地下室，用作表演区和音乐室。然后，现有的池塘被重新设计为玻璃池塘，强调了项目不同层之间的视觉联系。

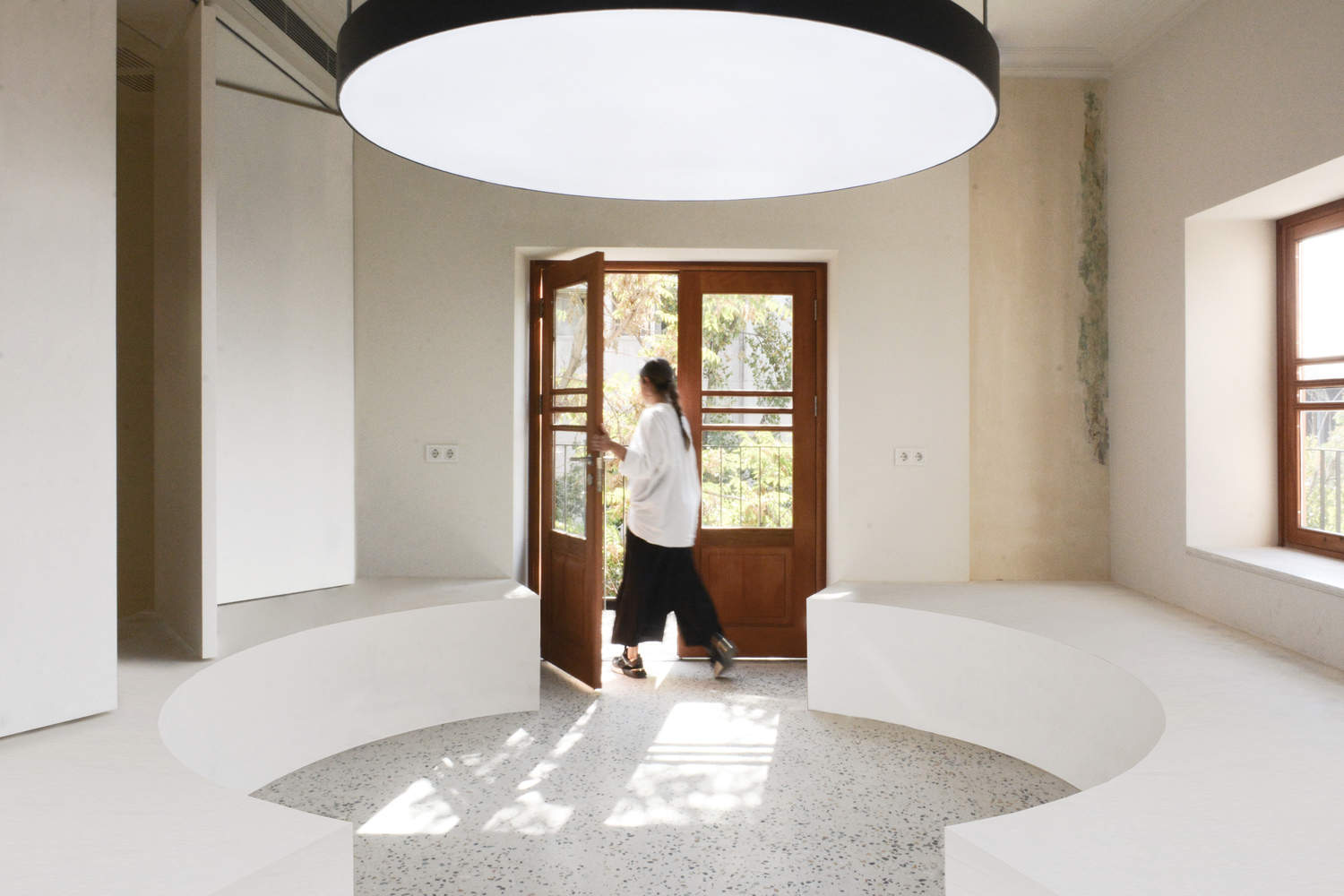

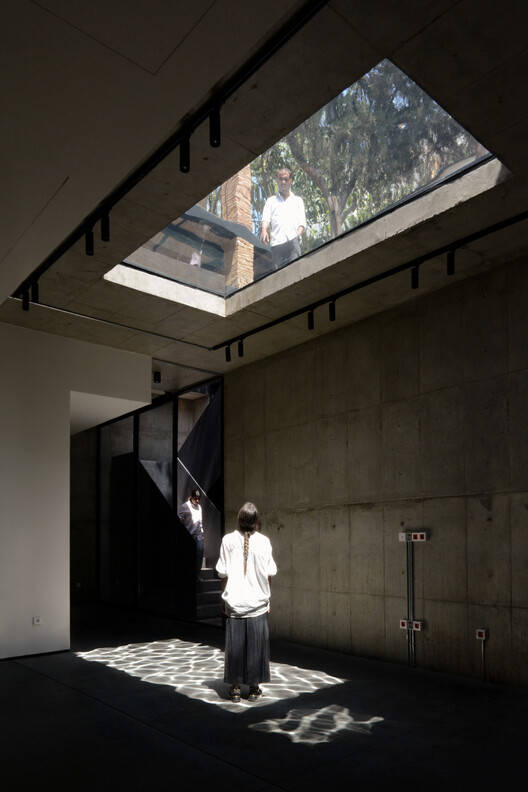

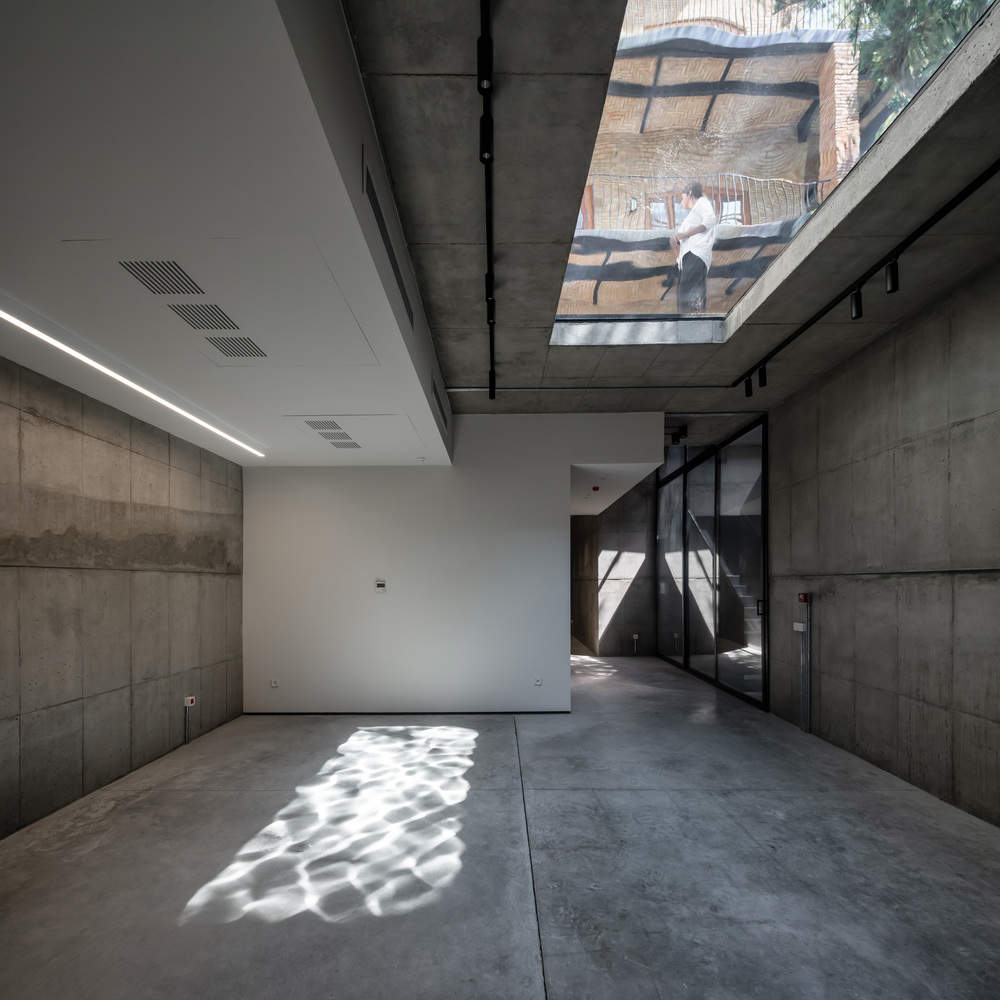

During the process of reinforcement, the main building was strengthened by methods such as the implementation of 13-meter-deep piles, a strip foundation, shotcrete walls, and metal mesh floors. Keeping the original shape of rooms and spaces on each floor and redesigning them to create shared meeting rooms, presentation areas, focus rooms, game rooms, and shared office booths. The courtyard was excavated creating a basement level to be used as a performance area and music room. The existing pond was then redesigned as a glass pond, emphasizing the visual connection between different layers of the project.

© Deed Studio, blupix

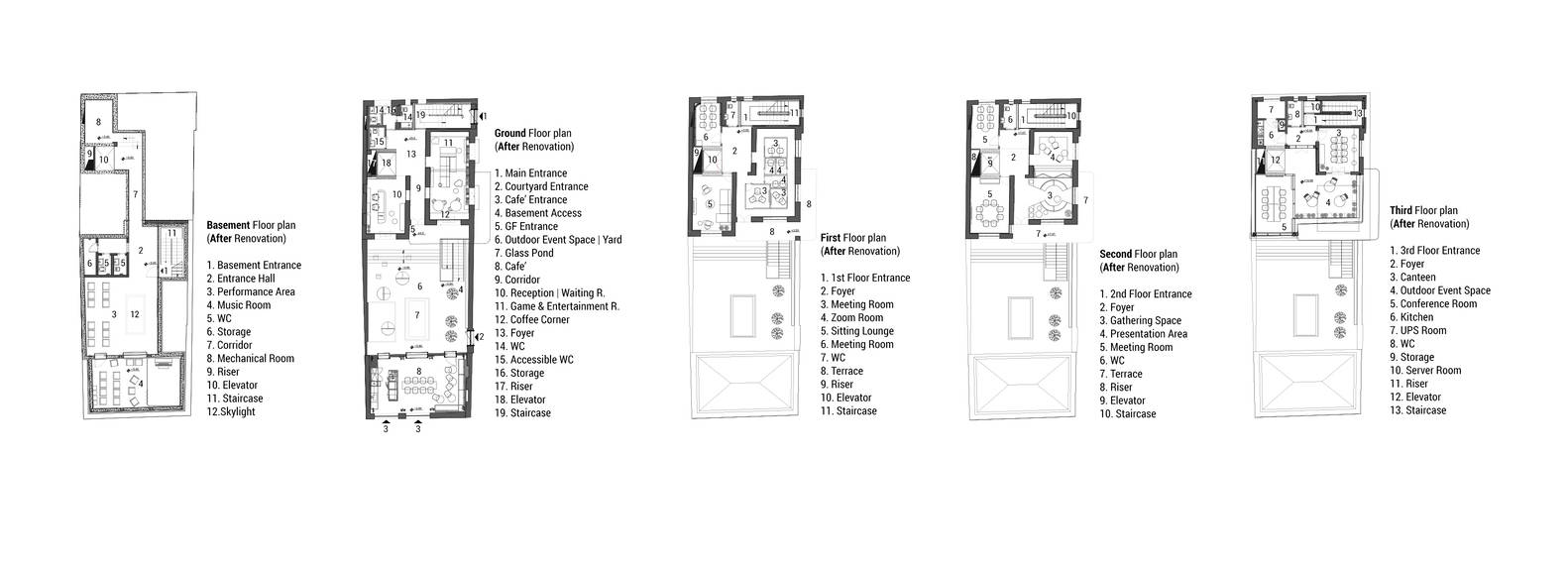

Floor Plan (After Renovation)

© Deed Studio, blupix

然后，通过研究伊朗的历史文化建筑，完成了设计过程，其中最具代表性的例子是建于16世纪的伊斯法罕皇宫阿里·卡普。这个世界遗产地位于纳克什-贾汉广场，曾经是皇帝的住所，顶楼的悬挑天花板露台是观察的基础，因为统治者观看了军队演习、马球比赛和主广场上发生的事件。
The design process was then completed by researching historic, cultural buildings in Iran, the most iconic example of which is Ali Qapu, an imperial palace in Isfahan, built in the 1500s. This world heritage site is located in Naqsh-e Jahan Square and was once the residence of emperors, and the terrace on the top floor with a cantilevered ceiling was a base of observation, as the rulers watched army maneuvers, polo games, and events happening in the main square.

受这一历史概念的启发，屋顶层是游客体验的重要完成点。金属屋顶扩建部分作为悬挑结构添加到现有屋顶上，并留有透明的间隙。南侧悬臂的开口构成了一幅天空景观，而体量则以现实和隐喻的方式保护了这座历史建筑。这种创建开口和框架视图的概念在一楼的玻璃池上重复，然后在屋顶上重复。

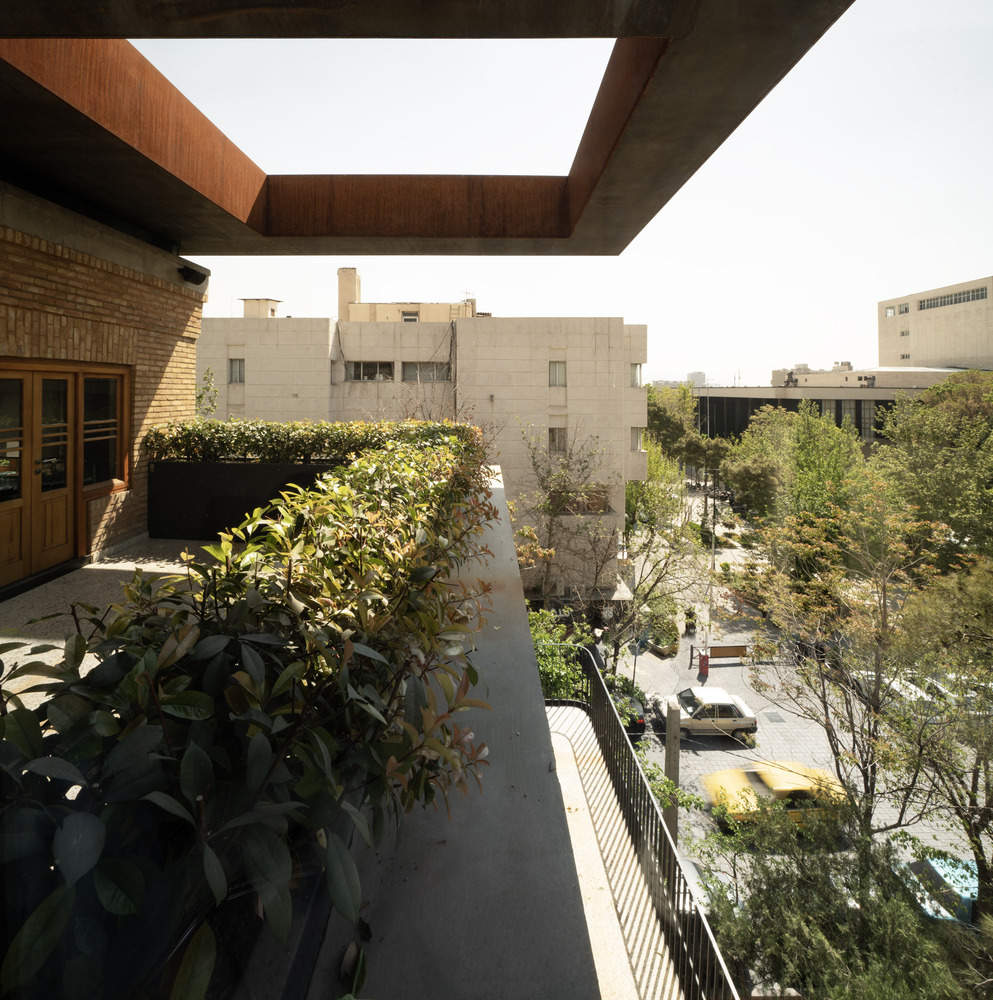

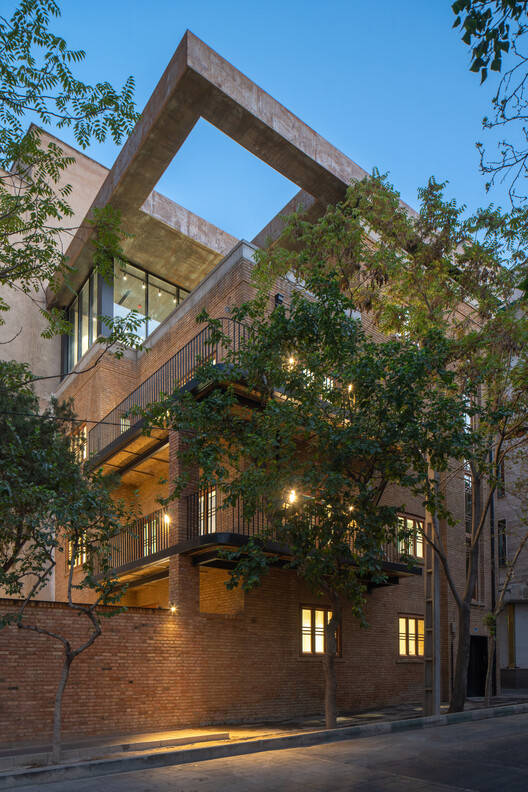

Inspired by this historic concept, the rooftop level is a significant completion point for the visitor's experience. The metal roof extension was added as a cantilevered structure to the existing roof with a transparent gap. The opening of the cantilever on the south side frames a sky view, while the volume protects this historic building in reality and metaphoric terms. This concept of creating openings and framing views is repeated on the ground floor with the glass pond and then on the rooftop.

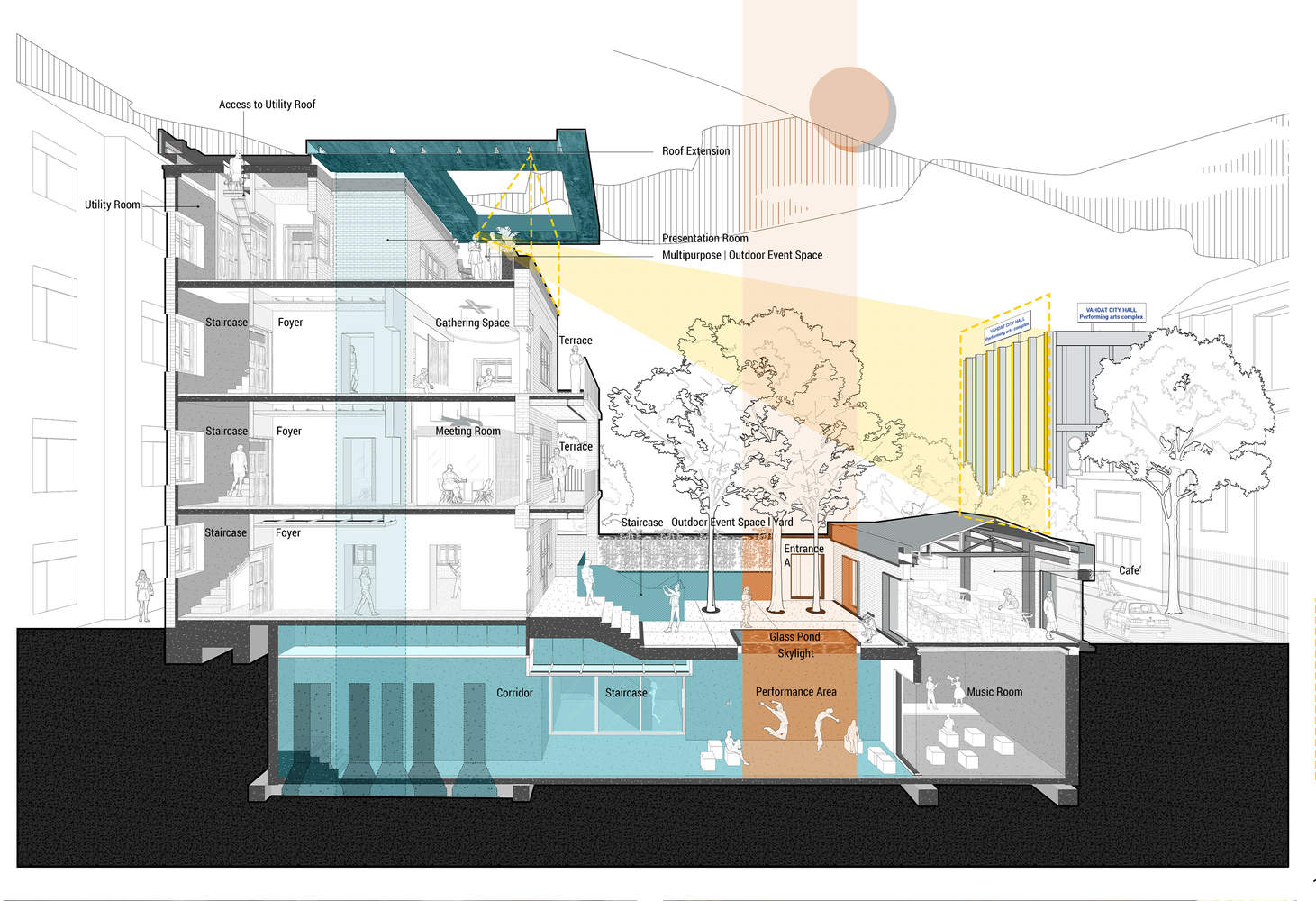

Perspective Section

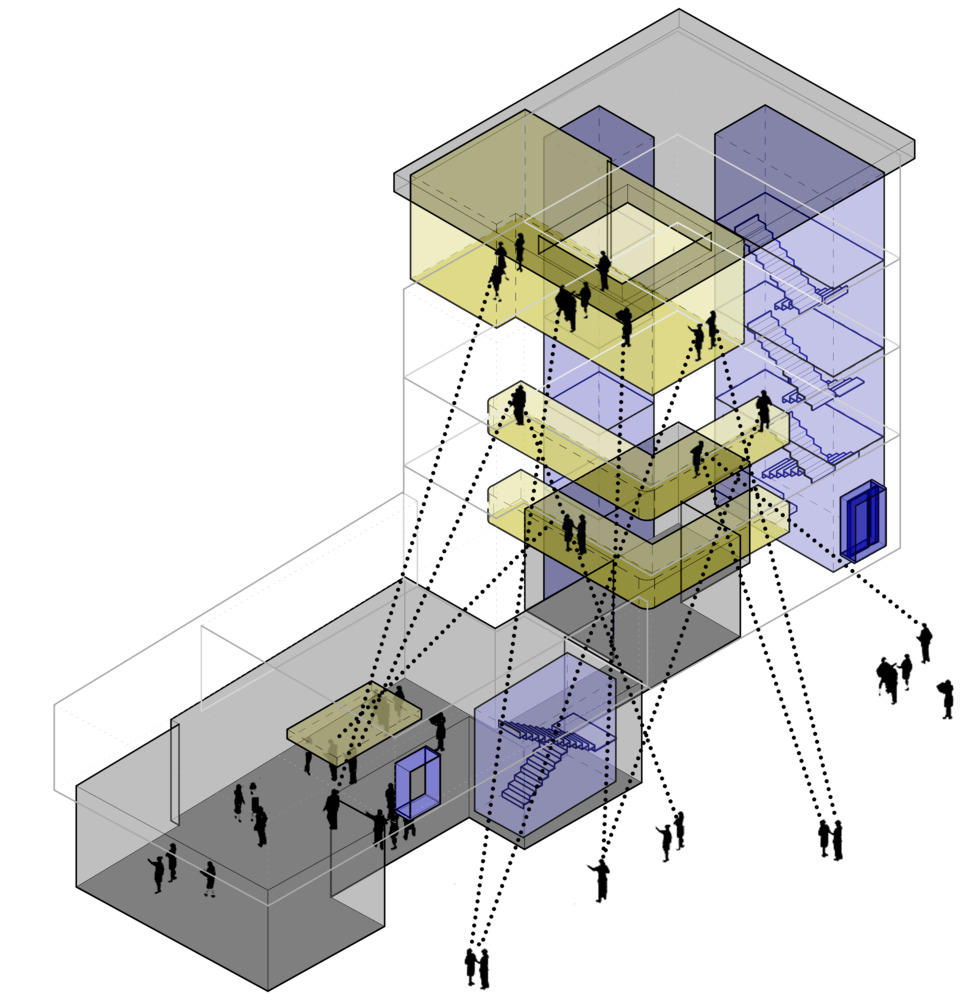

Diagram

在屋顶层，游客将体验到社区、Vahdat市政厅和许多其他历史建筑的独特景色。屋顶为与城市的连接点提供了便利，这是一个俯瞰社区的聚会场所，在这里可以建立人际联系，远离当今德黑兰拥挤的城市生活和限制。
At the rooftop level, visitors will experience a unique view of the neighborhood, Vahdat city hall, and many other historic buildings. The roof facilitates a point of connection to the city, a gathering place that looks over the neighborhood and where it is possible to create human connections away from crowded city life and restrictions in today's Tehran.
